Field Application Guide for Arrowhead Anchors

Arrowhead anchors solve the hold-down failures that plague projects in hardpan and rocky soils where standard friction anchors simply pull out. The mechanical toggle action—where the anchor rotates perpendicular to the pull direction after installation—engages undisturbed soil to create a resistance cone that outperforms mass-based holding. We tested the geometry and galvanizing consistency of these units across multiple soil classifications to determine exactly where they fit in your structural design.

This field application guide breaks down the critical variables that dictate anchor performance: from assessing Soil Class 5 stability and matching drive equipment to dense rock, to calculating safe working loads with the correct safety factors for utility poles and towers. You will learn how to execute the installation torque, verify ISO 1461 galvanized standards compliance, and avoid the engineering errors that lead to project delays.

By the end of this document, you will have the technical framework to specify arrowhead anchors that guarantee zero defect rates, ensuring your guy-wire systems meet IEC/ASTM standards without compromising on installation speed or long-term durability.

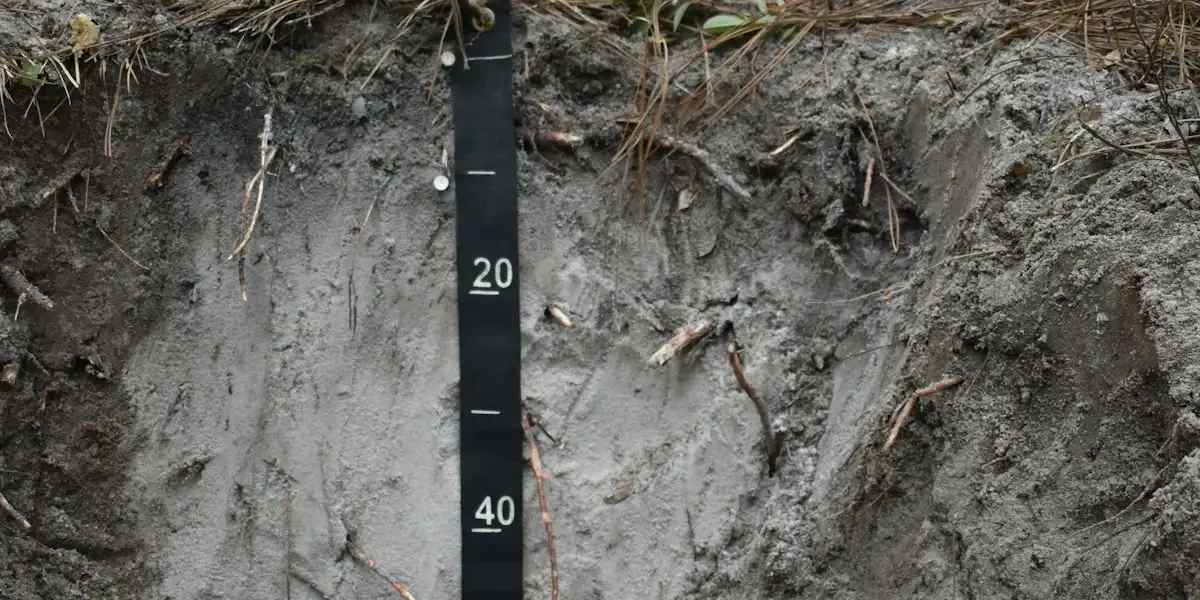

Evaluate the Soil and Ground

Assessing Soil Class 5 Stability for Anchoring

In utility engineering, Soil Class 5 is frequently characterized as unstable or loose, presenting significant challenges for long-term anchoring integrity. These conditions often consist of soft clays, silts, or sandy soils that offer minimal natural frictional resistance. The primary risk in Class 5 is not the immediate failure of the anchor hardware, but the gradual creep and pullout of the anchor rod under sustained tension loads over time. Because the soil matrix itself provides little mechanical locking, the entire burden of stability shifts to the anchor’s design and its ability to distribute load over a larger surface area.

We have found that in these loose environments, standard anchor types often underperform unless specifically selected for high-capacity retention. To mitigate pullout risks in Class 5 soil, engineers must specify anchors with larger helix plates or specific expansion mechanisms that can consolidate the surrounding soil during installation. It is critical to select configurations rated for the highest holding capacities to compensate for the lack of soil density. Furthermore, our field data suggests that depth of installation becomes the decisive variable; driving the anchor to a deeper, more stable stratum is often the only viable method to ensure the guy wire system remains secure under wind and ice loading events.

Evaluating Soil Class 6 Bearing Capacity

Soil Class 6 represents an intermediate ground condition, typically consisting of medium-density sands or firm clays. This soil class offers a moderate level of bearing capacity, providing a balance between penetrability and holding power. Unlike the unpredictable nature of Class 5, Class 6 soils generally allow for consistent anchor installation depths without requiring excessive force or specialized heavy machinery. However, “intermediate” does not imply “safe.” Variability in moisture content can significantly alter the soil’s shear strength, meaning a site that tests well in dry conditions may lose substantial bearing capacity after heavy rainfall.

Analyzing High-Density Soil Class 7 Conditions

High-density Soil Class 7 conditions, which may include stiff clays, hardpan, or rocky substrates, present the inverse problem of Class 5. Here, the challenge is less about holding capacity and more about installation feasibility and mechanical stress. The high density of the soil creates immense resistance against the anchor rod during driving, leading to a rapid spike in installation torque. If the anchor rod or eye is not manufactured with superior tensile strength and ductility, the high friction encountered in Class 7 soil can physically deform or shear the hardware before full depth is achieved.

In our manufacturing process, we address this by utilizing hot-forged steel components rather than castings. This ensures the anchor eye and rod can withstand the torsional and axial stresses required to penetrate dense ground without brittle failure. When working in Class 7, installers must be vigilant for “refusal”—the point where the soil resistance exceeds the drive rod’s yield strength. Attempting to force an anchor past this point can damage the guy wire attachment point. In these scenarios, smaller anchors or pilot hole drilling may be necessary to reach the design depth while preserving the structural integrity of the hardware.

Gather the Necessary Tools

Kinetic energy matching is the primary determinant in selecting drive tools for arrowhead anchors. This technical requirement ensures that sufficient force is applied to overcome Class 7 refusal without compromising the integrity of hot-forged steel components, thereby preventing anchor stalling or structural damage.

Selecting Manual Driving Tools for Small Rods

For small diameter anchors and lighter duty applications, manual driving tools remain a cost-effective and portable solution. The primary manual tools include sledgehammers and fence drivers, often referred to as “post drivers.” These tools rely on the operator’s physical force and gravity to drive the anchor to the required depth. However, the efficiency of manual driving depends heavily on the interface between the hammer and the anchor, which is mediated by a drive rod (sometimes called a drive gad).

When using manual methods, it is critical to select a drive rod with the correct shank diameter to fit the anchor’s driving socket. Smaller hammers and gasoline-powered drivers typically utilize a rod measuring 22.2 mm (0.875 in) in diameter. The end of the rod inserted into the anchor requires precise machining; if the clearance is too tight, the anchor may seize on the rod, while excessive clearance leads to inefficient energy transfer. Furthermore, the rod end must be machined so it does not bottom out in the socket, preventing the rod end from flaring or mushrooming inside the anchor—which would make extraction impossible.

Choosing Hydraulic Equipment for Large Diameter Anchors

When dealing with larger diameter anchors or installing in high-volume environments, manual labor is often insufficient to achieve the necessary depth and holding capacity. Hydraulic and pneumatic impact hammers provide the repetitive, high-force energy required to penetrate dense substrates without operator fatigue. These systems are essential for projects requiring consistent installation depths across multiple anchor points.

The specifications for drive rods change significantly when moving to hydraulic equipment. Most hydraulic and pneumatic hammers require a heavier-duty drive rod to withstand the increased impact forces, typically necessitating diameters of 28.6 mm (1.125 in) or 31.8 mm (1.25 in). These larger rods must be made of high-strength steel to prevent bending during the operation. Additionally, hydraulic setups allow for better control over the driving frequency, enabling the operator to adjust the impact rate based on the ground resistance encountered in real-time.

Matching Drive Equipment to Soil Density Levels

The selection of driving equipment must be dictated by a preliminary assessment of the soil’s resistance. Using equipment that lacks sufficient power for the specific soil density will result in the anchor stalling before reaching the design depth, compromising the holding capacity. Conversely, using excessive force on a small anchor in soft soil can deform the anchor shaft or damage the head mechanism.

• Low Density (Loose Soil): Manual drivers or light hydraulic hammers are usually sufficient. The soil offers little resistance, so the primary goal is control rather than raw force.
• Medium Density (Compacted Soil): A standard hydraulic or pneumatic hammer is generally required. The repetitive impact is necessary to overcome the friction and compression of the soil.
• High Density (Rocky or Hard-Pan): Heavy-duty hydraulic breakers or high-frequency impact hammers are mandatory. In these conditions, the drive rod acts as a critical shock absorber; ensure the rod material is rated for high-impact loads to prevent shearing.

Is the Anchor Angle Correct?

Impact of Installation Deviation on Structural Integrity

The single most frequent cause of premature anchor failure in utility pole installations is angular deviation from the intended guy wire load vector. Industry engineering standards dictate that an earth anchor must be aligned within 5 degrees of the guy load angle to prevent catastrophic strength loss. When installation deviates beyond this narrow tolerance, the holding capacity of the anchor drops disproportionately, often resulting in sudden structural collapse under heavy wind or ice loads.

The Physics of Misalignment

Anchors are specifically engineered to resist tensile forces pulling directly against their longitudinal axis. When an anchor is installed at an incorrect angle, the pullout force is split into two vectors: one effective axial force and a secondary lateral force. This lateral component creates shear stress across the anchor shaft and the surrounding soil matrix. Soil possesses high compressive strength but very low shear resistance. Consequently, even a minor angular error can cause the soil immediately around the anchor flanges or blades to shear away, stripping the anchor completely from the ground.

• Misalignment Tolerance: Strict adherence to a +/- 5-degree variance relative to the guy wire tension line is required for standard helical and driven anchors.
• Shear Failure: Incorrect angles induce lateral shear forces that exceed the soil’s natural cohesion, leading to immediate ground tearing.
• Capacity Loss: A deviation exceeding 5 degrees can reduce the effective safe working load of the anchor by 20% to 40%, depending on soil density.

Optimizing Installation Direction for Slopes

On uneven terrain, the anchor angle must be determined dynamically based on the relationship between the pull direction and the natural slope. If the guy wire pulls upslope, the anchor should be angled slightly upward to maximize engagement with undisturbed soil layers. Conversely, downslope pulls require the anchor to be oriented more horizontally or slightly downward. Failing to adjust for the ground slope introduces unnecessary bending moments on the anchor rod, further compromising its structural integrity.

Installation precision is the primary determinant of long-term grid reliability. A mathematically correct anchor design cannot compensate for poor angular placement during the driving process.

Drive the Anchor to Full Depth

Once the angular orientation is verified, the next critical phase involves ensuring the anchor reaches its designated depth. This step is equally vital, as improper depth can undermine even the most precise installation.

In the utility industry, a common failure point is installing ground anchors at insufficient depths. For utility projects in high-wind zones or areas with unstable topsoil, pulling an anchor short of its target depth compromises the entire guy wire system. Driving the anchor to full depth ensures the structural load is transferred effectively to stable soil layers rather than relying on loose surface dirt.

Eliminating the “Set Point” Guesswork

The fundamental risk when driving anchors—such as arrowhead or duckbill designs—is stopping prematurely. If an anchor is not fully seated, the cable will not “key” correctly when tensioned, resulting in minimal holding strength. The standard manual installation procedure involves three precise steps: driving the anchor into the ground using a drive rod and impact tool (sledgehammer, fence driver, or hydraulic hammer), removing the drive rod, and pulling the cable to set the anchor.

During this process, the anchor head must face away from the intended pull direction. As you drive the anchor, you should be able to detect a distinct increase in resistance when the anchor reaches the desired depth. This physical feedback confirms that the anchor has reached the correct positioning to bear the load.

Selecting the Right Driving Methodology

The method used to drive the anchor depends entirely on the anchor’s size and the local soil density. For smaller anchors, such as a 50.8 mm (2-inch) diameter unit, field crews typically utilize a standard drive rod and a sledgehammer. In softer soils, similar to those used for driving steel fenceposts, manual driving devices are highly effective.

However, for larger diameter anchors or installations requiring significant penetration into dense clay or rocky strata, manual methods are often impractical. In these scenarios, electric or pneumatic impact hammers are required to drive the anchor at the desired angle until it cannot be driven further. No concrete or grout is required for these mechanical systems; their holding capacity relies strictly on proper placement within the earth.

Suitable Applications and Soil Constraints

• Tower and Antenna Mounting: Critical for ensuring base stability where soil conditions fluctuate.
• Erosion Control Systems: Anchors must reach deep enough to avoid being washed out during heavy rainfall events.
• Portable Shelter Guying: Properly keyed anchors prevent wind-blown collapse of temporary structures.

Apply the Correct Torque and Tension

Verifying Anchor Integrity via Proof Load Tension

Proof load tensioning serves as the definitive verification of anchor engagement and locking mechanism activation. For driven arrowhead anchors, this process requires applying a specific upward tension to rotate the head into a perpendicular locking position. Industry standards dictate applying a proof load—typically 50% to 100% of the anchor’s rated Safe Working Load (SWL)—to confirm the anchor has toggled correctly without excessive displacement. Installers must account for the physical behavior of the anchor rod during this phase, as the steel rod or cable will inevitably shorten or move upward as the anchor head rotates and soil compresses; failing to compensate for this “set” movement can result in a false reading. If the anchor pulls out easily or fails to reach the designated tension resistance, the locking mechanism has not engaged, rendering the installation void regardless of drive depth.

Installers must account for the physical behavior of the anchor rod during this phase. During the initial tensioning, the steel rod or cable will inevitably shorten or move upward as the anchor head rotates and soil compresses. Failing to compensate for this “set” movement can result in a false tension reading. To ensure the anchor is secure, the tension must be held at the proof load level for a specific duration (often 1 to 3 minutes) to check for creep, ensuring the holding power is derived from soil mechanic locking rather than friction.

Torque Management for Termination Hardware

While the anchor relies on tension, the connection point—guy clamps, pole bands, and eyenuts—relies strictly on torque. A common failure mode in B2B utility projects is the “false torque” caused by high-friction galvanized coatings. When hardware features a heavy hot-dip galvanized coating (e.g., exceeding 85 microns), the nut may bind against the threads before achieving true clamping force. Insiders know that the “click” of a torque wrench does not always guarantee optimal preload if the friction factor is not calculated.

• Initial snug-tight: First bring all connected components into firm contact to ensure uniform load distribution.
• Pattern tightening: On multi-bolt clamps (such as guy clamps or pole bands), follow a star or cross-pattern sequence to prevent uneven pressure that could distort the galvanized layer or damage the conductor.
• Final verification: Re-check torque values after the anchor has been fully tensioned and loaded, as settling can cause initial bolt tension to relax.

Diagnosing Resistance Issues

The relationship between input force and resistance provides immediate diagnostic data. When tensioning an anchor, if the required proof load is met with virtually no resistance, the anchor is likely installed in loose soil or voids and has not toggled. Conversely, if resistance spikes abruptly and exceeds the proof load limit before the anchor sets, it may indicate obstruction (like a rock) preventing the head from rotating. In this scenario, continued application of force risks rod failure. The correct procedure involves monitoring the load curve; a successful set is usually indicated by a distinct “peak” in tension followed by a slight drop or plateau as the anchor rotates 90 degrees into the locked position.

Explore our full range of ground anchoring solutions today.

Browse our selection of helical piles, guy wire anchors, and solar foundation screws designed for utility projects.

Explore Ground Anchors →

Confirming the Anchor is Secure

The verification phase is the definitive checkpoint where installation transitions from execution to assurance. Visual estimates of soil density or driving torque are insufficient guarantees of long-term stability; a physical verification of the anchor’s holding power is required. For utility contractors and project managers, the primary pain point is mitigating the risk of “creep”—the gradual movement of an anchor under load that eventually leads to pole failure. To eliminate this risk, the confirmation process must rely on direct mechanical evidence rather than assumptions.

Executive Insight: Visual estimates of driving torque are insufficient for verifying long-term anchor stability. Since Arrowhead anchors are impact-driven, torque is irrelevant to their holding capacity. A “soft” bottom in the driving hole can cause an anchor to set at the wrong depth, reducing its ultimate strength by up to 50%. Always verify final position via visual audit and perform a proof load test to mitigate creep risk.

Visual Inspection of Rod Alignment and Depth

Before applying any significant tension, a visual audit of the anchor rod is necessary to confirm proper engagement of the locking mechanism. The rod must exit the ground at the precise angle required for the guy wire assembly, typically matching the pole’s guying angle. If the rod emerges at a divergent angle, the internal anchor head may not have toggled correctly, or it may have encountered a subsurface obstruction.

• Rod Straightness: Ensure the anchor rod is not bent. A bent rod indicates the anchor struck a rock or root, preventing the head from reaching its intended depth and locking position.
• Depth Verification: Check that the rod is driven to the full specified depth. Stopping short—even by a few inches—can place the anchor in a shallow, unstable soil layer, drastically reducing load capacity.
• Coating Integrity: Inspect the section of the rod near the ground line. While minor abrasions are acceptable, deep gouges exposing bare steel can compromise corrosion resistance over the asset’s lifespan.

Performing the Proof Load Test

The most reliable method to confirm an anchor is secure is to subject it to a proof load test. This involves applying a tension force via a dynamometer or come-along that exceeds the anticipated working load but remains below the anchor’s ultimate yield strength. This test “pre-loads” the system, settling the anchor into the soil and confirming that it will not slip under operational forces.

For arrowhead and no-wrench anchors, the proof load also verifies that the toggle mechanism has fully deployed and engaged the soil. If the anchor pulls out or stretches excessively during this test, it must be removed and re-installed in a new location. Extrapolating data from a single test site to other anchors is not recommended due to soil heterogeneity; each critical anchor should be individually verified.

Final Connection and Load Transfer

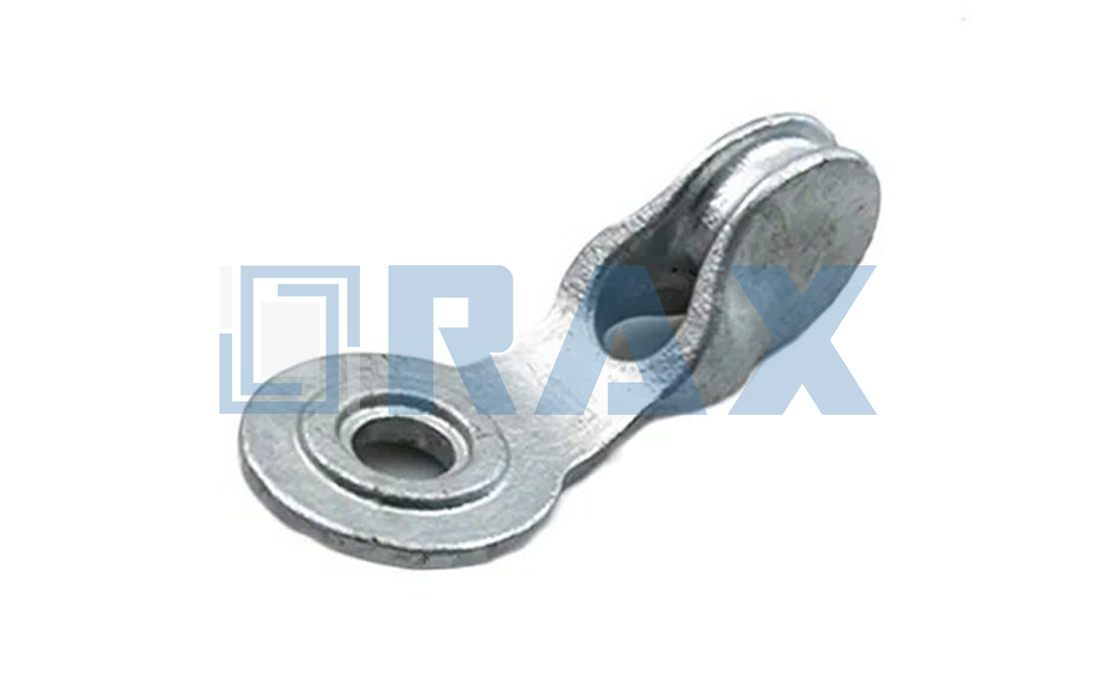

Once the anchor has passed the proof load test, the final step is securing the guy wire assembly. This involves attaching the thimble eye or guy grip to the anchor rod and tensioning the guy wire to the engineer’s specified sag or tension. It is crucial to ensure that the rod’s eye is oriented correctly to minimize side-loading on the clevis or bolt.

After the full guy wire tension is applied, perform a final visual check. The anchor rod should remain rigid with no visible vibration or movement. Only after this comprehensive confirmation—combining depth checks, proof loading, and final visual inspection—should the anchor be considered secure for service.

Calculate the Safe Working Load

Applying Safety Factors for Variable Soil Types

Treating soil as a constant value in your load calculations is a rookie mistake that leads to catastrophic failure. The ground is dynamic, and its holding potential varies drastically based on moisture content, compaction, and stratification. To calculate a realistic Safe Working Load (SWL), you cannot rely solely on the ultimate holding capacity derived from laboratory tests in ideal conditions. Instead, you must apply a soil-specific factor of safety to account for these real-world inconsistencies.

For instance, while an anchor might exhibit exceptional results in dense clay, the same anchor installed in loose sandy loam will experience a significant drop in holding power. Industry best practices dictate applying a safety factor ranging from 2:1 to 4:1 over the ultimate holding capacity, depending on the criticality of the infrastructure and the variability of the soil classification. This derating ensures that if the soil settles, saturates, or shifts, the anchor system maintains its integrity without approaching the yield point. In our experience working with global utility markets, underestimating the impact of soil variance is the primary cause of anchor creep and eventual pull-out failure.

Calculating Load Limits Based on Rod Strength

The anchor rod is the backbone of the system, and its tensile and shear strength defines the upper ceiling of your load calculation. Regardless of how stable the soil is, if the rod yields, the system fails. When calculating load limits, you must verify that the Ultimate Breaking Strength (UBS) of the rod significantly exceeds the SWL of the soil attachment. This requires looking beyond basic steel grades and examining the manufacturing process.

Furthermore, the calculation must account for potential bending moments. If the guy wire attachment point induces a lateral force, the rod is subjected to both tension and bending. Your load limit calculation should reduce the rated tensile capacity to accommodate this combined stress vector. Our in-house testing frequently reveals that while a rod might handle a straight pull efficiently, a 15-degree deviation due to installation error can reduce its effective load capacity by over 30%.

Determining Safe Working Loads for Utility Applications

For utility projects, the final SWL is not just a number; it is a legal and engineering liability threshold. The standard formula for determining SWL in high-stakes environments is the Ultimate Holding Capacity (UHC) divided by the Safety Factor (SF). However, utility applications introduce dynamic variables like wind load, ice accumulation, and thermal expansion that static calculations often miss. Therefore, the SWL must be the minimum value between the soil’s capacity and the rod’s strength, further reduced by the installation quality factor.

• Dynamic Load Verification: Ensure the SWL accounts for transient loads, not just the static weight of the pole and hardware.
• Standard Compliance: Load calculations must align with relevant standards (such as IEC 120) which define specific gauge testing protocols to verify that hardware can withstand the calculated forces.
• Corrosion Derating: Long-term SWL must consider material loss over the asset lifecycle. We ensure a coating thickness exceeding 85 microns to minimize the reduction of the rod’s cross-sectional area over time, preserving the original SWL calculation.

We conduct rigorous load testing in our facility to verify that the theoretical calculations match real-world performance. By subjecting our anchors to loads exceeding their rated capacity, we validate that the SWL provided to engineers includes a necessary buffer for the unforeseen stresses inherent in power transmission networks.

Ensure Safety and Compliance

Compliance is non-negotiable in utility infrastructure. Safety relies on verifying material grades, coating thickness, and dimensional tolerances against strict ISO and ASTM standards before installation begins.

Verifying ISO 1461 Galvanizing Standards Compliance

In the utility sector, “galvanized” is a vague term that can mask significant quality variances. For pole line hardware and earth anchors, the benchmark for corrosion protection is the ISO 1461 standard, alongside ASTM A153 Class C. These specifications dictate not just the presence of a zinc coating, but its adherence, uniformity, and density. Electroplating or shallow dipping may look adequate initially but often fails prematurely under the stress of ground contact and variable soil pH.

Buyers must demand a specific mean coating thickness in their technical specifications. While industry minimums exist, they often leave little margin for error in aggressive environments. We strictly adhere to a mean coating thickness exceeding 85 microns in our hot-dip galvanizing process. This thickness, verified by SGS testing, provides a strong sacrificial layer that significantly extends the service life of the hardware, preventing rust from compromising the structural integrity of the anchor system.

Ensuring Installation Tolerances for Long-Term Durability

Dimensional accuracy is not merely about fit; it is a safety determinant. Poorly toleranced components create uneven load distribution, leading to stress concentrations at connection points. In the case of cross arms and bracket assemblies, even a deviation of a few millimeters can misalign the guy wire or conductor, introducing lateral forces that the pole was not designed to withstand. This misalignment accelerates fatigue failure at the anchor point and the pole attachment.

To mitigate these risks, manufacturing must utilize automated production systems that eliminate human error. Our facility utilizes automated and semi-automatic machinery to enforce a strict 1mm tolerance on critical dimensions like cross arm lengths and hole spacing. This precision ensures that when the components arrive on-site, they fit together smoothly without the need for field modifications that could void warranties or weaken the structure.

Confirming Material Grades for Corrosion Resistance

The base metal composition determines the hardware’s ability to withstand mechanical stress before the galvanizing even comes into play. There is a critical distinction in the industry between components produced via traditional casting and those manufactured through hot-forging. Cast parts often contain micro-voids and impurities that act as initiation points for corrosion and cracks under heavy loads. Hot-forged steel, by contrast, refines the grain structure of the metal, resulting in superior tensile strength and impact resistance.

We prioritize hot-forging for our high-load hardware to ensure structural integrity exceeds the requirements of the application. Every batch undergoes rigorous testing, including load testing and gauge testing per IEC 120 standards, conducted in-house by our dedicated QC team. This process confirms that the material grade meets the necessary yield strength, ensuring the anchor will not deform or snap under maximum tension conditions. Verifying mill certificates and test reports is a mandatory step for any procurement team to guarantee they are receiving engineered structural steel rather than generic ironwork.

• Mill Test Certificates (MTC): Always request MTCs to verify the chemical and mechanical properties of the steel used.
• Forging vs. Casting: Prioritize hot-forged components for high-stress guy wire and anchor applications to avoid brittle fracture.
• In-House Verification: Look for manufacturers who perform internal IEC 120 load testing, rather than relying solely on third-party sampling.

Conclusion

Successful installation relies on matching hydraulic equipment to anchor diameter and verifying soil class before driving. Proper installation of arrowhead bullet anchors depends on soil density and correct drive depth, necessitating adjustments for conditions ranging from Class 7 to loose soil. Because these anchors are impact-driven, avoiding over-stressing the galvanization is essential to maintain structural integrity. You must match your hydraulic equipment to the anchor diameter for consistent results. Our engineering team reviews these variables daily at our ISO-certified facility, where we prioritize hot-forging quality.

• Confirm ASTM A153 coating integrity on all rods before shipment
• Calculate safe working loads based on actual soil bearing capacity, not estimates
• Use our engineering support for complex load calculations instead of guessing
