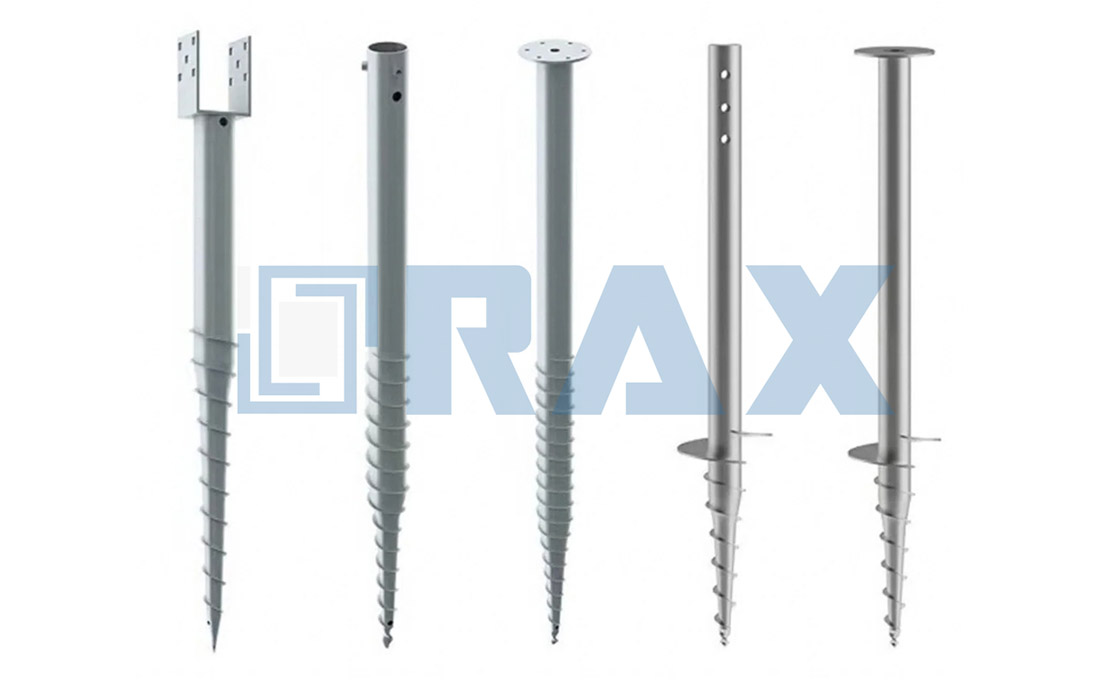

Ground screw pile anchors are steel screw-in piling systems featuring a central shaft with one or more helical plates welded to it. The anchor rotates into the ground using hydraulic machinery, which applies torque to drive the helical plates through the soil. This process displaces soil laterally, creating a secure anchor point that transfers compressive and tensile loads from structures to stable subsurface layers, providing an alternative to traditional concrete foundations with minimal soil disturbance.
The anchors are manufactured from high-strength steel, such as Q235 or Q345, with hot-dip galvanized coatings for corrosion resistance. Common specifications include pipe diameters from 76mm to 114mm, wall thicknesses from 3mm to 6mm, and customizable lengths from 500mm to 3000mm or more. The spiral thread design reduces embedment depth for efficient installation, while precision-crafted tips ensure accurate placement. These dimensions adapt to varying soil conditions and structural load requirements.
Benefits include reduced installation time through elimination of excavation and concrete curing, leading to lower labor and machinery costs. The anchors offer immediate load-bearing capacity after installation and perform effectively in various soil types, from sandy and clay to rocky conditions. The method minimizes landscape disruption and provides long-term durability with resistance to extreme weather, with service life extending beyond several decades depending on environmental factors and load conditions.
RaxPower Ground Screw Pile Anchor Supplier for Easy and Rapid Installation
We are RaxPower, a company proud to be a leading manufacturer of ground screw pile anchors with over 21 years of experience in helical pile manufacturing. Our mission is to make installation easy, focusing on customer convenience and efficiency. The RaxPower Ground Screw Pile Anchor requires no concrete and allows foundations to be set within minutes, not hours, providing a rapid, clean, and reliable alternative to traditional methods.
We utilize patented inertia welding technology, which results in the strongest helical pile solutions, ensuring superior strength and load-bearing capacity. This advanced manufacturing process allows our piles to support high loads in various soil conditions, from clay to sand, with minimal vibration and disruption.
Key features and benefits of the RaxPower Ground Screw Pile Anchor include:
- Central shaft made of high-strength steel for optimal load transfer
- Helical plates designed for efficient soil displacement and stability
- Hot-dip galvanized coating for excellent corrosion resistance and long service life
- Easy installation process, reducing time and labor costs
Common applications for our ground screw pile anchors include:
- Solar panel foundations
- Building and structural supports
- Dock and deck foundations
- Agricultural and signage projects
We are available 24/7 via email or telephone to provide expert support and customized solutions for your project needs.

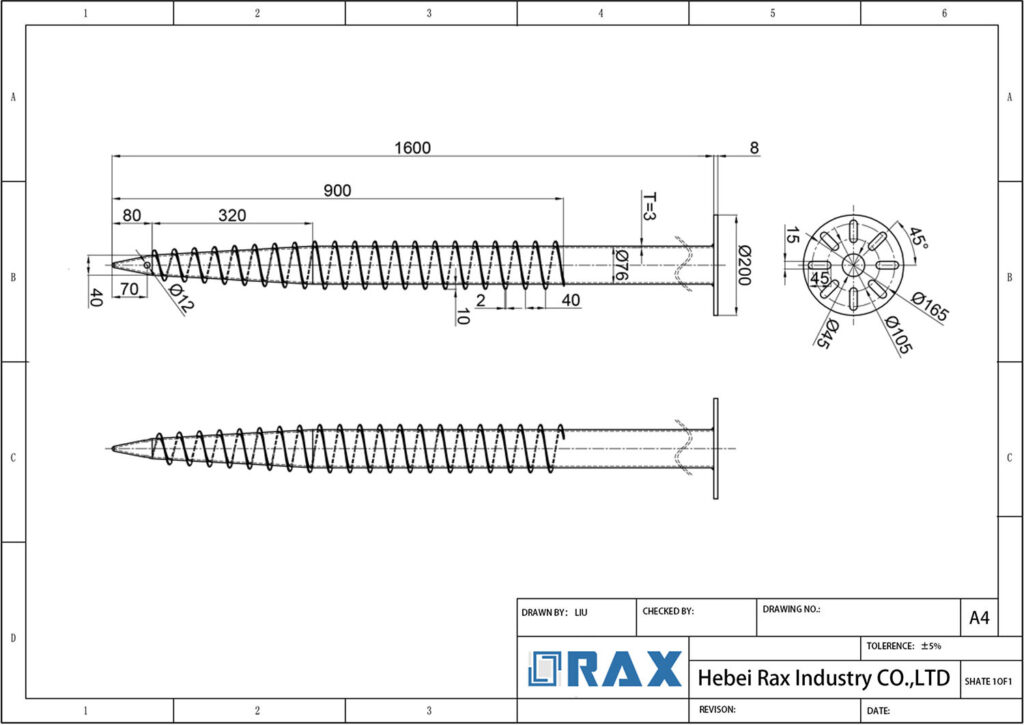

| Parameter | Specification |
|---|---|
| Material | High-strength steel (Q235, Q345), hot-dip galvanized coating |
| Pipe Outer Diameter | 76 mm, 89 mm, 114 mm |
| Wall Thickness | 3 mm to 6 mm |
| Length | 500 mm to 3000 mm (customizable) |
| Helix Diameter | 200 mm, 220 mm (typical) |
| Load Capacity | 1,000 lbs to 50,000 lbs (approx. 454 kg to 22,680 kg) |
| Service Life | 85 years to 120 years for helical piles; 25+ years for standard applications |
| Installation Depth | Minimum 1.5 m (approx. 5 ft) |
| Types | Helical screw piles, Ground screws |
Frequently Asked Questions
What is a ground screw pile anchor?
A ground screw pile anchor is a steel screw-in anchor used to support structures with minimal soil impact. It consists of a central shaft with helical plates, allowing it to be rotated into the ground without excavation or concrete, serving as an alternative to traditional foundations like concrete piers.
What are the main benefits of using ground screw pile anchors?
Ground screw pile anchors offer time-saving installation without curing, cost-effectiveness due to reduced labor and machinery, environmental friendliness with minimal soil disturbance, versatility across various soil types, durability with high load capacity, and immediate load-bearing capability after installation.
How is a ground screw pile anchor installed?
Installation involves using hydraulic machinery with a torque motor to rotate the anchor vertically into the ground until the desired depth and torque are achieved. This process requires no excavation and ensures secure foundation support. They are generally installed to a depth of at least 5 feet, varying based on structure weight and soil stability.
What factors affect the load capacity of ground screw pile anchors?
Load capacity depends on the anchor's length and diameter, soil conditions, and the weight of the supported structure. It typically ranges from 1,000 pounds to over 50,000 pounds.
Can ground screw pile anchors be used in any soil condition?
Yes, they can be installed in all soil types, including sandy, rocky, and clay soils, with installation methods adapting to specific soil conditions to ensure stability.
What materials are used in the construction of ground screw pile anchors?
They are made from high-strength steel and feature a hot-dip galvanized coating to resist corrosion, ensuring long-term durability and a lifespan of up to 120 years in some cases.
What certifications and quality control measures do you have to ensure product reliability?
We implement strict quality control measures, including ISO certification and compliance with international standards such as CE marking. Our products undergo multi-stage testing, including load tests and gauge tests per IEC 120 standards, and feature hot-dip galvanizing to ISO 1461 for corrosion resistance. With 21 years of experience, we ensure 100% quality review before packing, supported by automated manufacturing processes for consistency.
How do you handle large-volume orders and guarantee on-time delivery?
We have extensive production capabilities, including 17,000 square meters of workshops and automated production lines, allowing us to manage bulk orders efficiently. Our lead time is guaranteed, and we maintain large stocks to meet project timelines. With 24/7 online service and efficient logistics, we ensure timely delivery and support for all large-scale projects.
Can you provide custom-designed solutions and OEM services for specific project needs?
Yes, we offer comprehensive ODM and OEM services, supported by a professional engineer team with expertise in geotechnical, structural, and civil engineering. We utilize advanced manufacturing technologies, such as CNC machining and automated welding, to create customized ground screw anchors tailored to your project's requirements, ensuring optimal performance and fit.
