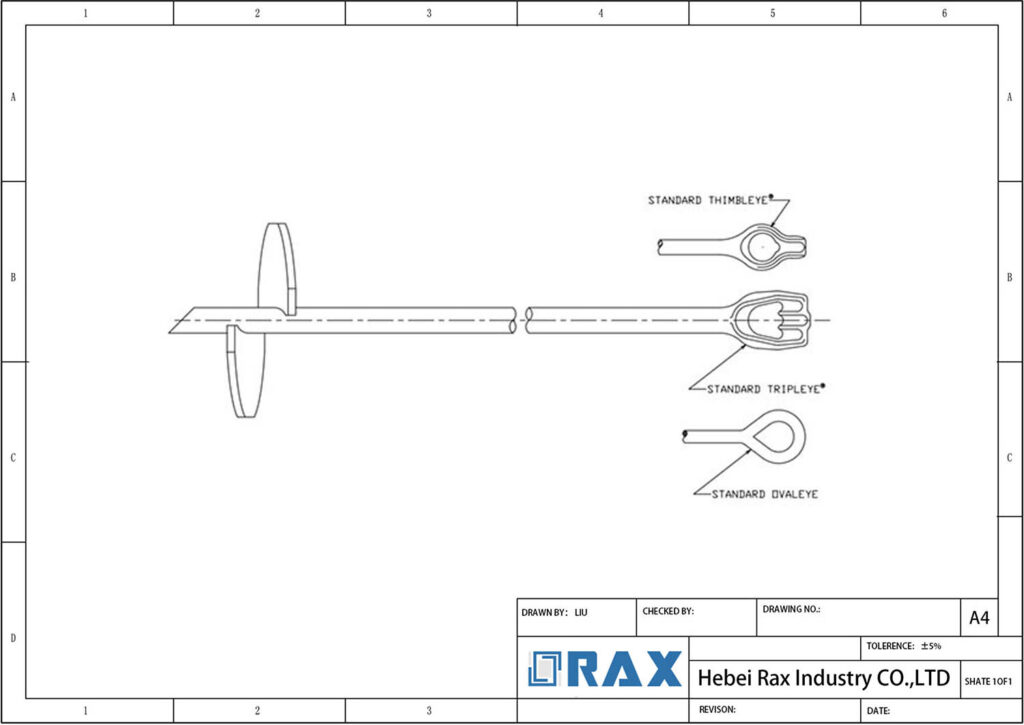

The No-Wrench Screw Anchor combines a forged eye anchor rod with a welded helix and angle cut tip, eliminating the need for wrenches during installation. Constructed from drop-forged steel with hot-dip galvanized finish complying with American Society for Testing and Materials (ASTM) A-153 or ASTM A123 standards, the anchor resists rust and corrosion across diverse environmental conditions.
Available configurations include rod diameters of 3/4 inch, 1 inch, and 1-1/4 inch, with helix sizes ranging from 4 inches to 14 inches. Rod lengths extend from 54 inches to 96 inches to accommodate different installation depths. Holding capacity varies by model and soil class, with documented values of 2500 pounds, 5000 pounds, and 6500 pounds in specified soil conditions.
The anchor performs effectively in medium dense to loose soils for utility pole guying, tree guying, and boat mooring applications. Final installed height typically ranges from 8 to 12 inches above grade level to ensure optimal stability.
Installation can be accomplished manually by inserting a turning bar through the eye for screwing into the ground, or with power equipment using adapters compatible with hole-boring machines. Extension rods can be utilized to reach firmer soil layers at greater depths.
Leading No-Wrench Screw Anchor Manufacturer
Since 2003, RaxPower has become a leading manufacturer specializing in pole line hardware, serving global industries including electrical utilities, automotive, agriculture, and construction. No-wrench screw anchors are an essential tool for those seeking a durable and reliable anchoring solution.
These anchors consist of an integral forged eye rod welded to a steel helix, designed for easy installation by simply turning into the ground by hand or with power equipment. Constructed from hot-dipped galvanized steel, they meet ASTM specifications, ensuring superior durability and corrosion resistance.
This quality is a direct result of our advanced hot forging technology and strict quality control measures, including multi-stage testing and galvanization processes. The anchors provide a secure hold in various soil types, including rocky and sandy conditions, making them versatile for applications like utility pole guying, tree anchoring, and more.
With our commitment to reliability and serving diverse global clients, these no-wrench screw anchors offer a dependable solution. We invite you to consider investing in an easy-to-use and durable no-wrench screw anchor for your projects.
| Helix Size (in) | Rod Diameter (in) | Rod Length (in) | Weight (lbs) | Holding Capacity (lbs) |
|---|---|---|---|---|
| 4 | 3/4 | 54 | 8.1 | – |
| 6 | 3/4 | 66 | 10.9 | 6500 |
| 8 | 1 | 66 | 19.1 | – |
| 10 | 1-1/4 | 66 | 30.3 | – |
| 10 | 1-1/4 | 96 | 41.1 | 12000 |
| 14 | 1-1/4 | 96 | 47.6 | 16000 |
| 15 | 1-1/4 | 96 | 52 | – |
Frequently Asked Questions
What are the common applications for this anchor?
The anchor is suitable for utility pole guying, tree guying, boat mooring, piering, and other helical anchoring applications in various soil types.
What is the holding capacity of the No-Wrench Screw Anchor?
Holding capacities vary by model and soil conditions, ranging from 2,500 lbs to 16,000 lbs depending on the specific model and soil class.
How do you ensure long-term durability and corrosion resistance?
RaxPower's No-Wrench Screw Anchors are manufactured using drop-forged steel with a welded helix and are hot-dip galvanized in compliance with ISO 1461 standards, ensuring a mean coating thickness exceeding 85 microns for exceptional rust resistance and reliability in demanding outdoor conditions.
How can the No-Wrench Screw Anchor be installed?
The anchor offers flexible installation options—it can be installed by hand using a turning bar inserted through the eye, or with power equipment via standard adapters that fit the eye and are available from most hole-boring machine manufacturers.
What specifications and sizes are available?
RaxPower's No-Wrench Screw Anchor comes in various sizes, including rod diameters of 3/4″, 1″, and 1-1/4″, with lengths from 54 inches to 96 inches, and helix sizes from 4 inches to 14 inches. Models may have different weights and feature triple guy attachments.
What quality assurance processes do you have to maintain consistent product performance?
RaxPower enforces rigorous quality control from raw material selection through multi-stage testing, including load tests and gauge tests per IEC standards. Every product undergoes double inspection before packing, and we have passed SGS and authoritative institute tests to verify 100% quality consistency and performance.
Can you handle large-volume orders and guarantee on-time delivery for major projects?
With over 21 years of experience and a 30,000 square meter production facility, RaxPower is equipped to manage bulk orders efficiently. Our dedicated team and streamlined processes ensure on-time shipment to meet tight project schedules, supported by a 12,000 square meter warehouse for reliable supply chain management.
