How to Choose the Best Composite Pin Insulator: Engineering Guide

Selecting the correct high-voltage insulator is one of the most critical engineering decisions in medium-voltage overhead distribution line design. Across 11kV, 24kV, 33kV, and 66kV distribution feeders, pin insulators support line conductors on cross-arms while providing electrical isolation to ground. Traditional glazed porcelain and toughened glass pin insulators frequently suffer from heavy weight, vandalism cracking, and catastrophic flashovers caused by surface pollution accumulation in coastal and industrial corridors.

Based on our engineering team’s experience supplying high-voltage composite polymer insulators for utility distribution grids, electrified rail systems, and heavy industrial substations, composite pin insulators deliver superior operational reliability. We compiled this definitive engineering guide to help line design engineers, electrical contractors, and utility procurement managers choose the optimal composite pin insulator for their specific mechanical, electrical, and environmental operating requirements.

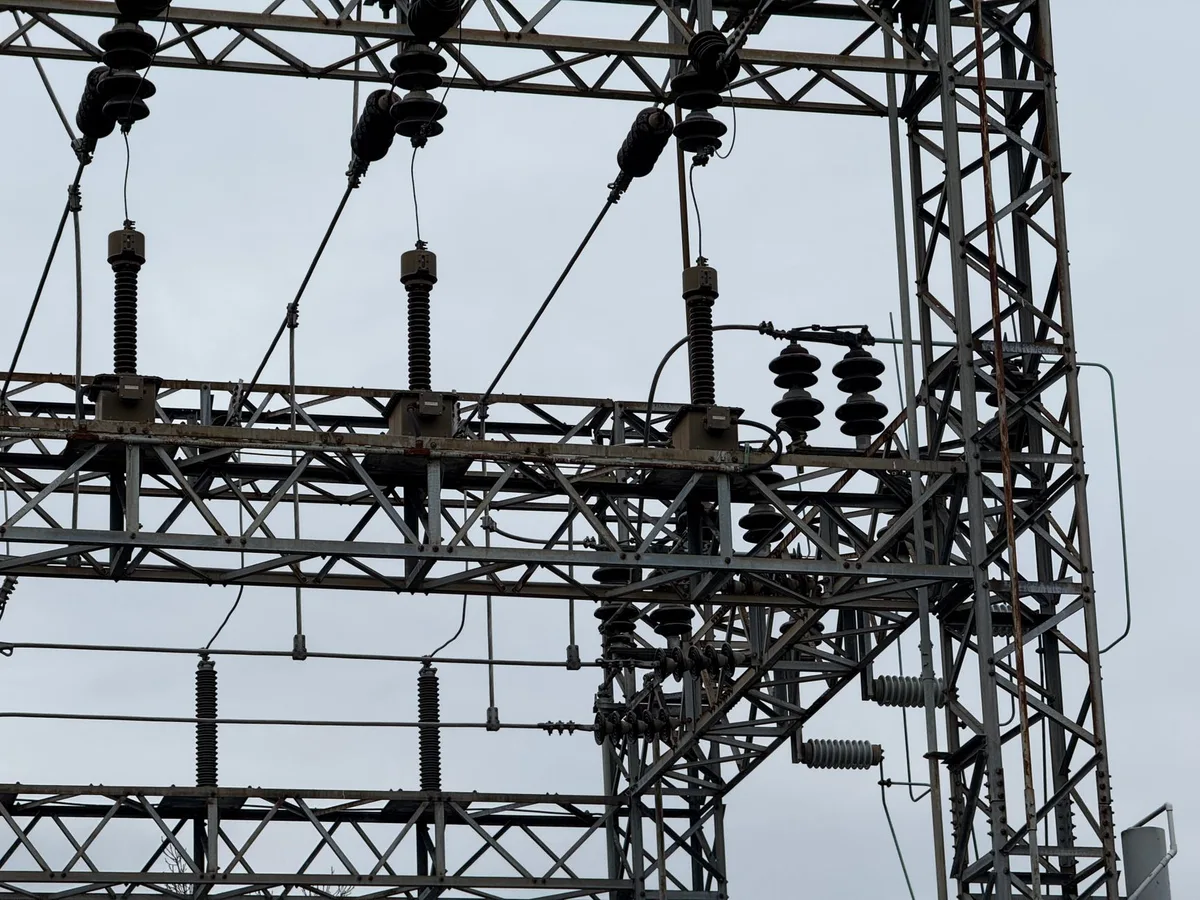

Voltage Rating and Basic Impulse Insulation Levels

The primary electrical selection criterion is matching the composite pin insulator to the maximum continuous operating voltage and transient overvoltage profile of the distribution line.

“Under IEC 61109 and ANSI C29.13 standards, composite pin insulators must withstand combined power frequency withstand voltages and 1.2/50 µs lightning impulse surges without internal puncture or external flashover across the dry arc distance.”

Matching System Nominal Voltage: 11kV, 24kV, 33kV, and 66kV

Pin insulators must be selected based on the maximum system phase-to-phase voltage ($). For an 11kV nominal grid ( = 12 ext{ kV}$), the insulator must provide a minimum dry power-frequency withstand voltage of 50 kV and a wet withstand voltage of 42 kV. For 33kV distribution circuits ( = 36 ext{ kV}$), dry withstand ratings must exceed 105 kV.

• 11kV Distribution Feeders: 75 kV to 95 kV Basic Lightning Impulse Insulation Level (BIL).
• 24kV Distribution Networks: 125 kV to 150 kV Basic Lightning Impulse Insulation Level (BIL).
• 33kV Sub-Transmission Lines: 170 kV to 200 kV Basic Lightning Impulse Insulation Level (BIL).
• 66kV Transmission Cross-Arms: 325 kV to 350 kV Basic Lightning Impulse Insulation Level (BIL).

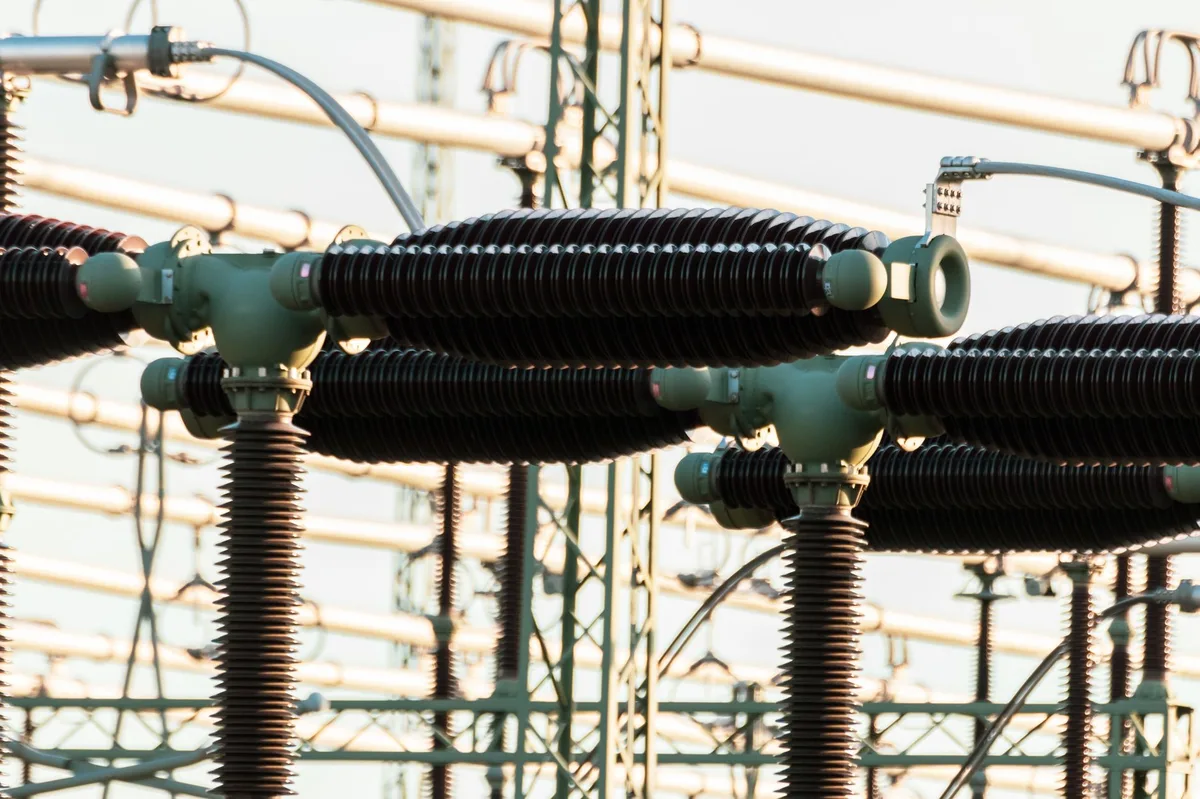

Lightning Impulse Withstand (BIL) and Power Frequency Flashover

For 33kV and 66kV pin applications, electric field finite element simulations dictate whether aluminum corona grading rings are required. Field grading rings redistribute electrical voltage stress along the energized end fitting, suppressing localized corona discharges and protecting silicone rubber sheaths from nitric acid erosion.

• Corona Inception Voltage: Maintained >1.2 times maximum continuous operating voltage ( / \sqrt{3}$).
• Radio Interference Voltage (RIV): RIV noise levels limited to <100 µV at 1.1 times maximum phase voltage.
• IEC 61109 Dye Penetration Test: 100% sample verification ensuring zero micro-porosity in FRP core rods.

Basic Lightning Impulse Insulation Level (BIL) defines the crest value of a standard 1.2/50 µs impulse wave that the insulator housing resists during atmospheric lightning discharges. Specifying a BIL rating one step above nominal line requirements provides critical insulation margin against steep-front switching surges and lightning strikes.

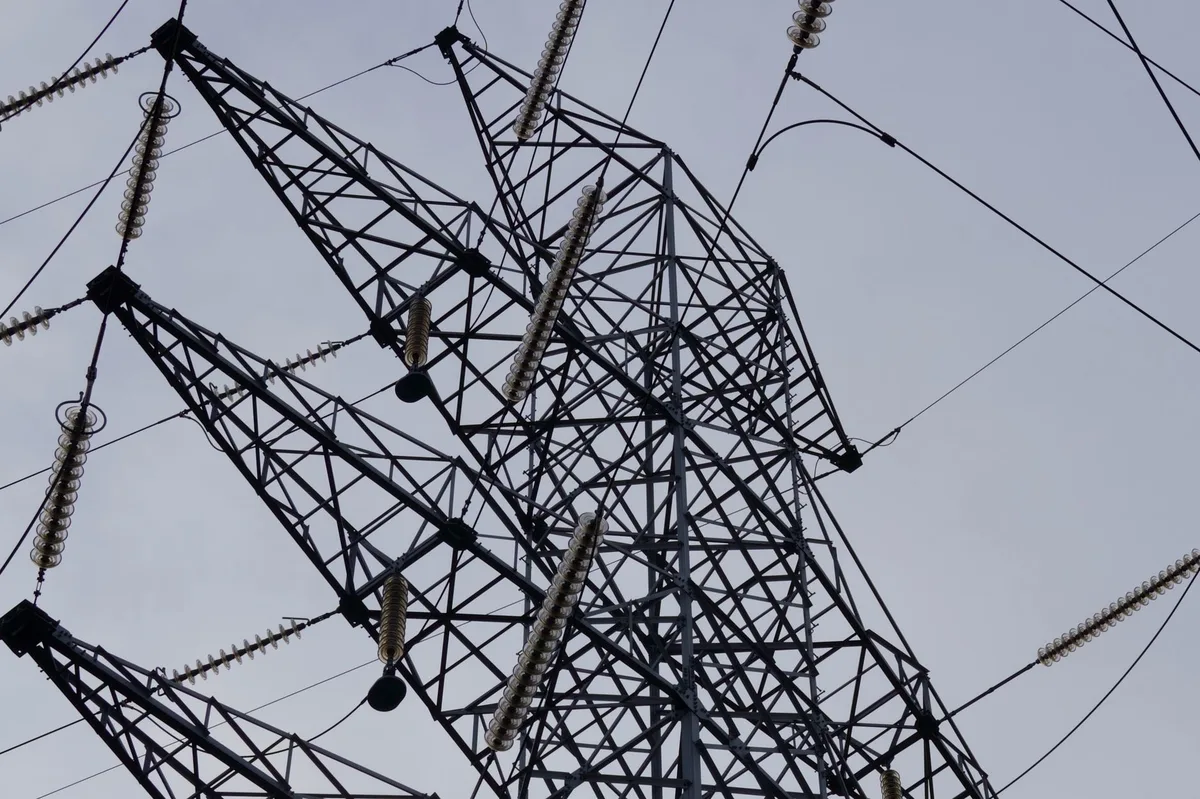

Calculating Creepage Distance for Heavy Pollution Zones

Environmental contamination from marine salt spray, desert dust storms, and industrial chemical emissions drastically reduces the surface flashover voltage of high-voltage insulators.

IEC 60815-3 Environmental Site Severity Classification (Classes I to IV)

IEC 60815-3 classifies environmental pollution into four severity classes based on Site Pollution Severity (SPS) and ESDD measurements:

• Class I (Light Pollution): Rural inland zones; Minimum Unified Specific Creepage Distance (USCD) of 22 mm/kV ($).
• Class II (Medium Pollution): Agricultural zones with light industrial activity; Minimum USCD of 28 mm/kV ($).
• Class III (Heavy Pollution): Industrial chemical clusters and urban traffic corridors; Minimum USCD of 35 mm/kV ($).
• Class IV (Very Heavy Pollution): Direct coastal zones within 3 km of the sea and open-pit mining; Minimum USCD of 43 mm/kV ($).

Step-by-Step Creepage Dimensioning Formula and Safety Factors

To calculate the required total creepage distance ($) for a composite pin insulator in a specific installation zone:

1. Identify Maximum System Voltage ($): Determine the highest phase-to-phase RMS voltage (e.g., 36 kV for a 33kV nominal line).
2. Determine Site Pollution Severity (SPS): Measure surface conductivity or select the appropriate IEC 60815-3 pollution class.
3. Apply USCD Multiplier: Multiply $ by the specified USCD requirement (e.g., ext{ kV} imes 35 ext{ mm/kV} = 1,260 ext{ mm}$ total creepage).
4. Select Alternating Shed Profiles: For heavy snow, freezing rain, or heavy dust accumulation, specify alternating aerodynamic shed profiles (large/small shed geometry) to prevent ice bridging across adjacent skirts.

Mechanical Cantilever Strength and Bending Load Sizing

Unlike suspension insulators that operate under pure axial tension, pin insulators act as cantilever beams supporting the transverse horizontal forces of wind on conductors and line angular tension.

Specified Cantilever Load (SCL) vs Maximum Design Cantilever Load (MDCL)

Specified Cantilever Load (SCL) is the mechanical failing bending load applied at the top conductor groove perpendicular to the insulator axis. The Maximum Design Cantilever Load (MDCL) represents the maximum allowable service load under extreme NESC Heavy loading conditions (simultaneous maximum wind velocity and radial ice accumulation).

• Light Duty Distribution Lines: 5 kN (1,124 lbf) SCL rating for straight-line tangential cross-arms.
• Standard Medium Voltage Feeders: 10 kN (2,248 lbf) SCL rating for medium span lengths and moderate wind zones.
• Heavy Duty Line Angles: 12.5 kN (2,810 lbf) SCL rating for small line deviations and heavy conductor bundles.

Transverse Wind Loading and Conductor Tension Vector Calculations

The total cantilever bending force acting on the pin insulator equals the vector sum of transverse wind force on the bare or ice-covered conductor span plus the radial line angle component. Calculating the resultant bending moment at the insulator base determines whether a standard or high-strength steel base stud is required.

Composite Silicone Rubber vs Porcelain Pin Insulators

Upgrading distribution lines from legacy ceramic pin insulators to composite polymer units delivers substantial operating and maintenance cost reductions.

Hydrophobicity Transfer Mechanisms and Leakage Current Suppression

High Temperature Vulcanized (HTV) silicone rubber possesses unique chemical properties. Low molecular weight (LMW) siloxane chains naturally migrate from the bulk silicone matrix through airborne dust layers to the outer surface, rendering contaminant deposits hydrophobic (Class HC1 under IEC 62073). Water beads into discrete droplets rather than forming continuous conductive sheets, suppressing surface leakage current and preventing pollution flashovers without requiring manual washing.

Vandalism Resistance, Weight Reduction, and Total Installed Cost

Porcelain pin insulators are heavy, brittle, and highly vulnerable to ballistic impact from gunshots or stone throwing. Composite pin insulators offer dramatic field advantages:

• 70% to 80% Weight Reduction: A typical 33kV composite pin insulator weighs under 3.5 kg compared to 15 kg for equivalent multi-part porcelain assemblies, accelerating line construction.
• Impact Immunity: Flexible silicone rubber sheds and high-strength fiberglass core rods absorb mechanical shocks during transport and resist vandalism.
• Elimination of Washing Maintenance: Hydrophobic recovery eliminates regular de-energized insulator washing schedules in coastal industrial corridors.

FRP Core Quality and Moisture Ingress Sealing

The internal core rod and metal fitting interface represent the mechanical heart and primary potential failure mode of a composite pin insulator.

E-CR Boron-Free Fiberglass Rod Chemistry Preventing Stress Corrosion

High-grade composite pin insulators utilize Boron-free Electrical/Chemical Resistant (E-CR) fiberglass reinforced polymer (FRP) core rods impregnated with epoxy resin. E-CR glass formulation eliminates boron oxide, preventing acid-induced brittle fracture under combined electrical stress and environmental moisture exposure.

High-Pressure HTV Silicone Injection Molding and Triple-Barrier Seals

Ensuring lifetime airtight moisture sealing requires specialized factory manufacturing techniques:

1. Silicone Primer Application: The E-CR core rod undergoes uniform chemical silane priming to guarantee chemical covalent bonding with the silicone housing.
2. One-Shot Injection Molding: HTV silicone rubber is injection-molded over the primed rod under 180°C high pressure, forming a continuous, seamless sheath without mold parting voids.
3. Acoustic Emission Monitored Crimping: Hot-dip galvanized forged steel end fittings are crimped onto the rod ends using multi-point hydraulic presses with real-time acoustic emission feedback to prevent micro-cracking of the internal glass fibers.
4. Triple-Barrier Silicone Encapsulation: High-grade RTV silicone mastic seals the fitting-to-sheath interface, completely blocking atmospheric water penetration.

End Fitting Types: ANSI Lead Threads vs Studs

Selecting the correct mechanical base interface ensures secure mounting to distribution wood cross-arms, steel brackets, or concrete poles.

Standard ANSI 1-Inch and 1-3/8-Inch Cast Lead Thread Profiles

For standard distribution pin cross-arms, composite insulators incorporate cast lead threads inside the base fitting compliant with ANSI C29.13 standards:

• ANSI 1-Inch Lead Threads: Standard thread profile for 11kV and 15kV distribution cross-arm steel pins.
• ANSI 1-3/8-Inch Lead Threads: Heavy-duty thread profile specified for 24kV, 33kV, and heavy cantilever applications.
• Cast Lead Cushioning: Soft lead thread inserts absorb line vibration and distribute mechanical cross-arm clamping stresses evenly without stripping.

Direct Base Stud Mounts and Hot-Dip Galvanized Corrosion Protection

Alternatively, composite post/pin insulators feature integrated forged steel base studs (M20, M24, or 3/4-inch diameter) that bolt directly through pre-drilled cross-arm holes. All forged steel and ductile iron fittings receive heavy hot-dip galvanization with a minimum zinc thickness of 86 µm (ASTM A153 / ISO 1461), ensuring decades of rust-free service life in corrosive marine atmospheres.

Composite Pin Insulator Engineering Specification Matrix

The following engineering matrix details mechanical, electrical, and dimensional ratings across standard medium-voltage composite pin insulator classes.

Engineering Parameter	11kV / 15kV Composite Pin	24kV Composite Pin	33kV Composite Pin	66kV Composite Post/Pin
Highest System Voltage ($)	12 kV / 17.5 kV	24 kV	36 kV	72.5 kV
Basic Impulse Level (BIL)	95 kV – 110 kV	125 kV – 150 kV	170 kV – 200 kV	325 kV – 350 kV
Power Frequency Wet Withstand	42 kV – 50 kV	65 kV – 75 kV	85 kV – 100 kV	140 kV – 160 kV
Minimum Creepage Distance	320 mm – 450 mm	650 mm – 850 mm	950 mm – 1,350 mm	1,850 mm – 2,500 mm
Specified Cantilever Load (SCL)	5 kN – 10 kN	10 kN – 12.5 kN	10 kN – 12.5 kN	12.5 kN – 16 kN
FRP Core Rod Diameter	Ø 18 mm – Ø 20 mm	Ø 22 mm – Ø 24 mm	Ø 24 mm – Ø 28 mm	Ø 32 mm – Ø 38 mm
Housing Material & Filler	HTV Silicone + ATH Filler	HTV Silicone + ATH Filler	HTV Silicone + ATH Filler	HTV Silicone + ATH Filler
Base Fitting Connection	ANSI 1″ Lead / M20 Stud	ANSI 1-3/8″ Lead / M24 Stud	ANSI 1-3/8″ Lead / M24 Stud	Forged Flange / M24 Stud
Approximate Unit Weight	1.2 kg – 1.6 kg	2.1 kg – 2.6 kg	3.2 kg – 4.2 kg	6.5 kg – 8.5 kg

Frequently Asked Questions About Composite Pin Insulators

Request Technical Submittals for Composite Pin Insulators

Specifying high-performance composite pin insulators engineered with E-CR boron-free fiberglass cores, high-temperature vulcanized silicone housings, and acoustic-crimped forged steel fittings ensures decades of maintenance-free reliability across medium-voltage distribution networks.
