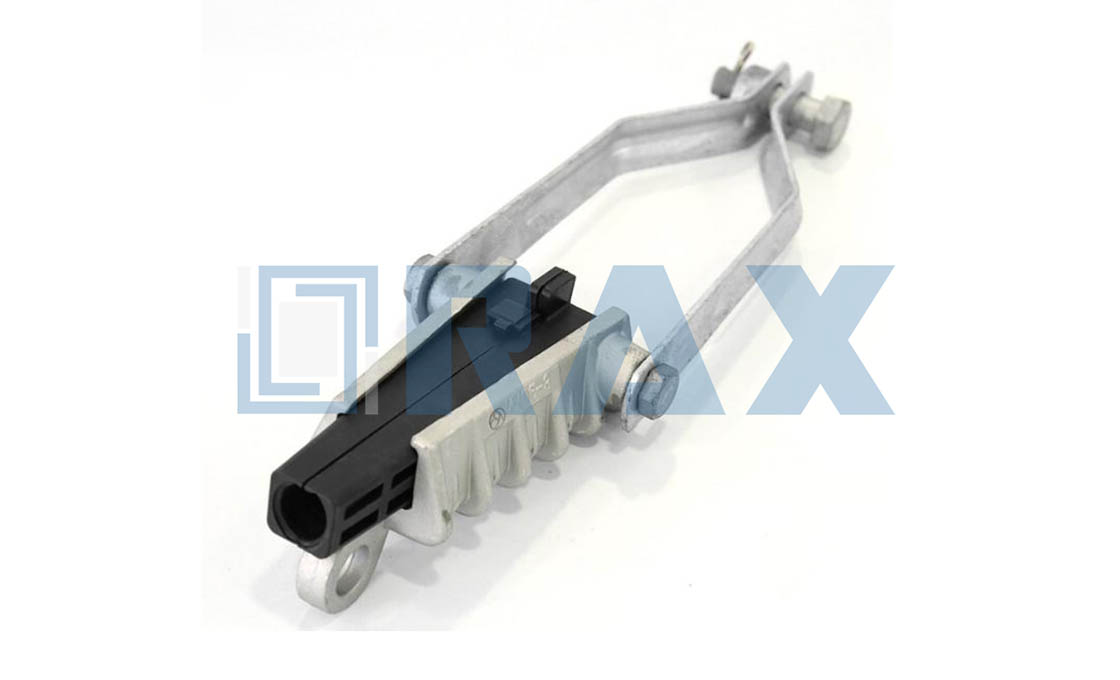

The insulated wedge clamp secures and tensions overhead insulated conductors in distribution lines through reliable mechanical anchoring that preserves cable insulation integrity. Its wedge mechanism tightens under load, providing self-tightening action that maintains stable tension without requiring maintenance.
Constructed from high-strength aluminum alloy and UV-resistant, fiberglass-reinforced plastic, the clamp withstands environmental exposure while distributing load evenly across the cable to reduce stress points. Models accommodate cable diameters from 8.5 mm to 33 mm, with grip strengths ranging from 3.4 kN to 28.2 kN and failure loads up to 52.1 kN. Voltage compatibility spans 1 kV, 10 kV, and 20 kV systems.
Operating performance remains consistent across temperatures from -40°C to +60°C, with resistance to UV exposure, humidity up to 95%, and corrosive elements. The design prevents cable slippage while maintaining electrical integrity through low-resistance, high-conductivity connections. Compliance with CE and ISO9001 standards ensures reliable performance.
Applications include overhead power lines, street lighting systems, telecommunications networks, renewable energy installations, industrial facilities, and substation connections. Installation requires positioning the clamp around the insulated cable, tightening the wedge mechanism to achieve firm grip, and verifying proper tension and security using basic tools.
Insulated Wedge Clamp Wholesaler with 21 Years of Expertise
Insulated Wedge Clamp RaxPower, the leading China-based supplier, manufacturer, and factory located in Hebei Province, introduces the Insulated Wedge Clamp. This device is designed to securely anchor or suspend cables in distribution lines, providing reliable electrical connections without damaging conductors.
With 21 years of manufacturing and exporting experience, RaxPower leverages advanced processes like hot forging to produce clamps with superior strength and accurate sizing. Our commitment to “Customers first!” means we do our utmost to tailor products to meet your local market quality requirements, saving you costs.
Key advantages of the RaxPower Insulated Wedge Clamp include:
- Constructed from high-strength aluminum alloy for excellent durability, light weight, and no magnetic hysteresis loss.
- Easy installation with no special tools required, reducing labor time and enhancing safety.
- Rigorously tested through load tests and gauge tests per IEC standards, ensuring performance in extreme environmental conditions.
- Compliant with international certifications, verified by SGS, for long-lasting reliability.
Contact us now for free samples and best prices.

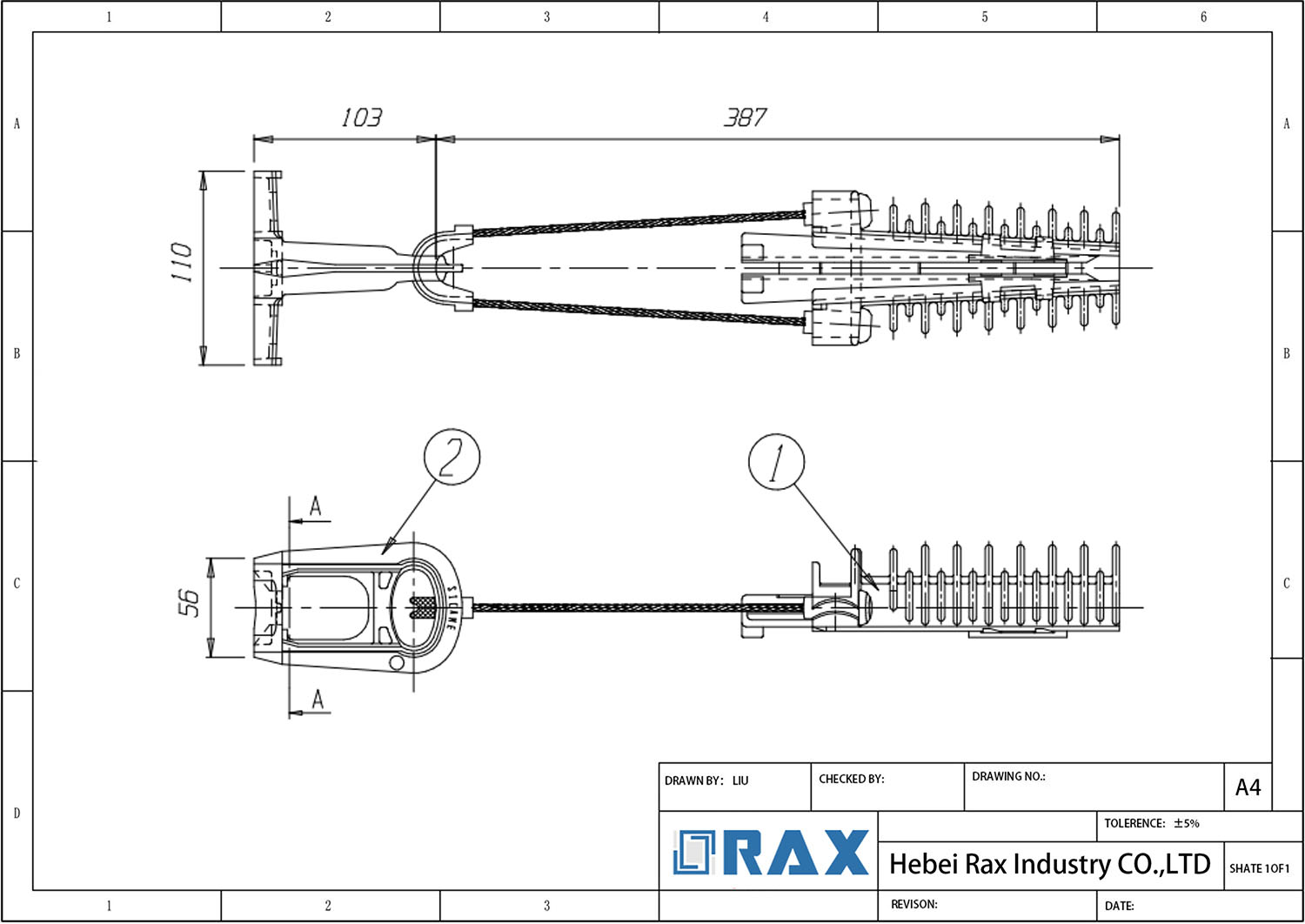

| Model | Cable Diameter Range (mm) | Voltage Rating (kV) | Grip Strength (kN) | Failure Load (kN) |
|---|---|---|---|---|
| IWC-1 | 8.5-17 | 1, 10, 20 | 3.4-8.9 | 12.4 |
| IWC-2 | 16-21 | 1, 10, 20 | 11.3-13.7 | 20.8 |
| IWC-3 | 21-23 | 1, 10, 20 | 17.3 | 32.0 |
| IWC-4 | 23-27.5 | 1, 10, 20 | 22.5 | 41.7 |
| IWC-5 | 27.5-33 | 1, 10, 20 | 28.2 | 52.1 |
