An anchoring clamp secures conductors and cables to overhead utility infrastructure such as power lines and telecommunication systems. The device firmly holds cables in place, preventing movement from tension, wind, or environmental factors to ensure stable network operation. Anchoring clamps provide dead-ending at span ends or directional changes with angles up to 90 degrees.
The clamps combine UV-resistant plastics, aluminum alloys, stainless steel, and galvanized steel components. Bodies use durable thermoplastic or aluminum, while wedges employ weather-resistant engineering plastics or nylon. Bail or fixing rings feature corrosion-resistant flexible stainless steel or hot-dip galvanized steel wire. This construction provides resistance to moisture, oxidation, frost, hurricanes, and UV radiation across temperature ranges from -60°C to +60°C.
These clamps accommodate cable diameters from 6 mm to 20 mm with breaking loads from 500 deciNewtons (daN) to 600 daN for standard models. Installation requires no specialized tools—users insert the wedge into the housing, position the cable, slide the wedge to secure it, and attach the guy wire loop to the pole using hooks, brackets, or cross arms. This method preserves cable insulation integrity and reduces installation time.
Applications include overhead power distribution networks, telecommunication lines, and fiber optic installations. The clamps secure All-Dielectric Self-Supporting (ADSS) cables, Figure-8 fiber optic cables, Fiber Reinforced Plastic (FRP) or Kevlar messenger lines, and low voltage aerial bundled cables on utility poles and building fasteners in rural, suburban, and industrial settings.
Anchoring Clamp Manufacturer
RaxPower, with 21 years of experience, supplies a high-quality extensive range of anchoring aerial clamps in China. Guided by our philosophy of never-ending improvement and striving for 0% deficiency, we ensure our anchoring clamps deliver long-term use value, providing a service life of 25 years or more under low maintenance to reduce replacements and project costs.
Our anchoring clamps are engineered for exceptional durability and reliability, with advantages including:
- High strength and flexibility using UV-resistant plastic, aluminum alloy, and stainless steel materials
- Suitable for temperature extremes from -60°C to +60°C
- Anti-aging and corrosion resistance for extended performance
- Easy, tool-free installation for enhanced efficiency
Backed by advanced manufacturing processes and rigorous quality control, each clamp undergoes strict testing to guarantee optimal performance. Contact us now for professional services and reliable solutions for your overhead line projects.
| Cable Diameter Range (mm) | Wedge Material | Bail Material | Min Breaking Load (daN) | Operating Temperature (°C) | Standards |
|---|---|---|---|---|---|
| 6-10 | UV-resistant Engineering Plastic | Hot-dip Galvanized Steel | 500-600 | -60 to +60 | NFC 33-041, EN 50483 |
| 8-12 | UV-resistant Engineering Plastic | Hot-dip Galvanized Steel | 500-600 | -60 to +60 | NFC 33-041, EN 50483 |
| 10-14 | UV-resistant Engineering Plastic | Hot-dip Galvanized Steel | 500-600 | -60 to +60 | NFC 33-041, EN 50483 |
| 12-16 | UV-resistant Engineering Plastic | Hot-dip Galvanized Steel | 500-600 | -60 to +60 | NFC 33-041, EN 50483 |
| 14-18 | UV-resistant Engineering Plastic | Hot-dip Galvanized Steel | 500-600 | -60 to +60 | NFC 33-041, EN 50483 |
| 16-20 | UV-resistant Engineering Plastic | Hot-dip Galvanized Steel | 500-600 | -60 to +60 | NFC 33-041, EN 50483 |
Frequently Asked Questions (FAQS)
What is an anchoring clamp?

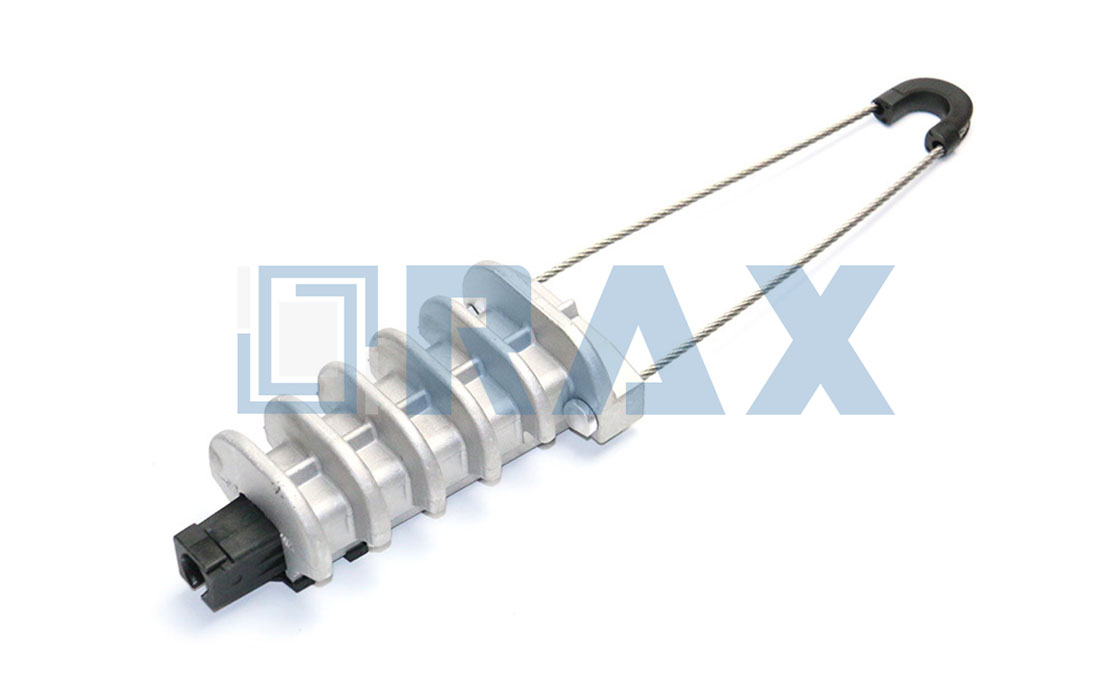

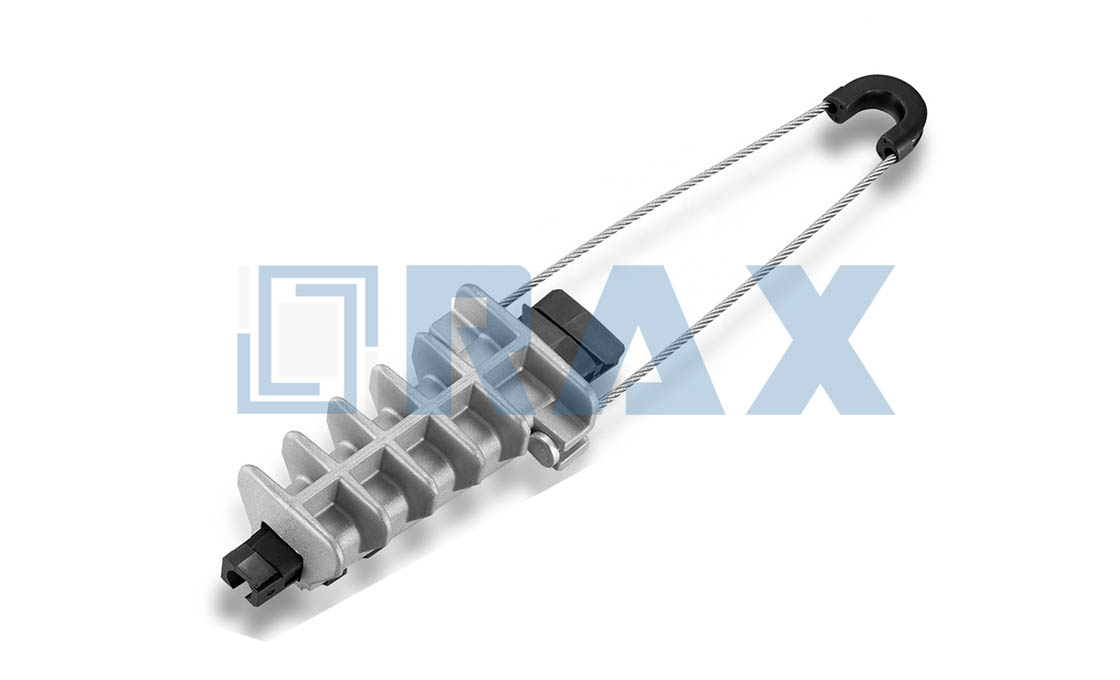

An anchoring clamp, also known as a wedge type tension clamp, is a device used to secure and anchor a conductor or cable to overhead wires, telecommunication lines, or other utility infrastructure. RaxPower anchoring clamps consist of a body, wedges, and a bail, designed to firmly hold cables and prevent movement due to tension, wind, or environmental factors.
What are the benefits of using an anchoring clamp?
RaxPower anchoring clamps offer high strength and durability, corrosion resistance, easy installation, and protection against cable damage. They extend the service life of overhead cables, reduce maintenance needs, and ensure reliable performance under extreme conditions like wind load and temperature variations.
What materials are anchoring clamps made from?
RaxPower anchoring clamps are manufactured from high-quality, durable materials such as UV-resistant plastic, aluminum alloy, stainless steel, nylon, and polymer. These materials provide excellent corrosion resistance, strength, and long-term performance in harsh outdoor environments including extreme temperatures from -60°C to +60°C, with anti-aging properties ensuring a service life exceeding 25 years.
What types of cables are compatible with anchoring clamps?
RaxPower anchoring clamps are suitable for a wide range of cables, including ADSS cables, figure-8 fiber optic cables, FRP and Kevlar messenger lines, low voltage aerial bundled cables, and various insulated conductors used in power distribution and telecommunication networks.
How do I install an anchoring clamp?
RaxPower anchoring clamps are designed for easy manual installation without any tools. Simply insert the wedge into the clamp housing, place the cable, slide the wedge to clamp the cable securely, and fix the bail to the pole using hooks, brackets, or cross arms. This quick process reduces installation time and labor costs.
How do I choose the right anchoring clamp for my application?
Selecting the appropriate RaxPower anchoring clamp depends on factors like cable diameter, voltage level, environmental conditions, and mechanical load requirements. Refer to product specifications for cable size ranges and breaking loads, and consult with experts to ensure the clamp meets your project needs.
Do your anchoring clamps comply with international standards for critical grid applications?
Yes, our anchoring clamps comply with international standards such as NFC 33-041 and IEC. They undergo strict quality control processes, including load testing and hot-dip galvanization, to guarantee reliability and safety in harsh environments like frost, hurricanes, and extreme temperatures.
Can you accommodate large-scale project orders with guaranteed on-time delivery?
Yes, we have extensive experience supplying anchoring clamps for projects globally, with advanced manufacturing processes and automated equipment ensuring efficient production and consistent on-time delivery. We offer customization based on your project specifications and maintain a robust supply chain to meet your timeline with competitive, volume-based pricing for bulk orders.
Do you provide ODM or OEM services?
We offer comprehensive ODM and OEM services, allowing you to leverage our manufacturing expertise for cost-effective production. You can submit your CAD drawings in formats like .dwg or .stp, and our engineering team provides free design suggestions to optimize for quality and efficiency. Our rigorous quality control ensures perfectly consistent quality that protects your brand and reduces in-house production costs.
What range of anchoring clamps do you offer for distributors?
We provide a broad catalog of anchoring clamps in various sizes, materials, and types, including models for ADSS, fiber optic, and low-voltage ABC cables, with specifications tailored to different cable diameters. Our wholesale prices are highly competitive and volume-dependent, ensuring low costs to maintain your profit margin. With a wide product variety and customization options, we support your local market needs with reliable, in-stock solutions.
