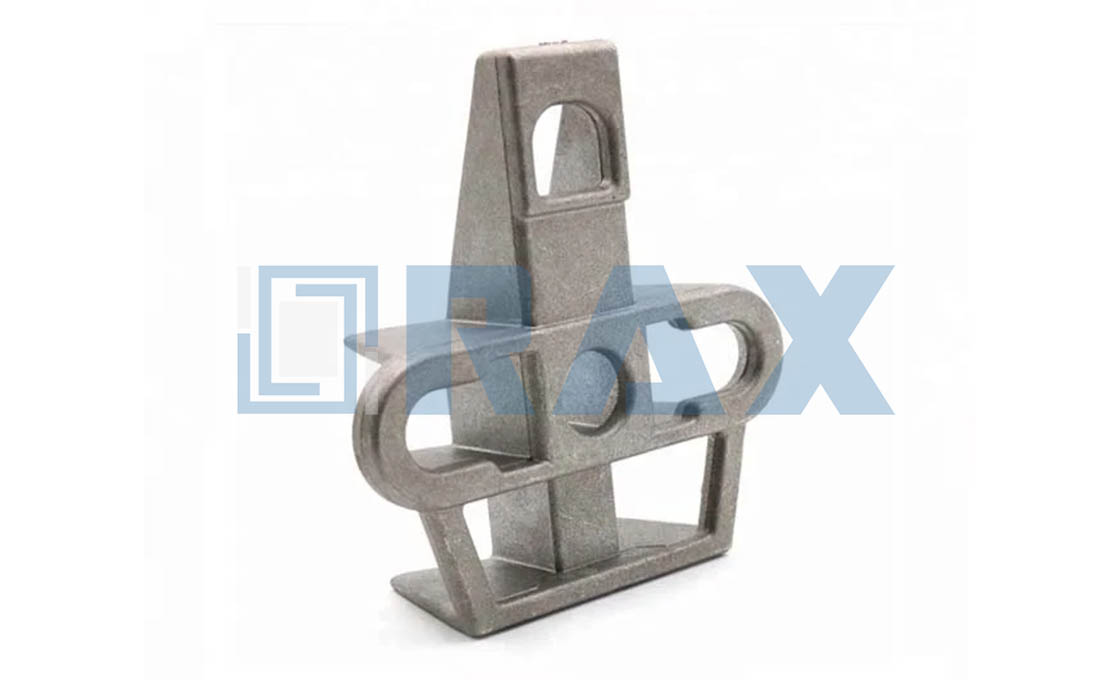

The Universal Pole Bracket provides a versatile mounting solution for securing equipment such as security cameras, antennas, signage, lighting fixtures, and fiber optic cables to wooden, metal, or concrete poles. Constructed from aluminum alloy, it delivers high mechanical strength (200 to 930 daN depending on configuration) and corrosion resistance while maintaining a lightweight profile of approximately 0.2 kg.

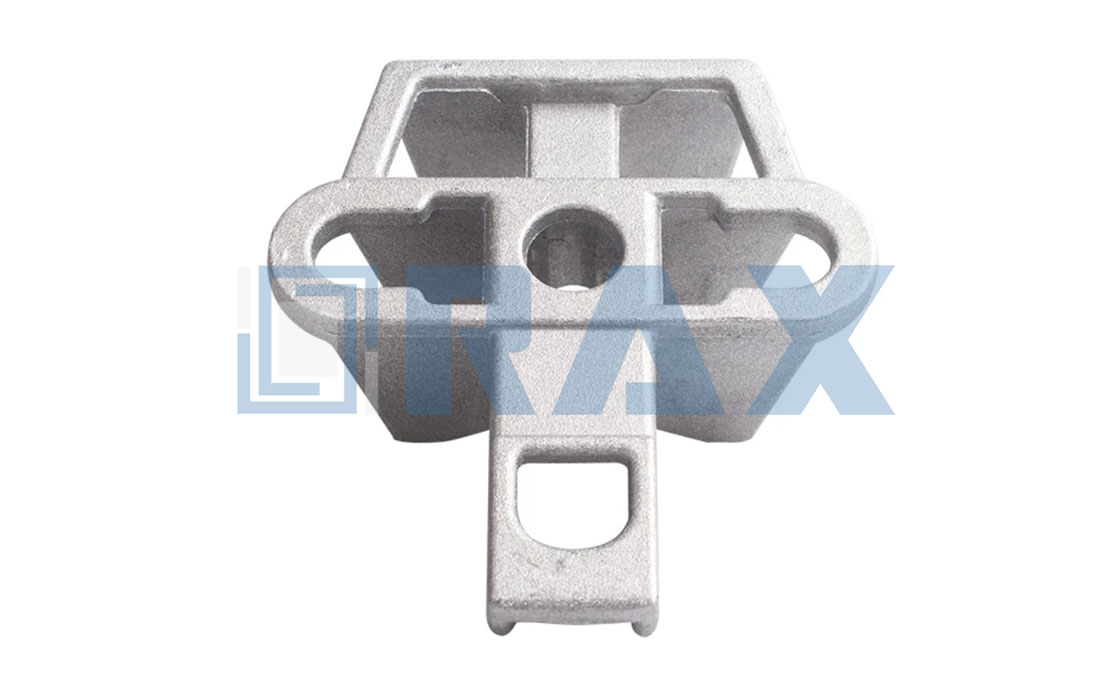

The bracket features a patented design with five apertures for aerial cables, dropwires, or stay wires, plus recesses for stainless steel banding. Measuring 120 mm by 114 mm by 46 mm, its adjustable design accommodates different pole sizes and shapes while preventing slippage. The working load capacity exceeds 5 kilonewtons (kN), supporting single, double, or triple anchoring configurations without drilling on certain poles.

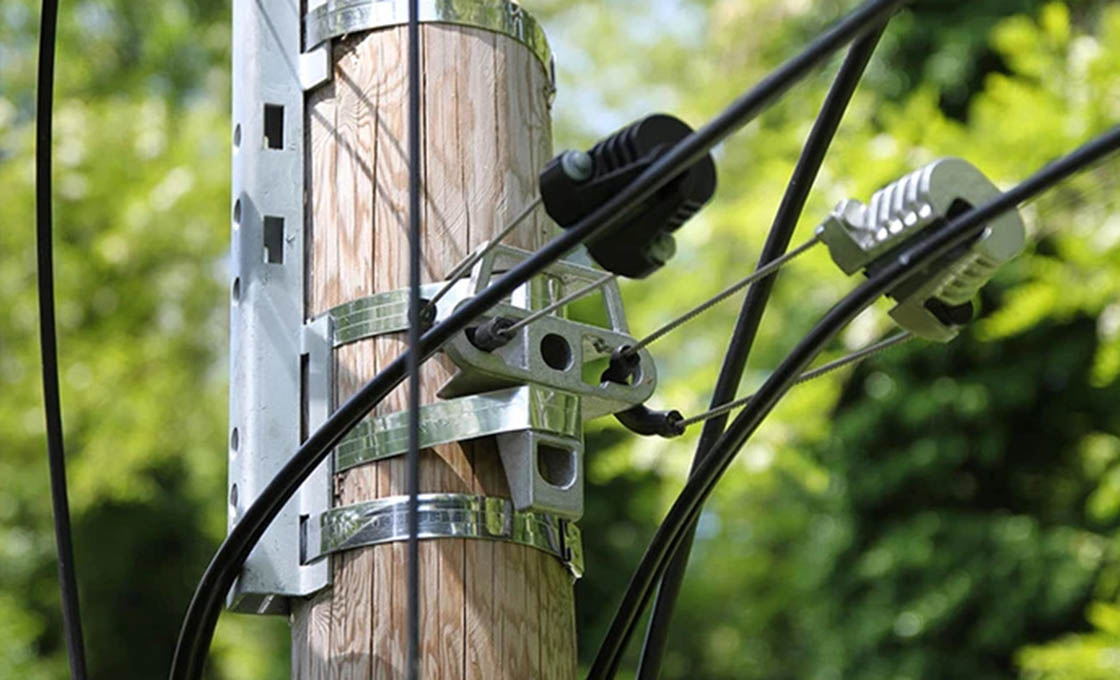

Primary applications include telecommunications and fiber optic networks, where the bracket supports suspension of running out rollers, jointing points, stay systems, angle points, cross-arm installation, derivation points, and dead-ending of parallel lines. Installation uses either two 20 x 0.7 mm stainless steel bands with buckles for undrilled poles, or 14 to 16 mm bolts for drilled poles, with bolt lengths equaling pole diameter plus 50 mm recommended for secure fastening.
Universal Pole Bracket – Premium Manufacturer
RaxPower, a leading manufacturer, supplier, and factory based in Hebei Province, China, is proud to offer this high-quality Universal Pole Bracket designed to meet all your mounting needs. Crafted with precision from top-grade aluminum alloy, it provides a versatile and durable solution for securely attaching equipment to poles in optical distribution networks and other applications. The bracket features easy installation using stainless steel straps or bolts, accommodating various pole sizes without drilling.
Key features and specifications include:
- Material: High-strength aluminum alloy
- Working Load: Up to 10KN
- Weight: 0.2 kg
- Mounting Options: 20mm steel bands or 14-16mm bolts
- Applications: Cable management, security cameras, signage, and lighting fixtures
As a direct manufacturer with over 21 years of experience, we leverage advanced hot forging technology and strict quality control—including load testing, galvanization per ISO 1461, and SGS certification—to ensure each bracket delivers reliable performance and corrosion resistance. Our commitment to long-term relationships, stable quality, and competitive pricing makes us your trusted partner. Feel free to contact our sales team for more details on the Universal Pole Bracket UPB.
| Parameter | Value |
|---|---|
| Material | Aluminum Alloy |
| Mechanical Strength | 200–930 daN |
| Working Load | ≥5 kN |
| Number of Apertures | 5 |

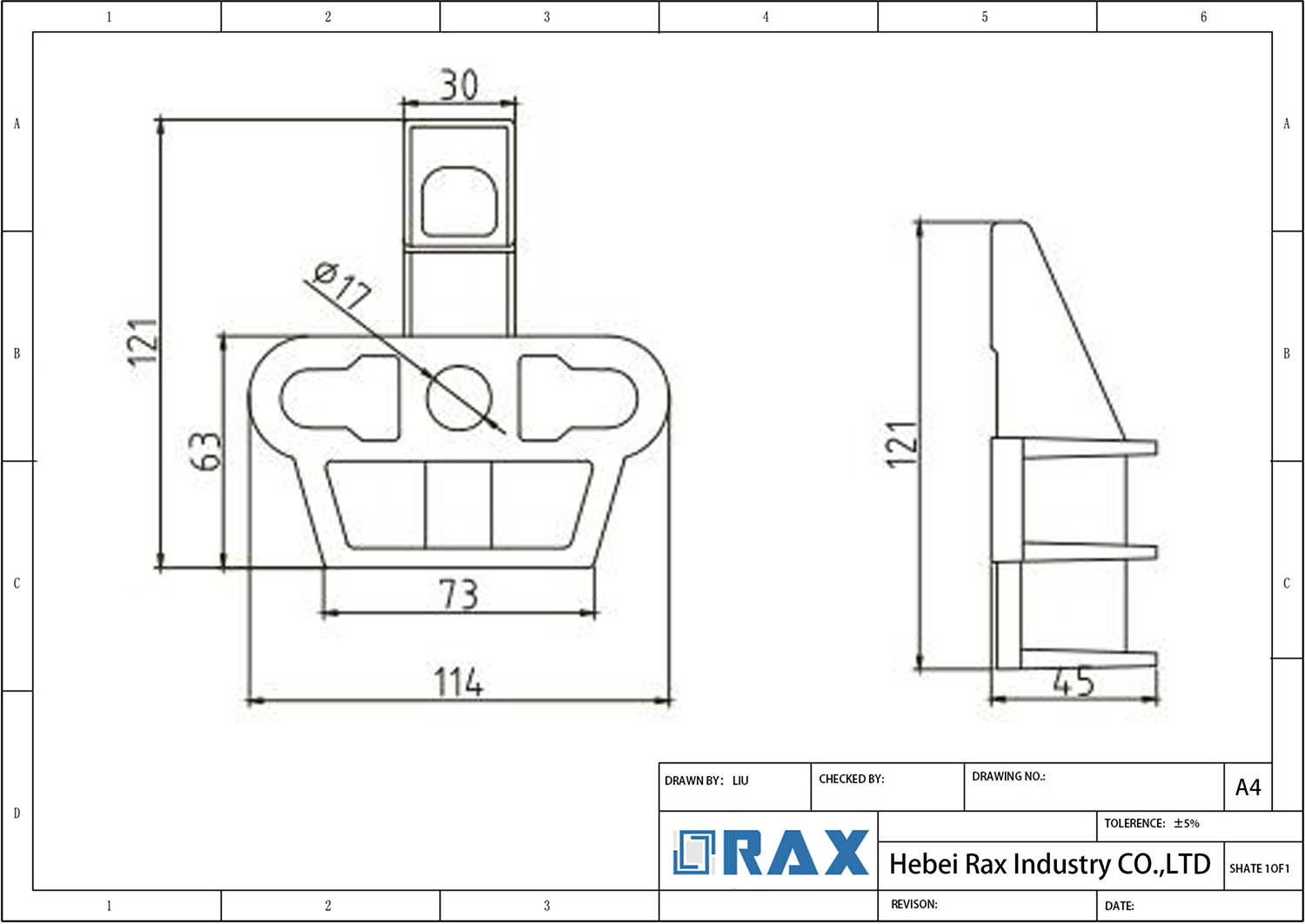

| Dimensions | 120 x 114 x 46 mm |
| Weight | 0.2 kg |
| Mounting Options | Pole band: Two 20 x 0.7 mm stainless steel bands with buckles; Bolt mounting: 14 or 16 mm bolt (length ≥ pole diameter + 50 mm) |
| Packaging | 30–100 units per carton |
Frequently Asked Questions (FAQS)
It is designed for suspension of running out rollers, jointing points, stay systems, dead-ending of single, double, or triple parallel lines, derivation points, and cross-arm installation in fiber optic and telecom networks.
The Universal Pole Bracket is manufactured from high-strength aluminum alloy, which provides corrosion resistance and durability.
The working load is 5kN, with a maximum breaking load of up to 9kN, ensuring reliable performance under stress.
It can be installed using two 20 x 0.7 mm stainless steel bands with buckles for undrilled poles, or with a 14 or 16 mm bolt for pre-drilled wooden or concrete poles. The bolt length should be at least equal to the pole diameter plus 50 mm.
Dimensions are approximately 120 x 114 x 46 mm, and it weighs around 0.2 kg, making it compact and lightweight for easy handling.
RaxPower employs a stable quality control system and manufactures products in accordance with international standards such as EN, IEC, and UL. We conduct various tests including tensile strength, corrosion aging, and load tests to ensure high mechanical performance and durability.
RaxPower provides a product guarantee and is committed to building long-term relationships with customers. We offer after-sales support to ensure ongoing satisfaction and reliability throughout your project lifecycle.
As a direct factory, RaxPower offers very competitive prices and can handle large volume orders with no minimum order quantity for new customers. Our efficient production processes and automation ensure we meet your project needs effectively.
Yes, RaxPower provides comprehensive OEM orders and product customization, including packaging design, brand naming, and modifications. Our R&D department can develop new products or tailor existing ones based on your specific requirements.
What applications is the bracket suitable for?
What material is the Universal Pole Bracket made from?
What is the working load capacity of the bracket?
How can the bracket be installed on different types of poles?
What are the dimensions and weight of the bracket?
How do you ensure product reliability and compliance with international standards?
What kind of after-sales support and product guarantees can I expect?
What are your capabilities for handling large volume orders and competitive pricing?
Do you offer product customization or OEM services to meet specific project requirements?
