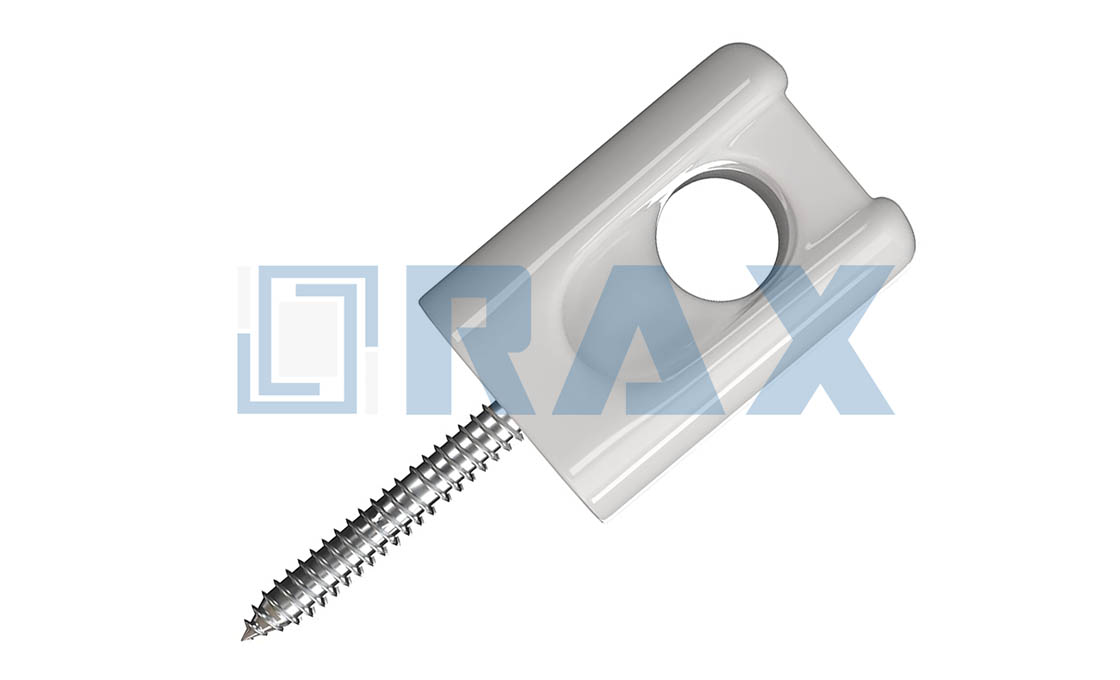

Screw-type wire holders organize and secure electrical wiring in residential, commercial, and utility applications. They attach to surfaces such as wood poles or walls via a screw mechanism, serving as mounting points for bail wires of service wedge clamps.

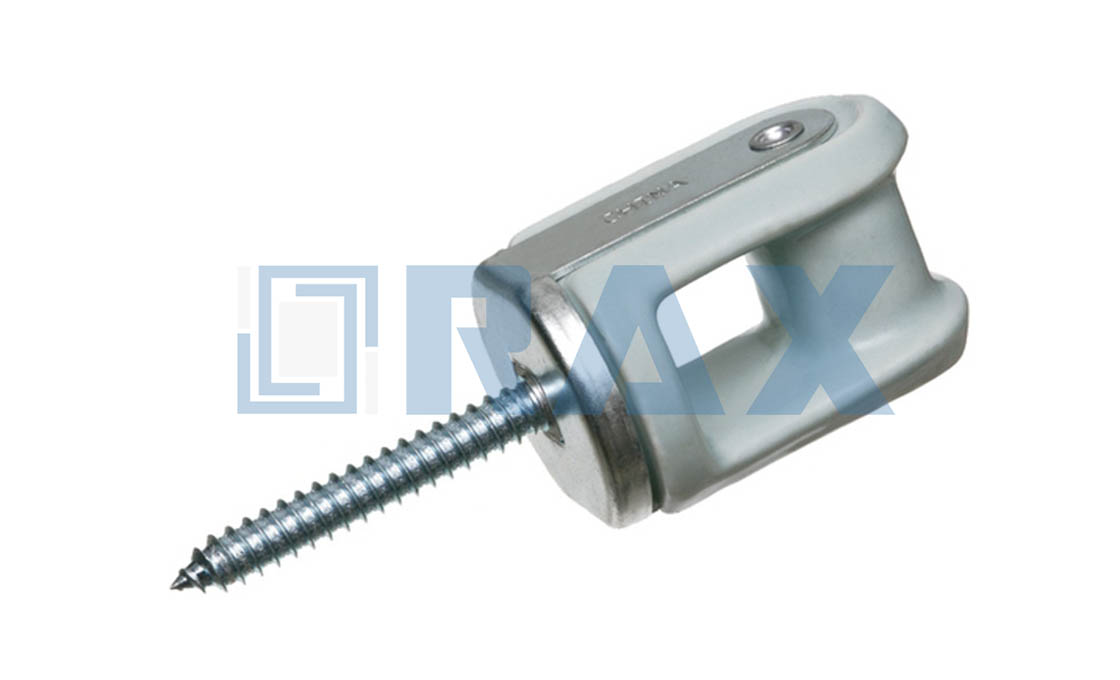

The holders feature heavy-duty construction with a lag screw for robust mounting. Key design elements include a self-drilling screw with a type ’17’ point for rapid wall installation that reduces wood splitting risk, adjustable clamp pressure to accommodate different cable thicknesses, a snap-lock mechanism for secure wire retention, and multi-directional mounting capability for versatile installation angles. Installation requires only a 5/8-inch speed wrench or compatible bits such as a #14-18 slotted bit or #3 Phillips bit.

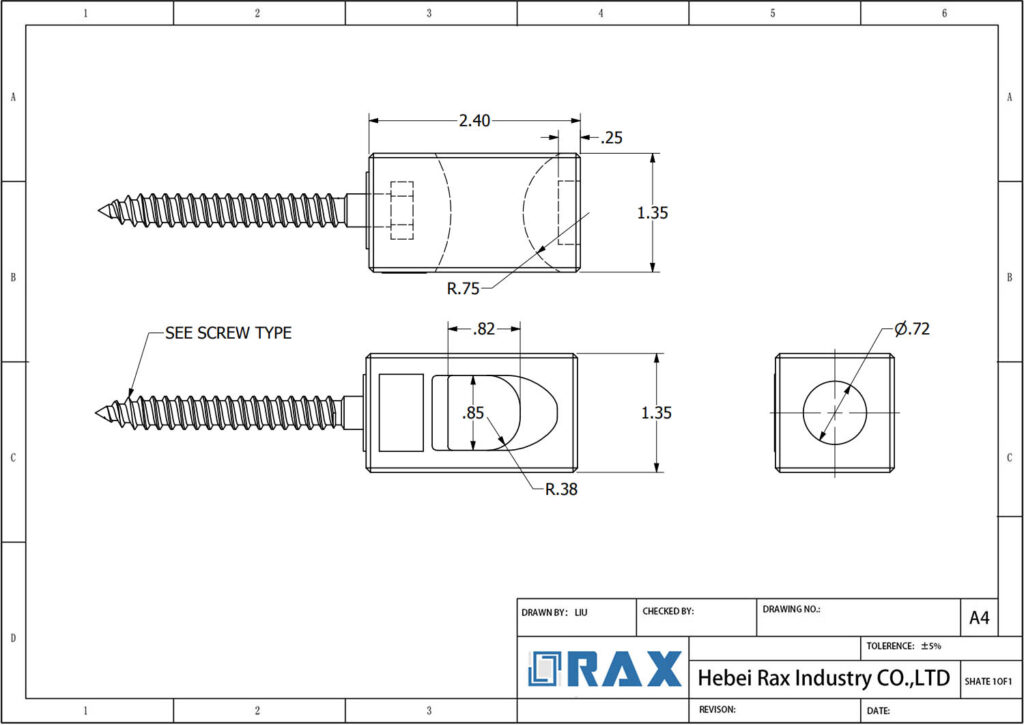

The holder body uses Nylon Alloy, which is Ultraviolet (UV) resistant to prevent sunlight degradation. The screw component is Hot Dip Galvanized per American Society for Testing and Materials (ASTM) Specification A153 for corrosion resistance, with optional galvanized steel reinforcements for enhanced outdoor durability. Specifications include a 3-inch screw length with #18 wood screw thread, accommodating wire diameters from approximately 6mm to 25mm.
The product meets Underwriters Laboratories (UL) 514B standards for bonding and grounding and carries Nationally Recognized Testing Laboratory (NRTL) approval for electrical installations. Standard packaging includes 50 units per carton, with pallet quantities up to 9000.
High-Durability Screw-type Wire holder Supplier
RaxPower is China’s leading manufacturer of pole line hardware, established in 2003 and based in Hebei Province. With over 21 years of expertise, our Screw-type Wire holder is engineered using high-quality porcelain and galvanized steel, delivering precise dimensions and exceptional durability.
We leverage advanced hot forging technology—our most sophisticated process—to produce components with superior strength and accurate sizing, directly enhancing the wire holder’s reliability. Our 17,000 square meters of production facilities and automated machinery ensure consistent quality and on-time delivery, while strict quality control, including multi-stage load testing and galvanization that complies with ISO 1461 standards, guarantees each unit meets rigorous performance criteria.
Supported by a team of over 170 professionals, we are dedicated to comprehensive customer service and support. For pricing and consultation, please contact RaxPower.
| Parameter | Value |
|---|---|
| Type | Service Wireholder |
| Material (Body) | Nylon Alloy |
| Material (Screw) | Hot Dip Galvanized Steel |
| Screw Length | 3 inches |
| Screw Thread Type | #18 wood screw |
| Wire Diameter Range | Approximately 6mm to 25mm |
| Installation Tools | 5/8-inch speed wrench, #14-18 slotted bit, #3 Phillips bit |
| Key Features | Self-drilling screw design, UV-resistant, adjustable clamp pressure, snap-lock mechanism, multi-directional mounting capability |
| Compliance | UL 514B, NRTL approval |
| Carton Quantity | 50 units |
| Pallet Quantity | 9000 units |
Frequently Asked Questions (FAQS)
What are the typical applications for screw-type wire holders?
RaxPower screw-type wire holders are used for service drops, utility neutral and secondary lines, and are suitable for both residential and commercial settings, including server rooms and office spaces.
What materials and construction features ensure durability?
RaxPower screw-type wire holders are constructed from nylon alloy or porcelain, reinforced with hot-dip galvanized steel per ASTM A153 specifications. They are UV resistant to prevent degradation from sunlight exposure, and designed to withstand long-term outdoor service and demanding industrial conditions.
Do screw-type wire holders comply with industry standards?
Yes, RaxPower screw-type wire holders meet NRTL approval requirements and comply with UL 514B standards for bonding and grounding, ensuring they are suitable for professional electrical installations and utility grid applications.
How are screw-type wire holders installed and what tools are needed?
RaxPower screw-type wire holders can be installed without special tools using a 5/8″ speed wrench or a #14-18 slotted bit or #3 Phillips bit. A dedicated installation tool with 1/2″ square internal drive and 1-1/8″ hex external drive is available for various power driving options. Models typically include a lag screw for wood mounting, with options like a 3/8-inch lag screw or 3-inch long screw with #18 wood screw thread.
Can you accommodate large-volume orders with reliable delivery?
Yes, we offer standard carton and pallet quantities for bulk orders. Our automated manufacturing processes ensure accurate sizing, uniform production, and on-time delivery to meet project schedules.
How do you ensure consistent product quality for bulk purchases?
We use automatic machines for precise manufacturing, coupled with strict quality control including load testing and gauge tests per IEC 120 standards, ensuring 100% quality before packing while maintaining competitive pricing.
