The Porcelain Mast Mounted Wire Holder, also called Mast Type Wireholder, secures and supports overhead service entrance lines, telephone cables, and electric fence connections to buildings or utility poles. The product features an adjustable service mast integrated with a porcelain insulator that provides a stable, non-conductive attachment point for electrical connections while preventing energy loss.

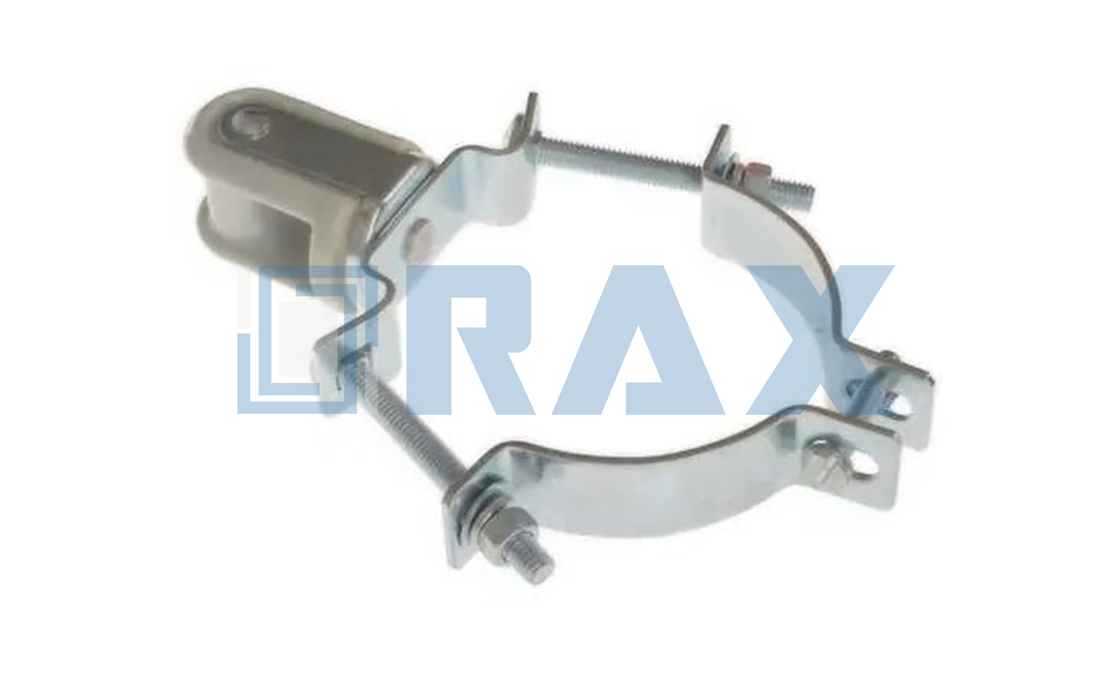

The holder combines galvanized heavy-duty steel with a glazed gray porcelain insulator. Steel components are hot-dip galvanized per ASTM (American Society for Testing and Materials) specification A153 for corrosion resistance. The reinforced design resists environmental factors including moisture and chemicals, with the galvanized steel reinforcement ensuring structural strength for secure wedge clamp attachment and long-term performance.

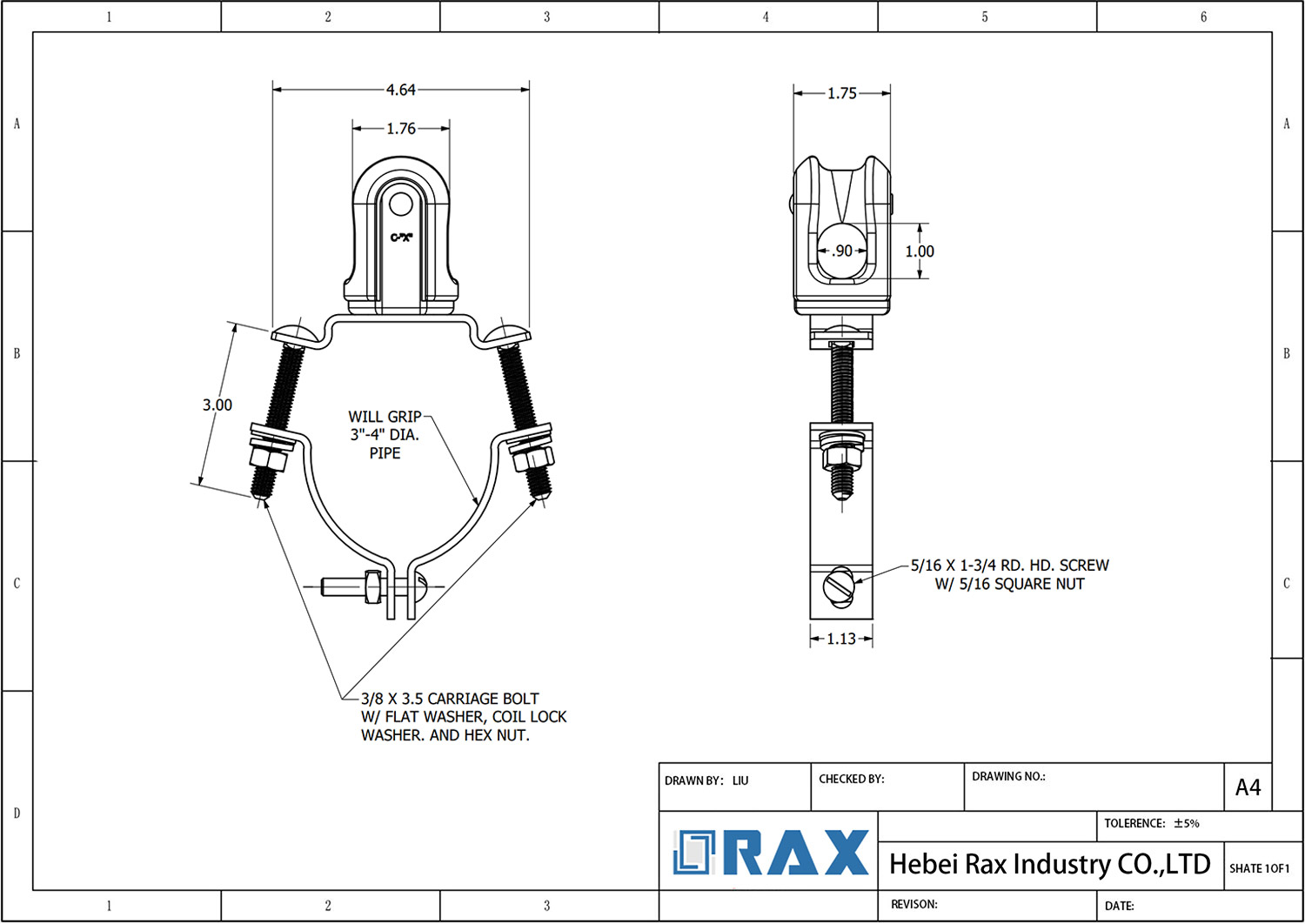

Installation uses a two-bolt clamp system for quick, flexible attachment to conduits without removing nuts. The holder mounts directly to utility poles or structures using included nuts, bolts, washers, or wood screws. Some models feature pre-assembled lag screws. Standard sizes accommodate service entrance masts from 1-1/4 inches to 3 inches in diameter, with larger models available for 3-inch to 4-inch pipes. The wire opening measures approximately 1 inch by 15/16 inches.
The product meets NRTL (Nationally Recognized Testing Laboratory) approval and complies with UL (Underwriters Laboratories) 514B standards for bonding and grounding, adhering to EEI (Edison Electric Institute) TD-24 industry standards for safe operation in electrical installations.
Expert Porcelain Mast Mounted Wire Holder Wholesaler
RaxPower is a leading manufacturer of quality electrical products since 2003, with a specialized focus on pole line hardware. Our dedication to continuous innovation ensures that we address the evolving needs of the industry with products like the Porcelain Mast Mounted Wire Holder.
This essential device is designed to support and secure incoming service entrance overhead lines, featuring an adjustable service mast constructed from galvanized heavy-duty steel for exceptional strength and corrosion resistance, paired with a porcelain insulator that delivers reliable electrical performance.
Available in standard sizes such as 1-1/4″ to 3″ and 3″ to 4″, and fully customizable to meet your specific project requirements, this wire holder exemplifies our commitment to meeting rigorous utility industry standards.
The hot-dip galvanization process adheres to ASTM A153 specifications, ensuring durability and long-lasting service. As a professional manufacturer and source factory in China, we leverage our expertise to produce high-quality power line accessories at competitive factory prices, backed by over two decades of experience.
To logically demonstrate the value and quality of our Porcelain Mast Mounted Wire Holder, we offer a free sample. Contact us now to get your free sample and experience how RaxPower can be your trusted partner in power line solutions.
| Parameter | Value |
|---|---|
| General | |
| Type | Service Wireholder |
| Material | Galvanized Steel and Porcelain |
| Mast Size Range | 1-1/4 inches to 3 inches; 3 inches to 4 inches |
| Wire Opening Size | Approximately 1 inch by 15/16 inches |
| Color | Gray |
| Dimensions | |
| Length | 7.75 inches |
| Width | 5.25 inches |
| Height | 2 inches |
| Weight | 1.47 pounds |
| Standards and Certifications | |
| Industry Standard | EEI TD-24 |
| UL Standard | UL 514B |
| NRTL Approval | Yes |
| Material Specifications | |
| Galvanization Standard | ASTM A153 |
Frequently Asked Questions (FAQS)
What is the primary purpose of this wire holder?
It is used to secure incoming overhead service entrance wires, telephone lines, or electric fence lines to buildings, ensuring reliable connections and preventing energy loss.
What safety and industry standards does the wire holder meet?
The wire holder complies with UL 514B for bonding and grounding, and features a hot-dip galvanized coating meeting ASTM A153 specifications for corrosion resistance. It is constructed with a porcelain insulator and galvanized steel bracket for high strength and durability in utility applications.
What mast sizes does the wire holder accommodate?
The porcelain mast mounted wire holder fits service entrance masts in standard sizes of 1-1/4″ to 3″ and 3″ to 4″ in diameter to accommodate various installation requirements.
What is the size of the wire opening?
The standard wire opening is approximately 1″ by 15/16″, designed to accommodate typical service entrance cable sizes while providing adequate protection and support.
How is the wire holder installed?
Installation involves a clamp system that attaches to the service mast or directly to buildings using included hardware such as nuts, bolts, washers, or wood screws. It can be mounted with a lag screw and features a non-conductive porcelain guide for wire direction.
Can the wire holder be customized for specific projects?
Yes, customization options are available to meet specific project needs, in addition to the standard sizes offered.
