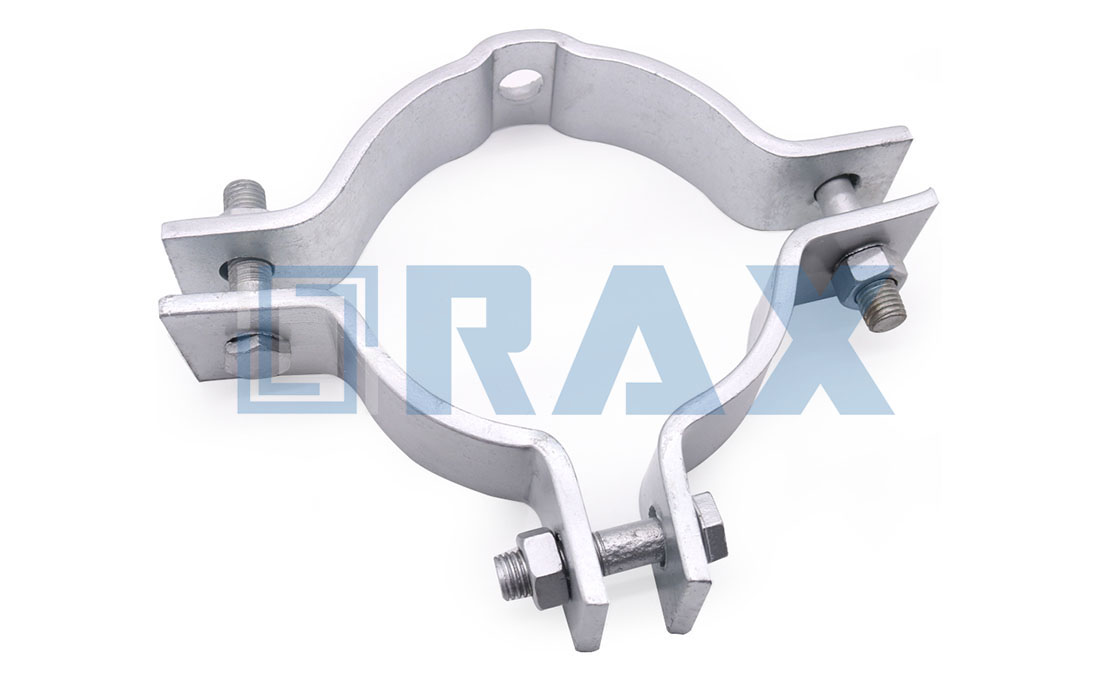

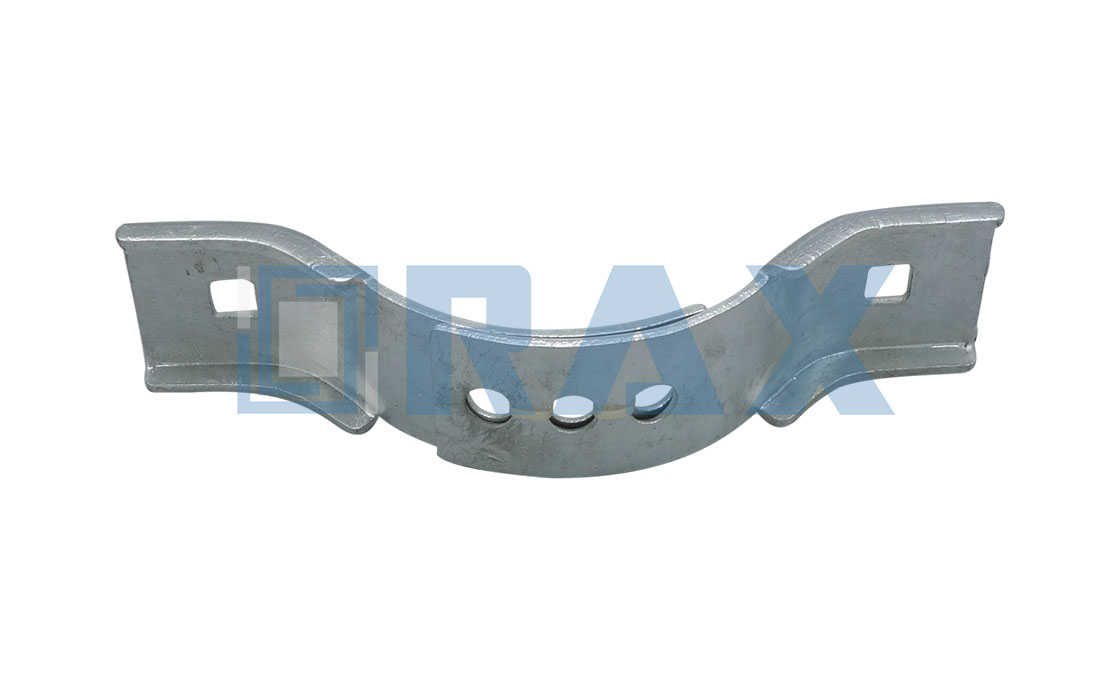

Pole Bands are hardware accessories for guying and deadending applications on steel, wood, or concrete poles without requiring pre-drilled bolt holes. They provide attachment points for securing secondary racks, insulators, and cables in utility and transmission systems, ensuring stable support for overhead lines and pole-mounted equipment.
The bands feature ductile iron links that are hot dip galvanized, along with steel bolts and hinge pins receiving the same galvanized treatment for enhanced corrosion resistance. Cotter keys are manufactured from stainless steel to prevent rust and ensure long-term reliability in various environmental conditions.
Pole Bands accommodate pole diameters from a minimum of 8 inches to virtually unlimited maximum diameters, providing application flexibility across different pole sizes and types on both cylindrical and square poles. They are available in two tensile strength ratings: 15,000 pounds and 30,000 pounds for heavy-duty transmission construction applications. Each assembly includes one CLP (Adjustable Clip Link) permitting 4-inch take-up adjustment for fine-tuning the fit. Additional CLP clips, full links, and half links can be ordered separately to extend diameter range. Eye links, such as the PEL (Pole Eye Link) series, serve as termination points for deadending and guying, with configurations supporting up to four links for 90-degree corner poles.
Pole Band Manufacturer
As one of the leading pole line hardware manufacturers in China, RaxPower has pole bands of all sizes for you to choose from. Pole bands are metal bands used to secure various components to utility poles in electrical power distribution systems, providing ideal support for guy wires and dead-end clamps without requiring prefabricated bolt holes.
Features
- Adjustable design to accommodate different pole diameters for easy installation and secure fit.
- Made from high-quality hot-dip galvanized steel, ensuring longevity and resistance to rust and corrosion.
- High tensile strength up to 560N/mm² to withstand heavy loads without breaking or cracking.
Advantages
- Versatile for various applications, including streetlights, utility poles, and telecommunications.
- Cost-effective by reducing installation time and labor compared to traditional methods.
- Enhanced safety through stable fastening that prevents movement in adverse weather conditions.
RaxPower, established in 2003 in Hebei Province, China, brings over 21 years of expertise in R&D and production. Our commitment to quality is reflected in advanced manufacturing processes like hot forging, which enhances the strength and accuracy of our Pole Bands. Strict quality control, including raw material selection and multi-stage load testing, ensures every product meets high reliability standards. This direct cause-and-effect linkage between material properties and performance under load guarantees that our Pole Bands set the standard for durability.
For competitive ex-factory prices and ODM/OEM services, contact RaxPower today to discuss your needs.
| Parameter | Value |
|---|---|
| Application | Guying and deadending for steel, wood, or concrete poles |
| Pole Diameter Range | 8 inches to unlimited |
| Tensile Strength Ratings | 15,000 pounds and 30,000 pounds |
| Material – Links | Ductile iron, hot dip galvanized |
| Material – Bolts and Hinge Pins | Steel, hot dip galvanized |
| Material – Cotter Key | Stainless steel |
| Adjustability | 4 inches take-up with CLP clip |
| Weight – CLP-2 Clip (per 100 units) | 5 pounds |
| Weight – CLP30-2 Clip (per 100 units) | 8 pounds |
| Standard Pack Quantity – Clips | 5 |
| Standard Pack Quantity – Links | 25 |
| Eye Hole Diameter – PEL Eye Links | 15/16 inches |
| Dimension A – P Link | 3-7/16 inches |
| Dimension A – P-1/2 Link | 1-11/16 inches |
| Dimension A – P-1/2-30 Link | 2-3/16 inches |
| Dimension A – P-30 Link | 3-7/16 inches |
Frequently Asked Questions (FAQS)
What are pole bands used for?
Pole bands are used for guying and deadending to steel, wood, or concrete poles without drilling bolt holes. They also attach guys to wood frame structures and mount secondary racks on metal poles, pipe masts, or conduit.
What pole diameters and tensile strengths are available?
The bands accommodate pole diameters from 8 inches to virtually unlimited sizes. They are available in two tensile strength ratings: 15,000 pounds and 30,000 pounds for heavy-duty transmission applications.
What materials and quality standards are used?
Links are made of hot-dip galvanized ductile iron; bolts and hinge pins are hot-dip galvanized steel; cotter keys are stainless steel. All components meet ASTM specifications and undergo strict quality control including load testing and gauge tests.
How do I adjust the band assembly for different pole sizes?
Bands include one CLP clip allowing 4-inch take-up adjustment. Multiple clips, full links, or half links can be ordered separately for additional diameter range customization.
Do you offer custom specifications and OEM services?
Yes, we provide ODM and OEM services with custom sizes to meet your specific project requirements, including telecommunications, renewable energy, and specialized utility applications.
What is your typical delivery timeline?
Orders typically ship within 10-15 days after receiving payment or deposit.
