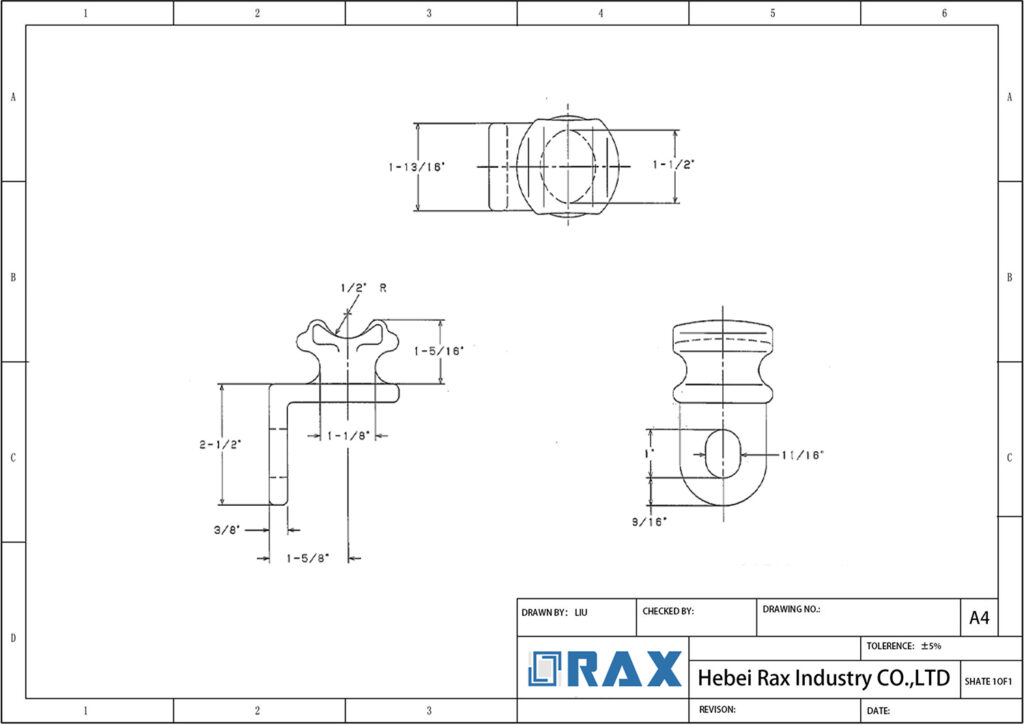

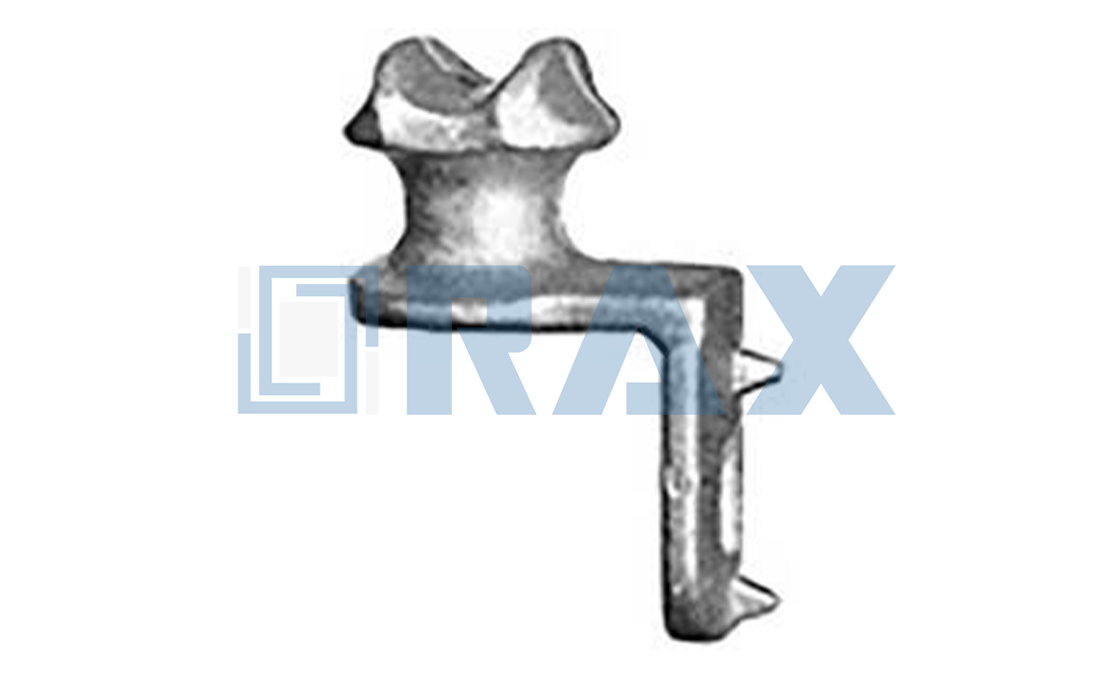

The Neutral Wire Bracket positions and secures neutral conductors on wood utility poles in power distribution systems. It mounts directly to poles to support neutral and secondary lines, providing stable wire management that meets industry standards. The bracket’s top groove accommodates neutral wires, while anti-rotation spurs or spikes embed into wood poles during installation to prevent movement and rotation.
Construction typically uses ductile iron per ASTM A-536 with hot dip galvanizing per ASTM A-153, or cast aluminum alloy with protective finishes for corrosion resistance. Vertical load capacity ranges from 3000 to 7500 pounds depending on the model. The bracket accommodates wire diameters up to 0.666 inches, with some variants supporting specific wire types like 336.4 AAC (All Aluminum Conductor).
Mounting involves 5/8 inch or 3/4 inch through bolts or lag bolts secured through slots or pre-drilled holes in the bracket’s long pole bearing surface. Offset versions provide additional clearance from the pole when needed. The design integrates with spool insulators and standard mounting hardware across different pole configurations.
Neutral Wire Bracket Supplier for Enhanced Safety and Durability
As a professional manufacturer of pole line hardware, we at RaxPower provide high-quality neutral wire brackets designed for positioning and sustaining electrical insulators in power distribution systems. Our brackets support neutral wires away from poles, ensuring additional clearance and safe, organized wiring for utility and industrial applications.
Key features and advantages:
- Constructed from hot-dip galvanized ductile iron or steel, per ASTM A-153, for superior corrosion resistance and long-term durability.
- Equipped with spikes for secure mounting on wood poles and compatible with standard bolt sizes, accommodating various wire diameters.
- Fully customizable to OEM requirements, with options for size, shape, and mounting configurations to meet specific project needs.
With over two decades of experience and a commitment to consistency, safety, and reliability, our manufacturing processes incorporate advanced techniques and strict quality control. Each bracket undergoes rigorous testing, including load tests and gauge inspections, and is certified to meet international standards such as CE and RoHS, ensuring 100% reliability and performance.
Contact us today for bulk pricing and technical support tailored to your application.
| Parameter | Value |
|---|---|
| Material | Ductile iron or cast aluminum alloy |
| Finish | Hot dip galvanized per ASTM A-153 |
| Wire Diameter Accommodated | Up to 0.666 inch or 0.5 inch |
| Mounting Bolt Diameter | 5/8 inch or 3/4 inch |
| Vertical Load Capacity | 3000 to 7500 pounds |
| Pole Mount Height | 11.12 to 14.27 inches |
| Pole Mount Width | 2.44 to 3.50 inches |
| Weight per Unit | 0.44 to 0.5 pound |
| Features | Anti-rotation spurs or spikes, top groove design for secure wire placement |
Frequently Asked Questions (FAQS)
What is the purpose of a neutral wire bracket?
The neutral wire bracket is a non-insulating device designed for pole mounting of neutral wire in utility and rural power lines. It secures the neutral conductor to the side of the pole, providing stable support with anti-rotation spikes that embed into wood poles to resist movement.
What materials and standards are used in construction?
RaxPower neutral wire brackets are crafted from hot dip galvanized ductile iron per ASTM A-536 or cast aluminum alloy, with galvanizing per ASTM A-153. These materials ensure long-term durability, superior corrosion resistance, and full compliance with electric utility industry standards.
What wire diameters and load capacities do the brackets support?
The brackets accommodate neutral wire diameters up to .666-inch (336.4AAC) or 0.5 inches (12.7mm), depending on the model, with a top groove design for secure placement. Maximum vertical load capacities range from 3000 lbs to 7500 lbs based on the specific design.
How is the bracket installed on a utility pole?
Installation involves mounting the bracket to the wood pole using a through bolt or lag bolt, typically 5/8-inch or 3/4-inch in diameter. The spikes in the mounting surface embed into the pole to prevent rotation during installation.
What product variants are available for different applications?
RaxPower offers multiple variants including standard neutral wire brackets (catalog numbers NWB5, NWB-50) and offset brackets for additional clearance. Options include different mounting bolt sizes (5/8-inch or 3/4-inch) and material choices of ductile iron or aluminum alloy, providing versatility for diverse project specifications and market needs.
