The Guy Clamp secures down guys and wire rope in utility and construction applications, forming loops for attachment to anchor rods or dead-ends. It provides additional support and structural stability in overhead line systems for communication and transmission lines.
The clamp is constructed from high-quality carbon steel or malleable iron with straight parallel grooves that prevent strand damage during installation and use. Clamping bolts feature special shoulders to prevent turning when nuts are tightened, ensuring secure fastening. All components are hot-dip galvanized in accordance with American Society for Testing and Materials (ASTM) Specification A153, providing resistance to moisture, corrosion, and environmental factors.
Available configurations include models with one, two, or three bolts, with diameters ranging from 1/2 inch to 5/8 inch. Clamp lengths vary from 1-1/2 inches to 6 inches, and widths from 1-9/16 inches to 1-21/32 inches, accommodating strand diameters from 3/16 inch to 1/2 inch. Some variants are Rural Utilities Service (RUS) listed and meet industry standards, including a minimum breaking strength requirement of 18,000 pounds for specific applications.
Guy Clamp Manufacturer
As a leading manufacturer, RaxPower delivers high-quality solutions to support the integrity and longevity of your power lines. The guy clamp is a type of parallel groove clamp used to fasten the stay wire in loop type guy dead-ends, providing additional support and ensuring structural stability for overhead transmission and communication lines.
As a full-service overhead line accessories manufacturer based in Hebei, China, we are your best choice for a one-stop solution, offering more options and the best factory price. Our guy clamps are rolled from high-quality carbon steel with straight parallel grooves that will not damage the strand, and the clamping bolts have special shoulders to prevent turning when the nuts are tightened. Constructed with hot-dip galvanizing per ISO 1461 standards, they ensure long service life and excellent weather resistance.
With over 21 years of experience, our manufacturing process includes hot forging for greater strength and automatic machines for uniform sizing, backed by strict quality control measures such as load testing and multi-stage inspections. Our products have passed SGS tests and meet requirements like ASME B30.26.

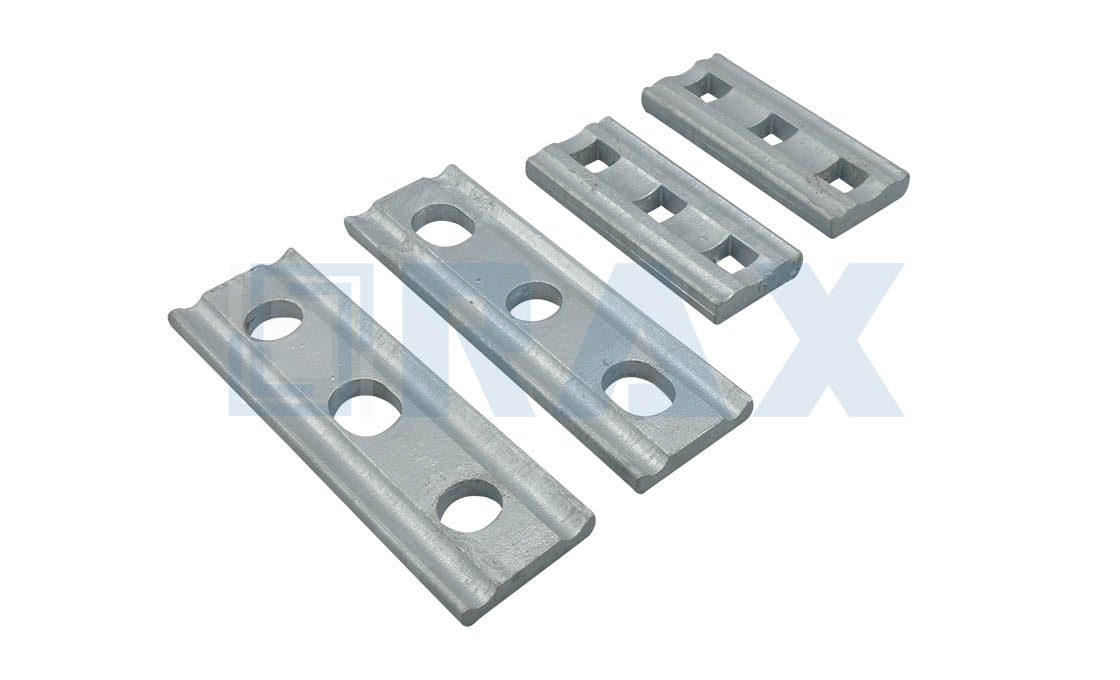

We provide various types including 1-bolt, 2-bolt, and 3-bolt guy clamps, with the 3-bolt type most used for its excellent performance. Customized designs are available with quick delivery from our skilled engineers.
Call today to speak to one of our product specialists!

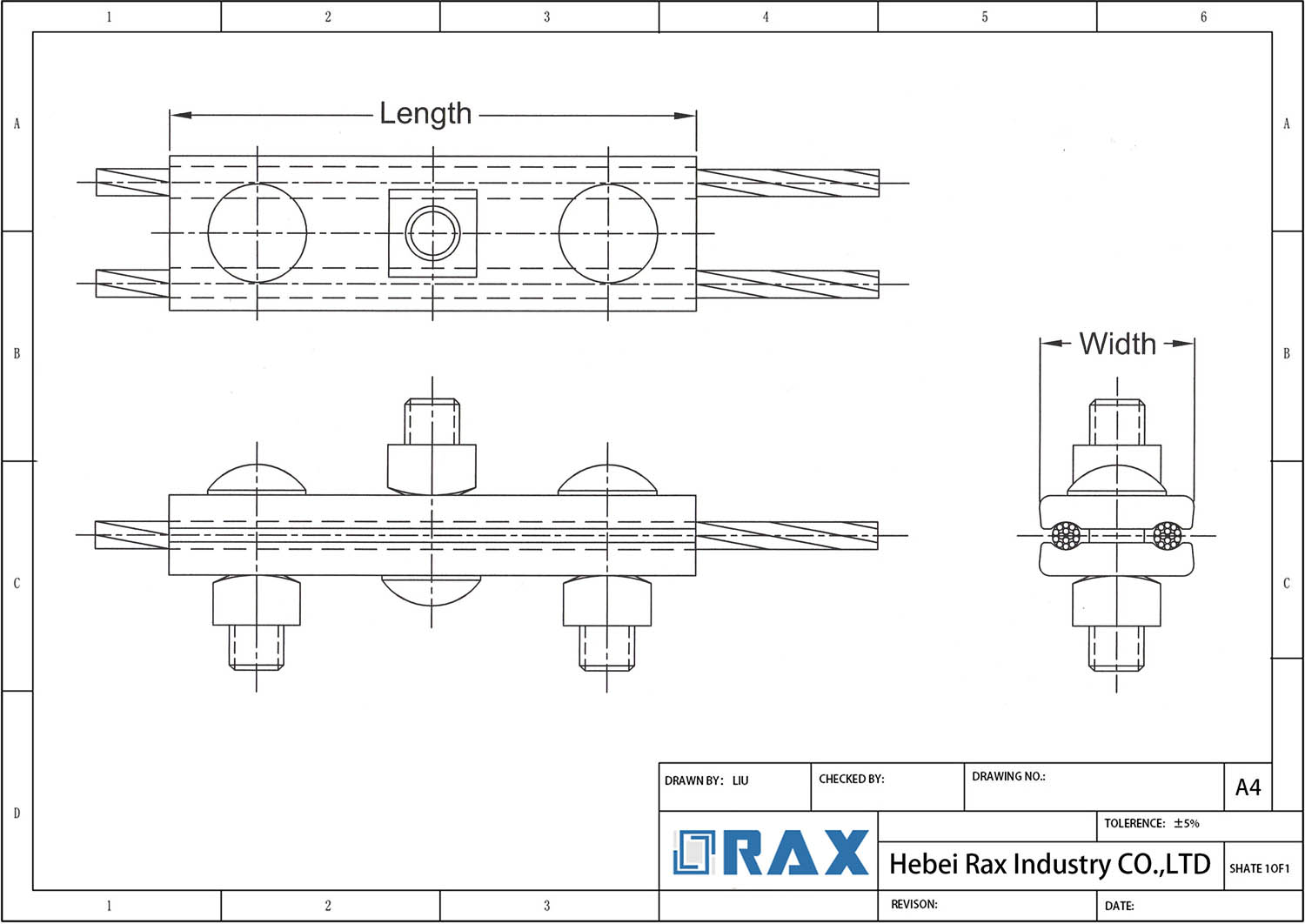

| Model | No. Bolts | Bolt Diameter (in) | Clamp Length (in) | Clamp Width (in) | Strand Diameter Range (in) | Weight per 100 units (lbs) | Material | Finish | Minimum Breaking Strength (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 1-Bolt Guy Clamp | 1 | 1/2 | 1-1/2 | 1-9/16 | 3/16 to 3/8 | 63 | Carbon Steel or Malleable Iron | Hot-Dip Galvanized per ASTM A153 | – |
| 2-Bolt Guy Clamp | 2 | 1/2 | 3-3/8 | 1-9/16 | 3/16 to 3/8 | 126 | Carbon Steel or Malleable Iron | Hot-Dip Galvanized per ASTM A153 | – |
| 3-Bolt Guy Clamp (4″) | 3 | 1/2 | 4 | 1-9/16 | 3/16 to 7/16 | 160 | Carbon Steel or Malleable Iron | Hot-Dip Galvanized per ASTM A153 | – |
| 3-Bolt Guy Clamp (6″) | 3 | 1/2 | 6 | 1-9/16 | 3/16 to 7/16 | 224 | Carbon Steel or Malleable Iron | Hot-Dip Galvanized per ASTM A153 | – |
| 3-Bolt Guy Clamp (5/8″ Bolt) | 3 | 5/8 | 6 | 1-21/32 | 5/16 to 1/2 | 256 | Carbon Steel or Malleable Iron | Hot-Dip Galvanized per ASTM A153 | 18,000 |
Frequently Asked Questions (FAQS)
What is a guy clamp used for?
A guy clamp is used to fasten stay wires, form guy loops that attach to anchor rods or dead-ends, and secure down guys and wire rope in guying applications for overhead lines and communication poles, providing additional support and structural stability.
What materials, finish, and standards do guy clamps meet?
Guy clamps are constructed from high-quality carbon steel or malleable iron and are hot-dip galvanized to meet ASTM A153, ensuring excellent corrosion resistance and durability. Some models are RUS listed or comply with industry requirements like Bell Telephone's minimum breaking strength of 18,000 lbs, with working temperatures from -50°C to +60°C.
Can guy clamps withstand high tensile forces?
Yes, guy clamps can withstand tensile forces of 1200 kg or more without deformation or damage, making them suitable for demanding applications, including live condition installations.
What strand diameter ranges can guy clamps accommodate?
Guy clamps accommodate various strand diameters, such as 3/16 to 3/8 , 5/16 to 1/2 , and 3/16 to 7/16 , depending on the model, with specifications like clamping length and width tailored to each range.
How does the bolt design prevent turning during installation?
The clamping bolts have special shoulders that prevent turning when the nuts are tightened, ensuring secure installation. The straight parallel grooves will not damage the strand, providing a secure and durable hold even under heavy loads.
What quality assurance measures guarantee guy clamp performance and safety?
Each guy clamp undergoes rigorous testing, including load tests to verify strength and gauge tests performed according to IEC standards. Our products have passed independent tests by SGS and other authoritative institutes, ensuring they meet all required safety, durability, and industry compliance standards.
What is your capacity for handling large-volume orders?
We utilize automatic machines to maintain accurate sizing and uniform quality, supporting efficient production and on-time delivery. With extensive manufacturing experience and streamlined processes, we can fulfill bulk orders promptly to meet tight project deadlines and ensure consistent supply.
Can you provide customized guy clamp solutions for specialized applications?
Yes, we offer ODM and OEM services, allowing for customized guy clamp designs tailored to specific project requirements. Our team of skilled engineers can develop solutions for applications like railway catenary systems or ADSS/OPGW accessories, ensuring perfect fit and performance.
