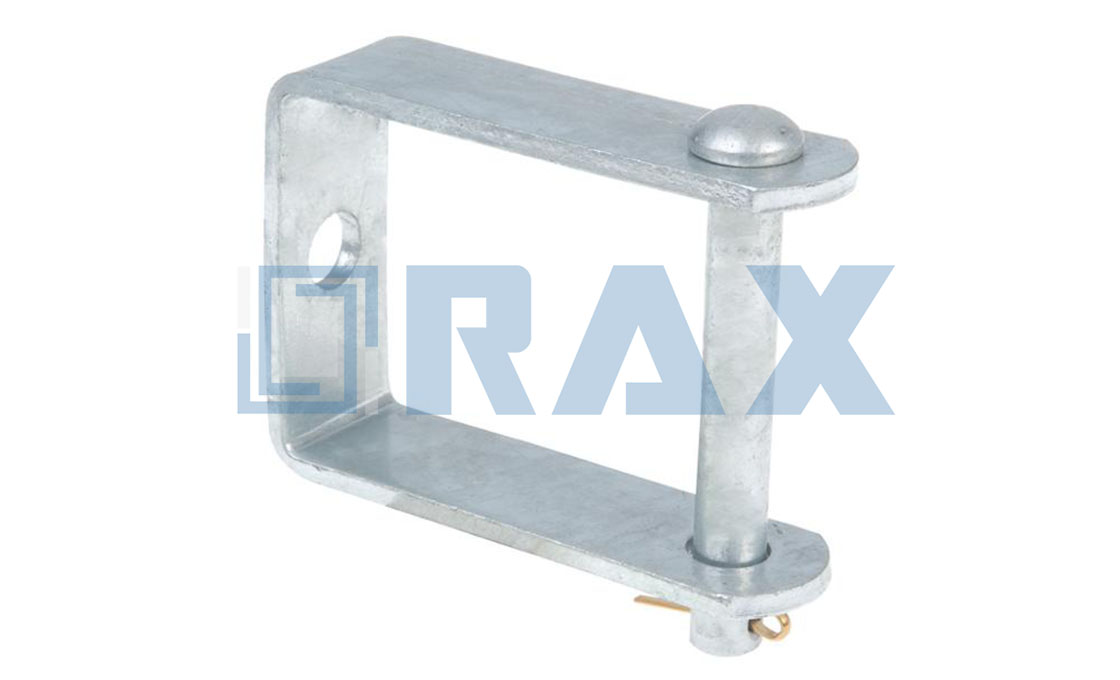

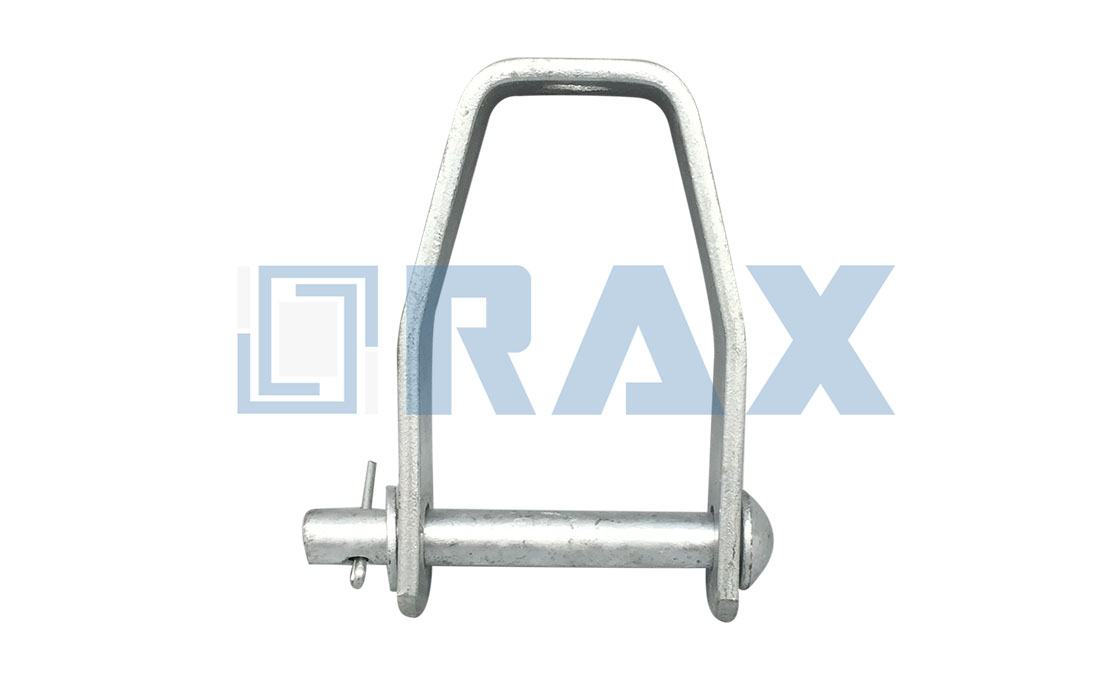

The deadend clevis, also called Secondary Clevis, provides a secure attachment point for spool insulators, conductors, and guy wires in overhead power line systems. It manages tension and alignment at dead-end, tangent, or corner positions on utility poles and structures. The component includes a bolt, nut, and cotter pin assembly for installation.
Applications include low-voltage dead-end configurations, overhead wire setups, and corner structures in both triplex and open wire circuits. The clevis enables dead-ending of conductors and guy wires while providing clearance for mounting equipment. Extension links can be used with the clevis for offset requirements.
Construction features hot dip galvanized steel complying with American Society for Testing and Materials (ASTM) A-153 specifications for corrosion resistance. The clevis is engineered from high-quality steel channels or flat bars. Key specifications include a 5/8 inch clevis pin diameter with self-locking cotter pin, mounting holes for 5/8 inch bolts (often slotted for installation without insulator removal), and ultimate strength ratings of 1800 to 3000 pounds. Opening sizes range from 5/8 inch to 3-1/4 inches to accommodate different insulator types.

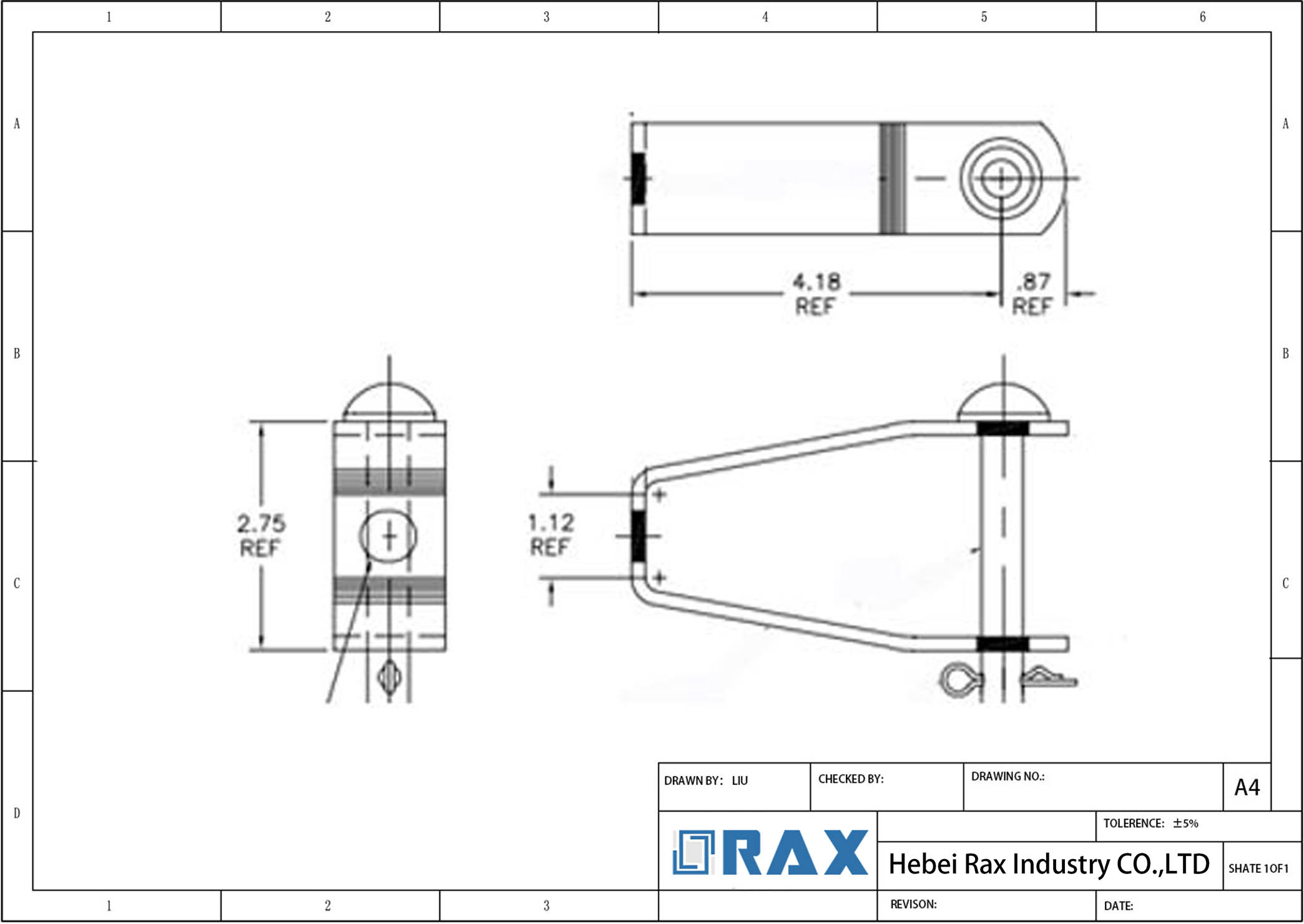

Products comply with American National Standards Institute (ANSI) C135.20 and ASTM A-153 standards, with select models featuring Rural Utilities Service (RUS) approval or Buy America qualification. Typical dimensions include lengths of 4 to 5 inches, heights around 3.50 to 3.75 inches, and weights from 0.89 to 2 pounds.
Deadend Clevis Wholesaler with Over 21 Years of Experience
RaxPower is engaged in providing Deadend Clevis to our customers. This product is utilized in overhead power line construction to secure the end of a guy wire to a utility pole or other structure, providing a strong and secure connection that prevents the wire from becoming dislodged or breaking under tension.
Dedicated to designing and manufacturing in compliance with applicable electric utility and communications industry standards, our Deadend Clevis is made from hot-dip galvanized steel, ensuring corrosion resistance and enhanced strength. The use of hot forging technology, a sophisticated process in our manufacturing, makes it much heavier and stronger than similar brackets.
Features include a 5/8″ cotter bolt and slotted mounting holes for easy installation without removing insulators. Our commitment to quality is backed by over 21 years of experience, with strict quality control measures including load testing, gauge tests per IEC 120, and galvanization following ISO 1461, with mean coating thickness exceeding 85 microns. This ensures each Deadend Clevis offers reliable performance for secure anchoring in power line systems.
| Parameter | Value |
|---|---|
| Material | Steel |
| Coating | Hot dip galvanized, ASTM A-153 |
| Type | Insulated Secondary Clevis |
| Ultimate Strength | 2000 lbs |
| Clevis Pin Diameter | 5/8 inch |
| Mounting Hole Size | 5/8 inch |
| Clevis Opening Size | 3-1/4 inches |
| Length | 4 inches |
| Height | 3.50 inches |
| Width | 3.75 inches |
| Weight | 1.33 lb |
| Distance From Pole | N/A |
| Industry Standard(s) | ANSI C135.20 |
| Pallet Quantity | 1600 |
Frequently Asked Questions (FAQS)
What is the primary application of a Deadend Clevis?
RaxPower's Deadend Clevis is used to connect spool insulators to poles, especially in low-voltage dead-end or overhead wire applications. It provides a secure attachment point and helps manage the tension and alignment of the conductor.
What materials and standards does the Deadend Clevis meet?
The Deadend Clevis is made from steel, hot-dip galvanized (HDG) per ASTM A-153 for corrosion resistance. It is manufactured in compliance with ANSI C135.20 and IEEE C135.20 standards, and many models are RUS approved, ensuring they meet rigorous requirements for electric utility applications and grid reliability.
What is the strength rating of the Deadend Clevis?
The ultimate strength varies by model, with ratings such as 1800 lbs, 2000 lbs, or 3000 lbs, ensuring reliability in dead-end applications.
What are the common specifications for the Deadend Clevis?
Common specifications include a clevis pin size of 5/8 inch, mounting hole diameters of 11/16 inch, lengths from 4 to 5 inches, and weights ranging from approximately 0.89 to 2 lbs, depending on the model. Our clevises are produced with precise dimensions to maintain consistency and support reliable performance.
How is the Deadend Clevis installed?
Installation features slotted mounting holes that allow for easy attachment without removing insulators, minimizing on-site labor. It is supplied with necessary hardware including a bolt, nut, and cotter pin for streamlined assembly.
What insulators are compatible with the Deadend Clevis?
RaxPower's Deadend Clevis is designed for use with spool insulators such as ANSI Class 53-1, J151, or J0101. Note that insulators must be ordered separately.
What options are available for bulk ordering to support large-scale projects?
We offer standard packaging with pallet quantities, such as 1120 or 2400 units per pallet, allowing for efficient handling and supply chain management for project-based needs.
