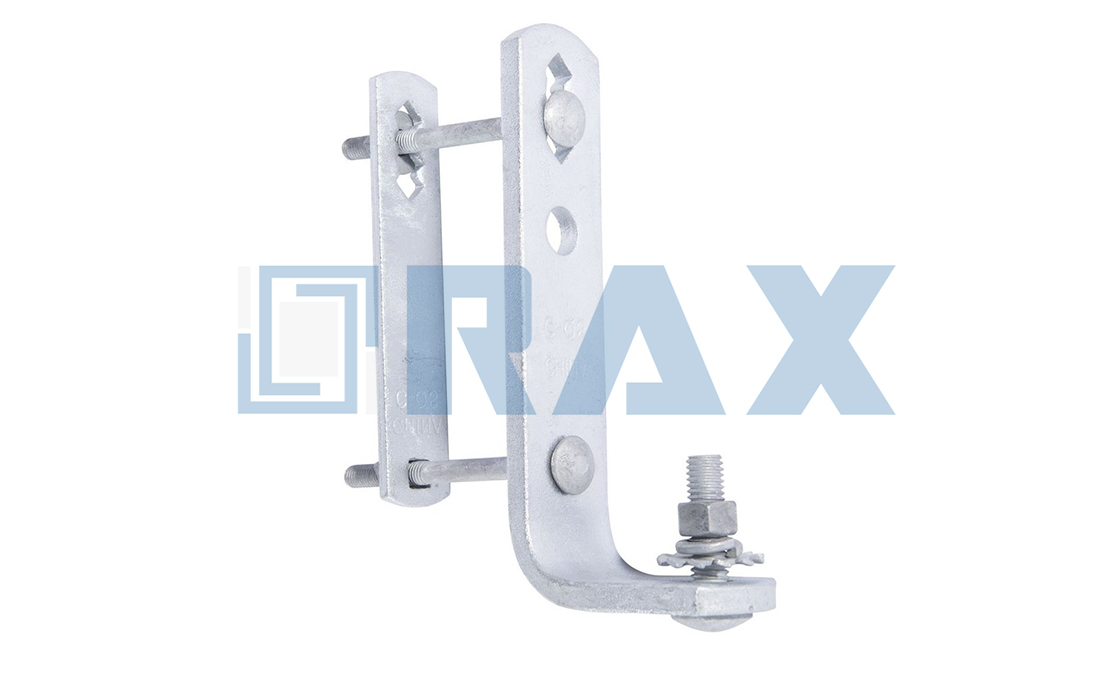

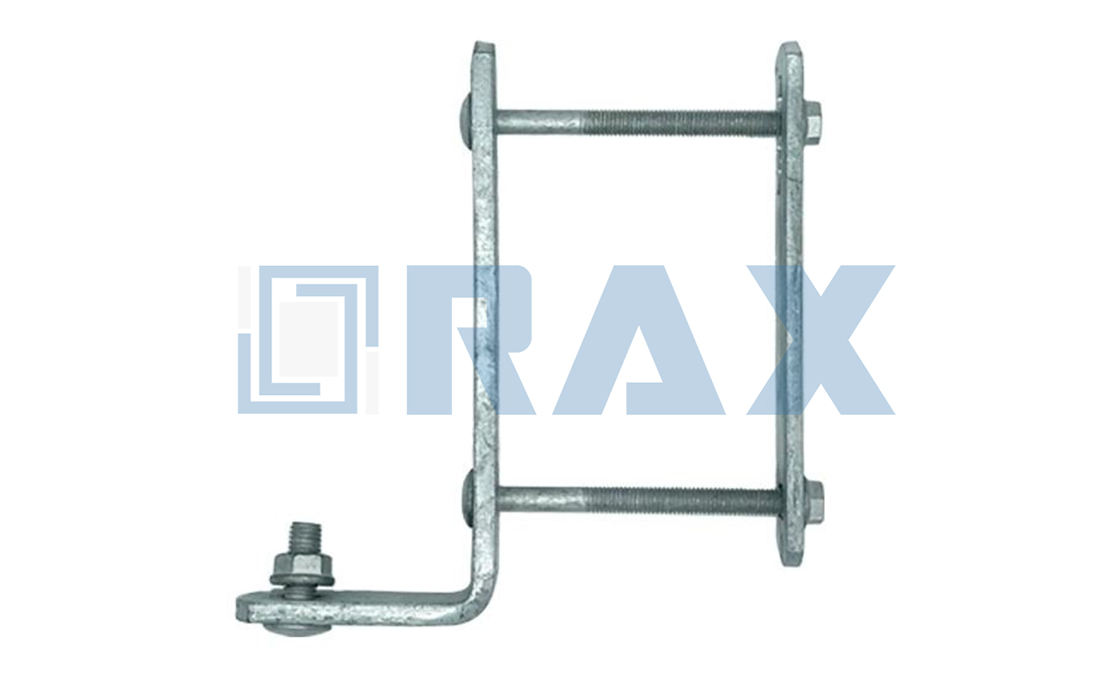

The Crossarm Mounting Bracket securely attaches distribution stringing blocks, cutouts, lightning arrestors, and cable terminators to crossarms in utility electrical infrastructure. Quick-release mechanisms with hook nuts or pins enable easy attachment and angle adjustment of mounted equipment, enhancing installation and maintenance flexibility. The lightweight design facilitates handling and transport while maintaining strength and safety through secure mounts that resist displacement under load.
Construction typically uses galvanized steel per American Society for Testing and Materials (ASTM) A-153 standards, with 1/2-inch carriage bolts for fastening. Brackets accommodate crossarm sizes including 4-1/2 by 5-1/2 inches and 6-1/4 by 7 inches, with maximum dimensions supporting widths up to 5.7 inches and heights up to 6.3 inches. Safe working loads reach 2500 pounds, with minimum ultimate strengths ranging from 1750 to 3500 pounds.
Weight ranges from approximately 3.5 to 5.25 pounds, with shipping dimensions around 7 inches in length, width, and height. Style variations include full frame and partial frame options, featuring straight ball detent pins or L-shaped locking detent pins. Dimension tolerances are within +/-5%, and rentable models offer practicality for temporary projects. Detailed data-sheets are available upon request.
Crossarm Mounting Bracket Supplier – Reliable and Easy to Install
RaxPower was established in 2003 in Hebei Province, China, to meet the continued focus on partner demands for high-quality, low-cost, and technologically advanced products. With over 21 years of manufacturing and exporting experience, our Crossarm Mounting Bracket is designed for easy attachment of distribution blocks to cross arms, securely mounting them at three convenient angles based upon the needs of your pull. It features a quick release pin for attachment and fits most cross arm sizes, with styles available in full frame and partial frame. Constructed from galvanized steel per ASTM A-153, it includes two 1/2″ x 2″ captive carriage bolts with hex nut, tooth washer, and single coil lockwasher for dependable installation.
Our commitment to superb partner service and quality for long-term partnerships is demonstrated through customer feedback, such as “Thanks for the awesome customer service!” and “It’s a pleasure to work with you!”. We ensure that all parts are in stock and delivered promptly, supported by our extensive production facilities and strict quality control processes. Leveraging advanced manufacturing techniques like hot forging for enhanced strength and accurate sizing, along with multi-stage testing and galvanization per ISO 1461 standards, we guarantee that every bracket meets rigorous performance and reliability requirements.
READY FOR A QUOTE? Contact our sales representatives for detailed specifications and pricing.
| Frame Style | Crossarm Max Width (in) | Crossarm Max Height (in) | Safe Working Load (lbs) | Weight (lbs) | Min Ultimate Strength (lbs) | Pin Type | Material | Fasteners | Tolerances | Shipping Dimensions (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| Partial Frame | 5.7 | 6.3 | 2500 | 3.5 – 5.25 | 1750 – 3500 | Straight Ball Detent Pin, L-Shaped Locking Detent Pin | Galvanized Steel per ASTM A-153 | 1/2″ Carriage Bolts | +/-5% | 7 x 7 x 7 |
| Full Frame | 4.6 | 5.9 | 2500 | 3.5 – 5.25 | 1750 – 3500 | Straight Ball Detent Pin, L-Shaped Locking Detent Pin | Galvanized Steel per ASTM A-153 | 1/2″ Carriage Bolts | +/-5% | 7 x 7 x 7 |
Frequently Asked Questions (FAQS)
What is the primary application of the Crossarm Mounting Bracket?
The RaxPower Crossarm Mounting Bracket is designed to mount any CB-Series distribution stringing block to a cross-arm. It is compatible with crossarm sizes 4-1/2 x 5-1/2 and 6-1/4 x 7, and allows the universal stringing block to be mounted at various angles.
How do you ensure durability for long-term utility applications?
Our brackets are made from galvanized steel per ISO 1461 to provide excellent corrosion resistance and durability, with a mean coating thickness of more than 85 microns for articles exceeding 6mm in thickness. They have a safe working load of 2,500 lbs, ensuring they can handle typical loads in power line applications.
How does the quick-release mechanism work?
It features a quick-release hook nut for easy attachment and removal of the stringing block.
What are the weight, dimensions, and available styles?
The bracket weighs 5.25 lbs and has shipping dimensions of 7 x 7 x 7 inches. It is available in Straight Ball Detent Pin and L-Shaped Locking Detent Pin styles.
Is the bracket available for rental and immediate shipment?
Yes, the RaxPower Crossarm Mounting Bracket is rentable. We maintain high inventory levels, and all parts are in stock for immediate shipment to meet urgent project needs.
Can you accommodate custom bracket designs for specific project requirements?
We frequently undertake custom engineering design to create brackets that meet unique application requirements.
