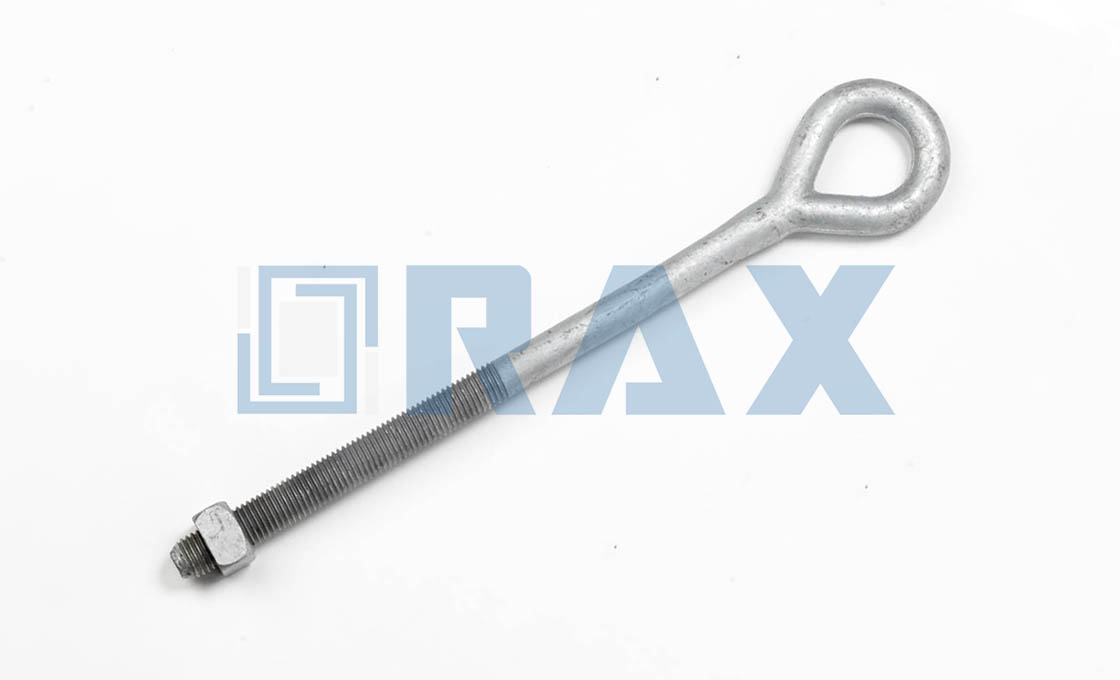

The oval eye bolt is a drop-forged, one-piece steel fastener with an oval-shaped eye for secure attachment in industrial applications. It commonly forms connection points for thimbles, clevises, links, and deadend insulators in guying scenarios for electrical and utility installations.
Standard hot-dip galvanizing provides corrosion resistance, with enhanced protection available through thermal diffusion galvanizing and TransArmour polymer coatings. The drop-forging process creates a seamless design for structural integrity, with rolled threads and one assembled square nut included.

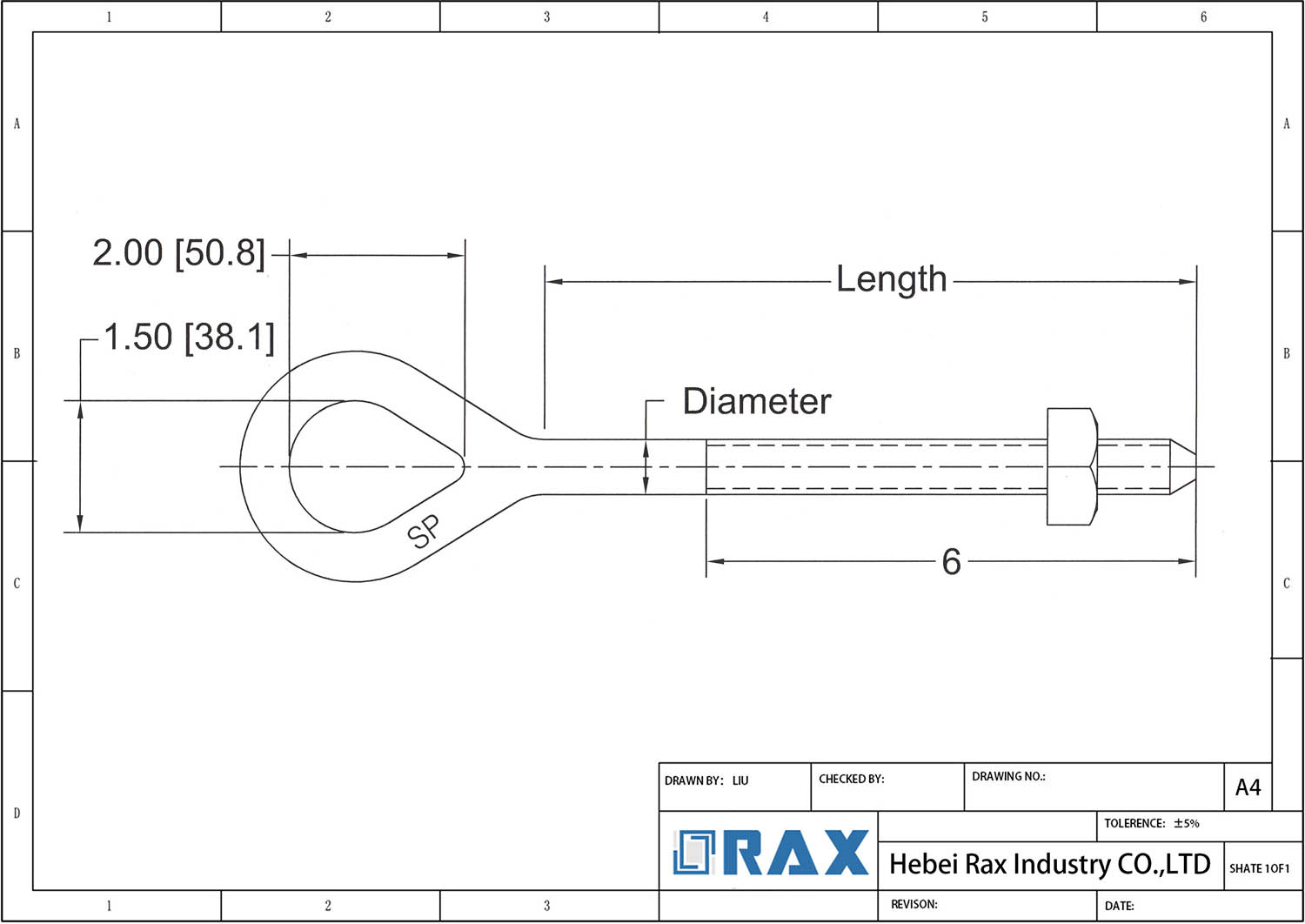

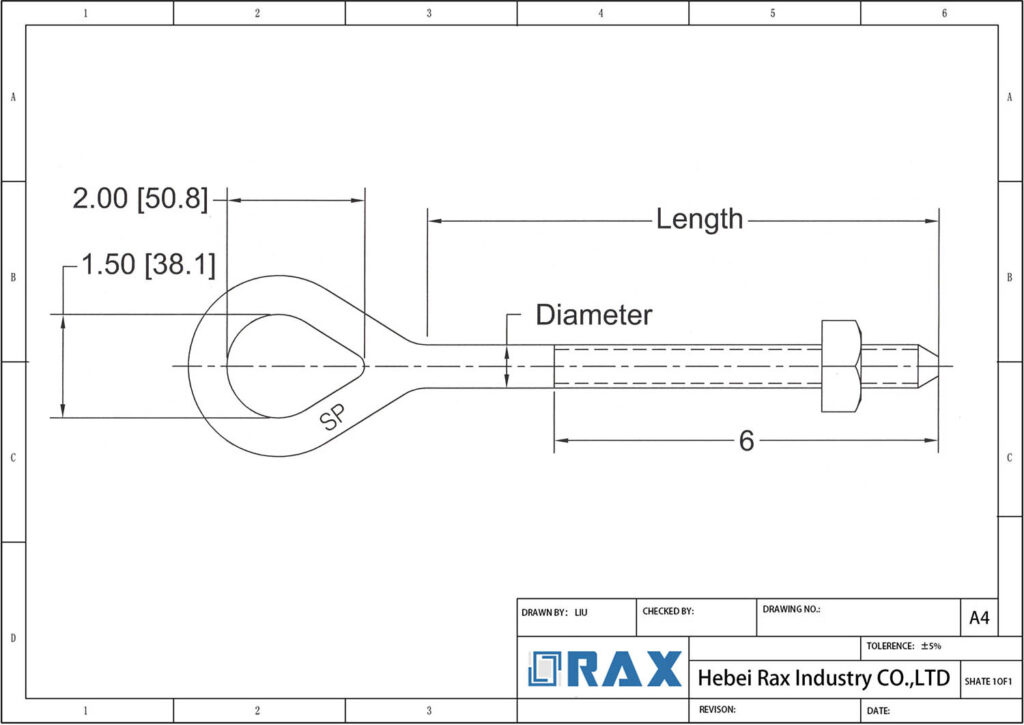

Available in 5/8-inch and 3/4-inch diameters, the bolts range from 6 to 24 inches in length with 4-inch or 6-inch thread lengths. The eye opening measures 1-1/2 inches wide by 2 inches long. Minimum tensile strength reaches 13,550 pounds for 5/8-inch models and 20,050 pounds for 3/4-inch variants, supporting high load capacities in demanding conditions.
The product complies with American Society for Testing and Materials (ASTM) A-153 for galvanizing, American National Standards Institute (ANSI) C135.4 and C135.5 for manufacturing, and Rural Utilities Service (RUS) listing for utility applications, confirming performance and safety standards.
Enhance Your Systems with RaxPower Oval Eye Bolts – Reliable Supplier
RaxPower is a leading manufacturer of Pole Line Hardware and Fastener in China, with over 21 years of expertise since 2003. Our specialization in the Oval Eye Bolt reflects our commitment to redefining reliability with precision-engineered solutions. We focus on building long-term partnerships, ensuring that each Oval Eye Bolt benefits from our deep industry knowledge and manufacturing excellence.
Our competitive advantages, directly enhancing the Oval Eye Bolt, include:
- 21 years of dedicated experience in pole line hardware, ensuring proven designs and unwavering durability for Oval Eye Bolts in demanding electrical applications.
- A comprehensive production facility in Hebei Province spanning 17,000 square meters, utilizing advanced hot forging technology to deliver Oval Eye Bolts with superior strength and accurate sizing.
- Strict quality control systems from raw material to finished product, featuring multi-stage testing such as load tests and gauge checks per IEC 120, with all Oval Eye Bolts passing SGS and authoritative institute verifications.
- State-of-the-art hot-dip galvanizing adhering to ISO 1461, providing Oval Eye Bolts with smooth, bright surfaces and a mean coating thickness over 85 microns for enhanced corrosion resistance.
- Full OEM and customization support, with free samples available and no minimum order quantity, backed by automated production for consistent quality and on-time delivery.
We invite you to contact us for more information and to send a message about your Oval Eye Bolt needs.
| Diameter (in) | Bolt Length (in) | Thread Length (in) | Weight per 100 (lbs) | Min Tensile Strength (lbs) | Eye Dimensions (in) | Coating | Standards | Includes Nut |
|---|---|---|---|---|---|---|---|---|
| 5/8″ | 6 | 4 | 112 | 13,550 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 5/8″ | 8 | 4 | 128 | 13,550 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 5/8″ | 9 | 4 | 136 | 13,550 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 5/8″ | 10 | 6 | 146 | 13,550 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 5/8″ | 12 | 6 | 156 | 13,550 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 5/8″ | 14 | 6 | 168 | 13,550 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 5/8″ | 16 | 6 | 188 | 13,550 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 5/8″ | 18 | 6 | 212 | 13,550 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 5/8″ | 20 | 6 | 220 | 13,550 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 3/4″ | 8 | 4 | 180 | 20,050 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 3/4″ | 10 | 6 | 200 | 20,050 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 3/4″ | 12 | 6 | 220 | 20,050 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 3/4″ | 14 | 6 | 240 | 20,050 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 3/4″ | 16 | 6 | 256 | 20,050 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
| 3/4″ | 18 | 6 | 280 | 20,050 | 1-1/2 x 2 | Hot-dip galvanized | ASTM A-153, ANSI C135.4, ANSI C135.5, RUS listed | Yes, one square nut |
Related Products
Frequently Asked Questions (FAQS)
What are oval eye bolts commonly used for?
Oval eye bolts are commonly used as an attachment point to secure thimbles, clevises, links, and deadend insulators in guying applications for electrical and communication lines.
What industry standards and certifications do your oval eye bolts meet?
They are manufactured in compliance with ASTM A-153, ANSI C135.4, and ANSI C135.5 standards and are RUS listed, guaranteeing adherence to rigorous utility industry requirements.
What sizes and dimensions do oval eye bolts come in?
They are available in various diameters such as 5/8 inch and 3/4 inch, with lengths ranging from 6 inches to 24 inches or more. The eye internal dimensions are typically 1-1/2 inches in width by 2 inches in length. Standard thread length is either 4 inches or 6 inches, depending on the bolt length and model.
What is the minimum tensile strength of the oval eye bolts?
For 5/8 inch diameter bolts, the minimum tensile strength is 13,550 pounds, and for 3/4 inch diameter, it is 20,050 pounds.
How are the oval eye bolts protected against corrosion?
The bolts are drop-forged from steel and hot-dip galvanized for corrosion resistance, ensuring long-term performance in harsh outdoor conditions. Improved options like TDG coated or TransArmour coated items are available for enhanced protection.
What is included with each oval eye bolt?
Each oval eye bolt is supplied with one square nut. Hexagon nuts can be provided upon request.
Can you produce oval eye bolts with custom dimensions or specifications?
Yes, we offer customization with other sizes available on request to meet specific project needs.
What quality assurance processes are implemented during manufacturing?
We conduct comprehensive quality control, including chemical and mechanical tests on all batches, to ensure every oval eye bolt meets specified standards and performance criteria.
