The B Cable Suspension Screw attaches messenger suspension clamps and cable hangers to utility poles where thru-bolts cannot be used, particularly when maintaining proper clearance from other vertical runs on jointly used poles.

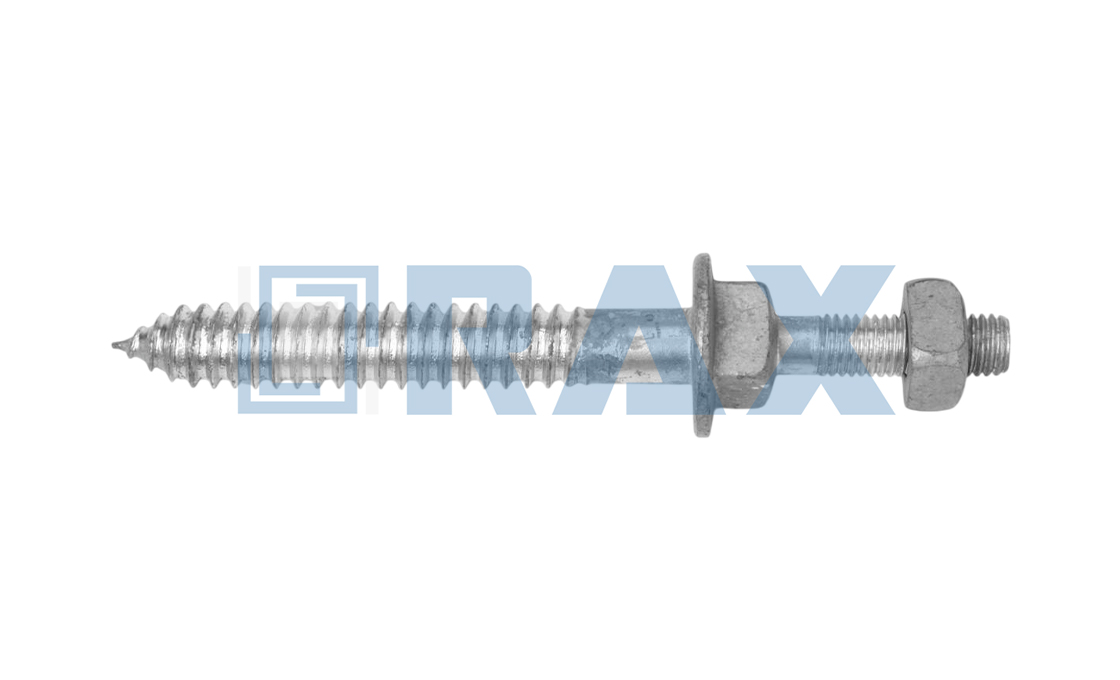

The screw features an integral forged washer-nut connecting the lag screw end to the machine screw stud end. The lag screw includes a gimlet point with sharp rolled threads, while the stud end has a forged square washer head and roll threaded stud assembled with a square nut for secure attachment in light-duty mounting applications.
Made from high-quality steel, the screw receives hot-dip galvanizing per American Society for Testing and Materials (ASTM) A-153 or ASTM F2329 specifications, providing corrosion resistance for outdoor utility environments.

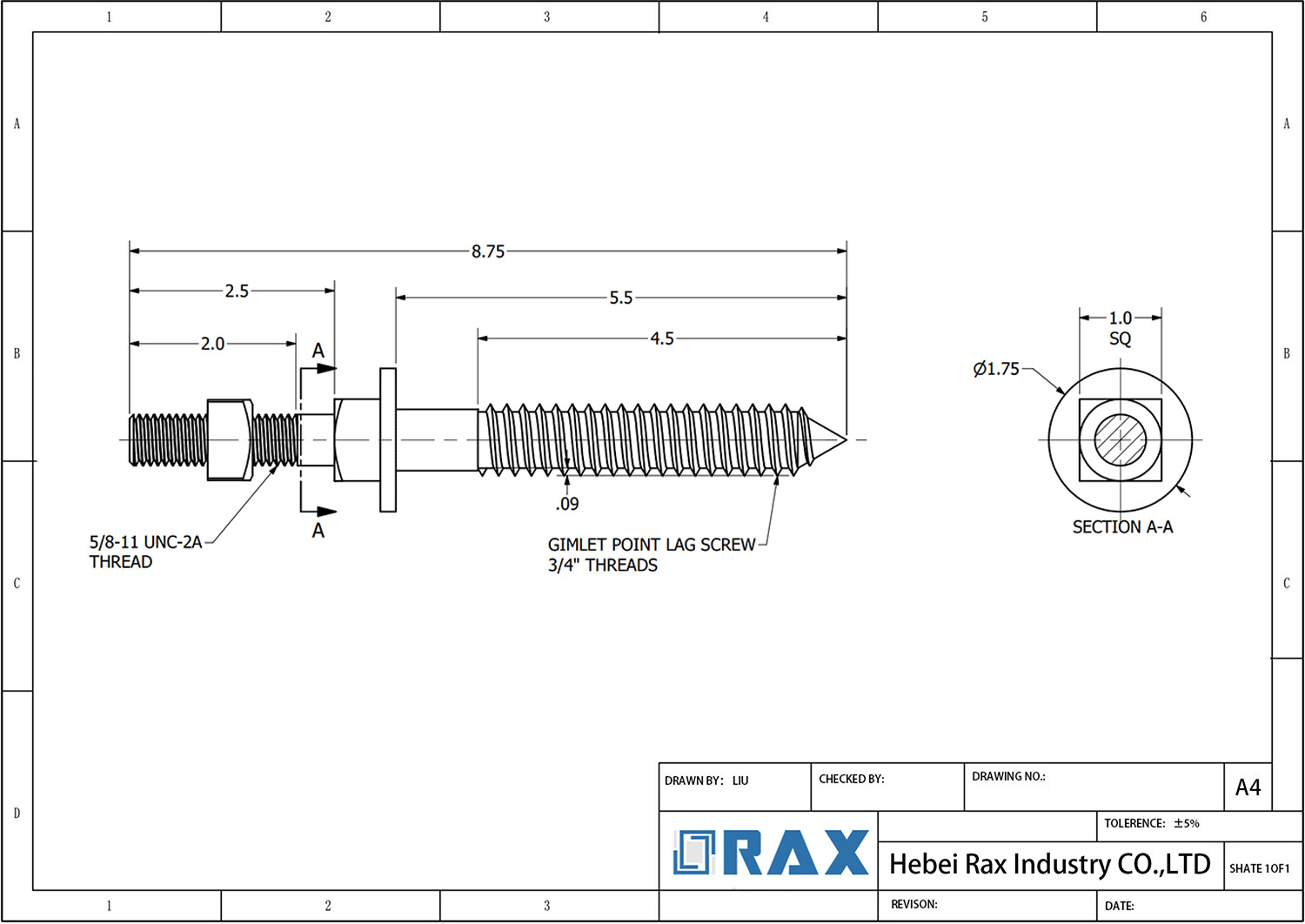

The lag screw measures 7/8 inch diameter by 5-1/2 inches length, paired with a 5/8 inch diameter machine screw stud ranging from 1-1/2 to 2-1/4 inches length. Installation requires a 3/4-inch pilot hole for driving into wooden poles.
Reliable B Cable Suspension Screw Supplier
RaxPower, established in 2003 in Hebei, China, is a leading global manufacturer with over 21 years of experience in pole line hardware. Our products are widely used in the power construction of the State Grid, China Southern Power Grid, etc., and have contributed to projects across 20 provinces, while also being exported to over 30 countries including Russia, Canada, and Brazil. The B Cable Suspension Screw is engineered to meet ASTM A153 standards, ensuring reliable performance in attaching strand to straight line poles. With a commitment to quality, RaxPower employs strict control measures, including hot-dip galvanizing per ISO 1461 with mean coating thickness over 85 microns, and load testing, to guarantee durability and safety.
- Hot dip galvanized finish for superior corrosion resistance.
- Suitable for use with 5/8-inch through bolts.
- Supports strand sizes from 1/4 to 7/16 inch.
- Dimensions: 5-3/4 inches length x 1-11/16 inches width.
- Hole size: 11/16 inch x 15/16 inch centre.
- Includes plates and track bolts for secure installation.
| Parameter | Specification |
|---|---|
| Lag Screw Size | 7/8″ diameter x 5-1/2″ length |
| Stud Size | 5/8″ diameter x 1-1/2″ to 2-1/4″ length |
| Material | Steel |
| Finish | Hot-dip galvanized |
| Galvanizing Standard | ASTM A-153 or ASTM F2329 |
| Pilot Hole Size | 3/4″ |
| Key Features | Integral forged washer-nut, gimlet point with sharp rolled threads, forged square washer head, roll threaded stud with assembled square nut |
| Standard Pack Quantity | 40 |
| Carton Weight | 48 lbs |
Frequently Asked Questions (FAQS)
What is the B Cable Suspension Screw used for?
The B Cable Suspension Screw is used to attach messenger suspension clamps when a thru-bolt is not possible, and for light duty mounting of cable hangers and cable suspension clamps. It is particularly useful on jointly used poles where a cable suspension bolt would result in improper clearance from another Utility's vertical run.
What are the key features of the B Cable Suspension Screw?
Key features include an integral forged washer-nut between the gimlet thread screw and threaded stud, sharp rolled threads with a gimlet point on the lag end, a roll threaded stud with an assembled square nut, and a hot-dip galvanized finish per ASTM A-153 or ASTM F2329.
What material and construction ensure the B Cable Suspension Screw's durability?
Constructed of high quality steel with a forged washer-nut body and hot-dip galvanized finish, it provides consistent performance and durability suitable for cost-effective bulk supply in demanding grid applications.
What sizes are available for the B Cable Suspension Screw?
Standard sizes include lag screw dimensions of 7/8 x 4-1/2 or 7/8 x 5-1/2 with stud sizes of 5/8 x 1-1/2 or 5/8 x 2-1/4 . Additional sizes like catalog J9754 (9/16 x 4 lag and 1/2 x 1-3/8 stud) accommodate various project specifications.
How is the B Cable Suspension Screw installed?
Installation requires a 3/4 pilot hole to drive the suspension screw into the pole.
