Post insulators are high-voltage insulators designed for power systems up to 1100 kV, providing electrical insulation and mechanical support in transmission, distribution networks, and substations. They prevent current flow through supporting structures while withstanding bending, compression, and torsion forces in overhead transmission lines (where they’re termed line post insulators) and substations (where they’re termed station post insulators).

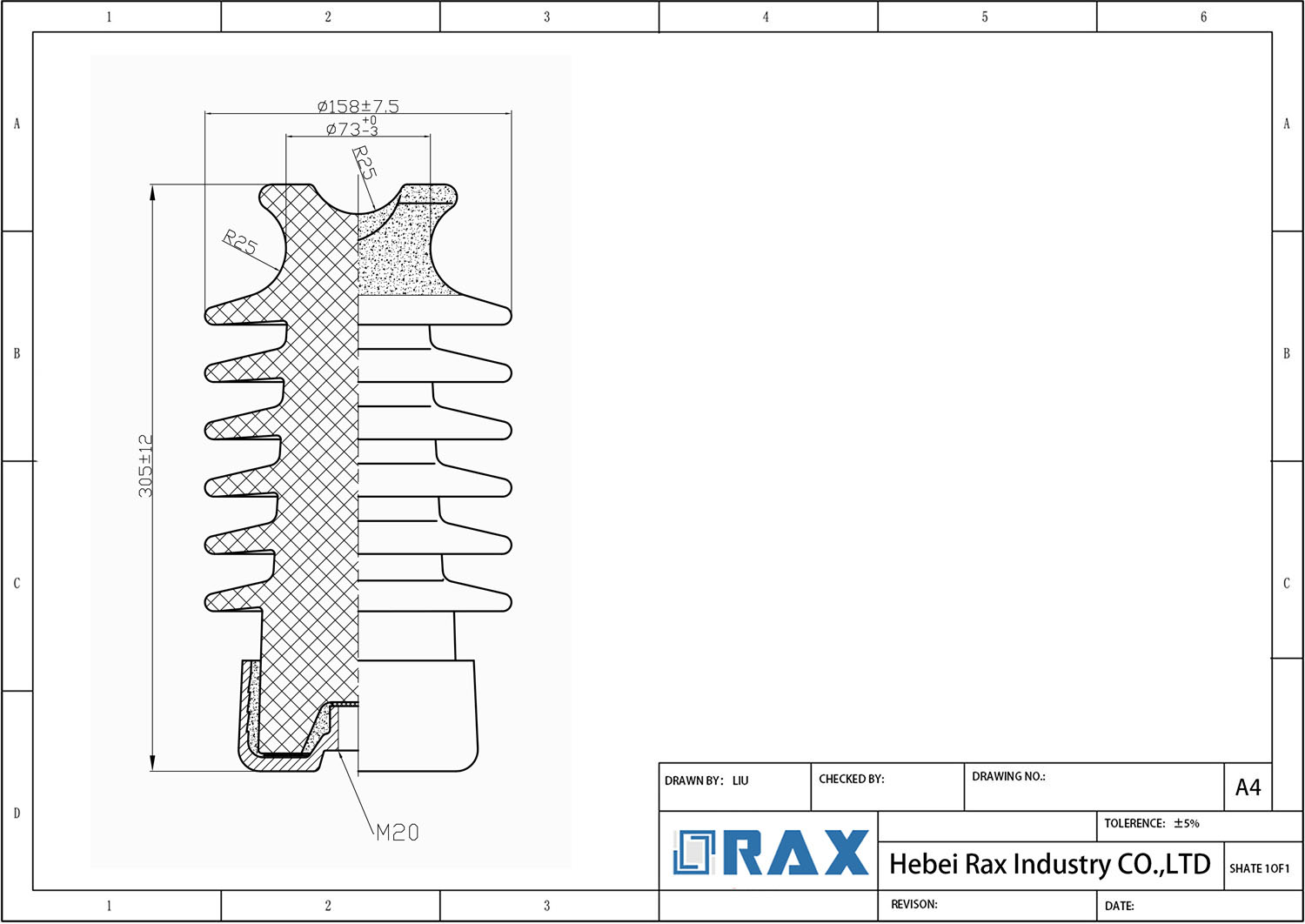

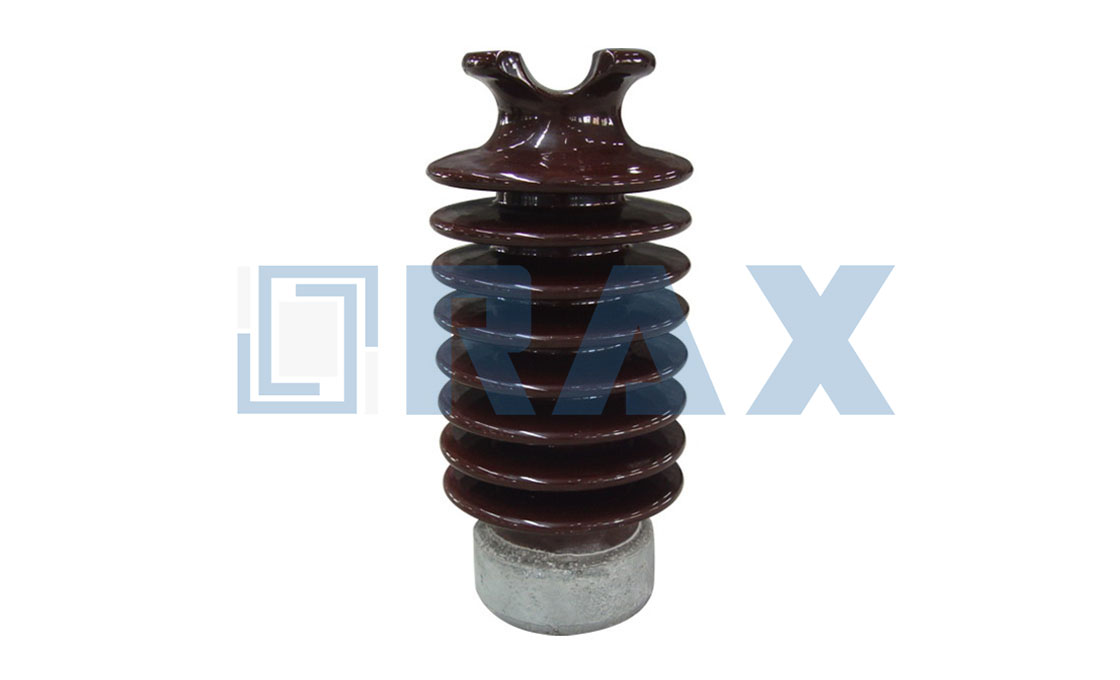

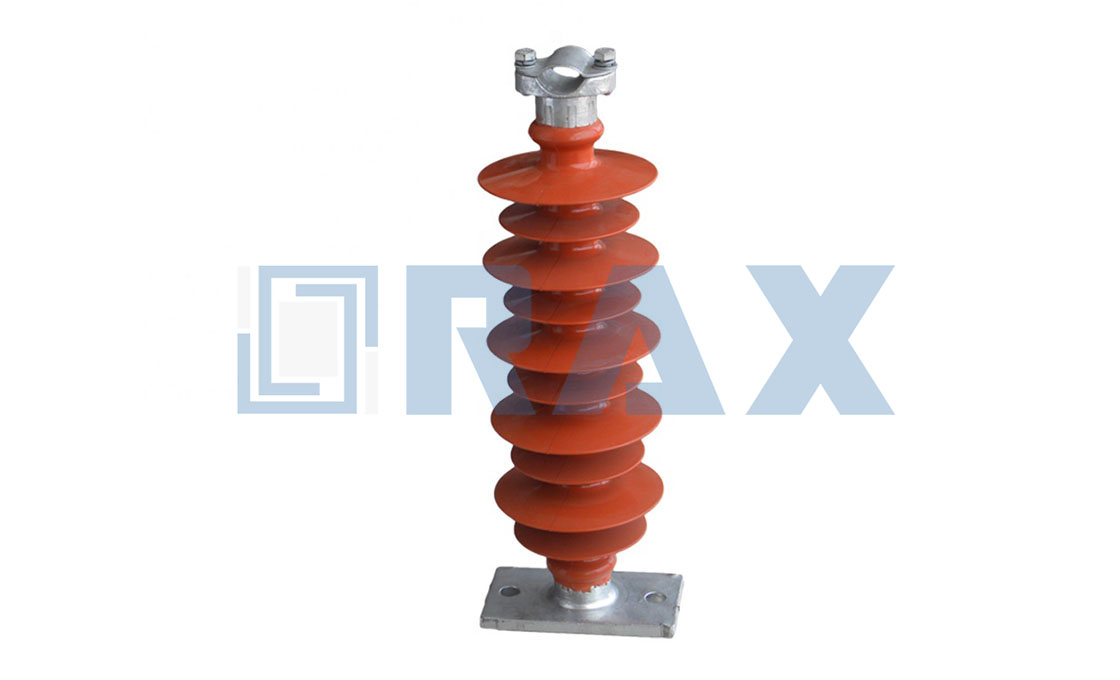

Constructed from porcelain or composite materials like silicone rubber and fiberglass-reinforced epoxy, post insulators offer superior performance compared to pin insulators, which are limited to 33 kV. Post insulators handle voltages up to 150 kV and beyond, with stacking capability for higher voltage applications. Common designs include tie top, vertical clamp top, horizontal clamp top, and horizontal gain base variants, each featuring distinct end fittings for specific mounting configurations. Mechanical properties include cantilever bending strengths exceeding 40 kN, with basic impulse levels ranging from 60 kV to over 2550 kV depending on design.
Key advantages include high mechanical strength, solid puncture-proof construction, and flexible creepage distances that prevent tracking and flashovers. Post insulators resist environmental factors such as moisture, ultraviolet (UV) radiation, and pollution, with hot-dip galvanized end caps enhancing corrosion resistance. Standard dimensions include lengths up to 2900 mm and shed diameters up to 520 mm, with creepage distances extending to 55 mm per kV.
Post insulators comply with International Electrotechnical Commission (IEC), American National Standards Institute (ANSI) C29.9, Institute of Electrical and Electronics Engineers (IEEE), and National Electrical Manufacturers Association (NEMA) standards. Installation is typically vertical with minimal maintenance, often limited to occasional cleaning, ensuring long-term durability and reliability.
Post Insulator Supplier for Durable and Reliable Performance
RaxPower is a leading supplier of state-of-the-art electrical porcelain insulators for substation, overhead line and precipitator applications specializing in insulator designs up to 1,200 kV AC and 1,100 kV DC system voltages. Our post insulators are manufactured using advanced hot forging technology, ensuring greater strength and precise dimensions for reliable performance in high-voltage environments.
With over 21 years of experience, we produce a comprehensive range of post insulators, including line post and station post types, all compliant with IEC and ANSI standards.
Common issues such as material brittleness and size mismatch are resolved through high-quality porcelain and strict quality control, including multi-stage testing and automated processes.
Advantages include high mechanical strength, excellent electrical insulation, and superior corrosion resistance, providing long-lasting durability in extreme conditions.
These insulators are used in power transmission lines, industrial electrical systems, and outdoor facilities.
Available in standard, corrosion-resistant, and high-voltage variants, RaxPower’s commitment to continuous development and sustainability, supported by our extensive production capabilities in Hebei, China, ensures we are a trusted market leader.
Contact us for comprehensive assistance and technical support.
| Parameter | Specification |
|---|---|
| Type | Post Insulator (including Line Post and Station Post variants) |
| Material | Porcelain or Composite (e.g., silicone rubber) |
| Rated Voltage | Up to 1100 kV |
| Basic Impulse Level (BIL) | 60 kV to over 2550 kV |
| Creepage Distance | Up to 55 mm per kV |
| Mechanical Bending Strength (Cantilever) | Exceeding 40 kN |
| Dimensions – Length | Up to 2900 mm |
| Dimensions – Shed Diameter | Up to 520 mm |
| Fitting Types | Cap or Flange (e.g., for tie top, clamp top, gain base) |
| Standards Compliance | IEC, ANSI C29.9, IEEE, NEMA |
| Strength Ratings | Standard, High, Extra-High |
Frequently Asked Questions (FAQS)
What is a post insulator and where is it used?
A post insulator is a high voltage insulator designed to international standards (IEC, ANSI) for power systems up to 1100 kV. Made from porcelain or composite silicone rubber, it provides insulation and mechanical support for conductors. In transmission lines, they're called line post insulators; in substations, they're known as station post or bus post insulators.
What are the key features and mechanical strength of post insulators?
Post insulators feature high mechanical strength to withstand bending, compression, and torsion forces, with cantilever strengths exceeding 40 kN and up to 100 kN depending on design. They offer solid, puncture-proof construction with flexible creepage distance to prevent tracking. Materials include porcelain or composite silicone rubber, and they're rated for standard, high, and extra-high strength applications.
How do post insulators differ from pin insulators?
Post insulators are suited for higher voltage transmission lines, while pin insulators are for lower voltages. Post insulators can have multiple stages and use connector clamps for conductor fixation, whereas pin insulators use binding and have metallic arrangements only at the bottom.
What tests are performed on post insulators?
Testing includes routine electrical and mechanical tests with visual examinations and compliance checks; sample tests for dimensions, temperature cycles, and mechanical failing loads; and type tests like dry lightning impulse and wet power frequency withstand voltage tests, all conducted per relevant standards.
Is maintenance required for post insulators?
Minimal maintenance is required. Occasional cleaning may be recommended depending on environmental conditions to prevent contamination buildup. Hot-dip galvanized metal fittings ensure long-term performance with little upkeep.
How can I be confident in the reliability and quality of your post insulators?
Our post insulators comply with IEC, ANSI, and IEEE standards and undergo rigorous testing to ensure high performance. RaxPower implements strict quality control from raw material selection to final packing, with all products reviewed twice and tested using advanced equipment. We achieve cost-effectiveness through automated manufacturing and hot forging, enhancing efficiency while maintaining durability through optimized processes and rigorous load and gauge testing.
What range of post insulator types do you offer?
We offer tie top, vertical clamp top, horizontal clamp top, horizontal gain base, and brace post insulators for distribution to extra-high voltage applications. Available in porcelain and composite materials with custom specifications, our catalog serves power transmission, railways, telecommunications, and substations.
What is your capacity for large, time-sensitive orders?
Our facilities include 17,000 square meters of production space and 5,000 square meters of warehouse capacity. Automated manufacturing processes and multiple production lines enable efficient handling of large-volume orders with short lead times, ensuring on-time delivery supported by our experienced team and logistical capabilities.
