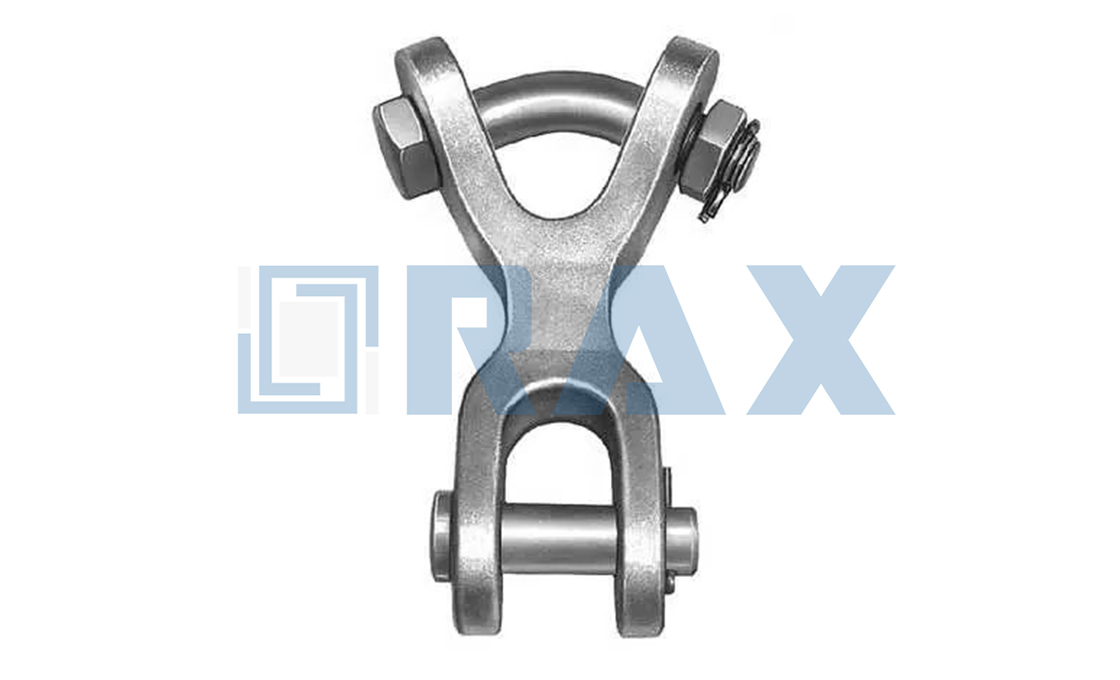

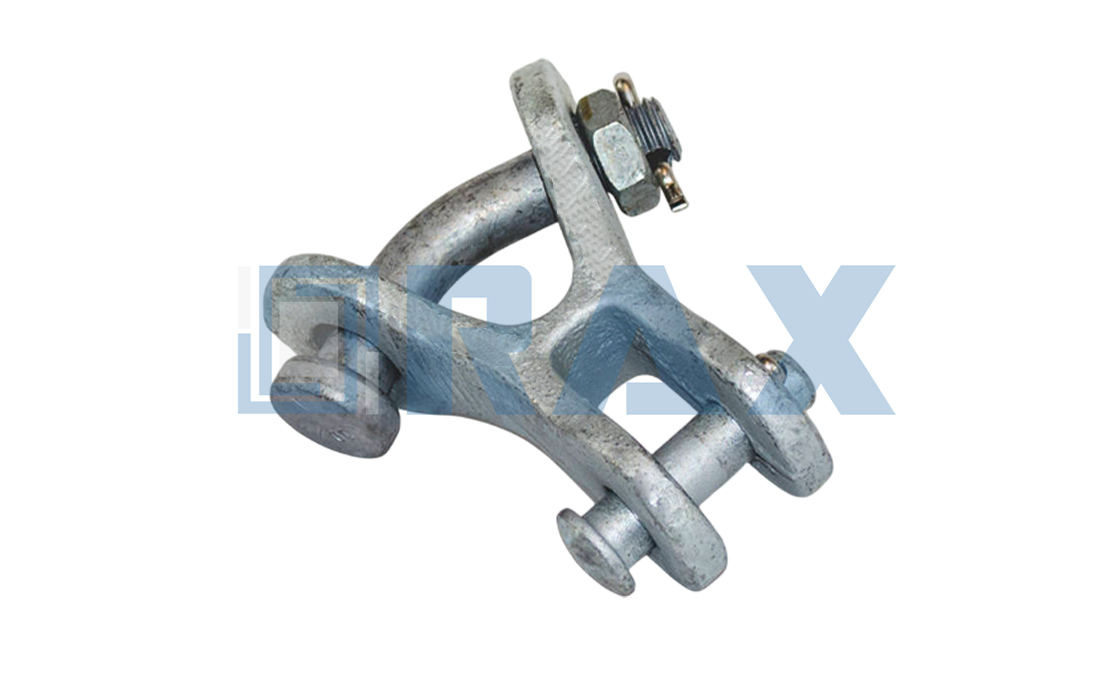

Y-clevis clevises attach clevis tongue insulators and hardware within electrical transmission insulator strings. The defining feature is a bent bolt in the Y-section that provides articulation, allowing movement to accommodate dynamic loads and alignment changes. Shoulders are often integrated to facilitate hot line tool use during installation and maintenance. This design supports reliable mechanical function in both standard and hot line applications across diverse environmental conditions.
The body is manufactured from galvanized ductile iron or forged steel with hot dip galvanized finish for corrosion resistance. Hardware components include a galvanized steel clevis pin and bolt, with stainless steel cotter pins. This material composition resists moisture, corrosion, and chemicals, ensuring long-term durability in outdoor and harsh environments. Products are supplied with bent bolt, nut, clevis pin, and cotter pin as standard, with optional bolt and nut substitution available via catalog suffixes like “-BC” or “BNK”.
Catalog numbers such as YCC3090 or YCC-65 identify specific configurations. Dimensions vary significantly: lengths range from 2.13 inches to over 10 inches for hot line variants, with weights typically between 3.6 and 4.018 pounds. Ultimate strength ratings commonly reach 30,000 pounds for standard models, with hot line versions achieving up to 50,000 pounds. Models like YCC-76 and YCC-77 offer minimum ultimate strengths of 40,000 and 50,000 pounds respectively, ensuring the component withstands high mechanical loads without failure in utility and transmission line applications.
High-Quality Y-Clevis Clevis
Located in Hebei Province, China, RaxPower is a family-owned manufacturer renowned for producing a diverse range of high-quality pole line hardware for the power utility, telecommunications, and related industries. Our extensive portfolio includes the Y-Clevis Clevis, meticulously manufactured using the best quality raw materials such as ductile iron and hot-dip galvanized steel, ensuring exceptional corrosion resistance, robust tensile strength, and long-lasting durability.
Each unit is rigorously tested by our dedicated quality control inspectors to guarantee reliability in connecting ball and socket insulators, with features like shoulders for hot line tools and a bent bolt design for added articulation in assemblies. With over 21 years of experience and a commitment to innovation, we employ advanced manufacturing processes and maintain a huge stock for prompt, on-time delivery worldwide.
For the best prices on our reliable Y-Clevis Clevis, contact us today, and our sales representative will promptly follow up.

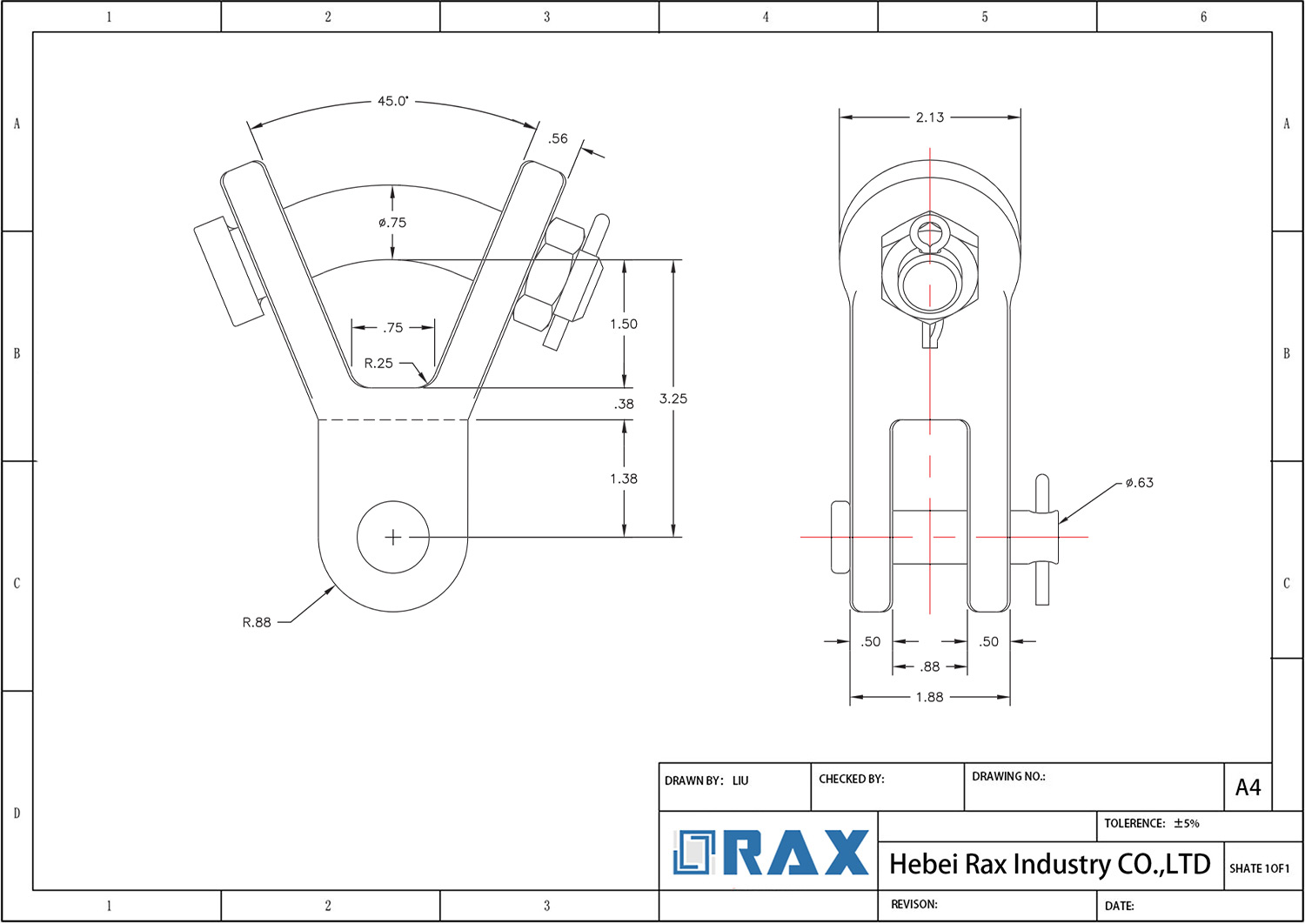

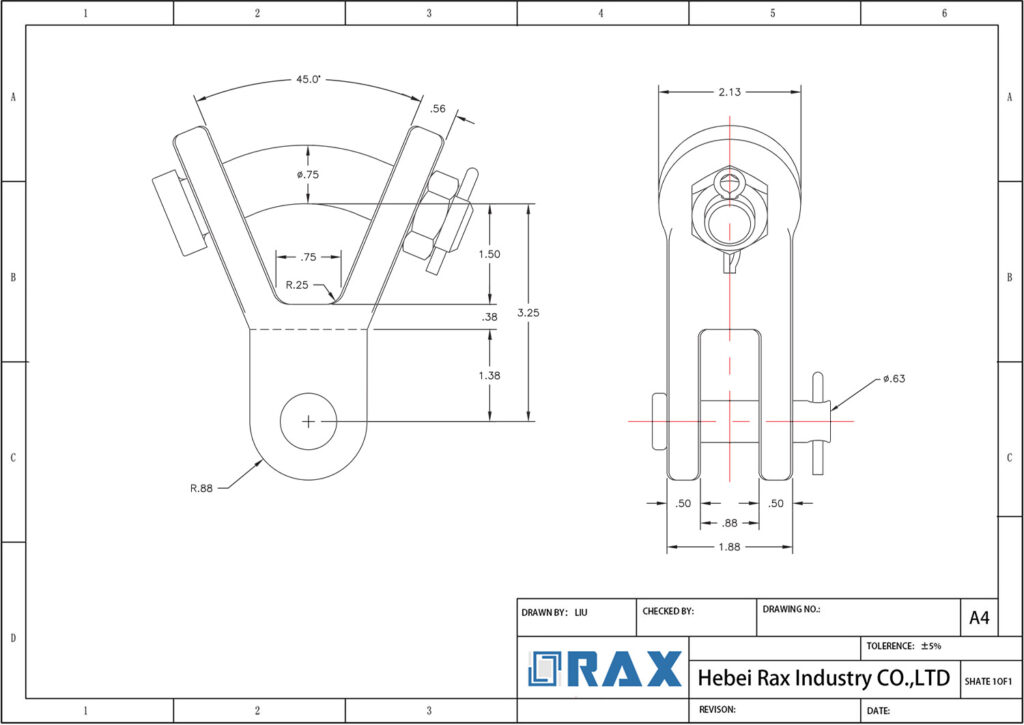

| Parameter | Value |
|---|---|
| Catalog Number | YCC3090 |
| Coupling Orientation | Rotated |
| Material (Body) | Galvanized Ductile Iron |
| Material – Pin (Clevis) | Galvanized Steel |
| Material – Pin (Cotter) | Stainless Steel |
| Material Type | Standard |
| Number of Bolt Holes | 0 |
| Strength Rating – Ultimate | 30000 lb |
| Strength Rating – Ultimate Body | 0 lb |
| UPC | 096359344438 |
| Diameter – Bolt | 0 in |
| Diameter – Pin | 0 in |
| Insulator Throat Diameter – Maximum | 0 in |
| Insulator Throat Diameter – Minimum | 0 in |
| Insulator Throat Diameter Range | 0 – 0 in |
| Length | 2.13 in |
| Length – Coupling | 3.25 in |
| Length – Pin | 0 in |
| Ring Height | 0 in |
| Weight | 3.6 lb |
| Conductor Diameter – Maximum | 0 in |
| Conductor Spacing | 0 in |
| Assembly Rating (Ultimate) | 0 lb |
| Maximum Adjustment | 0 in |
| Hardware Substitution Option | Available with suffixes -BC, BNK |
| Pallet Quantity | 405 |
Frequently Asked Questions (FAQS)
What is the primary application of a Y-clevis clevis?
Y-clevis clevises are used to attach clevis tongue insulators to various associated hardware within an insulator string. The bent bolt in the Y-clevis section provides an additional point of articulation within an assembly.
What materials are used in the construction of the Y-clevis clevis?
The body is made of galvanized ductile iron, and the hardware is galvanized steel. Cotter pins may be stainless steel in some configurations. These materials provide excellent corrosion resistance and are designed to withstand high stress and environmental challenges in power transmission applications.
What is the ultimate strength rating of the Y-clevis clevis?
Ultimate strength ratings vary by model, with common values such as 30,000 lbs for standard sizes like YCC-65, 40,000 lbs for YCC-76, and up to 50,000 lbs for larger models like YCC-77. All units are subject to rigorous load testing to ensure they meet certified performance standards.
What catalog numbers are available for the Y-clevis clevis?
Common catalog numbers include YCC-65, YCC-76, and YCC-77, which correspond to ultimate strengths of 30,000 lbs, 40,000 lbs, and 50,000 lbs respectively.
What components are included with the Y-clevis clevis?
It is typically supplied with a bent bolt, nut, clevis pin, and cotter pin. Options are available to substitute the clevis pin and cotter with a bolt, nut, and cotter by adding a suffix like -BC to the catalog number, allowing the hardware to be tailored to various insulator string assemblies and project specifications.
What are the typical dimensions and weight of the Y-clevis clevis?
Dimensions vary by model; for example, the YCC-65 has a length of approximately 2.13 inches and weighs 3.6 lbs. Other models may have different measurements based on catalog specifications.
How do you handle large volume orders to support timely project completion?
We maintain significant inventory with pallet quantities (e.g., up to 405 units per pallet) and a comprehensive catalog system, enabling efficient bulk ordering and reliable delivery schedules for large-scale projects.
