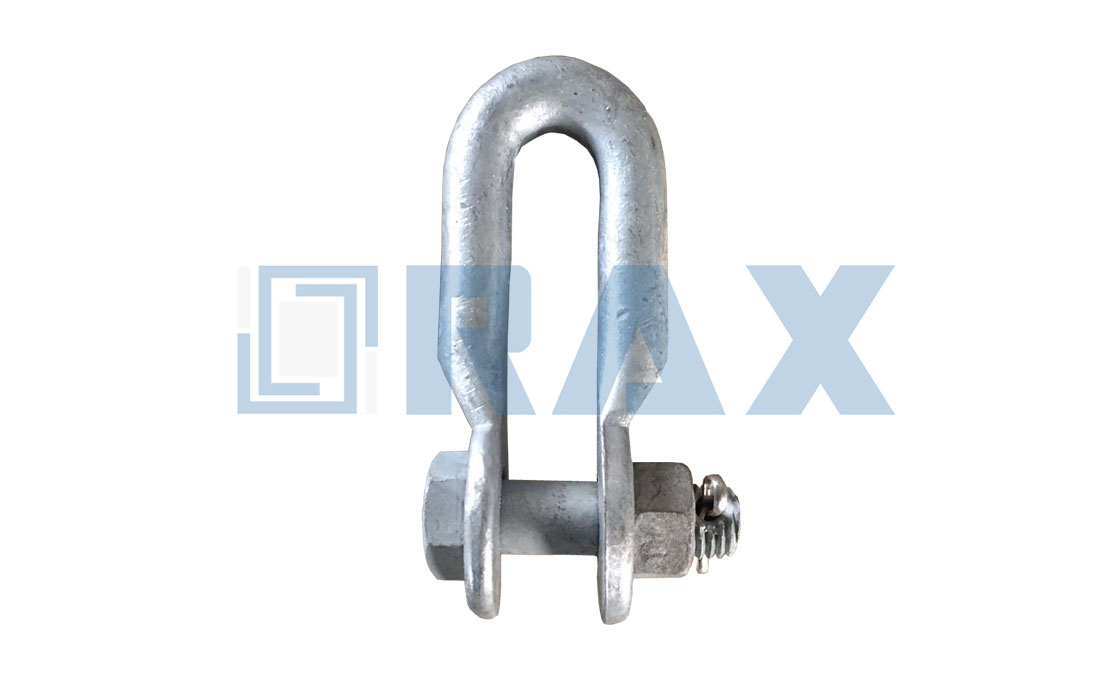

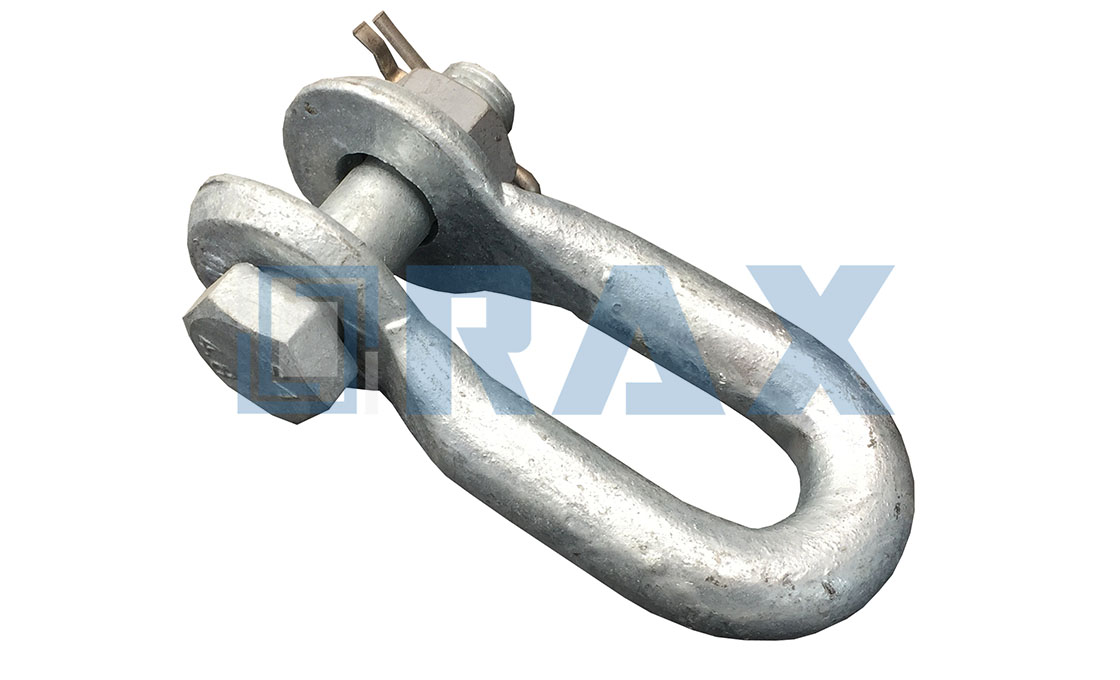

A U clevis is a U-shaped fastener with two holes for pin insertion, providing secure connections in mechanical and structural applications. Its high strength and corrosion resistance ensure durable performance in demanding environments, while the design enables easy installation, removal, and quick adjustments in heavy-duty applications.
U clevises are manufactured from carbon steel, alloy steel, and stainless steel, with grades including C-1035, SA-182-F11, F22, and types 304 or 316 stainless steel to meet varying load capacity and environmental resistance requirements. Finish options include electro-polished, plated, galvanized, electro-galvanized, hot-dipped galvanized, zinc-plated, and self-colored treatments for enhanced protection against moisture and corrosive elements.
Design features often incorporate a removable straight pin secured with a cotter pin for flexible assembly and disassembly. Threading options include UNC/UNF Class 2B, metric, and right or left-hand configurations, with possibilities for special threading and heat treating. Specifications cover widths up to 1-5/8 inches, thicknesses of 1/4 inch, hole diameters of 9/16 inch, and center-to-edge distances of 13/16 inch.
Manufacturing standards adhere to American Institute of Steel Construction (AISC) and ASTM guidelines, including ASTM A668 for carbon and alloy steel forgings and ASTM A473 for stainless steel. U clevises serve construction, automotive, agricultural, aircraft, marine, and utility industries in pipe supports, rigging, cylinder mountings, and other heavy-duty connections requiring secure, adjustable fastening.
Your Expert U Clevis Wholesaler with 20+ Years of Innovation
At RaxPower, your trusted manufacturer of pole line hardware in Hebei Province, China, we have been committed to innovation, product quality, and perfection for over 20 years. Our U Clevis provides a safe and solid connection, and you will never need to replace the U-Clip unless it is bent or damaged during the replacement process. Thanks to our expertise in hot forging and strict quality control, the clevis absorbs lateral stress and reduces vibration, ensuring durable performance and resistance to loosening.
Features:
- Available in machining, casting, or forging processes for customized solutions
- Optional hot-dip galvanized finish for enhanced corrosion protection, with smooth, bright surfaces
- Easy and quick connection to other accessories, facilitating simple installation and removal
- Can be fitted with plain bearings or ball bearings to suit various needs
- Adjustable shock absorbers for limiting swaying stroke and improving stability
Applications: Used in industries such as automotive for braking systems, construction equipment, farming, aircraft, and power transmission, acting as reliable connectors in harsh environments.
Send us a message to get a personalized quotation with up-to-date prices or for any other questions.

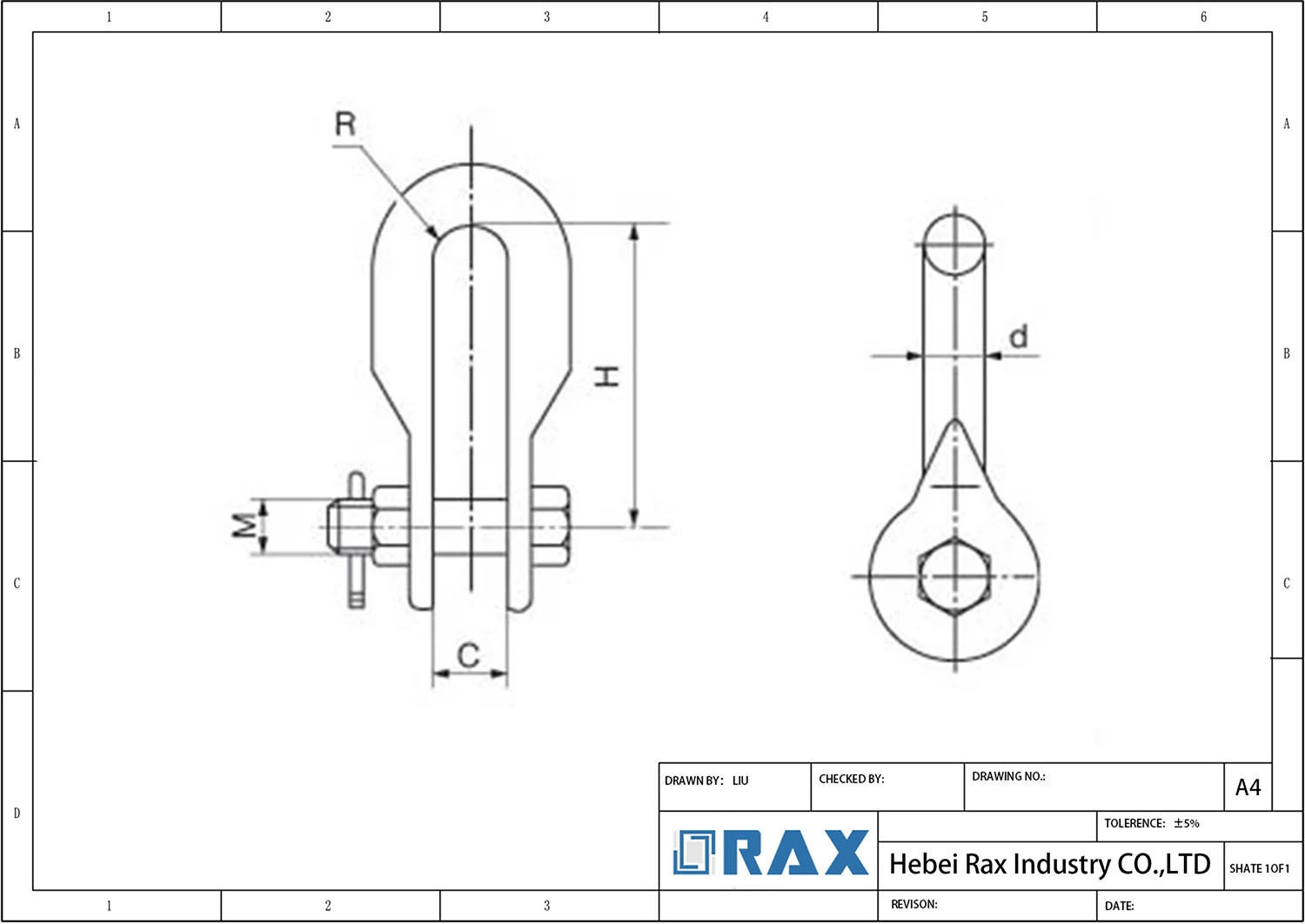

| Parameter | Value |
|---|---|
| Material | Carbon steel, Alloy steel (grades C-1035, SA-182-F11, F22), Stainless steel (types 304, 316) |
| Finish | Electro-polished, Plated, Galvanized, Electro-galvanized, Hot-dipped galvanized, Zinc-plated, Self-colored |
| Thread Type | UNC/UNF Class 2B, Metric, Right or left-hand |
| Pin Configuration | Removable straight pin secured with cotter pin |
| Width | Up to 1-5/8 inch |
| Thickness | 1/4 inch |
| Hole Diameter | 9/16 inch |
| Center to Edge Distance | 13/16 inch |
| Centers | Standardized centers |
| Standards | AISC, ASTM A668, ASTM A473 |
| Weight | 0.70 lbs (for standard size) |
Frequently Asked Questions (FAQS)
What are the common applications for a U Clevis?
U Clevises are used in industrial and utility projects, construction sites, and any application requiring a strong, corrosion-resistant connection for heavy-duty tasks, such as securing loads in rugged environments.
What materials and finishes are available for U Clevises?
U Clevises are constructed from galvanized steel, carbon steel, or stainless steel (grades 304SS and 316SS). Available finishes include electro-galvanized, green E-coat, yellow chromate, hot-dipped galvanized, stainless steel, and zinc plating for enhanced corrosion protection and long-term durability in harsh outdoor conditions.
What sizes and configurations do U Clevises come in?
U Clevises are available in various sizes, such as 2 x 1 hole, with dimensions like 1-5/8 wide x 1/4 thick, and 2-hole configurations in lengths from 4 to 8 . Hole diameters are typically 9/16 with specific center-to-edge measurements for flexible application needs.
How do I install a U Clevis?
To install a U Clevis, insert the removable straight pin through the clevis body and secure it with a standard cotter pin. This straightforward design allows for quick adjustments and secure connections without specialized tools.
How do you ensure the quality and reliability of your U Clevis for demanding applications?
At RaxPower, we employ strict quality control from raw material selection to final packing. Our U Clevis are manufactured using advanced hot forging technology for superior strength and dimensional accuracy. They undergo multiple tests, including load tests and gauge tests per IEC 120 standards, and have passed SGS certifications, ensuring compliance with industry requirements.
Can you accommodate large bulk orders and guarantee on-time delivery?
Yes, we specialize in handling bulk orders with volume discounts available. With over 21 years of experience, 17,000 square meters of production space, and efficient logistics, we ensure fast order processing and reliable delivery timelines to meet your project schedules.
What customization options do you offer for OEM clients?
We provide extensive customization including material selection (carbon steel, stainless steel), various finishes like hot-dip galvanizing with coating thickness over 85 microns, and threading options (UNC, UNF, metric). Our processes like forging, casting, and machining allow us to tailor products to your specifications, ensuring consistent quality and cost savings.
What advantages do distributors have when sourcing U Clevis from your company?
Distributors benefit from competitive wholesale pricing, a broad product catalog, and volume discounts. Our large warehouse inventory ensures immediate availability, and we support with certifications and technical data to facilitate resale in various markets.
