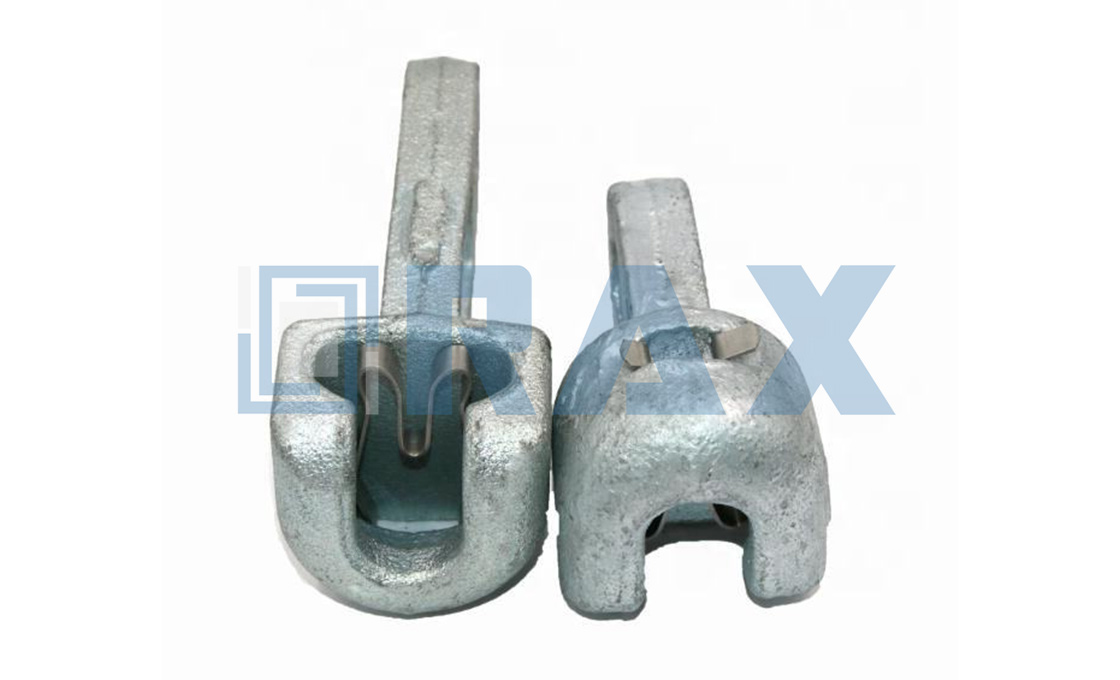

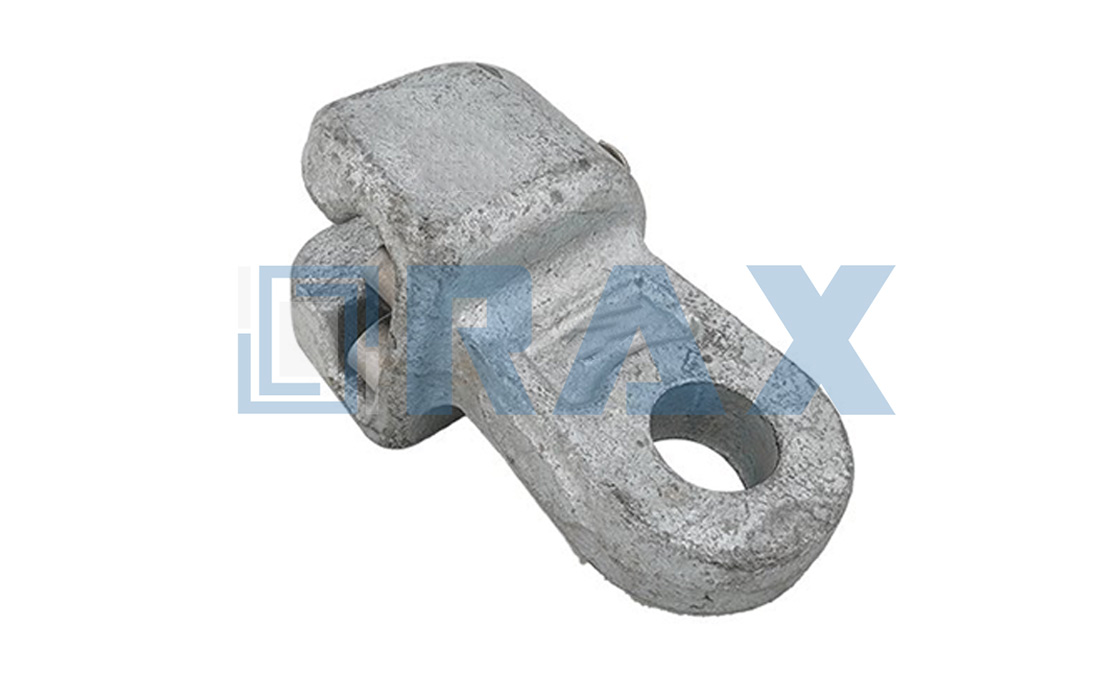

Socket eyes connect conductor clamping devices to ball and socket insulators in transmission line hardware. The body is constructed from galvanized ductile iron or forged steel with hot dip galvanized finish for corrosion resistance, while the cotter pin uses stainless steel for durability in various environmental conditions.
Ultimate strength ratings range from 30,000 to 50,000 pounds depending on the variant. Some models include Charpy impact specifications for enhanced reliability. Dimensional specifications vary by model, with hole diameters typically between 1.063 and 1.188 inches, widths from 1-1/16 to 1-7/32 inches, and lengths commonly around 5-1/2 inches.
Socket eyes comply with American National Standards Institute (ANSI) Specification C29.2-71 and work with ANSI class 52-3, 52-5, 52-8, and 52-11 insulators. Product variants include standard and long or hot line types, each with unique catalog numbers offering differences in ultimate strength, dimensions, and weight to suit various transmission line configurations.
The hot dip galvanized coating provides resistance to moisture, corrosion, chemicals, and ultraviolet radiation. Individual weights approximate 5.488 pounds for some models, with pallet quantities up to 320 units available for distribution.
Socket Eye Supplier for Durable and Reliable Connections
RaxPower is China’s leading manufacturer and global supplier of pole line hardware, established in 2003 and based in Hebei Province. With over 21 years of expertise, we are the most trusted and prominent exporter of the durable and reliable Socket Eye. This connector is precisely manufactured using high-quality raw materials and advanced hot forging technology, ensuring superior strength, accurate sizing, and long-lasting performance for overhead line construction and maintenance.
The Socket Eye is designed to provide secure and stable connections in power transmission and distribution systems, even in harsh environmental conditions. Its robust construction features hot-dip galvanized steel, which offers exceptional corrosion resistance, UV protection, and high tensile strength, resulting in reliable operation across diverse climates. Our commitment to excellence involves strict quality control, with multi-stage testing, load tests, and SGS certifications, guaranteeing that every product meets the highest standards.
We maintain extensive production facilities spanning 17,000 square meters and large inventory stocks, enabling us to supply Socket Eye in a wide range of sizes and ensure timely delivery worldwide. Contact us today for the best prices.

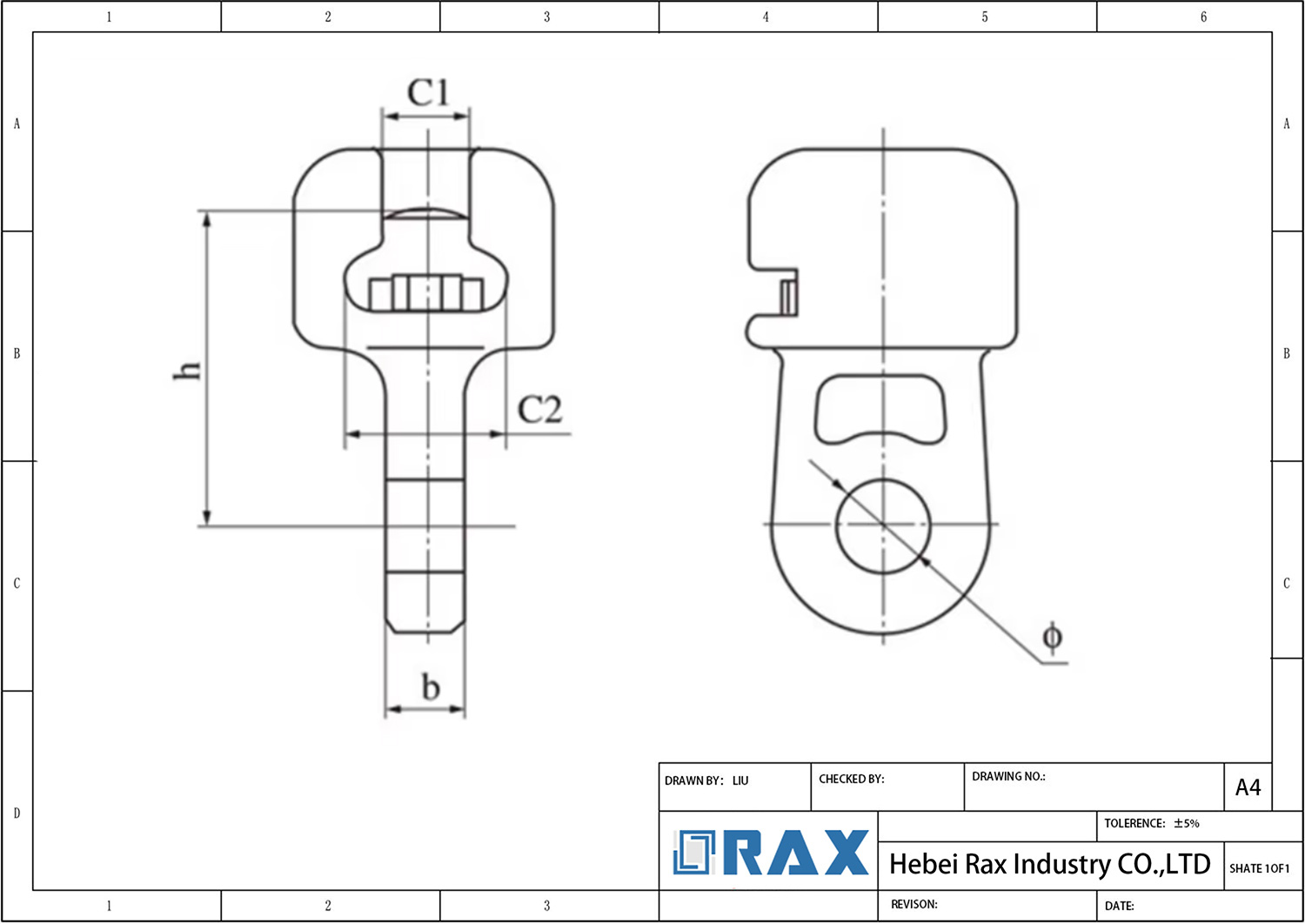

| Parameter | Value |
|---|---|
| General | |
| Catalog Number | 909672000 |
| Material – Body | Galvanized Ductile Iron or Forged Steel |
| Material – Cotter Pin | Stainless Steel |
| Mechanical | |
| Ultimate Strength | 30,000 – 50,000 lbs |
| Dimensions | |
| Hole Diameter | 1.063 – 1.188 inches |
| Width | 1-1/16 – 1-7/32 inches |
| Length | 5-1/2 inches |
| Eye Width | 1.219 inches |
| Coupling Length | 5.5 inches |
| Weight | 5.488 lb |
| Standards & Compliance | |
| For Insulator Class | ANSI 52-3, 52-5, 52-8, 52-11 |
| Standards | ANSI C29.2-71 |
| Logistics | |
| Pallet Quantity | 320 |
Frequently Asked Questions (FAQS)
What is the primary application of the Socket Eye?
Socket eyes connect conductor clamping devices to ball and socket type insulators in transmission lines, secured using a stainless steel cotter pin for reliable attachment.
What materials are the Socket Eye constructed from?
The body is made of galvanized ductile iron or hot dip galvanized steel, and the cotter pin is made of stainless steel. The galvanized coating provides excellent corrosion resistance for outdoor applications.
What are the strength ratings and ANSI compliance specifications?
Socket eyes comply with ANSI C29.2-71 standards and are designed for insulator classes 52-3, 52-5, 52-8, and 52-11. Ultimate strength ratings are 50,000 lbs (222 kN) for models compatible with ANSI 52-8 and 52-11 insulators, and 30,000 lbs for ANSI 52-3 and 52-5 insulators.
What dimensions are available for the Socket Eye?
Dimensions include hole diameters of 1.063 inches or 1.188 inches, widths from 1-1/16 to 1-7/32, and lengths such as 5-1/2. Specific sizes vary by model.
Can you handle large-scale orders and guarantee on-time delivery?
Yes, we maintain extensive stock and have the capacity to handle bulk orders efficiently. Our production processes and warehousing enable on-time delivery to meet your project schedules without delays.
How do you maintain cost-effectiveness while delivering consistent quality?
We use high-quality raw materials and implement strict quality control measures, including load testing and gauge tests, to ensure consistent product quality. Efficient manufacturing and supply chain management allow us to offer competitive prices without compromising reliability.
Do you offer a broad range of products to support varied inventory requirements?
Yes, we provide socket eyes in various sizes and specifications, including standard and hot line types, with different ultimate strengths and dimensions to meet diverse market demands effectively.
