Jumper Yoke Plates are specialized string hardware components used in overhead power line construction to connect and bundle multiple conductors. They enable the assembly of insulator strings on deadend towers, allowing two, three, or four conductors to be grouped with a single set of insulators. These plates attach to I-string insulator assemblies and can accommodate hold down weights for added stability in both tension and suspension configurations.
The plates are manufactured from aluminum alloy, ductile iron, or hot-dip galvanized steel. Aluminum variants provide an optimal strength-to-weight ratio, ductile iron delivers high tension strength and ductility, while hot-dip galvanized steel ensures corrosion resistance across diverse environmental conditions.
Technical specifications include ultimate strength ratings reaching up to 40,000 lb, with plate thickness of approximately 0.75 inches. Groove diameters are customizable between 1.1 and 2.5 inches to accommodate various conductor sizes, and hold down weights can be added in 50-pound increments. The design supports adjustable yoke tension and can be configured to meet specific operational requirements.
Catalog numbering systems facilitate product selection, such as the JY3 series for three-conductor models (example: JY3-1.108-01-400 for Drake conductor applications) and configurations like YPJ21018215, ensuring compatibility with international electrical power industry standards.
Trusted Jumper Yoke Plate Supplier RaxPower with Decades of Expertise
We are instrumental in trading a qualitative range of Transmission Hardware Fittings, including Jumper Yoke Plates that ensure electrical power security by holding conductors steady in mid-span joints and jumper terminals.
These plates are designed with a strong metal body for added strength, deploying materials that last long and deliver the best performance, ideal for various conductor configurations.
RaxPower, established in 2003 and based in Hebei Province, China, brings 21 years of manufacturing expertise to every Jumper Yoke Plate we produce.
Our adherence to IEEE guidelines and use of advanced hot forging technology result in parts with greater strength and accurate sizing, while strict quality control—including multi-stage testing, automation for uniformity, and galvanization per ISO standards—ensures 100% reliability and durability.
This commitment to quality, backed by our extensive experience, means our Jumper Yoke Plates are built to withstand rigorous demands and maintain steady structure over time. Choose RaxPower for trusted, high-performance solutions in power line hardware.

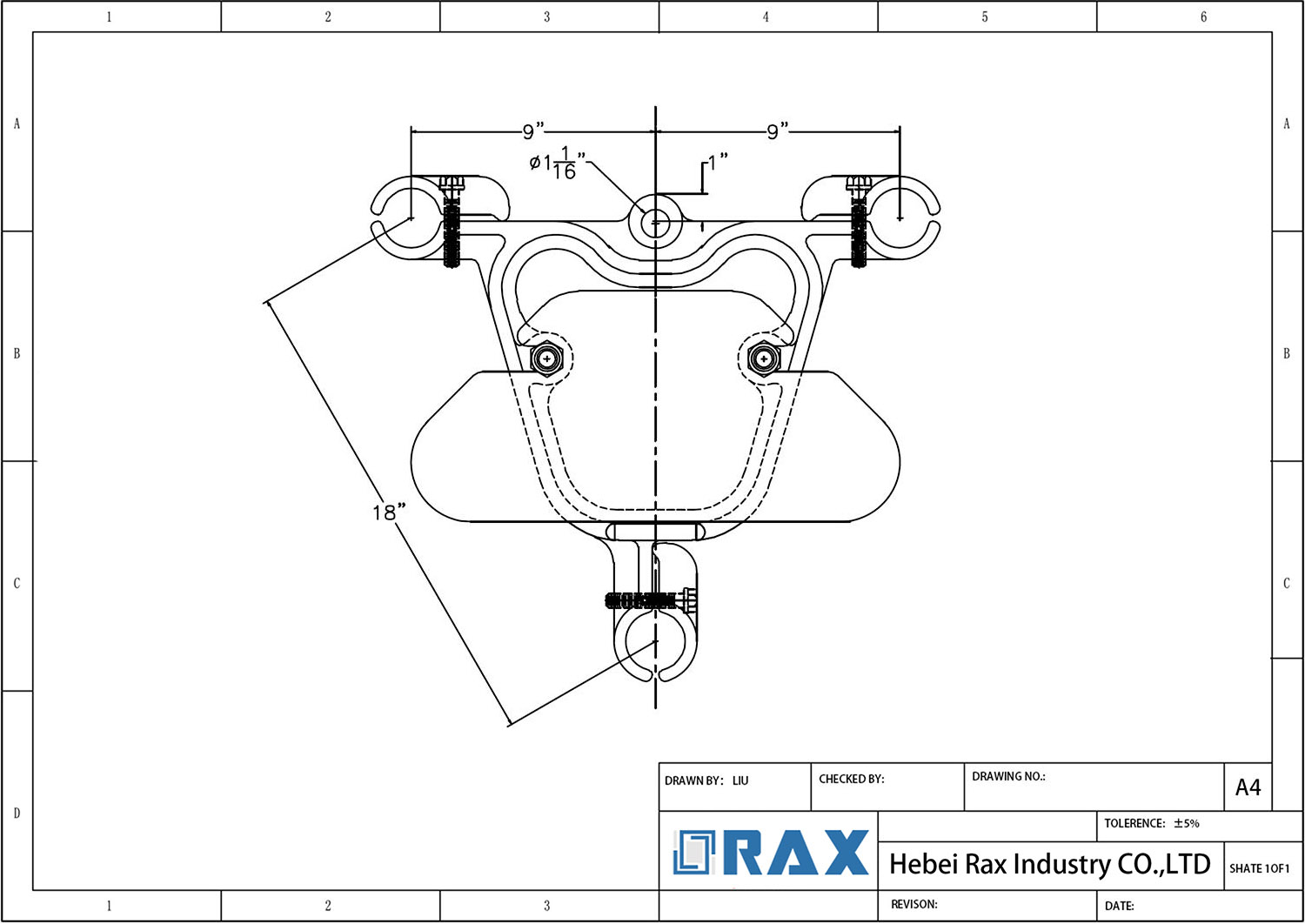

| Parameter | Value |
|---|---|
| General | |
| Material | Aluminum Alloy, Ductile Iron, Hot-Dip Galvanized Steel |
| Ultimate Strength | Up to 40000 lb |
| Adjustable Yoke Tension | Yes |
| Catalog Number Series | JY3 series for 3-conductor models, YPJ series for other configurations |
| Dimensions | |
| Thickness | 0.75 in |
| Weight | Approximately 2.5 – 3.0 lb (varies by model) |
| Groove Diameter Range | 1.1 – 2.5 in |
| Insulator Attachment Hole Diameter | 1.25 in |
| Conductor Related | |
| Number of Conductors | 2, 3, or 4 |
| Operational | |
| Hold Down Weight Increments | 50 lb |
Frequently Asked Questions (FAQS)
What is the primary application of a jumper yoke plate?
Jumper yoke plates are used to bundle two, three, or four conductors with a single string of insulators on a deadend tower.
What range of yoke plate configurations do you offer for different transmission line setups?
RaxPower provides a wide variety of yoke plates, including deadend yoke plates, tangent triangular yoke plates, v-string conductor yoke plates, and 3 conductor jumper yoke plates. This diverse selection supports various applications, from bundling conductors on deadend towers to accommodating different insulator assemblies.
What materials and strength ratings ensure the reliability of your jumper yoke plates?
RaxPower's jumper yoke plates are constructed from high-strength aluminum alloy, providing an ultimate strength rating of up to 10000 lb. This combination ensures long-term durability, corrosion resistance, and performance in harsh conditions, meeting the demands of utility and infrastructure projects.
Can jumper yoke plates be customized for specific conductor sizes and project requirements?
Yes, RaxPower offers customization with groove diameters available between 1.1 and 2.5 to accommodate various conductor types. All jumper yoke plates also have the provision for adding hold down weights, which are available in 50 lb increments to meet specific requirements.
How are jumper yoke plates cataloged for ordering?
Jumper yoke plates are cataloged with numbers like JY3-(Groove Dia)-01-(Additional Weight), for example, JY3-1.108-01-400 for Drake Conductor without armor rod with 400 lb weights added, allowing for precise configuration selection.
