The transformer lead pin carries electrical leads to transformers, connecting the lead to the transformer unit within electrical systems. The component features a cast lead thread designed for insulator mounting applications.
The thread configuration follows American National Standards Institute (ANSI) specifications, accommodating threaded pin holes with diameters of 1 inch and 1-3/8 inch. This standardized design ensures direct compatibility with conventional insulator fittings across different electrical installations.
The cast lead construction provides the necessary conductivity and mechanical strength for reliable transformer connections. The thread geometry allows secure attachment to insulator assemblies while maintaining proper electrical isolation between the energized lead and supporting structures.
These pins serve as critical interface components in transformer installations, particularly where overhead or elevated mounting configurations require insulated support systems. The standardized threading enables straightforward integration with existing infrastructure and replacement during maintenance operations.
Your Trusted Transformer Lead Pin Manufacturer
RaxPower, established in 2003 and based in Hebei Province, China, has over 21 years of expertise as a leading manufacturer of pole line hardware. Our extensive production facilities span 17,000 square meters of workshops and 5,000 square meters of warehouses, manned by a dedicated team of over 170 professionals, including engineers and quality supervisors.
We leverage advanced manufacturing processes like hot forging, which imparts superior strength and precise sizing to components such as the Transformer Lead Pin, ensuring they outperform alternatives in durability and accuracy. Strict quality control measures—from raw material selection to multi-stage testing—guarantee that every Transformer Lead Pin meets rigorous standards, with all products reviewed twice before packing for 100% reliability.
Automation and sophisticated galvanization techniques, adhering to ISO 1461, maintain uniform quality and corrosion resistance, while Load Tests and Gauges Tests per IEC standards validate performance. Trust RaxPower to deliver transformer components that reflect our commitment: quality is life, reputation is base, empowering your projects with dependable solutions.
| Technical Parameter | Specification |
|---|---|
| Function | Carrying the electrical lead to the transformer and facilitating connection between lead and transformer unit |

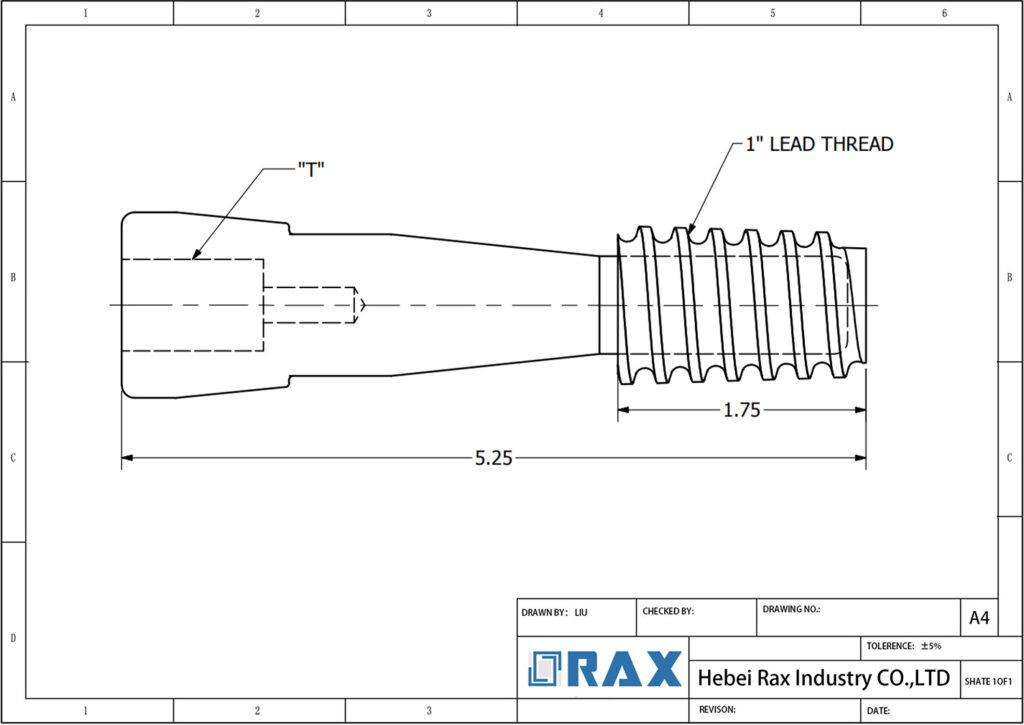

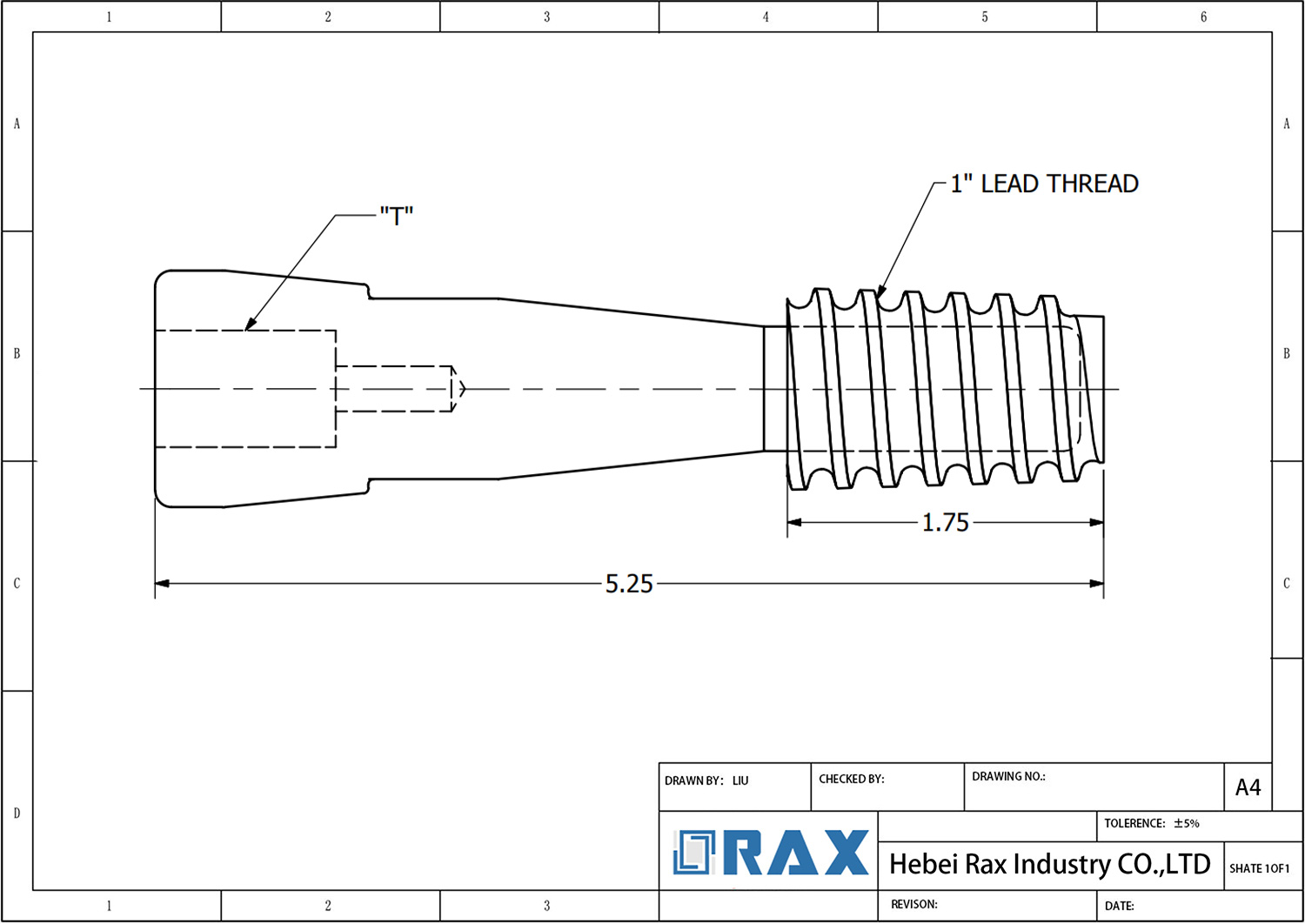

| Thread Type | Cast lead thread configured for use with insulators |
| Standards | ANSI standards |
| Threaded Pin Hole Sizes | Diameters of 1 inch and 1-3/8 inch |
Frequently Asked Questions (FAQS)
What is a transformer lead pin and what is its primary function?
A transformer lead pin is a specialized component used for carrying the lead to the transformer. It features a cast lead thread that facilitates secure connections for insulators.
What are the key specifications and standards for your transformer lead pins?
Our transformer lead pins are designed with cast lead threads and conform to ANSI standard threaded pin holes in two sizes: 1 inch and 1-3/8 inch. This ensures reliable performance, compatibility with insulators, and adherence to industry specifications for utility-grade and industrial applications in demanding environments.
Can you provide products that meet the specific requirements of utility and industrial projects?
Yes, our transformer lead pins and other hardware are engineered to meet standards like ANSI, ensuring they are fit for utility-grade and industrial applications where reliability is critical.
What other pole line hardware components can you supply for comprehensive project needs?
We offer a wide range of products including stainless steel sealing rings, GYB-100 round meter sockets, cable rack support, pulling-in iron, cable hanger, and cable extension arm, providing diverse solutions for various applications.
