Suspension insulator caps connect insulator strings to steel towers in high-voltage power transmission systems, providing secure conductor attachment while isolating transmission lines from supporting structures. These protective components function as movable fixations that enable safe electricity distribution across networks.
The caps withstand mechanical loads from 40 kN to 1000 kN and feature galvanized finishes for corrosion resistance. Three primary variants exist: clevis type with U-shaped configuration for flexible assembly, socket type with cup-shaped design enclosing ball-and-socket joints for dynamic load stability, and tongue type employing flat plates with holes for direct, lightweight attachments. Materials include forged galvanized steel, ductile cast iron, or malleable iron, often with hot-dip galvanizing. The caps assemble with high-strength porcelain or toughened glass insulators for electrical isolation and mechanical durability.
Applications span high-voltage transmission lines and substations, supporting conductors in standard and harsh environments including coastal, humid, or polluted areas. Specialized anti-pollution models offer extended creepage distances up to 555 mm. The caps comply with IEC 60471, IEC 60383, and ANSI C29.2 standards, meeting requirements for mechanical strength, electrical performance, and safety. They operate across broad temperature ranges, ensuring reliable performance in diverse climatic conditions.

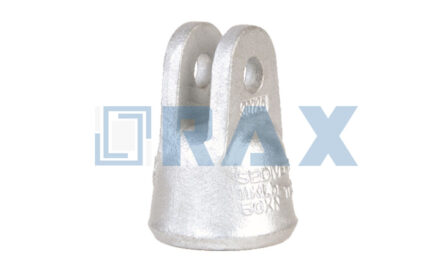

Clevis Type Suspension Insulator Cap
Features U-shaped design with two holes for pin installation, offering mechanical strength from 40KN to 300KN for high-voltage transmission lines. Provides flexible connection and superior load distribution, ideal for applications requiring angular flexibility and reliable attachment between insulators and supporting structures.

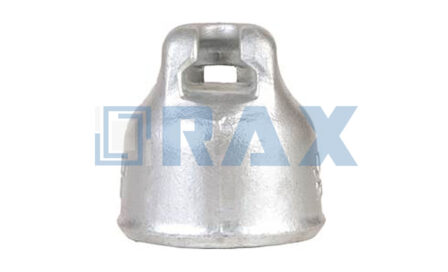

Socket Type Suspension Insulator Cap
Ball-and-socket design with single-hole attachment, supporting mechanical loads from 40KN to 1000KN for overhead transmission systems. Enables easy mounting and maintenance with stable rotational movement, assembled with porcelain or toughened glass for high-voltage insulation across substations and power plants.

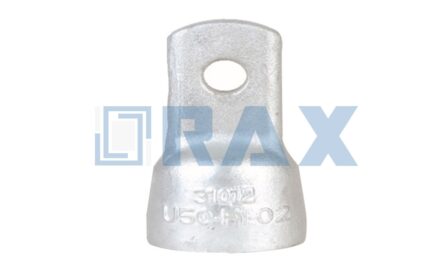

Tongue Type Suspension Insulator Cap
Lightweight tongue-like projection design providing mechanical strength from 40KN to 80KN for medium-voltage distribution applications. Offers straightforward installation with stable secure connection, ideal for situations with weight restrictions where simplified attachment to supporting hardware is required for efficient power transmission.
Leading Suspension Insulator Cap Wholesaler
RaxPower, established in 2003 in Hebei Province, China, is a leading manufacturer of pole line hardware with over 21 years of expertise. We have devoted significant investment to research and development, growing into a major producer of insulator caps, including the suspension insulator cap.
Our annual production capacity of 6,000 tons, supported by 17,000 square meters of production workshops and 5,000 square meters of warehouses, ensures we can reliably meet domestic and international demand. We cover 100% of high voltage insulator requirements for China Electricity Power Corporation, highlighting our market reach and trustworthiness.
Our technical team continuously innovates with advanced manufacturing processes like hot forging to achieve superior strength and precise sizing for our suspension insulator caps, adhering to the principle “quality is life, reputation is base.” Through rigorous quality control, automation, and multi-stage testing, we guarantee exceptional durability and performance.
The combination of top-tier quality and competitive pricing makes our suspension insulator caps a standout choice. We insist on doing it best and welcome clients worldwide to visit our factory.
Other Products You May Like
Frequently Asked Questions (FAQS)
What is a suspension insulator cap?
Caps for suspension insulators are protective shields or movable fixation for connecting two insulators or an insulator to one or more fittings. They ensure safe and stable distribution of electricity and hold transmission lines on steel towers in place.
What types of suspension insulator caps do you offer, and how do they address different application needs?
We provide clevis type (40KN-300KN), socket type (40KN-1000KN), and tongue type (40KN-80KN). The clevis type is ideal for medium to high-voltage lines with flexible assembly, the socket type offers stability for high-tension installations, and the tongue type suits low to medium-voltage applications with its simple design. Each type is available in various mechanical classes to suit different substations, power lines, and environmental conditions.
What materials are used in the construction of suspension insulator caps?
The cap is made of forged and galvanized steel linked to porcelain material. The cap body and protecting full skirt are made of ductile silicone rubber material. An anti-corrosion zinc sleeve is available for heavy pollution environments.
Which international standards do suspension insulator caps meet?
They comply with standards such as IEC 60471 and ANSI C29.2, with mechanical resistances ranging from 40KN to 1000KN.
How are suspension insulator caps installed and maintained?
They are easy to assemble and maintain, with connections secured using a locking pin or cotter pin. Components can be replaced if damaged without affecting the entire setup.
How do your manufacturing processes contribute to cost-effectiveness without compromising quality?
Advanced hot forging technology produces components with superior strength and precise sizing, reducing material waste and costs. Hot-dip galvanization provides durable corrosion protection at competitive prices. Automation ensures uniformity and reduces labor costs, while multi-stage testing and raw material selection maintain high quality standards.
What is your capability to handle large-volume orders and ensure timely delivery for projects?
We have substantial production capacity with automated manufacturing processes that efficiently manage bulk orders. Our facilities meet both domestic and international demands, ensuring on-schedule delivery for project-based requirements. Strict quality control and efficient logistics support timely delivery, backed by years of experience serving diverse markets.
