Insulator pins are wooden components used to mount insulators on electrical utility poles. Manufactured from locust wood, these pins offer strong resistance to environmental factors, ensuring durability in outdoor electrical distribution systems. The manufacturing process transforms raw logs into precision-engineered hardware through multiple production stages.
Production begins with debarking and sawing logs into blocks of specific dimensions to ensure consistency across pin sizes. The blocks are then shaped on cutter machines where synchronized rotation of both the block and cutter heads trims the wood to the required profile. Threading follows, with operators using specialized machines to cut screw threads into the shank by guiding a V-shaped cutting tool onto the spinning wood, creating threads that enable secure installation.
Insulator pins are available in multiple configurations to address different utility pole requirements: 8-inch models (1-1/4 inch diameter), 9-inch versions in unthreaded or shouldered styles, 11-inch pins, 12-inch duplex pins for dual insulator mounting, and 21-inch pins for extended applications. Orders typically require minimum quantities, with pricing based on volume and shipments handled on a freight collect basis.
Pole Top Pin
Pressed steel pin with 1-inch or 1-3/8-inch ANSI standard threads designed for mounting pin-type insulators directly on pole tops in distribution systems. Features straight base design with mounting holes spaced at 5 inches and 8 inches for 5/8-inch bolts, available in 15-inch to 24-inch lengths meeting ANSI C135 specifications with 1200 lbs longitudinal and 1500 lbs transverse load ratings.

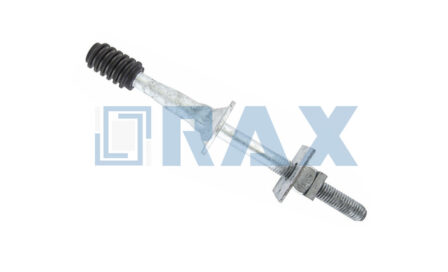

Crossarm Insulator Pin
Forged steel pin with molded nylon alloy or cast lead threads designed for mounting pin insulators to wood or steel crossarms in distribution line applications. Available in short shank and long shank configurations with 1-inch or 1-3/8-inch ANSI threads, hot-dip galvanized per ASTM A-153 standard providing corrosion resistance for overhead power line installations.

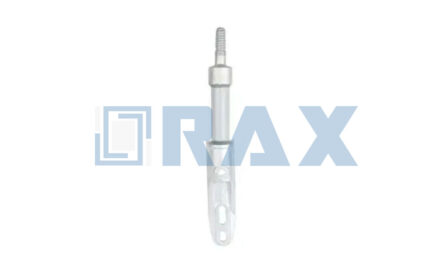

Ridge Pin
Fiberglass composite rod with ductile iron hot-dip galvanized base and aluminum end fitting designed for post insulator mounting with gray ultraviolet protective veil coating. Features recessed cavity accepting 5/8-inch mounting hardware for back-to-back configurations, supporting minimum 2500 lbs vertical, 2150 lbs longitudinal and 2150 lbs transverse ultimate loads for distribution applications.

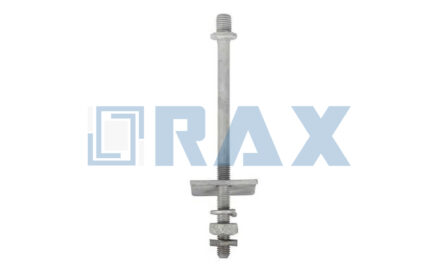

Line Post Stud
Forged steel threaded stud designed for bolting line post insulators to wood crossarms with long shank or steel brackets with short shank configurations. Hot-dip galvanized per ASTM A-153 with serrated collars and lockwashers ensuring secure mounting, featuring rolled threads below collar preventing accidental disassembly in horizontal and vertical conductor configurations.

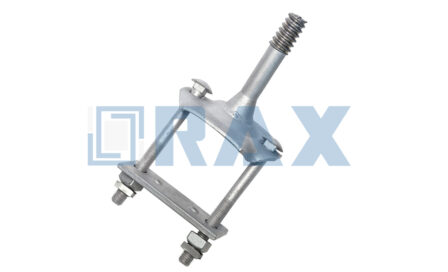

Clamp Type Crossarm Pin
Innovative design featuring clamp-style mounting mechanism with 1-inch nylon thread for pin insulators, eliminating traditional bolt-through crossarm installation requiring pre-drilled holes. Hot-dip galvanized steel construction allowing faster installation and field adjustability on wood crossarms, ideal for retrofit applications and maintenance operations reducing installation time.

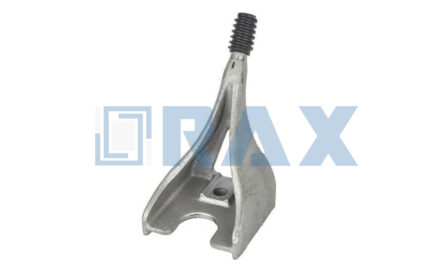

Angle Crossarm Pin
Specialized steel pin designed for mounting insulators at angle structures where transmission lines change direction, featuring reinforced construction handling increased mechanical stress from line angles. Hot-dip galvanized pressed steel with nylon alloy or cast lead threads meeting ANSI standards, engineered supporting both longitudinal strain and transverse loads at angle poles.

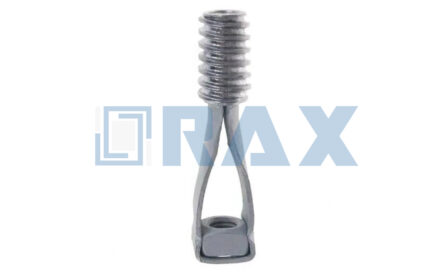

Transformer Lead Pin
Forged pin with 1/2-inch or 5/8-inch diameter shank and 1-inch ANSI standard nylon alloy threads designed for carrying transformer leads to pin-type insulators. Features strap steel design or clamp-style mounting with split lockwashers, hot-dip galvanized construction providing secure electrical connection for transformer terminal and bushing applications eliminating environmental concerns of lead threads.
Expert Insulator Pin Wholesaler – With 21 Years of Industry Leadership
RaxPower is a leading manufacturer of insulator pins and pole line hardware, with over 21 years of dedicated operation in Hebei Province, China. Our insulator pins benefit directly from this legacy of expertise, being crafted using advanced hot forging technology that ensures greater strength and precise sizing, much like traditional methods but enhanced for modern demands.
The process begins with high-quality raw materials, which are shaped and trimmed through automated machines to maintain uniformity and accuracy. Each pin undergoes rigorous threading and finishing, followed by strict quality controls, including load testing and gauge checks per IEC standards, to guarantee reliability and performance.
With 17,000 square meters of production facilities and a team of 170 skilled professionals, we deliver consistent, high-quality products on time. We invite you to place your orders and visit our plant to see our manufacturing excellence in action.
Other Products You May Like
Frequently Asked Questions (FAQS)
What range of pole line hardware products do you offer?
We offer a comprehensive range including overhead, transmission, and distribution hardware such as transmission clamps, suspension clamps, utility pole fittings, street light arms, insulators, cutout switches, ADSS/OPGW accessories, conductors, anchoring, and grounding products. This variety ensures distributors can meet diverse customer demands.
How do you ensure product quality and standards compliance?
Our manufacturing involves cutting, threading, and drilling using automatic machines for accurate sizing and uniform quality. We employ strict quality control with raw material selection and multi-stage testing. All products are reviewed twice before packing to ensure 100% quality, have passed SGS tests and authoritative research institute tests, and comply with standards like IEC 120.
What materials and sizes are available for insulator pins?
Insulator pins are made from durable hardwoods such as locust, known for strength and environmental resistance. Standard sizes include 8-inch, 9-inch, 11-inch, 12-inch, and 21-inch pins, with unthreaded or threaded end variations available. Custom sizes and threading options may be available upon request.
How are insulator pins manufactured?
The process involves debarking wood logs, sawing them into blocks, shaping with spinning cutter heads, threading the ends, and drilling installation holes for precision.
What are the pricing and minimum order requirements?
For example, 250 units of 8-inch pins cost around $118.75. Minimum orders are typically $100 or higher to ensure efficient production and shipping. Contact RaxPower for accurate pricing based on your specific needs.
Can you handle bulk orders with on-time delivery?
Yes, we handle bulk orders with competitive project-based pricing. Our production scale and automation enable efficient manufacturing and on-time delivery. Order quantities are flexible, and we ship with various terms to meet project timelines for large-scale installations.
Get A Quick Quotation Today
