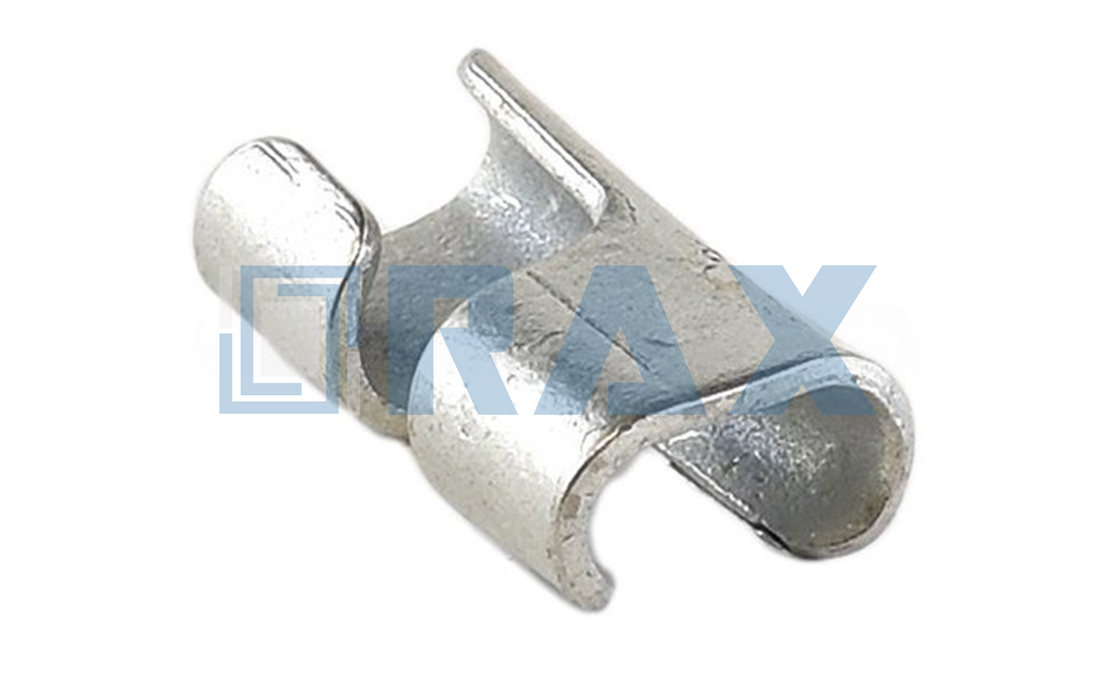

The Strand Serving Sleeve confines and secures the tails of guy wires and suspension strands in utility and construction applications. It holds down the loose end of the guy strand that projects beyond the guy clamp, ensuring a secure and tidy termination.
The sleeve features a flared end that facilitates installation by allowing quicker and easier application over the strand ends. The strand size accommodated by each sleeve is typically indicated on the outside, aiding in proper selection during field operations.
Constructed from steel, specific models utilize American Iron and Steel Institute (AISI) 1018 Steel for its mechanical properties. The material is formed through a stamping process, resulting in a durable component suited for demanding environments. A hot dip galvanized coating applied to the steel provides corrosion resistance and meets the American Society for Testing and Materials (ASTM) A-153 specification, ensuring long-term performance in outdoor conditions where exposure to moisture and other elements is common.

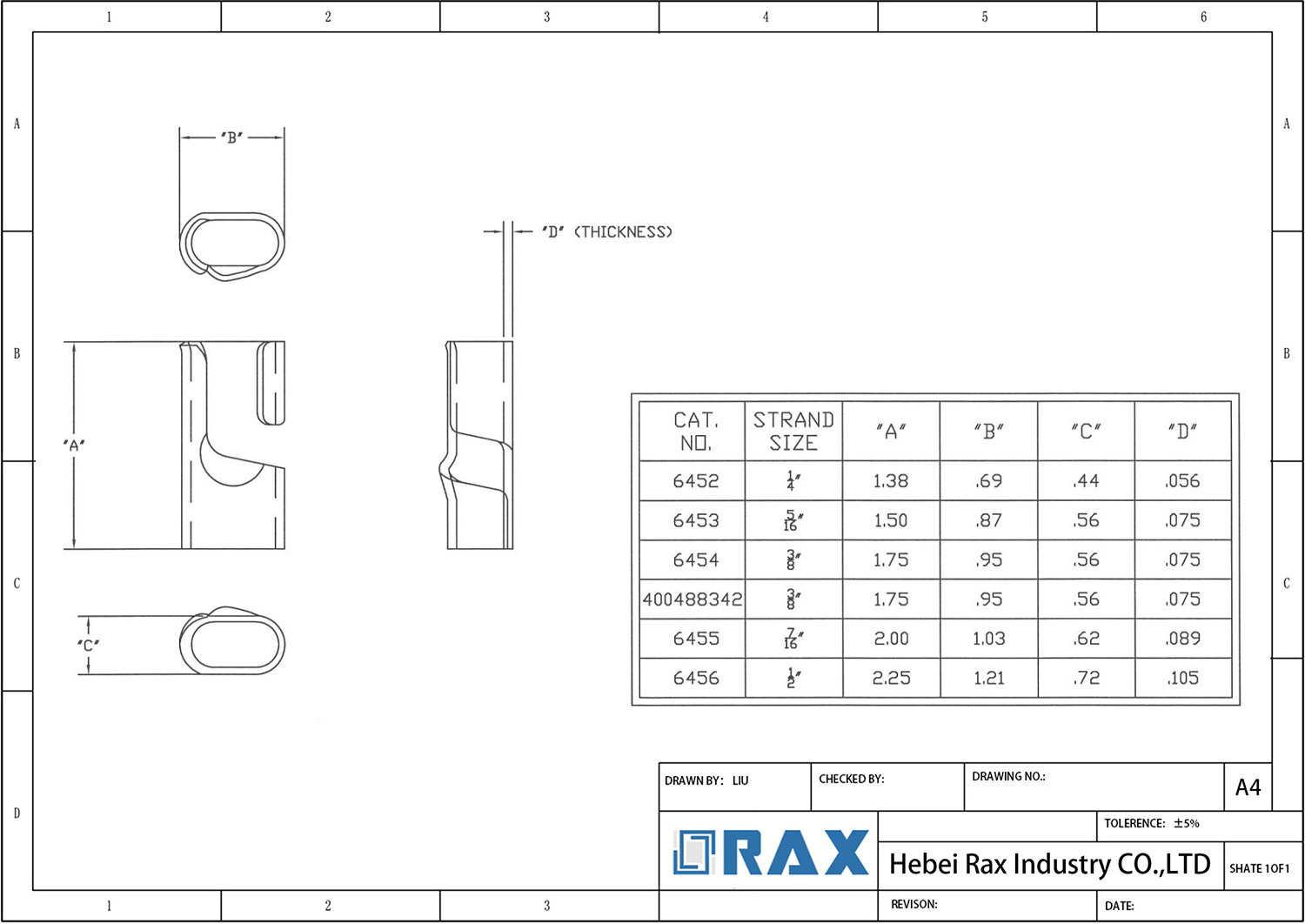

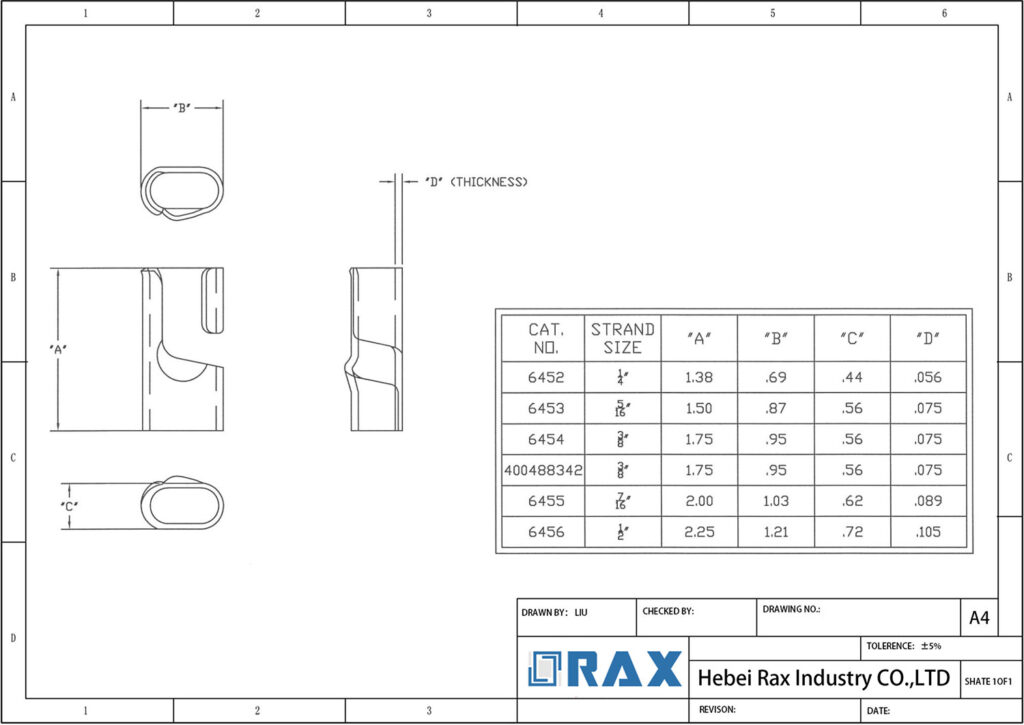

Serving sleeves are available in various sizes to accommodate different strand diameters, including 1/4 inch, 3/8 inch, 7/16 inch, and 1/2 inch, with corresponding overall lengths ranging from approximately 1.38 inches to 2.25 inches. This range allows for compatibility with standard guy strand configurations used in suspension and guying systems.
Enhance Safety with RaxPower Strand Serving Sleeve Supplier
The Strand Serving Sleeve is engineered for flexible cable configurations such as 7×19 or 6×24 strands, commonly used in zip lines and ropes courses. This product eliminates stray cable strands and frayed cable ends, preventing injuries by securely covering loose ends that could cause snags or cuts during operations. The flared end allows for quick and easy application with minimal effort.
For optimal safety and fit, it is recommended to use one size larger than the cable diameter; for example, a 7/16″ serving sleeve for 3/8″ wire rope to accommodate the multi-strand design.
RaxPower, established in 2003 in Hebei Province, China, leverages over 21 years of manufacturing expertise to produce these sleeves. Our advanced hot forging technology ensures greater strength and precise sizing, while automatic machines maintain uniformity and accuracy. The hot-dip galvanizing process, with a mean coating thickness exceeding 85 microns per ISO 1461, provides a smooth, bright, and corrosion-resistant finish. Strict quality control, including raw material selection, multi-stage testing, and SGS certification, guarantees 100% reliability. Ensure you select the correct size for secure, professional wire rope connections in your projects.
| Strand Size | Length (in) | Material | Coating |
|---|---|---|---|
| 1/4″ | 1.38 | AISI 1018 Steel | Hot dip galvanized per ASTM A-153 |
| 3/8″ | 1.75 | AISI 1018 Steel | Hot dip galvanized per ASTM A-153 |
| 7/16″ | 2.00 | AISI 1018 Steel | Hot dip galvanized per ASTM A-153 |
| 1/2″ | 2.25 | AISI 1018 Steel | Hot dip galvanized per ASTM A-153 |
Frequently Asked Questions (FAQS)
What is the purpose of a strand serving sleeve?
Strand serving sleeves are used for confining and securing the tails of guy wires and suspension strands, specifically for holding down the loose end of guy strand that projects beyond the guy clamp.
In what applications can strand serving sleeves be used?
Strand serving sleeves are suitable for various applications including utility guying, zip lines, ropes courses, utility grids, railway systems, renewable energy, and telecommunications, where they are used in conjunction with wire rope clips to secure cable ends and prevent fraying.
How is a strand serving sleeve installed?
Installation is facilitated by a flared end that speeds application. Simply slip the sleeve over the loose cable strands and use a few light taps to complete a quick and neat serve. Crimping is not required for standard installation, but may be recommended on element and belay cables for added security in specific applications.
What materials and coating are used in strand serving sleeves?
Strand serving sleeves are made from high-strength steel, such as AISI 1018, and are hot-dip galvanized to meet ASTM A-153 specifications. This construction provides robust performance, excellent corrosion resistance, and long-term reliability that withstands vibration and harsh environmental conditions.
What sizes do strand serving sleeves come in?
