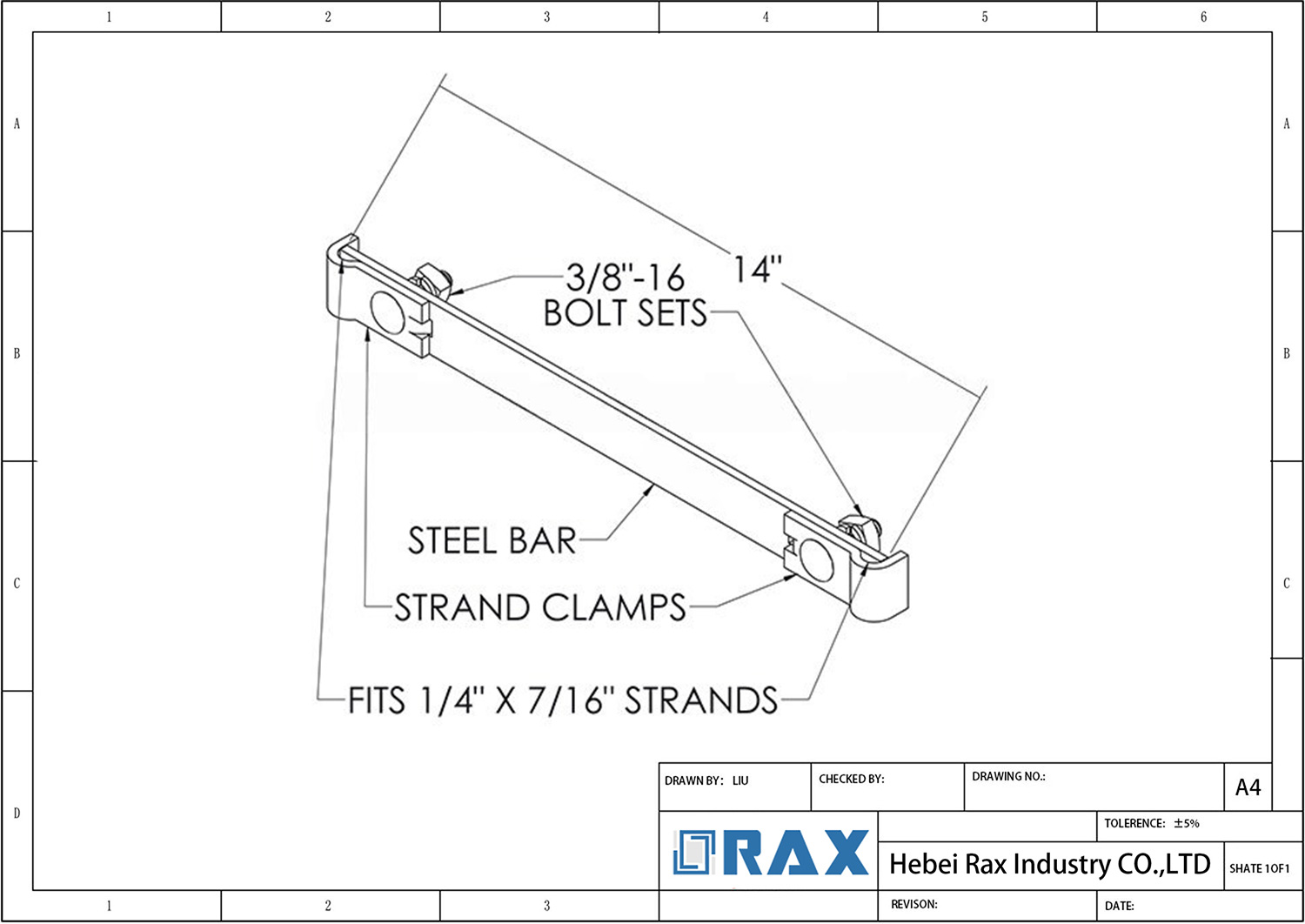

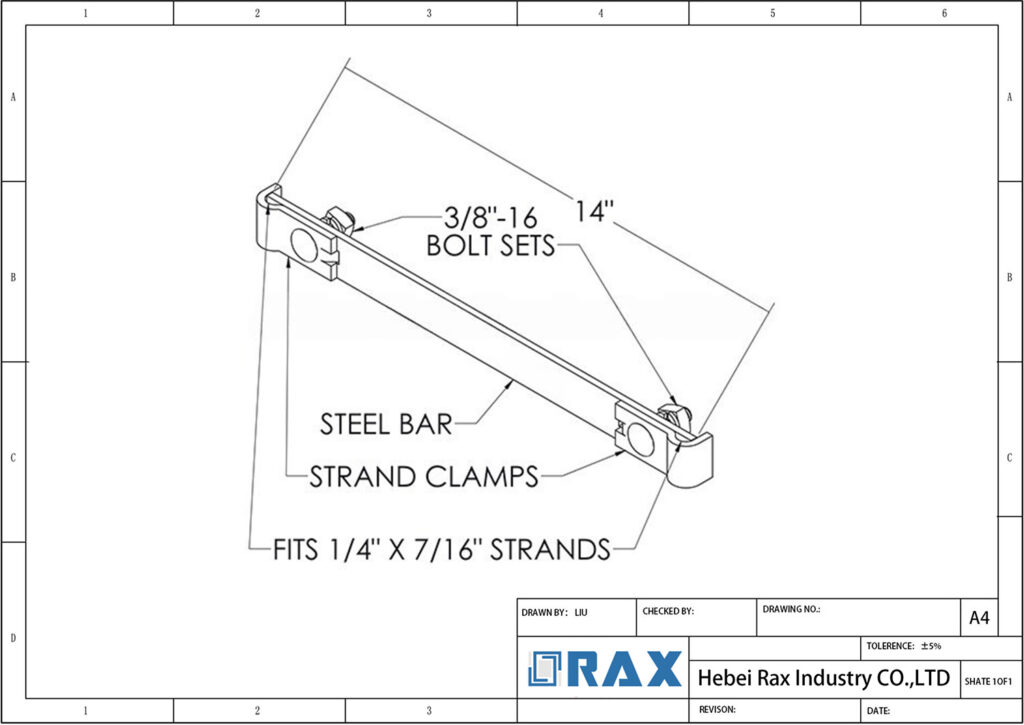

The Straight Strand Tie Strap secures parallel strands at mid-span in overhead line systems, preventing cable movement and maintaining proper tension distribution. Constructed from high-quality carbon steel with a bar measuring 3/16 inches by 13/16 inches and an overall length of 14 inches, it features strand clamps at both ends for maximum security in power and telecommunications infrastructure.
A zinc-based coating applied through Hot-Dip Galvanization (HDG) provides corrosion resistance and meets ASTM Specification A153 for weather-resistant properties. This protective layer shields the metal from environmental elements, extending the lifespan of cable infrastructure and minimizing maintenance requirements in demanding outdoor conditions.
The tie strap accommodates strands ranging from 1/4 inch to 7/16 inch diameter and integrates seamlessly with standard pole line hardware. The dual-end clamp configuration ensures secure connections that prevent unwanted cable dancing during operation, supporting long-term stability in both construction and telecommunications applications.
Installation is straightforward using the integrated clamping mechanism with bolts, lockwashers, and square nuts. The design enables quick positioning without specialized tools, facilitating efficient deployment in various mid-span connectivity scenarios where reliable strand support and structural integrity are essential.
Enhance Overhead Line Reliability with RaxPower Straight Strand Tie Strap Supplier
The overhead power lines rely on various accessories for secure and reliable connections. RaxPower, established in 2003 and based in Hebei Province, China, has over 21 years of experience as a leading manufacturer of pole line hardware. We design and manufacture a comprehensive range of products, including the Straight Strand Tie Strap, which benefits from our expertise in high-quality materials and advanced processes.
Our Straight Strand Tie Strap is produced using high-quality carbon steel and employs hot forging technology for greater strength and accurate sizing, ensuring low deflection and high tensile strength. All ferrous metal surfaces are uniformly hot-dip galvanized in accordance with ISO 1461, providing reliable corrosion resistance and durability. With strict quality control, including multi-stage testing and automated manufacturing, each tie strap meets international standards like IEC 120 and has passed SGS tests, guaranteeing safety and ease of installation.
RaxPower is committed to innovation, reliability, and quality, guided by the principle that “quality is life, reputation is base.” Our dedicated team and extensive facilities ensure that every product, including the Straight Strand Tie Strap, delivers optimal performance. Contact us now to provide you with quality solutions for your overhead lines.
| Parameter | Specification |
|---|---|
| Product Name | Straight Strand Tie Strap |
| Material | Carbon Steel |
| Coating | Hot-Dip Galvanized (HDG), ASTM A153 |
| Length | 14 inches |
| Strand Accommodation Range | 1/4 inch to 7/16 inch |
| Bar Dimensions | 3/16 inch x 13/16 inch |
| Clamp Configuration | Dual-end strand clamps |
| Application | Mid-span connectivity for parallel strands |
Frequently Asked Questions (FAQS)
What are the primary applications of the Straight Strand Tie Strap?
It is used in construction and building projects, DIY applications, securing heavy equipment, and telecommunications infrastructure. Specifically, it provides essential mid-span connectivity for parallel strands in ADSS/OPGW installations, preventing cable movement and dancing through its integrated dual-end strand clamps.
How does the design prevent cable dancing and enhance stability?
The straight strand design ensures a perfect fit with secure mid-span connectivity, keeping cables from slipping, shifting, or experiencing unwanted movement during operation.
What materials and construction methods are used?
It is made from high-quality carbon steel with galvanized steel construction. The Hot-Dip Galvanization (HDG) process applies a zinc-based coating that creates a protective layer, shielding against rust and corrosion while meeting ASTM Specification A153 for reliable performance and industry compliance.
What are the key specifications?
The length is 14 inches, accommodating strand ranging from 1/4 to 7/16. The bar stock size is 3/16 x 13/16.
Is installation straightforward?
Yes, the integrated clamping mechanism with robust strand clamps at both ends allows for quick and easy installation without specialized tools.
What makes these tie straps suitable for critical infrastructure projects?
The combination of durable carbon steel construction, weather-resistant HDG coating, and compliance with utility industry standards ensures long-term reliable performance in demanding environments such as renewable energy installations, railway electrification, and grid maintenance projects.
What pricing advantages are available for bulk orders?
We offer competitive ex-factory prices for bulk purchases, providing attractive wholesale rates that support strong profit margins for distributors and importers.
Get A Quick Quotation Today
