The Pig Ear Guy Attachment is a hardware component for securing guy wires to utility poles. Fabricated from AISI 1018 steel with hot-dip galvanized coating per ASTM standards, it resists corrosion and weathering. The integrated loop mechanism enables direct dead-end wire connections without additional hardware, secured by a single machine bolt to the pole.

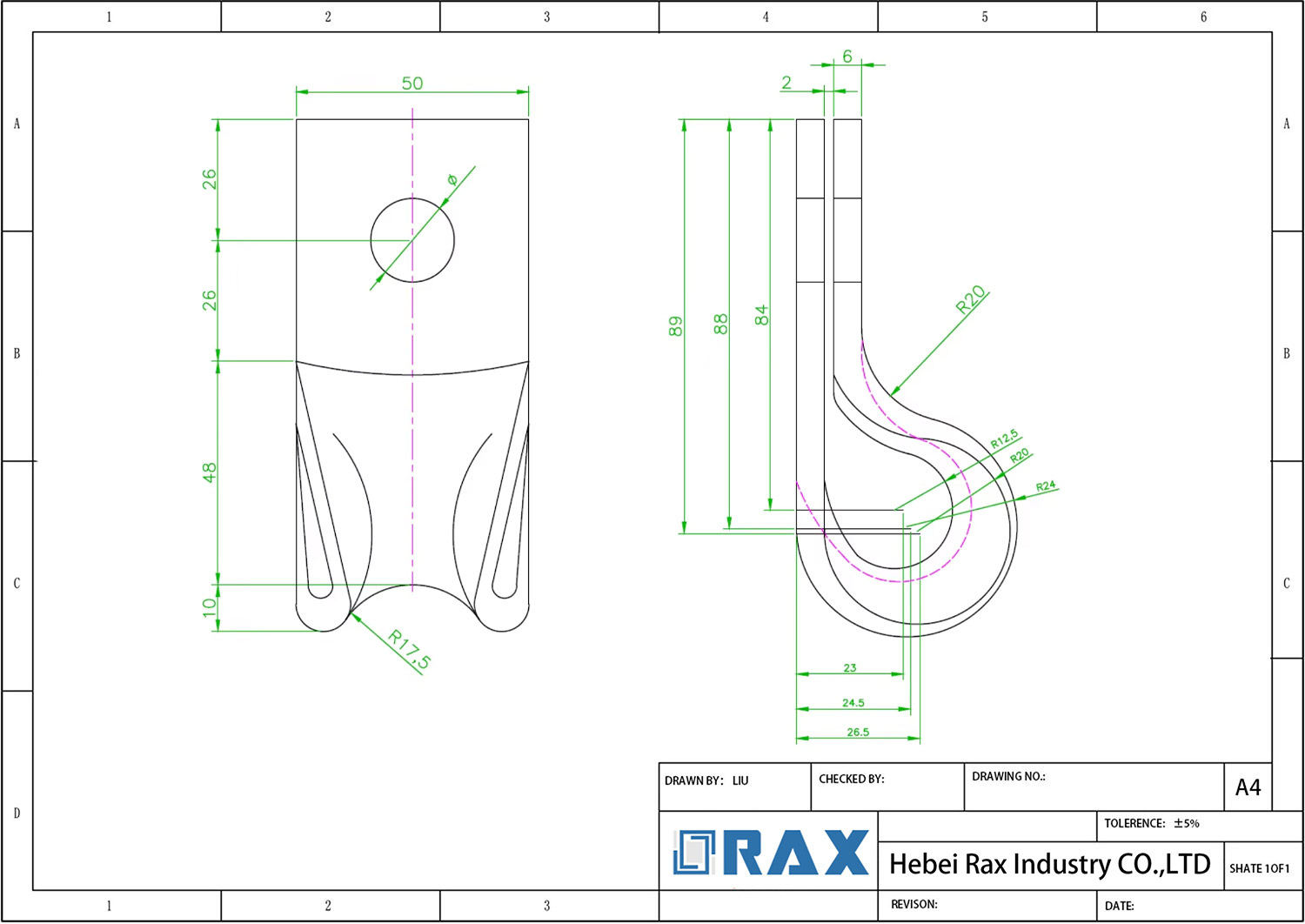

Standard models feature dimensions of 2 inches by 3/16 inches with an 11/16-inch mounting hole for compatibility with standard machine bolts. Ultimate strength reaches 19,000 pounds at 45-degree pull angles. Weight typically ranges from 0.6 to 0.81 pounds per unit. The anti-creep design prevents downward guy wire movement, maintaining optimal positioning under load in wrapped guy applications.
Installation requires only a single bolt fastened through the attachment to the pole, with the guy wire’s dead-end threaded through the loop. Positioning the hook under the bolt head maximizes shear strength and load distribution. This configuration supports reliable dead-end connections for utility and telecommunications infrastructure, delivering economical and stable pole guying without complex hardware or procedures.
Pig Ear Guy Attachment Wholesaler with Over 21 Years of Expertise
RaxPower, established in 2003 and headquartered in Hebei Province, China, is a global leader in pole line hardware with over 21 years of manufacturing and exporting expertise. The Pig Ear Guy Attachment reflects this heritage, offering an economical and efficient means of fastening guys to poles, with well-rounded wire grooves that protect the strand from damage.
Utilizing advanced hot forging technology and automated processes across 17,000 square meters of production facilities, we ensure each attachment achieves superior strength and precise sizing. Rigorous quality control, including raw material selection, multi-stage testing, and hot-dip galvanizing that exceeds ISO 1461 standards with a mean coating thickness over 85 microns, guarantees durability and corrosion resistance.
Guided by the principle that “quality is life, reputation is base,” our focus on innovation and dependable products solidifies our role as a trusted partner in power line construction.
| Parameter | Value |
|---|---|
| Material | AISI 1018 steel, hot-dip galvanized |
| Standards | ASTM standards |
| Dimensions | 2″ x 3/16″ |
| Mounting Hole Diameter | 11/16″ |
| Ultimate Strength at 45° | 19,000 lbs |
| Weight per Unit | 0.6 – 0.81 lbs |
| Mounting Type | Single-bolt |
| Application | For wrapped guy applications to prevent downward wire movement |
| Anti-creep Design | Yes |
Frequently Asked Questions (FAQS)
What is the primary use of a Pig Ear Guy Attachment?
The Pig Ear Guy Attachment is used to fasten guy wires to utility poles, providing an economical means for securing guy loops and preventing downward wire movement in wrapped guy applications.
What are the key features and construction materials?
The attachment is manufactured from AISI 1018 steel with hot-dip galvanization according to ASTM standards, ensuring superior weather resistance and long-term durability. Key features include a single-bolt mounting system, anti-creep design that prevents wire movement, an integrated loop mechanism for direct dead-end attachment, and ultimate strength ratings up to 19,000 pounds at a 45-degree pull angle.
How is it installed?
Installation requires a single machine bolt to attach the device to the pole, with the guy wire's dead-end connecting through the loop for a secure connection. Hooks should be installed under bolt heads for maximum strength.
What sizes or models are available?
RaxPower offers various models such as SCW1/2, SCW5/8, SCW3/4, SCW7/8, SCW1, and SCW1 1/4, with different hole diameters, lengths, bolt diameters, and weights to suit specific needs.
Is this attachment suitable for specialized applications like telecommunications or railway electrification?
Yes, the Pig Ear Guy Attachment's robust design makes it reliable for various demanding applications, including those involving fiber optic cables or railway systems, where precision and durability are critical for compliance with specific industry requirements.
How does sourcing this component help achieve cost savings compared to in-house production?
The attachment provides an economical solution with hot-dip galvanized construction that reduces maintenance costs and extends service life. The simple single-bolt mounting system minimizes installation time and labor expenses, offering a cost-effective alternative to internal manufacturing while maintaining consistent quality.
What quality assurances are provided for large volume orders?
Our attachments are precision-engineered with strict quality control. Products are reviewed twice before packing to ensure 100% quality and uniform sizing, supporting reliable performance and efficient project timelines for major projects.
