The J Guy Hook secures guy strands to utility poles, preventing downward creep in wrapped guy configurations and maintaining stable anchorage. This attachment integrates with stay rods, plates, turnbuckles, and thimbles to support pole structural integrity, particularly in space-constrained installations.
Constructed from high-quality steel through casting, forging, or fabrication, the hook delivers an ultimate strength rating of 10,000 pounds under 45-degree pull conditions. A hot dip galvanized finish per American Society for Testing and Materials (ASTM) Specification A153 or BS EN ISO 1461 provides corrosion resistance and surface smoothness for extended outdoor performance.

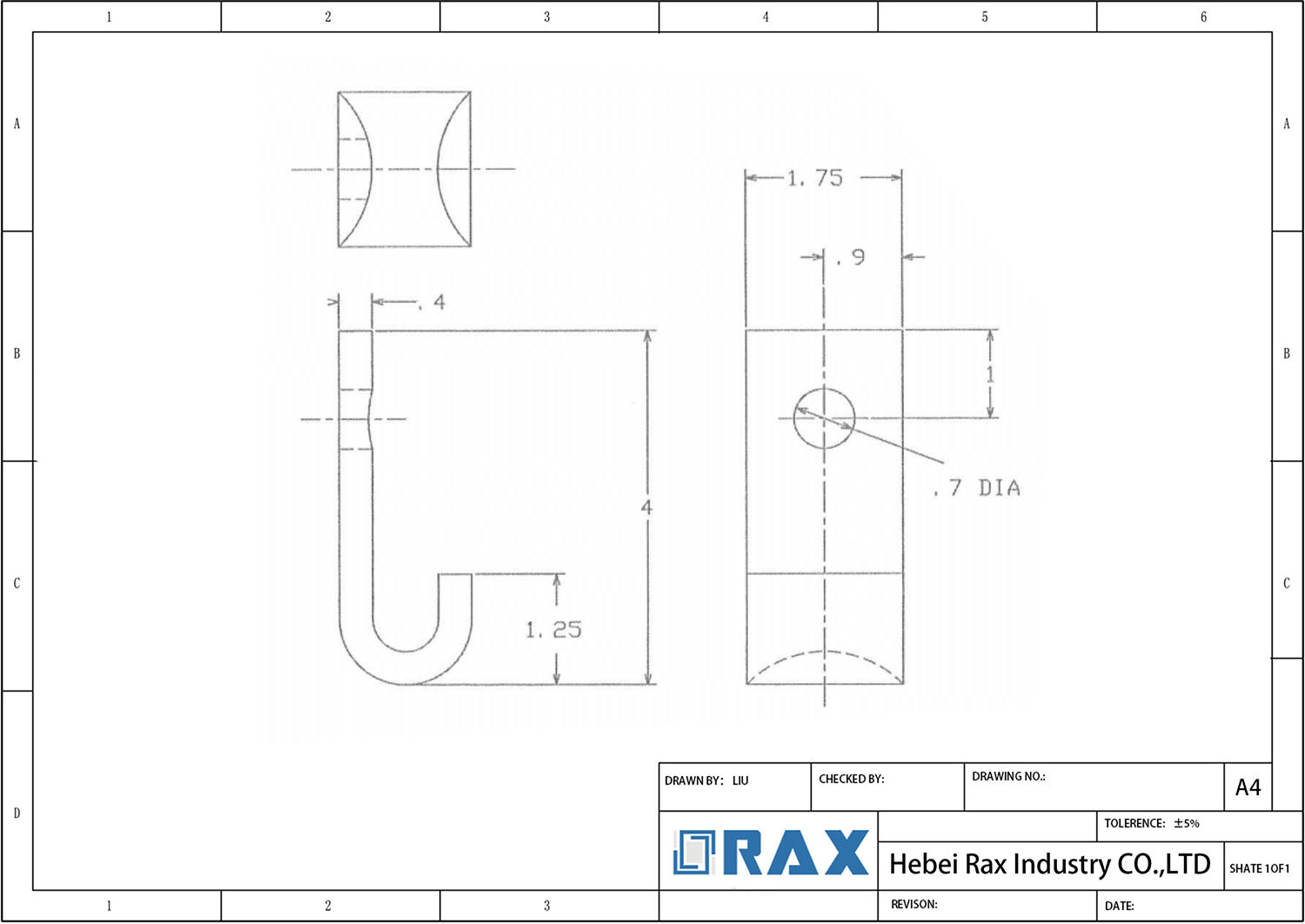

The hook’s curved design throughout prevents damage to guy strands and protective coatings during operation. It mounts to poles via thru-bolt or lag screw, with common mounting hole diameters of 11/16 inch and heights around 4.00 inches. This rounded oval shape accommodates standard stay rod diameters from 1/2 inch to 1 inch and bolt sizes like 5/8 inch.
Manufactured to ASTM, American National Standards Institute (ANSI), British Standards Institution (BSI), and International Organization for Standardization (ISO) specifications, the J Guy Hook ensures reliable performance in power and utility infrastructure. Available individually or as part of complete stay set assemblies, including custom configurations for specific project requirements.
J Guy Hook Manufacturer
RaxPower serves the needs of customers in a variety of market applications, particularly in power construction where our J Guy Hook is widely used in major power grids such as the State Grid and China Southern Power Grid, contributing to infrastructure projects across numerous provinces. With products exported to over 30 countries, we have established a strong global presence, serving diverse markets with efficient and reliable solutions.
Founded in 2003 and based in Hebei Province, China, we leverage 21 years of expertise in manufacturing pole line hardware.
Our J Guy Hook is produced using advanced hot forging technology for enhanced strength and precise sizing, and undergoes strict quality control including hot-dip galvanizing in compliance with ISO 1461 standards to ensure durability and a smooth, rust-resistant finish. All products are manufactured to international standards like ASTM and ANSI, and we offer customization to meet specific client requirements.
We invite you to explore how our tailored solutions can address your unique market applications.
| Parameter | Value |
|---|---|
| Product Type | Guy Hook |
| Material | High Quality Steel |
| Finish | Hot Dip Galvanized |
| Galvanizing Standard | ASTM A153 or BS EN ISO 1461 |
| Ultimate Strength | 10,000 pounds at 45-degree pull |
| Mounting Style | Thru-Bolt or Lag Screw |
| Mounting Hole Diameter | 11/16 inch |
| Height | 4.00 inches |
| Guy Attachment Type | Hook |
| Curvature Design | Rounded oval to prevent damage to guy strand |
| Purpose | Prevent guy strand from creeping downward in wrapped guy applications |
| Stay Rod Compatibility | 1/2 inch, 5/8 inch, 3/4 inch, 7/8 inch, 1 inch diameters |
| Standards Compliance | ASTM, ANSI, BSI, ISO, and others |
Related Products
Frequently Asked Questions (FAQS)
What is the primary function of the J Guy Hook?
The J Guy Hook prevents guy strand from creeping downward in wrapped guy applications and attaches stay sets and other fittings to poles. It has a curvature throughout to prevent damage to the guy strand and its protective galvanized coating.
What are the strength rating and mounting specifications?
The ultimate strength at 45° pull is 10,000 lbs. It attaches with a thru-bolt, typically 5/8 inch or as specified, and should be installed under the head of the bolt for maximum shear strength. Mounting holes can vary, such as 11/16 inch.
What materials and standards does the J Guy Hook comply with?
It is constructed of high quality casted, forged, or fabricated steel and hot dip galvanized per ASTM A153, BS EN ISO 1461, or equivalent standards. Manufacturing complies with established international standards including ASTM, ANSI, BSI (BS), BS EN, ISO, IEC, EN, BIS (IS), DIN, SABS (SANS), and NFC to ensure compliance and durability for critical infrastructure applications.
Can you provide complete stay set assemblies and product customization?
Yes, our J Guy Hooks can be supplied as part of a full stay set assembly along with stay rod, stay plate, turnbuckle, and thimble. We specialize in manufacturing and can customize products as per client requirements, including specific dimensions or configurations. This bundled approach simplifies ordering and ensures all components are compatible for your project needs.
What quality assurance and pricing advantages do you offer for bulk orders?
All products undergo strict quality control from raw material to finished goods, including load testing and gauge tests. Our galvanized surfaces are smooth and bright without defects, guaranteeing long-term reliability in harsh environments. With over 21 years of experience and large-scale production capabilities, we provide cost-effective solutions for bulk orders without minimum order quantities, ensuring significant savings for OEM clients and distributors.
