The Guy Wire Strandlink is an automatic steel connector for deadending or splicing overhead or down guy wires in power and utility systems. Two primary series are available: the Universal series for Alumoweld and Extra High Strength galvanized steel strand, and the All Grades series for common grade, Siemens-Martin, high strength, and utility grade galvanized steel strand. These connectors enable efficient connections without specialized tools across various installations.
The Strandlink is rated to hold a minimum of 90% of the Rated Breaking Strength (RBS) of approved strands, maintaining guy wire system integrity under load. It is Rural Utilities Service (RUS) approved, indicating compliance with utility standards, and is commonly employed in splicing tasks for both overhead and down wire configurations.

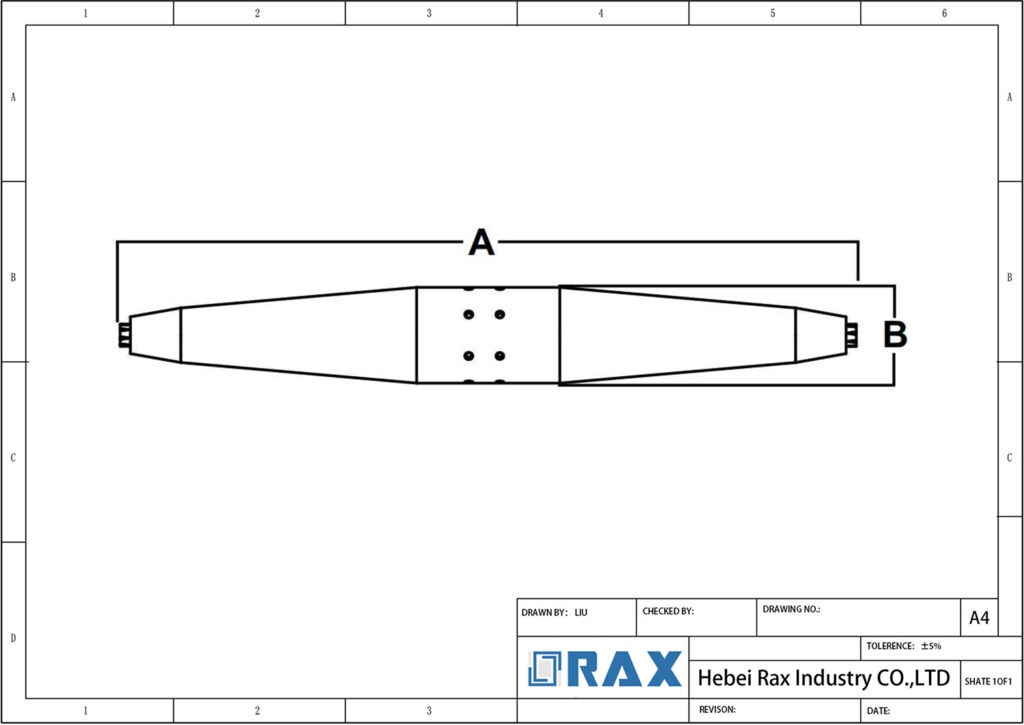

Technical specifications include wire diameter ranges and physical dimensions tailored to different strand sizes. The Universal series connector for 3/8 inch strand accommodates wires from 0.325 to 0.392 inches in diameter, with a length of 10.62 inches and diameter of 1.45 inches. The All Grades series for 3/8 inch strand handles wires from 0.360 to 0.405 inches, with a length of 8 inches and diameter of 1.25 inches. Additional models cover 1/4 inch strand (wire range 0.240 to 0.253 inches, length 6.4 inches), and reducer connectors link different strand diameters.
Manufactured by MacLean Power Systems, the Strandlink is part of their automatic splices and deadends line for steel wire and conductors, with RUS approval ensuring suitability for regulated utility and electrical infrastructure projects.
Enhance Project Reliability with RaxPower Guy Wire Strandlink Supplier
We support our purchasers with ideal premium quality products and substantial level company. RaxPower, established in 2003 and based in Hebei Province, China, is a specialist manufacturer with 21 years of rich practical experience in producing high-quality Guy Wire Strandlink.
Our extensive expertise in pole line hardware ensures that every Strandlink connector is engineered for deadending or splicing overhead or down guy wires, rated to hold a minimum of 90% of RBS of approved strands, and has passed rigorous SGS tests and other authoritative certifications, guaranteeing unmatched reliability and safety. Utilizing advanced manufacturing processes like hot forging for greater strength and accurate sizing, automation for consistent product uniformity, and strict quality control with galvanization to enhance durability, we bridge our company’s core strengths directly to the performance and longevity of the Guy Wire Strandlink.
Committed to the philosophy of “Focus on trust, quality the first”, we supply our products globally and continuously innovate to meet the evolving demands of the power and utility industry. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
| Series | Catalog Number | Primary Strand Size | Wire Range (in) | Large End Range (in) | Small End Range (in) | Length (in) | Diameter (in) | Standard Pack |
|---|---|---|---|---|---|---|---|---|
| Universal | 5039 | 3/16″ | 0.145–0.215 | — | — | 7.5 | 1.03 | 50 |
| Universal | 5040 | 1/4″ | 0.215–0.270 | — | — | 7.62 | 1.13 | 50 |
| Universal | 5041 | 5/16″ | 0.270–0.315 | — | — | 9.28 | 1.26 | 40 |
| Universal | 5042 | 3/8″ | 0.325–0.392 | — | — | 10.62 | 1.45 | 25 |
| Universal | 5043 | 7/16″ | 0.392–0.455 | — | — | 10.59 | 1.59 | 25 |
| Universal | 5044 | 1/2″ | 0.455–0.520 | — | — | 10.75 | 1.7 | 20 |
| All Grades | 5000 | 1/4″ | 0.240–0.253 | — | — | 6.4 | 0.9 | 100 |
| All Grades | 5001 | 5/16″ | 0.310–0.335 | — | — | 7.25 | 1.04 | 50 |
| All Grades | 5002 | 3/8″ | 0.360–0.405 | — | — | 8 | 1.25 | 50 |
| Reducer | 5022 | 3/8″ x 5/16″ | — | 0.360–0.405 | 0.310–0.335 | — | — | 50 |
| Reducer | 5087 | 5/16″ x 1/4″ | — | 0.270–0.315 | 0.215–0.270 | — | — | 25 |
Frequently Asked Questions (FAQS)
What applications is the Guy Wire Strandlink used for?
The Guy Wire Strandlink is used for deadending or splicing overhead or down guy wires in utility and industrial applications.
What is the strength rating and reliability of the Strandlink?
RaxPower's Strandlink is rated to hold a minimum of 90% of the Rated Breaking Strength (RBS) of approved strands, ensuring high reliability for demanding applications like grid maintenance. We employ strict quality control measures, including multi-stage testing and 100% quality reviews before packing. Additionally, our products have passed SGS tests and evaluations by authoritative research institutes, guaranteeing durability and performance.
What industry standards and certifications do your connectors meet?
RaxPower's Strandlink automatic connectors are RUS approved. Our manufacturing processes adhere to international guidelines, and we perform gauge tests according to IEC 120 standards, ensuring compliance for utility and industrial applications.
What are the different grade series available and which should I use?
RaxPower offers Universal Grade connectors recommended for use on Alumoweld and Extra High Strength galvanized steel strand, and All Grades series connectors for use on common grade, Siemens-Martin, high strength, and utility grade galvanized steel strand.
What strand sizes and wire ranges are supported?
The Strandlink supports strand sizes from 3/16 to 1/2 for Universal Grade and 1/4 to 3/8 for All Grades, with specific wire ranges such as 0.145-0.215 inches for 3/16 Universal Grade and 0.240-0.253 inches for 1/4 All Grades. Reducers are also available for connecting different strand sizes, such as 3/8 x 5/16 and 5/16 x 1/4 models.
What are the dimensions of the Strandlink connectors?
Dimensions vary by model and grade; for example, the Universal Grade 3/8 connector has a length of 10.62 inches and a diameter of 1.45 inches, while the All Grades 3/8 model is 8 inches long with a 1.25-inch diameter.
Can you accommodate large bulk orders and ensure on-time delivery?
Yes, we are equipped to handle bulk orders with efficiency and reliability. Our standard packaging includes quantities like 25, 50, or 100 units per pack, tailored for large-scale needs. With 17,000 square meters of production workshops and 5,000 square meters of warehouses, RaxPower leverages automation and experienced logistics to guarantee on-time delivery for projects from start to finish.
How do you maintain consistent product quality and cost-effectiveness for OEM partnerships?
RaxPower achieves consistent quality and cost savings through advanced manufacturing techniques like hot forging, which enhances part strength and accuracy. We use automatic machines and semi-automatic molds to ensure uniformity, coupled with strict raw material selection. This approach allows us to offer competitive pricing without compromising on the reliable performance that protects your brand.
