A guy hook is poleline hardware that secures guy wires to utility poles, transferring loads to maintain structural integrity in overhead power distribution systems. Constructed from ductile iron or galvanized steel, guy hooks resist corrosion and environmental degradation while featuring smooth, rounded wire grooves that protect strands from wear and kinking. Closed-loop configurations and integrated adapters prevent slippage under load.
Guy hooks accommodate strand diameters from 5/8 inch to 3/4 inch across multiple sizes, with overall lengths ranging from 4 3/4 inches to 6 1/4 inches and widths between 3 inches and 4 inches. Mounting holes measure 11/16 inch or 13/16 inch in diameter. Cast ductile iron with hot-dip galvanized finishes per ASTM A153 (American Society for Testing and Materials) specifications deliver minimum ultimate strengths reaching 25,000 pounds.
Guy hooks support down guys and span guys in residential, commercial, and industrial power transmission and distribution networks. Compatible with wood, steel, and concrete poles, they provide mechanical support in areas prone to high winds and structural stresses, ensuring enhanced safety and stability across diverse installations.

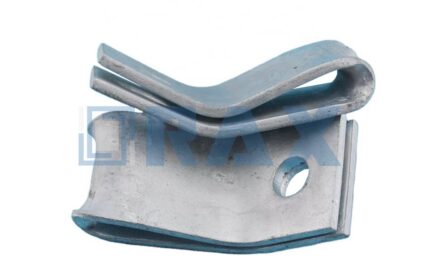

Storm Style Strap Guy Hook
Galvanized steel strap restricting guy wire movement on utility poles in wrapped strand applications. Available in 1-bolt or 2-bolt configurations per ASTM A-153 standard, hooks install under bolt heads for maximum shear strength in transmission and distribution systems.

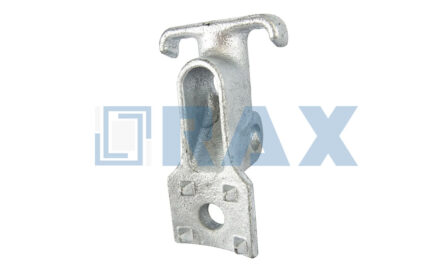

Combination Guy Hook
Multipurpose design integrating hook and attachment functions for versatile guy wire applications on transmission structures. Accommodates various installation configurations with combined hardware functionality, reducing component count while maintaining strength standards for utility pole stabilization requirements.

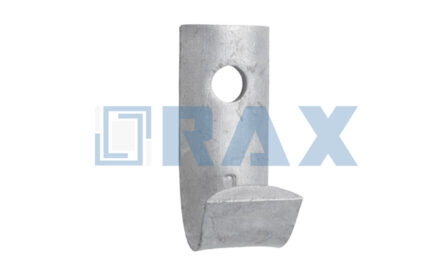

J Guy Hook
J-shaped configuration offering directional guy wire attachment with optimized load distribution for pole stabilization. Features curved design facilitating proper wire placement and tension maintenance, manufactured from galvanized steel providing corrosion resistance and long-term reliability in overhead line systems.
Guy Hook Supplier for Enhanced Stability
Our innovative guys hardware designs redefine reliability in Pole Line Hardware. At RaxPower, established in 2003 in Hebei, China, with 21 years of manufacturing and exporting experience, we leverage over 170 employees, advanced hot forging technology, and 17,000 square meters of production facilities to specialize in high-quality Guy Hooks that offer a cost-effective and reliable solution for securing guy wires to utility poles.
Constructed from durable materials, these hooks feature smooth, rounded wire grooves for optimal strand protection, minimizing wear and damage. Our hot-dip galvanizing process, compliant with ISO 1461, ensures a smooth, bright, corrosion-resistant finish, while automatic machines maintain accurate sizing and uniformity.
Backed by strict quality control, multi-stage testing, including Load Tests and Gauges Tests per IEC 120, and a commitment to “quality is life, reputation is base,” every Guy Hook delivers enhanced stability and long-term performance.
For optimal performance, install Guy Hooks beneath the head of a machine bolt to avoid premature failure from tensile and bending stresses on threads, ensuring structural integrity and safety. Contact RaxPower via message, email, or call for quotes, questions, and orders.
Other Products You May Like
Vibratory Finishing Machine
Centrifugal Finishing Machine
Automatic Mass Finishing System
Frequently Asked Questions (FAQS)
What is a guy hook used for?
Guy hooks secure guy wires to utility poles or structures, providing stability and support for down and span guys in power line construction, especially in areas with high winds or challenging environmental factors.
What are the key features and materials of guy hooks?
Guy hooks feature durable construction from ductile iron or steel with hot-dip galvanized finish for corrosion resistance. They have a curved or angled design for optimal strand protection, a threaded end for secure attachment, and are engineered to withstand harsh weather conditions.
What sizes and strength ratings are available?
Guy hooks come in lengths from approximately 4 to 6 inches, with mounting hole diameters of 11/16 inch and 13/16 inch, and widths ranging from 2-1/2 to 4 inches. Strength ratings vary by model, with some offering minimum ultimate strengths up to 25,000 pounds.
How should guy hooks be installed?
For optimal performance, install guy hooks beneath the head of a machine bolt whenever possible. Avoid mounting on the threaded end to prevent excessive stress and potential bolt failure.
How do RaxPower guy hooks ensure long-term reliability?
RaxPower guy hooks undergo strict quality control throughout manufacturing, including raw material selection and multi-stage testing. Products are load tested, undergo gauge tests per IEC standards, and are ISO 9001 certified with 100% quality review before packing. Compliance with ASTM and ISO international standards ensures consistent performance and durability in extreme conditions.
Can guy hooks be customized for specific projects?
Yes, RaxPower provides OEM and ODM services for custom designs, sizes, materials, and finishes to match unique project requirements or regional standards. We also offer bulk procurement with competitive project-based pricing and reliable shipping to support large-scale infrastructure projects.
