The combination guy hook terminates guy wires or fiberglass guy strain insulators on utility poles, transferring mechanical loads through multiple mounting holes that accept bolt diameters of 5/8 inch, 3/4 inch, 11/16 inch, and 13/16 inch. This flexible configuration enables installation on round or flat surfaces across wood, steel, or concrete poles in electrical and telecommunications infrastructure.
Manufactured from ductile iron or malleable iron casting, the hook receives hot dip galvanizing per ASTM Specification A153 for corrosion resistance. This treatment protects against moisture and chemical exposure in outdoor environments, ensuring long-term durability.
Minimum ultimate tensile strength varies by model, with common ratings of 13,550 pounds, 20,050 pounds, or 21,000 pounds at a 45-degree pull angle. Some versions specify 13,500 pounds at 90 degrees to the pole. The forged or cast iron construction supports these high tensile demands when deadending guy wires with strand or fiberglass strain insulators to maintain tension and stability.
Product variations include models with or without spurs or backside cleats—spur-equipped versions grip wood poles while spurless designs suit steel or concrete. Mounting hole configurations vary, offering combinations of 11/16 inch and 13/16 inch holes or single hole sizes to match specific bolt and clevis requirements. Standard units weigh approximately 2.0 pounds per piece.
Expert Combination Guy Hook Wholesaler
What we make all the time is Customized Iron Casting Parts Product. RaxPower, established in 2003 in Hebei Province, China, with 21 years of manufacturing experience, specializes in the Combination Guy Hook, a cast ductile iron attachment for deadending guy wire to poles.
It provides an economical and efficient means of fastening guys, featuring well-rounded wire grooves to protect the strand from damage and a closed strand loop for secure connections. Combination type guy attachments offer flexibility to terminate guy wire or fiberglass guy strain insulators, suitable for use on round surfaces.
Made from ductile iron per ASTM A-536 and hot-dip galvanized per ASTM A-153, it ensures superior durability and corrosion resistance. All products are customized according to customer drawings, offering tailored solutions for bulk buyers.
RaxPower’s manufacturing leverages advanced processes like hot forging for greater strength and accurate sizing, supported by 17,000 square meters of production workshops and strict quality control including raw material selection, multi-stage testing, and automatic machines for uniform sizing. With over 170 employees ensuring efficient, cost-effective production, if you are looking for a reliable method for manufacturing combination guy hooks, our customized iron casting may be the right choice.
| Parameter | Value |
|---|---|
| Type | Combination Guy Hook |
| Material | Ductile Iron or Malleable Iron |
| Finish | Hot-Dipped Galvanized |
| Galvanizing Standard | ASTM A153 |
| Ultimate Tensile Strength | 13,550, 20,050, or 21,000 lbs at 45° |

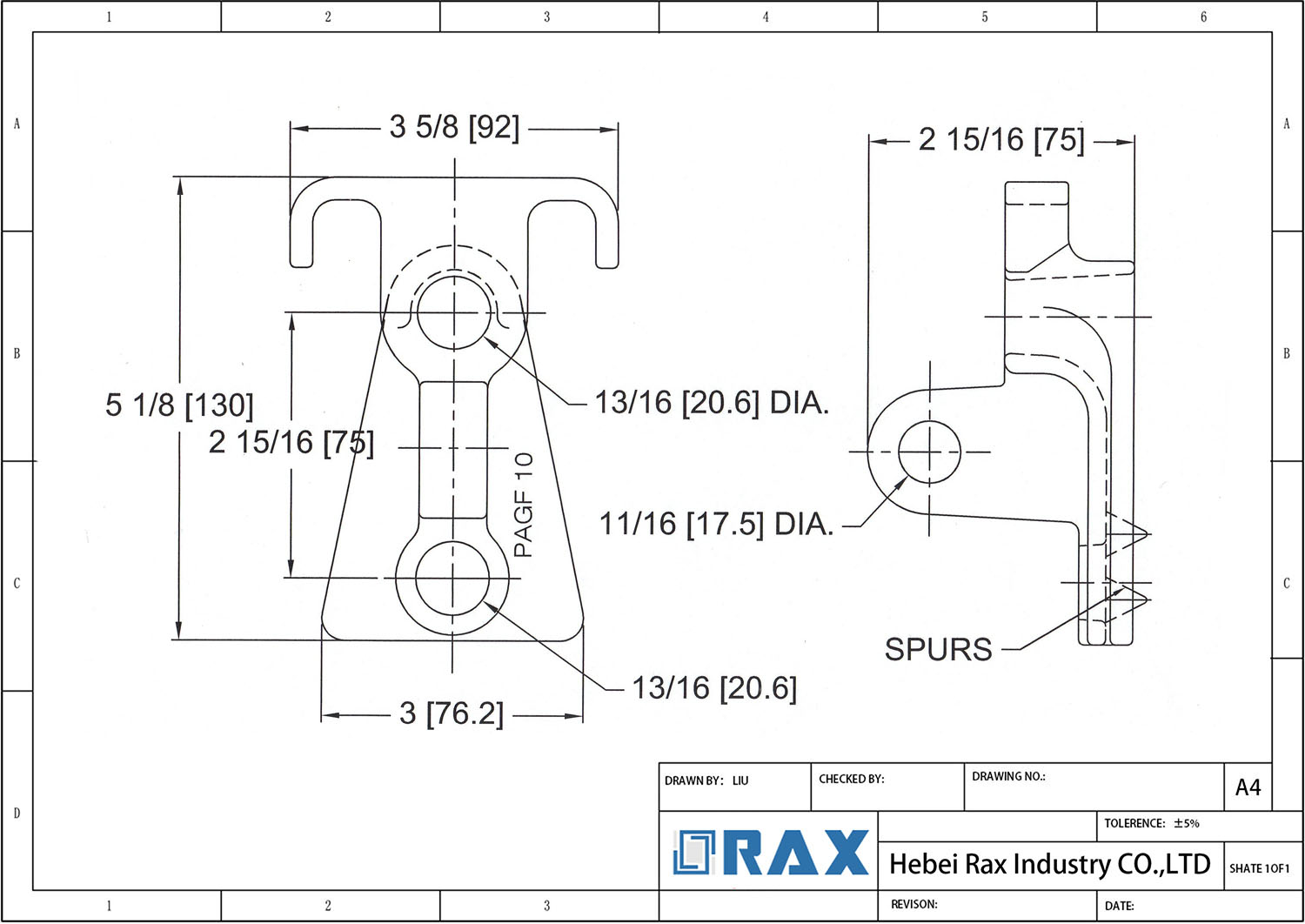

| Mounting Hole Sizes | 5/8″, 3/4″, 11/16″, 13/16″ |
| Clevis Opening Size | 11/16 in |
| Application | Terminate guy wires or fiberglass guy strain insulators |
| Spurs | With or without spurs (for wood or steel/concrete poles) |
| Length | 5-3/4 in |
| Width | 3-1/4 in |
| Unit Weight | Approximately 2.0 lbs |
Related Products
Frequently Asked Questions (FAQS)
What is a combination guy hook used for?
Combination guy hooks terminate guy wires or fiberglass guy strain insulators for deadending guy wires to poles.
What materials and finish are used in combination guy hooks?
They are forged from ductile iron per ASTM A-536 and hot-dip galvanized per ASTM A153 for corrosion resistance.
Are there different types for various pole materials?
Yes. Variants include spurs or cleats for wood pole mounting, and smooth backside designs for steel or concrete poles.
What are the strength specifications?
Ultimate tensile strengths typically range from 12,500 to over 21,000 pounds at a 45-degree pull angle, with specific models rated at 13,550 lb, 16,000 lb, 20,050 lb, or 21,000 lb.
What mounting hole sizes are available?
Common sizes include 5/8 inch, 11/16 inch, 3/4 inch, and 13/16 inch to accommodate various bolt diameters.
How diverse is your product range for different applications?
Our combination guy hooks come in multiple configurations with different hole sizes, with or without spurs for wood, steel, or concrete poles. They are compatible with guy wires or fiberglass strain insulators, making them versatile for power distribution, telecommunications, and railway systems.
Do you offer customization for specific project requirements?
Yes. We provide OEM services where products are manufactured according to customer drawings using sand casting processes, allowing customization in dimensions, hole sizes, and other specifications for tailored projects such as renewable energy or railway electrification.
What is your process for handling large volume orders?
We utilize automatic machines for efficient production and standard packaging to manage bulk orders. We offer personalized quotes with coordinated logistics, ensuring timely delivery and support for large-scale projects.
