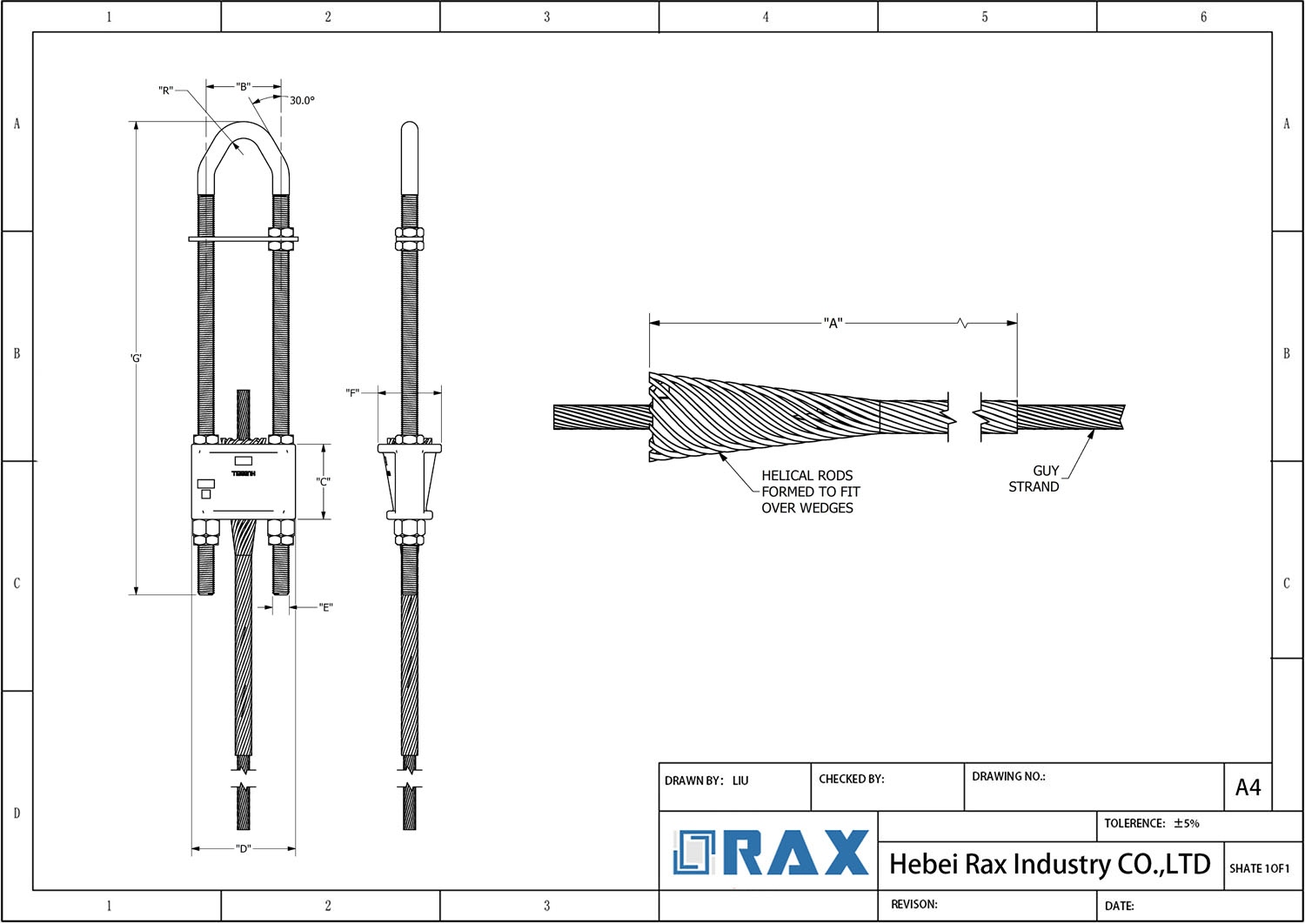

Adjustable Guy Deadends enable tension adjustment on transmission, tower, antenna, and communications structures without requiring a turnbuckle. The housing, wedge, and rod design holds 100% of the guy strand’s rated breaking load across sizes from 7/16 inch (20,800 lbs breaking load) to 1.78 inches (295,500 lbs breaking load). The Gen2 version eliminates conformal castings, reducing weight while maintaining strength.
Material compatibility is critical—aluminum-clad steel rods match aluminum-clad steel guy strand to ensure durability and performance. Adjustable Guy Deadends are not acceptable for wire rope applications. The retaining rod material must align with the specific guy strand material to maintain integrity under load.
Installation requires maintaining guy strand tension at minimum 10% of the strand’s rated breaking strength, both during installation and in service. Protective coatings on hardware, rods, and fittings must not be damaged. Do not use deadends as come-alongs or pulling-grips. Lubricate threads with anti-seize compound and use torque measurements on hex nuts for accurate tension assessment. When attaching to a pin or linkage, verify minimum and maximum diameter specifications to ensure proper U-Bolt support, and position spacer bars and hex nuts as close as possible to the interior radius of the U-Bolt.
Adjustable Guy Deadend Wholesaler with IEC 120 Standards Compliance
RaxPower, established in 2003 in Hebei Province, China, has been a leading manufacturer of pole line hardware for over 21 years, operating as a one-stop global supplier. Our comprehensive product range includes the Adjustable Guy Deadend, engineered for reliable performance in power line anchoring applications.
Driven by our core philosophy that “quality is life, reputation is base,” we integrate advanced manufacturing techniques like hot forging to ensure the Adjustable Guy Deadend offers superior strength and precise sizing compared to conventional methods.
With 17,000 square meters of production workshops and 5,000 square meters of warehouses, supported by a team of over 170 employees including professional technicians and engineers, we maintain high efficiency and consistency.
Our stringent quality control includes:
- Automation for uniform sizing
- Hot-dip galvanizing for durable corrosion resistance, with coatings exceeding 85 microns
- Rigorous load testing aligned with IEC 120 standards
These practices, validated by SGS and other authoritative tests, guarantee that every Adjustable Guy Deadend delivers unmatched durability and safety, making RaxPower your trusted partner for robust power infrastructure solutions.
| Parameter | Specification |
|---|---|
| General | |
| Application | Transmission, tower and antenna, communications, and other guyed structures requiring large guy strand |
| Mechanical | |
| Holding Strength | 100% of the strand’s rated breaking load |
| Strand Size Range | 7/16 inch to 1.78 inches |
| Rated Breaking Load Range | 20,800 pounds to 295,500 pounds |
| U-Bolt Take-Up Sizes | 0 inch and 18 inch (available for most strand sizes) |
| Design Features | Improved Gen2 design with proper U-bolt support without conformal castings; lighter weight while maintaining strength |
| Material | |
| Material Compatibility | Retaining rods made from material compatible with the guy strand material (e.g., aluminum-clad steel rods for aluminum-clad steel guy strand) |
| Not For Use On | Wire rope applications |
| Installation | |
| Minimum Installation Tension | At least 10% of the strand’s rated breaking strength |
| Service Tension | 10% of the strand’s rated breaking strength |
| Tension Assessment Method | Torque measurement on hex nuts with threads well lubricated |
| Recommended Lubrication | Anti-seize compound applied liberally on threads for accurate measurements and ease of tightening |
| Installation Notes | Spacer bar and hex nuts should be installed as close to the interior radius of the U-Bolt as possible; avoid damaging protective coatings; do not use as tools (e.g., come-alongs, pulling-grips) |
| Attachment Fittings | Refer to specifications for minimum and maximum diameters to ensure proper support of the U-Bolt |
Frequently Asked Questions (FAQS)
What is the rated holding strength of the Adjustable Guy Deadend?
RaxPower's Adjustable Guy Deadends are designed to provide a holding strength of 100% of the strand's rated breaking load, ensuring they can withstand maximum loads without failure. This reliability is supported by strict quality control measures, including multi-stage testing and inspections to guarantee consistent performance.
What materials are used in the Adjustable Guy Deadend components?
The retaining rods are made from material compatible with the guy strand material, such as aluminum-clad steel rods for aluminum-clad steel guy strand. The deadends are designed for specific strand materials and are not acceptable for use on wire rope applications. RaxPower ensures optimal compatibility and performance through rigorous material selection, detailed installation guidelines, and comprehensive quality testing aligned with industry standards.
What strand sizes is the Adjustable Guy Deadend compatible with?
The Adjustable Guy Deadend is available for strands from 7/16 (20,800#) to 1.78 (295,500#) in diameter, with various take-up U-Bolt options. Our extensive product catalog and efficient manufacturing processes enable us to meet bulk orders and diverse needs, from utility expansions to renewable energy projects.
How do I properly install the Adjustable Guy Deadend?
During installation, the guy strand tension should be at least 10% of the rated breaking strength of the strand. Use an anti-seize compound on the threads for accurate torque measurements and easier tightening. Do not use the deadend as a tool, such as for pulling.
How can I adjust the guy tension with the Adjustable Guy Deadend?
The high-strength U-Bolt allows for adjusting guy strand tension without the need for a turnbuckle. Tension can be adjusted by tightening or loosening the hex nuts. RaxPower manufactures these components with precision using advanced forging and automation technologies to ensure easy adjustment and durable performance in the field.
