Earth rods provide a low resistance path to ground for fault currents and lightning protection systems in various soil conditions. They ensure safe dissipation of electrical energy into the earth through their high conductivity and corrosion-resistant construction. Their mechanical strength withstands driving forces without deformation, while their extendable design enables deep installations to access lower soil resistivity layers.
Earth rods are manufactured from solid copper, stainless steel (grade 316L), and copper-bonded steel. Solid copper rods offer high conductivity with internal threading for joining. Copper-bonded variants feature a low carbon steel core electroplated with a molecularly bonded layer of 99.9% pure copper (typically 254 microns thick), combining electrical performance with mechanical robustness. Specifications include diameters from 14.2 mm to 25 mm and lengths from 1200 mm to 3000 mm, with common thread sizes such as M10 or UNC (Unified National Coarse).
Applications span overhead and underground electricity distribution networks, substations, and lightning protection systems. Earth rods can be driven vertically or placed in boreholes backfilled with low resistance compounds like Bentonite to enhance performance in high resistivity conditions. Accessories include coupling dowels for connecting multiple rods, driving heads to protect threads during installation, and spikes for easier ground penetration.
Earth rods comply with international standards including BS EN 62561-2, IEC 62561-2, and BS 7430, ensuring requirements for corrosion resistance, conductivity, and durability are met for critical earthing applications.
Earth Rod Manufacturer
As an independent and professional high-tech large-scale manufacturer, RaxPower guarantees to offer Earthing & Lightning Protection products in high quality and timely delivery. Our Earth Rod is engineered to provide the best and most economical solution for installers, made by molecularly bonding 99.9% pure electrolytic copper on to a low carbon steel core. This design ensures:
- Superior corrosion resistance even in harsh soils
- High conductivity for effective fault current dissipation
- Long service life with minimal maintenance
- Easy and fast installation on site
Backed by 21-year manufacturing experience and a track record of exporting to 50 countries, we utilize advanced production techniques like hot forging for greater strength and accurate sizing. Our quality assurance includes strict inspections, load testing, and compliance with standards such as BS EN 50164-2 and UL467. Applications span across power distribution, telecommunications, and industrial sectors. Contact us today to discuss your requirements and experience the unmatched quality of our products.

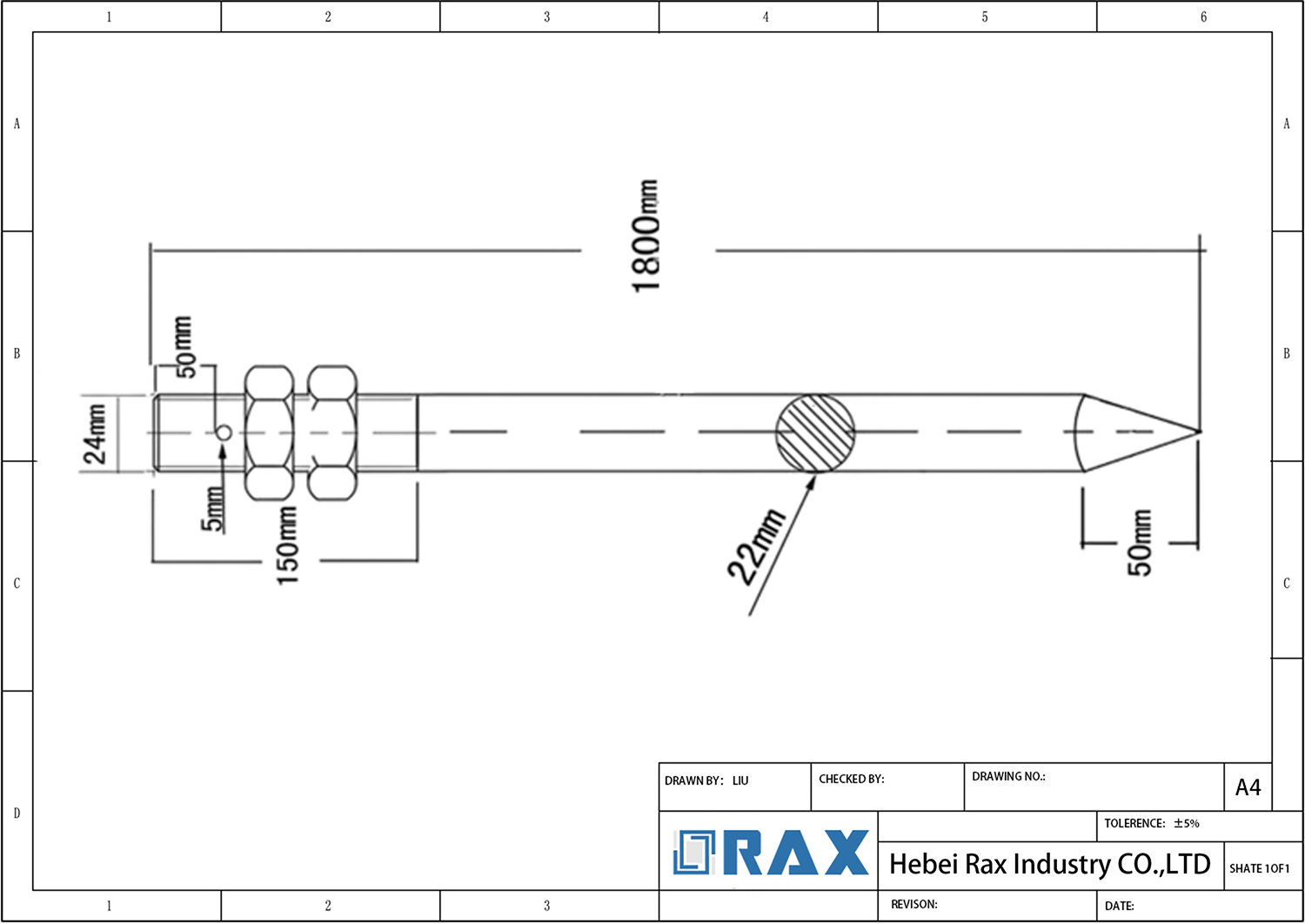

| Parameter | Solid Copper | Stainless Steel | Copper-Bonded Steel | Nickel Plated Copper |
|---|---|---|---|---|
| Core Material | Solid Copper | Stainless Steel | Low Carbon Steel Core | Solid Copper |
| Coating / Cladding | – | – | 254 µm Pure Copper | Nickel Electroplate |
| Material Grade / Standard | – | 316L | – | – |
| Rod Diameter (D) | 15 mm, 16 mm, 20 mm | 16 mm, 20 mm | 14.2 mm, 17.2 mm | 15 mm, 16 mm, 20 mm |
| Rod Length (L) | 1200 mm, 1500 mm, 3000 mm | 1200 mm, 1500 mm, 3000 mm | 1200 mm, 1500 mm, 1800 mm, 2400 mm, 3000 mm | 1200 mm |
| Thread Size | M10 | M10 | UNC-2A (5/8″, 3/4″) | M10 |
| Copper Thickness | – | – | 254 µm | – |
| Typical Weight (for 1200mm, 16mm dia.) | 2.15 kg | 1.90 kg | 1.53 kg (14.2mm) | 2.15 kg |
| Applicable Standards | BS EN 62561-2, BS 7430 | BS EN 62561-2, BS 7430 | BS EN 62561-2, UL 467, BS 7430 | BS EN 62561-2 |
| Component | Material | For Use With | Thread Size |
|---|---|---|---|
| Coupling Dowel | Phosphor Bronze, Stainless Steel, Silicon Bronze | Solid Copper & Stainless Steel Rods, Copper-Bonded Rods | M10, UNC-2B |
| Driving Head | Stainless Steel, Steel | All Rod Types | M10, UNC |
| Spike | Stainless Steel, Steel | All Rod Types | M10, UNC |
Frequently Asked Questions (FAQS)
What is an earth rod and what is it used for?
Earth rods are electrical components used for the construction of buried grounding systems in lightning protection and earthing applications. They provide a low resistance path to earth for fault currents, ensuring safety in electrical installations by dissipating electric charges and preventing electrical surges.
What materials are earth rods available in?
Earth rods are available in stainless steel, solid copper, copper bonded steel, and galvanized steel. Stainless steel offers high corrosion resistance for aggressive soils, solid copper provides excellent conductivity, and copper bonded rods combine a steel core with a copper coating for strength and cost-effectiveness.
How do I choose the right earth rod for my application?
Selecting the right earth rod depends on soil conditions, corrosion resistance needs, and application requirements. For highly corrosive soils, stainless steel or copper bonded rods are recommended, while solid copper is ideal for high fault current installations. Soil resistivity tests can guide the choice.
What is the difference between solid copper and copper bonded earth rods?
Solid copper earth rods are made entirely from copper, offering high conductivity and corrosion resistance for long-life installations. Copper bonded rods have a steel core electroplated with copper, providing mechanical strength and cost-effectiveness, with a typical copper thickness of 254 microns.
How deep should an earth rod be driven into the ground?
An earth rod typically needs at least 8 feet (2.4 meters) of contact with the ground to achieve effective earthing. The driving depth may vary based on soil conditions and required resistance values, and can be extended using couplers for deeper installations.
What accessories are needed for earth rod installation?
Accessories include driving heads for protection during driving, couplers for joining rods, clamps for connecting to conductors, and enhancing compounds like Bentonite to improve earth resistance. These components ensure proper mechanical and electrical performance.
What standards do earth rods comply with?
Earth rods comply with international standards such as IEC 62561-2, BS 7430, and UL 467. These standards ensure the rods meet requirements for electrical conductivity, corrosion resistance, and mechanical strength in earthing and lightning protection systems, including high-voltage grid applications.
What quality assurance processes ensure consistent performance in harsh environments?
We implement strict quality control including raw material selection, automated manufacturing, and multi-stage testing such as load tests and galvanization checks. Our earth rods feature high-corrosion resistance materials like 316L stainless steel or 254-micron copper bonding, validated through ISO and IEC standards, to deliver long-lasting reliability in aggressive soil conditions.
Do you offer customization options for earth rods?
Yes, we provide earth rods in a wide range of materials, diameters, lengths, and coatings, including solid copper, stainless steel, and copper-bonded variations. We can tailor specifications such as thread sizes and corrosion resistance levels to fit your unique manufacturing or project needs.
Can you handle large-scale project orders with guaranteed on-time delivery?
Yes. We maintain ready stock of standard earth rod sizes and accessories, and our efficient supply chain allows bulk order capabilities with expedited shipping to meet tight project schedules, backed by competitive project-based pricing.
