The C Clamp Ground Clamp is a heavy-duty grounding device rated for capacities up to 600 amps, designed for high-amperage welding applications. Its C-type configuration enables secure attachment to flat or round conductors, providing reliable performance in industrial environments where consistent grounding is essential. Constructed from copper, brass, or heavy alloy aluminum with copper-coated components, the clamp resists corrosion and wear while maximizing surface contact area to efficiently dissipate heat during operation.
Connection methods include LC40 style or oval-point screws with double internal threads or threaded ferrules, allowing tool-free attachment and detachment. The clamp supports cable sizes from 3/0 to 4/0, ensuring compatibility with standard welding equipment. Its reusable design eliminates temporary grounding solutions, reducing downtime and minimizing cable damage through built-in stress relief.
The clamp features serrated or swivel pads for secure gripping, a full jaw opening up to 3-3/8 inches, and a throat depth of 3-1/8 inches. A heavy-duty pressure screw applies up to 2,000 pounds of force for firm contact, while fin designs help lower operating temperatures. The clamp accommodates conductors up to 1-1/4 inches in diameter and is tested for fault currents up to 43 kA for 15 cycles, making it suitable for Metal Inert Gas (MIG) welding, industrial workstations, and environments requiring multiple grounding points.
C Clamp Ground Clamp Supplier: Ensuring Cool and Efficient Operation

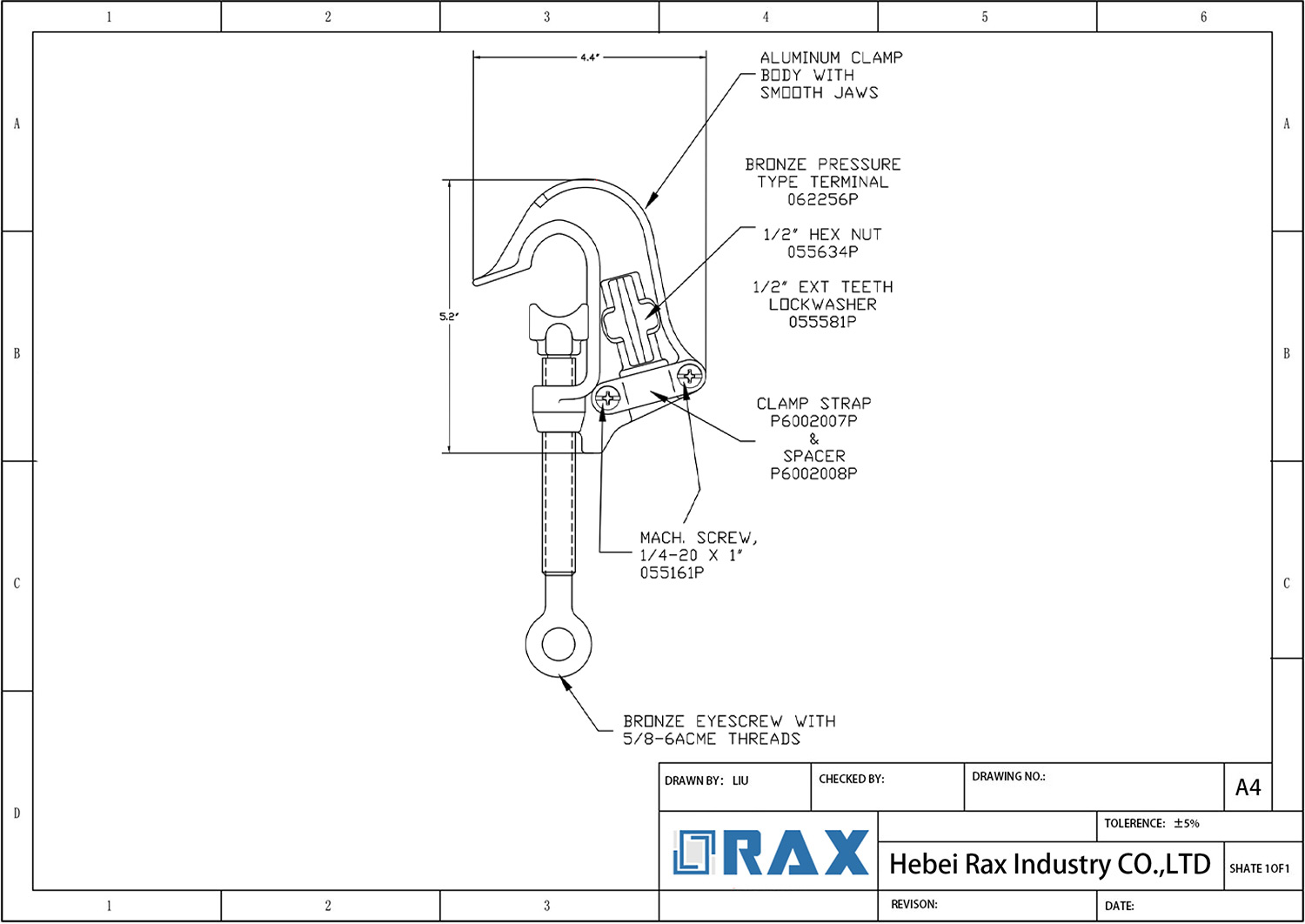

RaxPower are leading manufacturers of Ground Clamps and Protective Grounding Cable Sets, also referred to as Portable Earthing Kits. With a commitment to excellence and industry leadership in manufacturing, our C Clamp Ground Clamp is engineered to be one clamp that serves the need of many other grounding clamps. The use of heavy alloy material and a design that maximizes surface contact area ensures cool and efficient operation, even in high amperage applications. This universal clamp can be installed on all electrical facilities, apparatus, tubes, and conductors, as well as various equipment like trucks and pulling equipment. It features an installation eye for use with shotgun sticks, built-in strain relief to reduce cable damage, a lubrication chamber for thread upkeep, and a strong, lightweight cast aluminum body for durability and ease of use.
- Clamp Form: C-Clamp
- Material: Cast Aluminum
- Jaw Opening: 2.5 inches
- Wire Capacity: Up to 4/0 AWG
- Weight: 2.5 lbs
- Continuous Current Rating: 400A
- Fault Current Rating: 47kA for 15 cycles
Contact RaxPower for technical support, commercial quotation, or to place an order.
| Parameter | Specification |
|---|---|
| Continuous Current Rating | 600 A |
| Jaw Opening Minimum | 0.162 in |
| Jaw Opening Maximum | 2 in |
| Throat Depth | 3-1/8 in |
| Weight | 70.4 oz |
| Cable Capacity | 3/0 – 4/0 AWG |
| Fault Current (15 cycles) | 43 kA |
| Fault Current (30 cycles) | 30 kA |
| Materials | Copper, Brass, or Heavy Alloy Aluminum |
| Connection Type | LC40 style or oval-point screws |
| Pressure Applied | 2000 lbs |
| ASTM Grade | 5 |
Frequently Asked Questions (FAQS)
How do you ensure that your grounding clamps meet industry standards for safety and reliability?
At RaxPower, our grounding clamps are designed to comply with ASTM Grade 5 standards and are rigorously tested for fault current performance, with capacities up to 43kA at 15 cycles, ensuring they are safe and reliable for critical applications.
How do your grounding clamps provide long-term value and cost savings?
Made from durable materials like aluminum, bronze, copper, and brass, and featuring design elements such as stress-relief, reusable components, and lubrication chambers for easy maintenance, our clamps reduce the need for frequent replacements and lower overall maintenance costs.
What range of amperage and configurations do you offer?
RaxPower provides grounding clamps with amperage ratings from 400A to 600A, available in various materials and with features like serrated jaws, powerful bite, swivel pads for improved contact, and different jaw openings including a full 2-inch opening, catering to a wide spectrum of industrial needs from MIG welding to high amperage applications.
What cable sizes are compatible and how is the cable connected?
Our clamps support 3/0 to 4/0 cable sizes, attached securely with two oval-point screws for reliable connection. The design includes a connector insulator for added safety and a copper coated steel pressure screw for versatile clamping.
What features make your grounding clamps suitable for fast-paced project environments?
Our clamps include installation eyes for use with shotgun sticks, allowing for quick and efficient deployment in field projects. The RaxPower clamp can be left installed on various work benches, and an LC40 lead can be connected as needed, ideal for welders switching between multiple stations.
