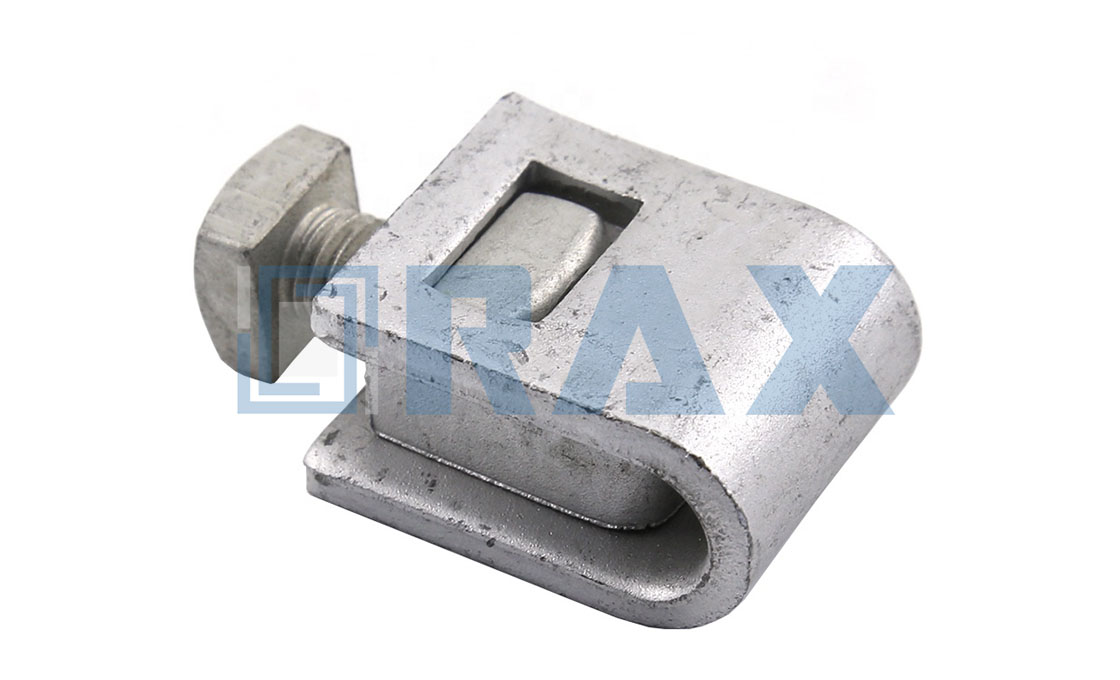

The B Strand Ground Clamp secures cable sheath, bonding ribbon, or ground wire to messenger strand in electrical and telecommunication installations. It establishes a reliable electrical connection for fault current dissipation and system safety in overhead transmission lines.
An internal self-seating compression plate distributes clamping pressure evenly along the strand, ensuring a secure, vibration-resistant connection. Constructed from steel and hot dip galvanized per American Society for Testing and Materials (ASTM) Specification A153, it provides corrosion resistance. The clamp accommodates strand sizes from 3/16 inch to 1/2 inch and includes a 1/2 inch by 1-1/2 inch square head machine bolt with a 1/2-13 regular square nut for assembly.
Installation requires positioning the clamp on the strand, tightening the bolt to achieve steady clamping pressure, and verifying electrical continuity. Maintenance includes periodic inspection for physical damage, corrosion, or loose fasteners, with retightening and cleaning as needed to maintain a low-resistance path.
The clamp complies with ASTM A153 for galvanization and Bellcore specification 7182, meeting recognized safety and performance criteria. Its corrosion-resistant materials enable adaptability to moist environments while maintaining compatibility across various strand and cable sizes.
Reliable B Strand Ground Clamp Supplier
The overhead power lines depend on various essential accessories that ensure the stability and safety of the entire transmission system. RaxPower, established in 2003 and based in Hebei Province, China, is a leading manufacturer with 21 years of experience in pole line hardware. We have been committed to producing the most innovative and reliable power line hardware in the industry, a principle clearly reflected in our B Strand Ground Clamp. This product is crafted from high-quality carbon steel and undergoes advanced hot-dip galvanizing in our own facilities, where we control liquid temperature to achieve a uniform, smooth coating without ribs, lumps, or omissions, in compliance with ISO 1461 standards for superior corrosion resistance and durability.
Our manufacturing processes, including sophisticated hot forging for greater strength and accurate sizing, along with strict quality control from raw material selection to multi-stage testing, ensure that every B Strand Ground Clamp adheres to international standards like IEC. Each clamp is subjected to load and gauge tests to guarantee reliable performance under constant movement and environmental challenges, enhancing efficiency and safety for any power project. Easy to install and designed for long-term service, our clamps embody RaxPower’s dedication to quality and innovation. Contact us now to provide you with quality solutions for your overhead lines.

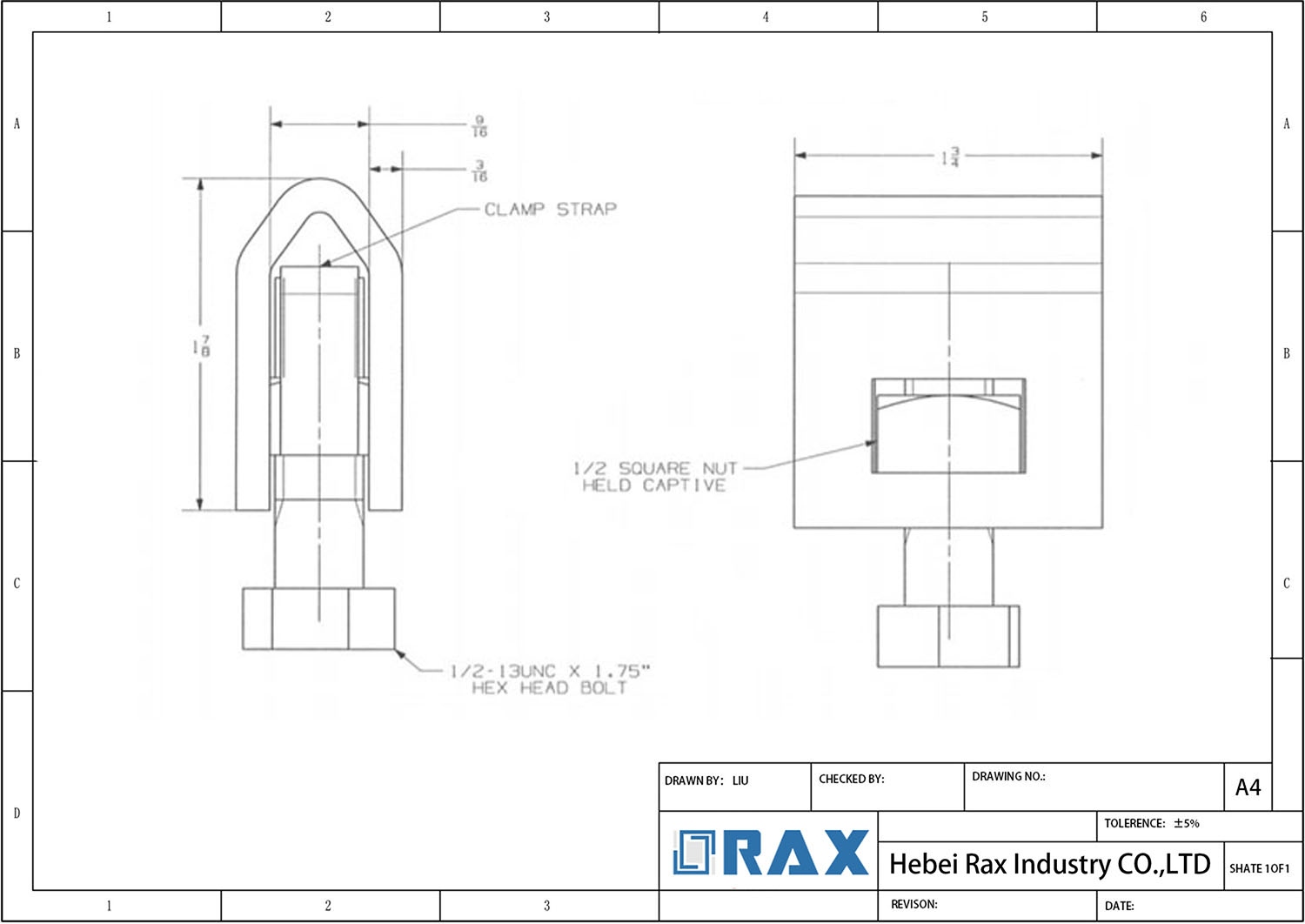

| Parameter | Value |
|---|---|
| Material | Steel |
| Coating | Hot dip galvanized per ASTM A153 |
| Strand Size Range | 3/16 inch to 1/2 inch |
| Bolt Size | 1/2 inch x 1-1/2 inch square head machine bolt |
| Nut Size | 1/2-13 regular square nut |
| Weight | 322.4 g |
| Clamp Thickness | 4.8 mm |
| Clamp Width | 50 mm |
| Height | 55 mm |
| Internal Self-Seating Compression Plate | Yes |
| Standards Compliance | ASTM A153, Bellcore 7182 |
Frequently Asked Questions (FAQS)
What is the B Strand Ground Clamp and what is it used for?
The B Strand Ground Clamp secures cable sheath, bonding ribbon, or ground wire to the messenger strand in overhead electrical transmission lines, telephone networks, cable TV setups, and telecommunication installations for grounding and bonding purposes.
How does the clamp ensure a secure connection?
It features an internal self-seating compression plate that evenly distributes clamping pressure along the messenger strand, ensuring tight, uniform contact for reliable grounding.
What materials and corrosion protection does it have?
The clamp is constructed of high-quality steel and hot-dip galvanized per ASTM A153 specifications, providing maximum corrosion protection for durability in wet and harsh environmental conditions.
What strand sizes does it accommodate?
The B Strand Ground Clamp accommodates messenger strands from 3/16 inch to 1/2 inch in diameter.
What industry standards does it meet?
The clamp conforms to Bellcore specification 7182 and is hot-dip galvanized to meet ASTM A153 standards, with strict quality control including multi-stage testing, load tests, and verification by authoritative institutes to guarantee reliability and safety in critical infrastructure.
