Percussion earth anchors are impact-driven mechanical devices that provide tensile support for structures in temporary and permanent geotechnical applications. The anchor features a metal rod with a mechanical anchoring mechanism at one end, designed to penetrate displaceable ground and resist pull-out forces through soil engagement.
Installation involves driving the anchor vertically or at an angle using percussive equipment—handheld hydraulic jackhammers, skid steer-mounted demolition hammers, or excavator-attached rock breakers. Once at the target depth, tension applied from the surface rotates the anchor head into a locked position. A load locker verifies the anchor meets design capacity before a bearing plate distributes surface loads. The process requires no excavation, grouting, or curing time, allowing immediate use with minimal environmental disturbance.
Applications include erosion control, slope stabilization, retaining wall reinforcement, tree and pole anchoring, landfill capping, pipeline buoyancy control, agricultural hail netting, and marine mooring. Anchors achieve load capacities up to 160 kilonewtons (kN) and perform across granular to cohesive soils. Galvanized steel or ductile iron construction with protective coatings ensures corrosion resistance and maintenance-free durability.
Performance varies with soil properties and installation depth. Anchors may not achieve design loads in weak or uncertain soil conditions and are sometimes restricted from permanent structures on Department of Transportation (DOT) projects due to soil-anchor interaction variability. Once load-locked, anchors are not removable.
Arrowhead Earth Anchor
Percussion-driven, 6- or 8-inch aluminum or iron head with galvanized cable, delivers up to 9,000 pounds pull-out resistance. Proven over 20 years for reliable anchoring in diverse soils for utility and construction use.
Bullet Ground Anchor
Streamlined, bullet-shaped aluminum anchor featuring anodized finish, steel cable, and fast-driving installation. Delivers up to 2,000 pounds pull-out strength for shelters, erosion control, and marine or utility equipment anchoring.

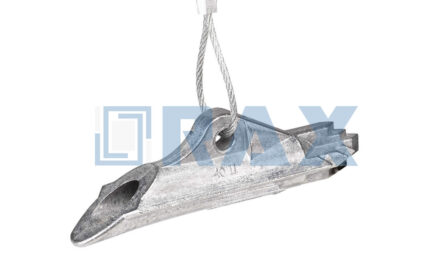

Duckbill Anchor
Rotational load-locking earth anchor installed by percussion for reliable uplift resistance without concrete. Suited for guying trees, signage, fencing, and light utility structures in varied soil conditions with tamper-resistant design.

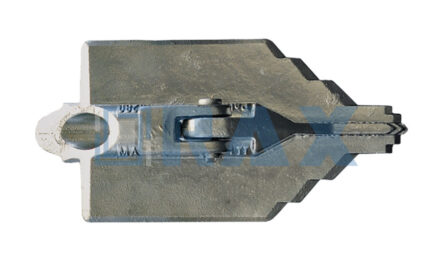

Manta Ray Anchor
High-capacity percussion earth anchor with load-locking plate mechanism, designed for heavy load retention, tower guying, flood protection, and retaining walls. Offers verifiable holding capacity in challenging soils with tested performance.
Expert RaxPower Percussion Earth Anchor Wholesaler
Established in 2003, RaxPower is China’s leading manufacturer of pole line hardware, with 21 years of expertise in the design, manufacture, and supply of Percussion Earth Anchors.
Our extensive operations, including 17,000 square meters of production workshops and 5,000 square meters of warehouses, are supported by a dedicated team of over 170 employees, featuring 30 professional technicians and 10 engineers.
Guided by a commitment to lean manufacturing, continuous improvement, and exceptional customer service, we deliver innovative, cost-effective anchoring solutions for global clients in sectors such as civil engineering, construction, and utility industries.
The RaxPower Percussion Earth Anchor embodies this dedication, engineered to be 60% stronger than competing drive anchors, which enables superior holding capacities in various soil conditions.
Constructed using advanced hot forging technology for enhanced strength and precision, and featuring hot-dip galvanizing for corrosion resistance, our anchors undergo rigorous load testing and quality checks to ensure they meet the highest standards.
Easy to install with standard equipment and requiring no excavation, they offer proven performance for applications like slope stabilization and structural anchoring.
If you’re going to buy high-grade post anchor in stock, welcome to get quotation and free sample from our factory.
Related Products
Frequently Asked Questions
What is a percussion earth anchor and how does it work?
A percussion earth anchor is a metal rod with a mechanical anchoring system at one end, impact driven into the ground to tie back or stabilize soil for vertical construction. It is installed by hammering the anchor and rod into the ground, then pulling back to engage and rotate the anchor head. A load locker monitors capacity during installation, and a bearing plate is secured to distribute surface load.
What are the benefits and common applications of percussion earth anchors?
Benefits include cost-effectiveness, fast installation, corrosion resistance, minimal environmental impact, and instant load holding. Common applications include erosion control for geosynthetic and metallic mats, retaining walls, tree and pole anchoring, landfill capping, hurricane proofing, slope stabilization, and temporary structures.
How is load capacity verified during installation?
Load capacity is verified using a load locker device that monitors and proof-tests the anchor during installation, ensuring it reaches the required design capacity before lock-off. Installation equipment includes hydraulic drivers or excavator-mounted breakers.
Are percussion earth anchors removable?
No, once driven and proof-locked, percussion earth anchors are generally not removable and are designed for permanent or temporary installation.
How do you ensure reliability and standards compliance for critical infrastructure projects?
Our earth anchors are proof-tested on-site using standardized equipment to verify load capacity, and we provide certification documentation to ensure they meet relevant industry standards for reliability and compliance.
What technical support services do you offer?
We offer comprehensive technical support, including pre-contract site evaluation, anchor testing, and on-site training. Our experts provide real-time assistance throughout the design and installation process, helping you select the right anchor for various soil conditions and applications.
Do you provide custom manufacturing options for specific project needs?
Yes, we offer ODM and OEM services, including custom branding and tailored designs. Our engineering team provides specification guidance, CAD drawings, and conceptual proposals to fit your specific requirements.
What is your lead time for bulk orders?
We maintain stock for immediate delivery of standard items, and for bulk orders, our production cycle is typically efficient to ensure timely supply, meeting your project deadlines with reliable logistics.
