Ground screw post anchors are helical foundation systems that screw directly into the ground, eliminating traditional concrete foundations. Engineered to handle loads in both tension and compression, they provide stable support for outdoor structures with minimal environmental disruption. These anchors enable quick installation without digging or curing time, allowing immediate construction after placement.
Manufactured from high-grade steel such as Q235 or S355, the anchors are hot-dip galvanized according to DIN EN ISO 1461 standards with coating thickness exceeding 80 microns for corrosion resistance. Available in lengths from 22 to 98 inches and diameters from 1.6 to 3.5 inches, they are tailored to specific load requirements. Models include adapter screws with mounting plates, pipe screws for steel tubes, post screws with U-profiles, and beam screws for joists, each designed for pressure resistance up to 12,364 lbs and lateral loads up to 4,300 lbs.
Applications span solar panel arrays, fencing, decking, carports, signage, and temporary structures. The anchors excel in uneven terrain, sandy soils, and environmentally sensitive areas requiring minimal ground disturbance. Installation uses hydraulic drivers or handheld tools to screw anchors into the ground with high torque, typically taking minutes per screw with little noise or vibration. The system is ready for immediate use after installation.
Products carry CE marking and ISO 9001 compliance, meeting standards such as ICC-ES ESR-4226. Special attachments including beam brackets, plates, and L-supports enhance functionality for tailored fitting and precise height adjustment in challenging conditions.
RaxPower Ground Screw Post Anchor Wholesaler with Advanced Quality Assurance
RaxPower specializes in providing high-quality ground screw anchors and screw piles for various applications. Established in 2003 and based in Hebei Province, China, with over 21 years of manufacturing expertise, our Ground Screw Post Anchors are engineered to deliver a strong, reliable foundation for outdoor structures such as solar panel supports, fence posts, and decks. Crafted from durable Q235 steel and featuring hot-dip galvanizing with a mean coating thickness exceeding 85 microns, they ensure long-lasting, corrosion-resistant performance even in challenging environments.
These anchors offer quick, no-excavation installation, making them a cost-effective and environmentally friendly solution for projects ranging from solar farms to commercial installations. With customizable sizes and designs, they adapt seamlessly to diverse terrain and specific customer requirements, providing enhanced stability and load-bearing capacity.
As a high-tech leader in the solar PV sector, RaxPower leverages advanced manufacturing processes like hot forging for superior strength and precise sizing. Our rigorous quality control—including raw material selection, multi-stage testing, load tests, and gauge tests—guarantees 100% reliability, with products consistently passing SGS certifications. Choose our ground screw anchors and screw piles for a dependable and long-lasting foundation solution.
| Parameter | Adapter Screw | Pipe Screw | Post Screw | Beam Screw |
|---|---|---|---|---|
| Material | Steel, Q235 or S355, Hot-Dip Galvanized >80 µm | Steel, Q235 or S355, Hot-Dip Galvanized >80 µm | Steel, Q235 or S355, Hot-Dip Galvanized >80 µm | Steel, Q235 or S355, Hot-Dip Galvanized >80 µm |
| Corrosion Protection | HDG per DIN EN ISO 1461 | HDG per DIN EN ISO 1461 | HDG per DIN EN ISO 1461 | HDG per DIN EN ISO 1461 |
| Certifications | CE, ISO 9001, ICC-ES ESR-4226 | CE, ISO 9001, ICC-ES ESR-4226 | CE, ISO 9001, ICC-ES ESR-4226 | CE, ISO 9001, ICC-ES ESR-4226 |
| Warranty | 25 years | 25 years | 25 years | 25 years |
| Length (in) | 34–98 | 34–98 | 37–47 | 22–63 |
| Screw Thickness (in) | 5/32 | Not specified | 0.16 | 0.16 |
| Outer Diameter (in) | 3.0 | 2.6–3.5 | 2.65 | 1.6–2.76 |
| Plate Thickness (in) | 5/16 | Not applicable | Not applicable | Not applicable |
| Mounting Plate Diameter (in) | 7.87 | Not applicable | Not applicable | Not applicable |

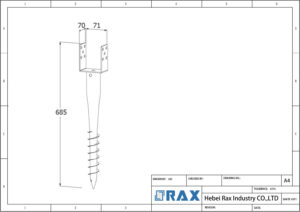

| U-Profile Dimensions (in) | Not applicable | Not applicable | Height: 7.87, Width: 2.75–3.75 | Height: 3.94, Width: 3.74 |
| Thread Fastening Holes | M20 | 4 x M12 | Fixing hole diameter: 4.13 | Fixing hole diameter: 0.41 |
| Pressure Load (lbs) | 3035–12364 | 1200–2500 | 1200–2500 | 562–3934 |
| Traction Load (lbs) | 1574–9330 | 2100–5000 | 900–1300 | 382–1798 |
| Lateral Load (lbs) | 787–3296 | 1100–4300 | 674–1012 | 112–1574 |
Frequently Asked Questions（FAQS）
What is a ground screw post anchor and how does it work?
RaxPower ground screw post anchors are helical screws made from high-quality steel that are twisted into the ground to provide a stable foundation. They create a compaction zone in the soil, ensuring strong holding power without concrete.
What are the main benefits of using ground screw post anchors?
Benefits include cost-effectiveness (no concrete or excavation costs), environmental friendliness (minimal soil disturbance, no curing time), reusability, all-weather installation capability, and immediate loading after installation, which reduces project timelines.
What applications are ground screw post anchors suitable for?
These anchors are versatile and ideal for fences, decks, solar panels, carports, sheds, signage, and other outdoor structures. They work for both temporary and permanent installations in various soil conditions.
How is a ground screw post anchor installed?
Installation is quick and requires no digging or concrete. The screw is driven into the ground manually or with power equipment in minutes and is ready for immediate use. RaxPower recommends specialized equipment for optimal results, and installation can be done year-round in various terrains.
What materials and corrosion protection are used?
RaxPower ground screws are manufactured from high-grade steel (ISO 630 Fe 360A) and hot-dip galvanized according to DIN EN ISO 1461 – HDG600, with mean coating thickness exceeding 85 microns for articles over 6mm. This provides excellent corrosion resistance and longevity even in harsh climates.
What is the load-bearing capacity?
Capacity varies by model and soil conditions. Some models handle pressure loads of 1200-2500 lbs, traction loads of 900-1300 lbs, and lateral loads of 500-900 lbs. RaxPower provides specific capacity details for each product.
What quality certifications and warranty does RaxPower provide?
RaxPower ground screws are CE marked and manufactured with ISO 9001 certified processes. We offer a 25-year warranty covering defects in materials and workmanship, ensuring long-term reliability for critical infrastructure and demanding environments.
Can RaxPower handle large-volume orders and meet project deadlines?
Yes, RaxPower has extensive manufacturing experience across applications from solar farms to fencing projects. Our 17,000 square meters of production facilities support customizable solutions, efficient production processes, and adherence to strict project timelines for large-order demands.
Are custom ground screw solutions available for specialized applications?
Yes, RaxPower provides special attachments and custom-designed ground screws for specific needs. Our engineering team develops tailored solutions for telecommunications infrastructure (including ADSS/OPGW accessories), railway electrification, and other specialized applications, ensuring optimal performance and compliance with industry standards.
