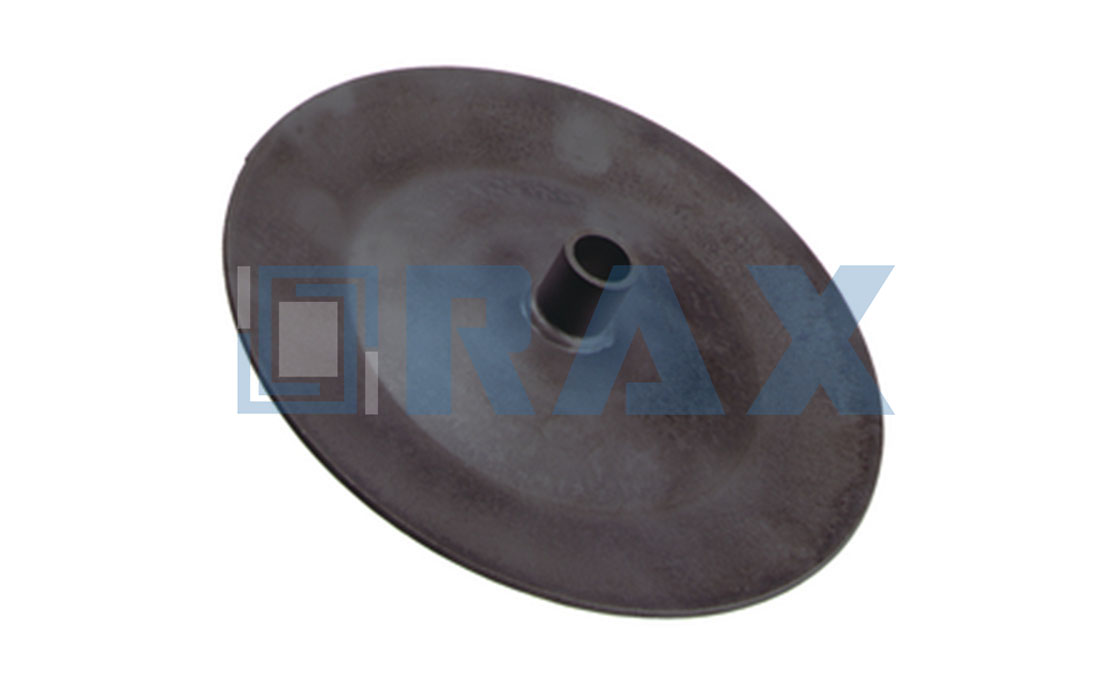

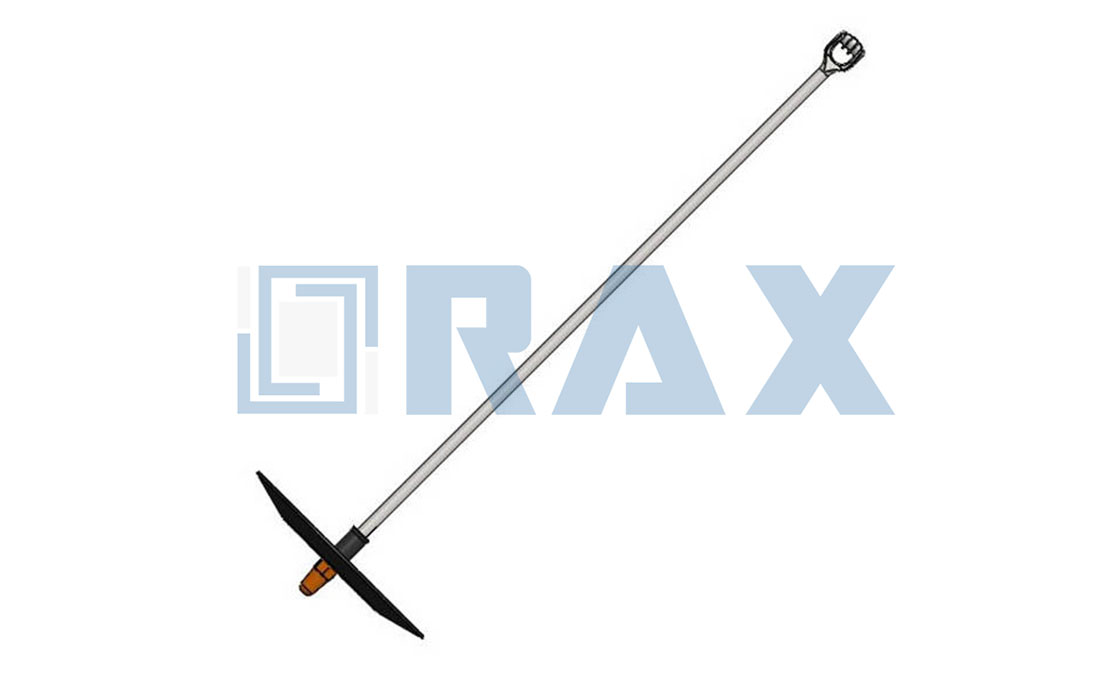

Disk anchors are anchoring systems for soil stabilization of utility structures. They’re engineered for extended service in corrosive environments including low resistivity, alkaline, and acidic soils. The hot dip galvanized plate anchor rod features a corrosion-resistant coating, plate anchor, and dielectric washer that isolates components to enhance protection.
Installation involves auguring a hole and creating a slot to lower the assembled anchor into position at the desired guy angle. The hole is backfilled with soil cuttings or grout. Disk diameters range from 16 inches to 24 inches with thicknesses from 0.187 inches to 0.250 inches. Compatible anchor rods are 3/4 inch to 1 inch in diameter and 7 feet to 10 feet in length.
Fiber washers and cap nuts are included on appropriate assemblies and do not need to be ordered separately. The hot dip galvanized finish ensures corrosion resistance across all configurations. These anchoring systems are used to extend the anchor’s service life in highly corrosive soil conditions and provide reliable holding capacity for utility pole applications.
Disk Anchor Supplier for Reliable and Corrosion-Resistant Solutions
RaxPower, established in 2003 in Hebei Province, China, is a leading manufacturer with over 21 years of expertise in pole line hardware. We provide a complete range of screw-in disk anchors designed for long service life, emphasizing versatility and reliability across various applications. Our disk anchors feature hot dip galvanized coatings and dielectric washers, ensuring superior corrosion resistance in highly corrosive soils.
Key advantages of our disk anchors include:
- Corrosion resistant through advanced hot-dip galvanizing technology, meeting ISO 1461 standards for durability.
- Immediate tensile resistance for secure and reliable performance.
- Time-saving installation with easy screw-in procedures, achievable manually or mechanically in minutes.
Utilizing sophisticated manufacturing processes like hot forging for enhanced strength and accuracy, coupled with strict quality control and automated production, we guarantee every anchor delivers consistent quality. Installation involves auguring holes and setting the anchor at the desired angle, backed by our commitment to efficiency and longevity.
For detailed technical information or a custom quote, contact RaxPower today.
| Parameter | Specification |
|---|---|
| Disk Diameter | 16 – 24 inches |
| Disk Thickness | 0.187 – 0.250 inches |
| Rod Diameter | 3/4 – 1 inch |
| Rod Length | 7 – 10 feet |
| Number of Guy Attachments | 2 |
| Capacity (Lifting) | 2, 4, 8 ton |
| Wythe Height (Lifting) | 3 – 8 inches |
| Finish | Hot Dip Galvanized |
Frequently Asked Questions
What are the primary applications of disk anchors?
Disk anchors are used in augured holes and backfilled with soil cutting or grout to extend the anchor's service in highly corrosive soils, such as low resistivity, alkaline, and acidic environments for utility pole anchoring applications.
How do your disk anchors ensure long-term durability in corrosive soil environments?
Our disk anchors are designed for low resistivity, alkaline, and acidic soils. They feature a hot dip galvanized plate anchor rod with a corrosion-resistant coating, and the plate and rod are isolated with a dielectric washer to extend service life in highly corrosive soils. This corrosion-resistant design helps maintain reliability in harsh conditions, supporting grid stability and reducing maintenance needs.
What is the standard installation process for disk anchors?
The installation procedure involves auguring and angling a hole along with a slot, allowing the assembled anchor to be lowered into position and set at the guy angle. It is then backfilled with soil cutting or grout (flow-able fill). This method is straightforward and does not typically require highly specialized equipment, making it efficient for field crews while ensuring secure anchoring for utility and infrastructure projects.
Are all necessary components included with the disk anchor assembly?
Yes, all essential components are included. The fiber washer and cap nut are part of the appropriate rod assembly and do not need to be ordered as separate items. This simplifies procurement and reduces the risk of missing parts, supporting efficient project execution and inventory management for contractors and distributors.
Can you provide a range of disk anchor configurations to meet specific project requirements?
We offer a variety of rods to match the length, tension capacity, and number of eyes that your job requires. Disk anchors are available with corrosion-resistant disks in diameters from 16 to 24 inches and thicknesses from 0.187 to 0.250 inches, compatible with rod diameters ranging from 3/4 inch to 1 inch. This variety allows for customization to fit diverse project specifications, ensuring optimal performance for utility installations.
What is the expected service life of disk anchors in corrosive soils?
Disk anchors are built to extend service life in highly corrosive soils through corrosion-resistant materials and coatings, such as hot dip galvanizing and dielectric isolation, though specific lifespan depends on soil conditions and installation.
