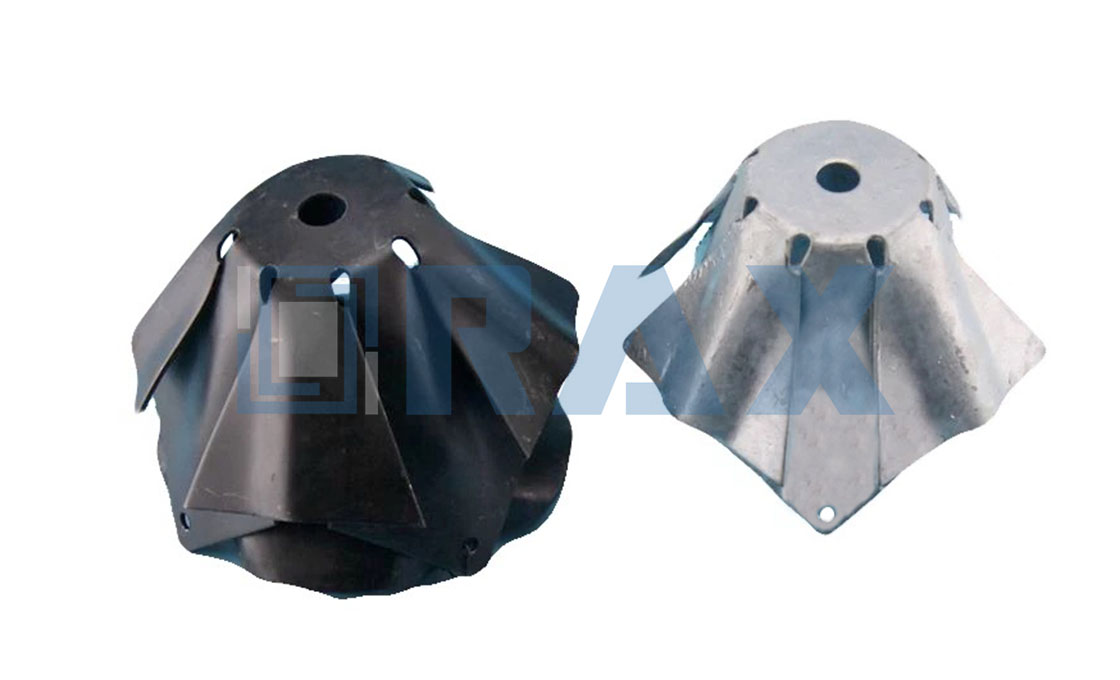

The Bust Expanding Anchor is an earth anchoring system designed for utility pole guy wire installations in augured holes. The anchor features expanding wings that flare outward into undisturbed soil when activated, creating a mechanical interlock that provides secure holding capacity for tension loads. The one-piece formed design includes wings and a base with a retainer on the bottom to hold the nut from the forged eye anchor rod.
Installation involves auguring a hole in line with the guy angle to a depth based on rod length. The anchor rod is secured to the anchor and lowered into the hole. An expanding-and-tamping tool is used to strike the top of the anchor, opening the blades into undisturbed soil. The hole is then backfilled and tamped to complete installation.
Available in hole sizes ranging from 6 inches to 12 inches with corresponding areas from 70 square inches to 300 square inches. The anchors accommodate rod diameters from 5/8 inch to 1-1/4 inches, which are sold separately. All anchors are coated with a rust inhibitor for corrosion protection in soil environments.
Boost Project Reliability with Bust Expanding Anchor Supplier
RaxPower is more than just a manufacturer of pole line hardware—it’s your gateway to reliable and innovative anchoring solutions. By choosing RaxPower for your Bust Expanding Anchor, you’re not only securing a product built for durability and precision but also partnering with a company dedicated to empowerment through advanced technology and trusted collaboration. Our decades of experience in specialized R&D and production ensure that every anchor benefits from sophisticated processes like hot forging, delivering greater strength and accurate sizing tailored to your project needs.
In demanding industrial environments, having a robust anchoring system is crucial for safety and efficiency. Our cutting-edge manufacturing, including automation and strict quality control, works alongside our expert support team to provide Bust Expanding Anchors that meet the highest standards. We empower your projects with consistent performance, backed by multi-stage testing and a commitment to 100% quality review, so you can focus on achieving your goals with confidence.
Join a community of professionals who value innovation and dependability, where we serve as your dedicated partner in building secure infrastructures. Our continuous investment in technology and R&D keeps you at the forefront of anchoring solutions, ensuring that every Bust Expanding Anchor embodies the reliability and forward-thinking approach that define our partnership.
| Hole Size (inches) | Area (sq. inches) | Compatible Rod Diameter |
|---|---|---|
| 6 | 70 | 5/8″ – 3/4″ |
| 8 | 100 | 5/8″ – 3/4″ |
| 10 | 150 | 3/4″ – 1″ |
| 12 | 300 | 1″ – 1-1/4″ |
Frequently Asked Questions
What is a bust expanding anchor?
A bust expanding anchor is an earth tension anchoring system installed in augured holes for utility pole guy wire applications. The one-piece formed anchor features expanding wings that flare outward into undisturbed soil when struck with an expanding and tamping tool, providing secure holding capacity. RaxPower manufactures high-quality bust expanding anchors engineered for durability and reliable performance in pole line construction.
What sizes and specifications are available?
Bust expanding anchors are available in hole sizes from 6 inches to 12 inches with corresponding areas from 70 square inches to 300 square inches. Compatible rod diameters range from 5/8 inch to 1-1/4 inches (rods sold separately). Specifications are designed to suit diverse utility pole anchoring requirements across different soil classes.
How do I select the right anchor for my application?
Consider your soil class, required holding capacity, and guy angle specifications. Proper selection based on hole size, anchor area, and compatible rod diameter prevents common issues like improper installation, reduced holding capacity, and anchor failure. RaxPower anchors are designed to provide reliable performance and prevent these problems in utility pole applications.
How do you ensure quality and standards compliance?
We employ strict quality control with raw material selection and multi-stage testing. All products undergo double review before packing. Our bust expanding anchors have passed SGS tests and authoritative research institute evaluations. Anchors are coated with rust inhibitor for corrosion protection, and we use hot forging technology for superior strength and accurate sizing, complying with relevant utility industry standards.
Can you guarantee on-time delivery for bulk orders?
Yes. With 17,000 square meters of production workshops, 5,000 square meters of warehouses, automation, and efficient processes, we ensure on-time delivery. Automatic machines maintain accurate, uniform sizing to support timely completion of entire orders for utility contractors and distributors.
What wholesale pricing and product variety do you offer?
As a one-stop global supplier for power line construction, we provide a comprehensive product range including bust expanding anchors at competitive wholesale prices. Our broad catalog of utility pole anchoring solutions and efficient manufacturing deliver good profit margins for resellers serving diverse utility market demands.
