The Bullet Ground Anchor features a streamlined bullet-shaped head that facilitates installation and provides reliable ground attachment for temporary and permanent applications. Can be constructed from aircraft-quality 356 alloy aluminum, heat-treated to T6 specification with an anodized coating, it delivers corrosion resistance and durability in hostile environments while maintaining lightweight properties suitable for long-term outdoor use.

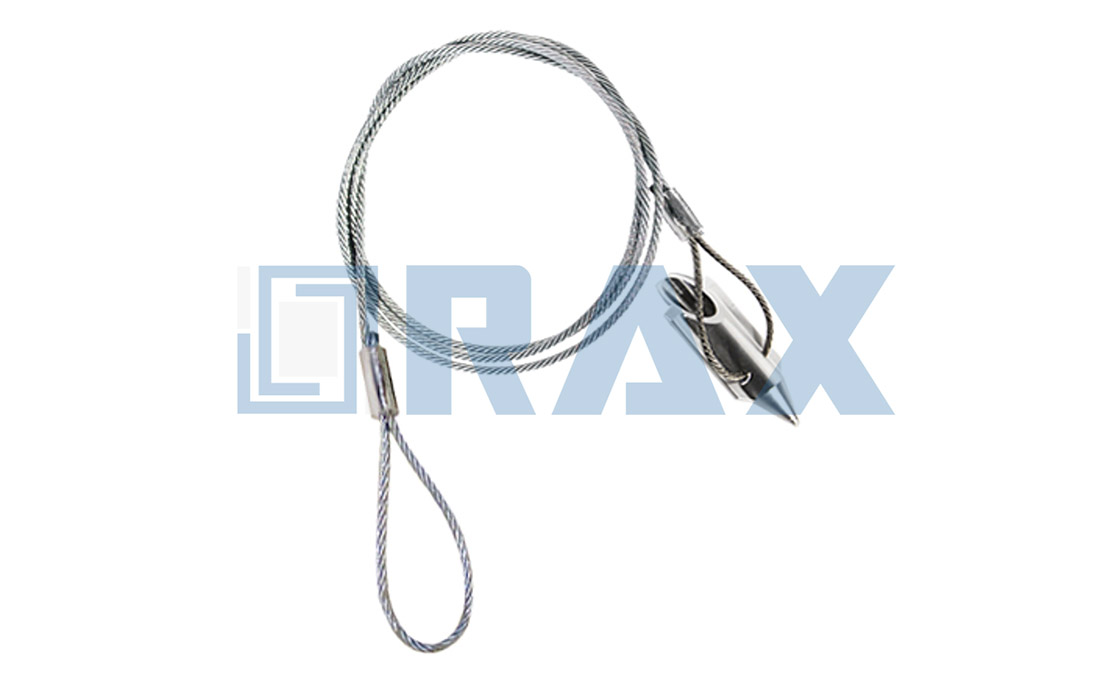

The anchor combines a cast aluminum bullet head with a galvanized steel aircraft cable, available in 36 and 60-inch lengths. Configurations include anti-theft loops, thimble loops, cable clamps, and turf disks for versatile attachment methods. Heavy-duty and light-duty categories accommodate different load requirements, with custom sizes available upon request.
The Bullet Ground Anchor delivers pull-out strength up to 2000 pounds in compact terrain and performs in challenging soil types including hard clay, gravel, and soil with roots. It embeds into the ground and locks in place when tension is applied, providing secure anchoring against upward or lateral forces. Installation involves driving the anchor using manual hammers, hydraulic drivers, or driving bars, then removing the drive rod and pulling the cable to set the anchor securely.
Common applications include anchoring shelters, gazebos, greenhouses, erosion control systems, temporary structures, utility equipment, and floating docks. The anchor functions effectively in various soil types, including rocky soil where rocks up to softball size can be displaced, but requires earth to bite into and is not effective in solid rock.
RaxPower: Your Reliable Bullet Ground Anchor Manufacturer
RaxPower, located in Hebei Province, China, was established in 2003. Beginning as a dedicated manufacturer, it soon expanded and began designing and manufacturing high-quality earth anchors for commercial, residential, and utility markets. Over the years, our product line has grown to include the Bullet Ground Anchor, demonstrating our commitment to innovation and reliability through continuous expansion and adaptation to market needs.
Our Bullet Ground Anchor is a high-quality, industrial-strength device used across various industries to secure and stabilize structures such as utility poles, retaining walls, and erosion control systems. Made from corrosion-resistant materials and designed for easy installation, it offers superior holding power in tough soil conditions, reflecting our company philosophy of sustainability and quality first. We focus on environmental friendliness and customer guidance, ensuring each product provides long-lasting performance with minimal ecological impact.
With applications in telecommunications, construction, and marine industries, our anchors deliver reliable support and durability. We invite you to get a quotation and free sample to experience the RaxPower advantage firsthand.
| Parameter | Specification |
|---|---|
| Material & Construction | |
| Material | Aircraft-quality 356 alloy aluminum |
| Heat Treatment | T6 specification |
| Finish | Anodized coating |
| Cable Material | Galvanized steel aircraft cable |
| Performance | |
| Pull-out Strength | Up to 2000 pounds in compact terrain |
| Dimensions & Configurations | |
| Standard Cable Lengths | 36 inches, 60 inches |
| Attachment Options | Anti-theft loops, thimble loops, cable clamps, turf disks |
| Installation | |
| Installation Method | Drive into ground using manual hammers, hydraulic drivers, or driving bars; use drive rod for insertion, remove rod and pull cable to set anchor |
| Required Accessories | Anchor rods, turnbuckles, ratchets, driving tools (e.g., hydraulic drivers or manual bars) |
| Suitability & Applications | |
| Soil Suitability | Hard clay, gravel, soil intermixed with roots; can displace rocks up to softball size; not effective in solid rock |
| Applications | Anchoring shelters, gazebos, greenhouses, erosion control systems, temporary structures, utility and construction industries, marine environments (e.g., securing floating docks) |
Frequently Asked Questions
What is a bullet ground anchor?
A bullet ground anchor is a specialized anchoring device featuring a distinctive bullet-shaped head that provides superior holding power in tough soil conditions. RaxPower's bullet ground anchors are manufactured using aircraft-quality 356 alloy aluminum, heat-treated to T6 specification and anodized for excellent corrosion resistance and high tensile strength, ensuring long-term durability in harsh environments.
What are common applications for bullet ground anchors?
Common applications include anchoring shelters, gazebos, greenhouses, erosion control systems, temporary structures, and various critical infrastructure projects requiring secure ground anchoring, particularly where high pull-out strength is needed in challenging soil conditions like hard clay or gravel.
How do you install a bullet ground anchor?
Installation involves driving the anchor into the ground using manual hammers, hydraulic drivers, or driving bars with a drive rod for insertion. After driving to the desired depth, remove the rod and pull the cable to lock the anchor in position. This method ensures quick and secure placement with minimal equipment.
What is the holding capacity of a bullet ground anchor?
RaxPower bullet ground anchors provide pull-out strength of up to 2000 pounds in compact terrain. Actual holding capacity varies based on soil conditions, installation depth, and anchor size, with heavy-duty versions offering greater load capacity than light-duty models.
What types and customization options are available?
RaxPower offers bullet ground anchors in heavy-duty and light-duty configurations, with variations including anti-theft loops, thimble loops, cable clamps, and turf disks. Standard cable lengths are 36 and 60 inches, with custom sizes available upon request to meet specific project requirements.
Can bullet ground anchors be used in rocky soil?
Yes, RaxPower bullet ground anchors can work in rocky soil but are not suitable for solid rock, as they need earth to bite into. They can push aside rocks up to softball or grapefruit size during installation. Pre-drilling pilot holes can help identify large underground rocks for better placement.
