An insulator tie, also known as a distribution tie or helical tie, bundles electrical conductors to insulators such as spool or pole top types in overhead power distribution systems. Three primary types exist: top ties secure conductors to the top groove of pin insulators, side ties mount conductors to the side grooves, and spool ties attach conductors to spool insulators. Each type addresses specific mounting configurations in distribution networks.
The tie itself, typically fabricated from aluminum-clad steel, bears mechanical forces from the conductor. A pad—often neoprene rubber or elastomer—provides insulation and acts as a resilient cushion against abrasion. An identification tag displays catalog number, neck size, and conductor diameter range, while color codes indicate conductor size and insulator neck dimensions such as C, F, or J types.
Insulator ties accommodate conductors including Aluminum Conductor Steel Reinforced (ACSR), All Aluminum Conductor (AAC), and All Aluminum Alloy Conductor (AAAC), with diameters ranging from approximately 0.190 inches to 1.585 inches. They provide rebound resilience, allowing conductors to return to their original position after minor forces, while machine-formed helical shapes reduce abrasion damage and simplify installation compared to hand-tied methods.
These components secure conductors in vibration-prone environments and accommodate line angles up to 10 degrees in vertical orientation. Protection against low-frequency sway, high-frequency aeolian vibration, and galloping maintains system integrity while preventing radio interference through consistent fit and controlled conductor movement under unbalanced loads.

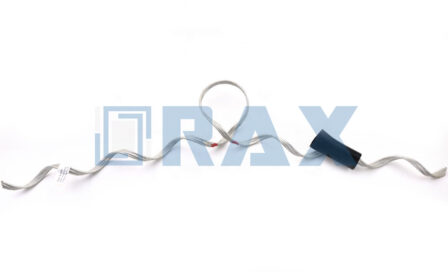

Spool Tie
Spool Ties secure conductors to spool-type insulators using preformed helical design, providing superior abrasion protection against vibration and weather conditions. Their pre-contoured construction ensures tight fitting and eliminates conductor damage while exceeding NESC requirements for unbalanced loads.

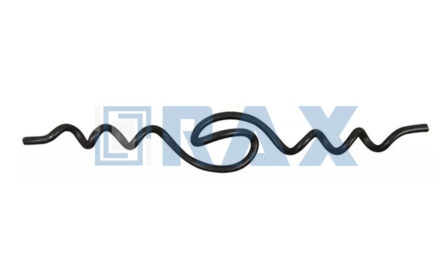

Top Tie
Top Ties fasten conductors to the top groove of pin insulators with aluminum-clad steel construction, offering rebound resilience and improved strength over hand-tied methods. They reduce shimmy motion, protect against abrasion, and provide better RIV characteristics for reliable distribution line performance.

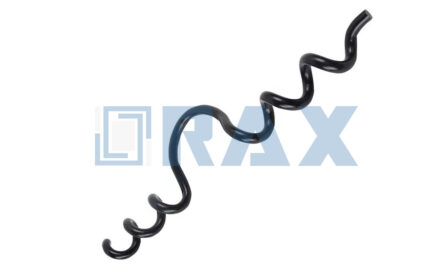

Side Tie
Side Ties mount conductors to side grooves of insulators, accommodating sizes up to 1.240 inches and line angles up to 10 degrees on horizontal installations. Their resilient preformed helix allows longitudinal displacement under unbalanced loads without loosening or damaging conductors.
ISO-Certified Insulator Tie Wholesaler
As an ISO-certified manufacturer and supplier, RaxPower’s insulator tie is engineered to deliver superior conductor protection and meet modern power distribution demands. An insulator tie, also called a distribution tie or helical tie, is designed to bundle conductors to spool or pole top insulators. They are available in three types:
- top ties for securing to top grooves
- side ties for side grooves
- spool ties for spool insulators
These preformed components feature a helical design for easy snap-on installation, uniform grip, and enhanced vibration dampening. Formed ties are superior to hand ties in vibration-prone areas, offering rebound resilience, higher strength from aluminum-clad steel construction, reduced shimmy, and improved radio influence voltage characteristics.
RaxPower, established in 2003 and based in Hebei Province, China, brings over 21 years of expertise in pole line hardware. Our commitment to quality and testing ensures long life and customer satisfaction, with advanced R&D and in-house facilities conducting rigorous tests, including collaborations with electricity companies. Utilizing sophisticated hot forging technology and strict quality control with multi-stage testing, we guarantee products that perform reliably under various environmental conditions. Contact us for detailed inquiries about our insulator tie products.
Other Products You May Like
Vibratory Finishing Machine
Centrifugal Finishing Machine
Automatic Mass Finishing System
Frequently Asked Questions
What is an insulator tie?
An insulator tie, also called a distribution tie or helical tie, is designed to bundle conductors to spool or pole top insulators. It provides superior protection against abrasion, corrosion, and other forces that induce motion on the conductor.
What types of insulator ties are available?
There are three main types: top ties for securing conductors to the top groove of pin insulators, side ties for mounting to the side groove, and spool ties for attaching to spool insulators.
What are the main components of an insulator tie?
Key components include the tie (typically made of aluminum or aluminum-clad steel), the pad (an insulating plastic or elastomer tube), an identification tag (showing catalog number and conductor range), and color codes (indicating conductor and insulator sizes).
How do preformed insulator ties compare to hand ties?
Preformed ties offer better fastening with rebound resilience, higher strength from materials like aluminum-clad steel, reduced shimmy during wind flow, easier installation due to machine-formed helical shapes, and superior radio interference voltage (RIV) characteristics. Their snap-on design allows for quick and uniform installation, reducing labor time and errors on large projects.
What technical specifications should I consider for insulator ties?
Important specifications include mechanical strength to support conductor weight, rated voltage matching the transmission line, ANSI class for dimensions, weight, impact strength, and maximum size to fit the conductor diameter.
Can insulator ties be used on line angles?
Yes, insulator ties are recommended for running line angles of up to 10 degrees on vertically mounted insulators, and they can accommodate larger angles when used with side ties or canted pins. They also stabilize conductors by preventing swaying, reducing vibrations, and providing double support at critical points like line angles or crossings over roads and railways.
How do your insulator ties ensure long-term grid reliability and compliance with industry standards?
Our insulator ties comply with ANSI standards and are ISO-certified, ensuring they meet rigorous industry requirements. RaxPower's strict quality control includes load testing and hot-dip galvanization per ISO 1461, guaranteeing product reliability and corrosion resistance for electric utility applications.
How are your insulator ties suited for specialized applications such as telecommunications or railway electrification?
Our insulator ties are ideal for securing fiber optic cables in ADSS/OPGW systems and withstanding constant vibration in railway catenary systems. Designed with durability and precision, they meet specific standards for these applications. RaxPower's expertise in specialized hardware ensures consistent quality and performance, protecting critical infrastructure investments.
How does your insulator tie catalog support distributors with competitive pricing and product variety?
RaxPower offers a comprehensive catalog of insulator ties, including top, side, and spool types compatible with conductors like ACSR, AAC, and AAAC. Our large-scale production and efficient processes enable competitive wholesale pricing, allowing distributors to maintain healthy profit margins. With a wide range of sizes and materials, we help you stock a diverse inventory to meet local market demands reliably.
What advantages do RaxPower's insulator ties offer for large-scale project efficiency and on-time delivery?
RaxPower's automated manufacturing processes ensure accurate sizing and consistent quality. With 21 years of experience and large production facilities, we prioritize on-time delivery for bulk orders, helping EPC contractors meet project schedules without compromising performance.
Get A Quick Quotation Today
