Guy wire is a tensioned cable that anchors tall structures—such as towers, antennas, and utility poles—to the ground, distributing loads to prevent toppling or bending under wind and environmental forces. Originally used in maritime applications to secure ship masts, it is now essential in power transmission, telecommunications, broadcasting, and supporting wind turbines and temporary structures.

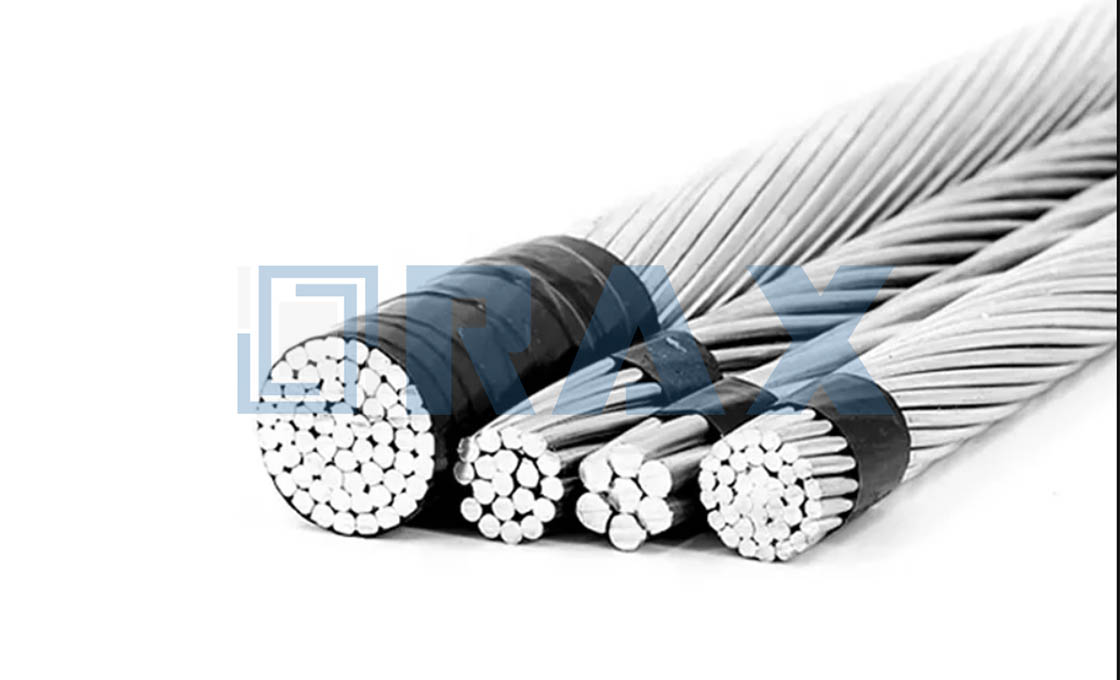

The cable typically features high-quality steel strands coated with zinc through hot-dip galvanizing, providing resistance to moisture, corrosion, and chemicals. Galvanized coatings conform to Class A, B, or C standards based on environmental demands, while stainless steel variants extend service life in wet or marine conditions. Configuration options include 1×7 strand designs (stiffer, suited for most tensioning) and 1×19 designs (more flexible, higher working load limits), with diameters from 1/4 inch to 1 inch.
Guy wire delivers high tensile strength—reaching up to 6800 pounds for 5/16-inch diameter—with minimal elongation under load, meeting standards such as American Society for Testing and Materials (ASTM) A475, BS 183, and International Electrotechnical Commission (IEC) 61089. Compatible hardware includes big grip dead ends, end sleeves, wire rope clips, turnbuckles for tension adjustment, and thimbles for abrasion protection, all designed to match rated strength and ensure secure installations in demanding outdoor applications.
High-Performance Guy Wire from RaxPower Supplier
Are you in need of high-quality guy wire for your construction or utility projects? Look no further than RaxPower as your trusted OEM and manufacturer with over 21 years of expertise and dedication to excellence.
As China’s leading manufacturer of pole line hardware located in Hebei Province, we specialize in meticulously engineered guy wire that uses the highest quality galvanized steel for superior strength, flexibility, and corrosion resistance. Our extensive experience in R&D and production, supported by 17,000 square meters of production workshops and strict quality control including hot-dip galvanizing and load testing, ensures that every guy wire is designed to reliably support utility poles, towers, and other structures.
Through our operational efficiencies and commitment to exceptional customer service, we deliver durable, high-performance products at competitive prices. Call us at 404-343-4855 for more information and to discover how we can meet your guy wire needs.
| Parameter | Value |
|---|---|
| Strand Configuration | 1×7, 1×19 |
| Diameter Range | 1/4 inch to 1 inch |
| Material | High-quality steel strands with zinc coating |
| Coating | Hot-dip galvanized, Class A, B, or C |
| Tensile Strength | Up to 6800 pounds (for 5/16-inch diameter) |
| Standards | ASTM A475, BS 183, IEC 61089 |
| Applications | Utility poles, power poles, telephone poles, communication towers, wind turbines, ship masts, large temporary structures |
Frequently Asked Questions
RaxPower's guy wire is a high-strength, lightweight tensioned cable designed to provide stability to towers, antennas, and other utility structures by distributing weight and preventing toppling, twisting, or breaking. It has very little stretch for reliable performance.
RaxPower's guy wire is commonly used to secure utility poles, telephone poles, power poles, communication towers, wind turbines, and large temporary structures, providing essential stability against wind and storms.
RaxPower's guy wire is hot-dipped galvanized, providing a zinc coating that protects against corrosion and rust from environmental elements. It meets or exceeds ASTM A475 standards, ensuring high tensile strength, quality, and long-term reliability for power transmission, telecommunications, and other demanding applications.

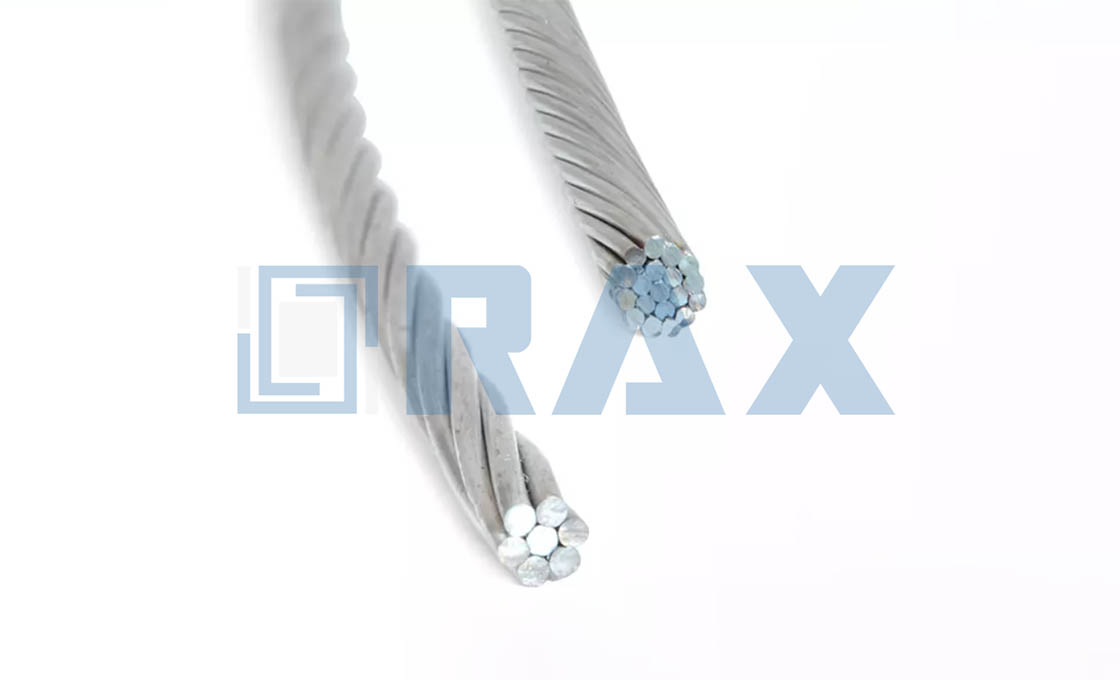

RaxPower offers guy wire in two configurations: 1x7 and 1x19 strands. The 1x7 type is stiffer and ideal for most tensioning setups, while the 1x19 provides more flexibility and a higher working load limit, perfect for telecommunications, renewable energy, and structural support.
RaxPower's guy wire is compatible with various hardware, including big grip dead ends for secure termination, end sleeves to prevent unraveling, wire rope clips for clamping, turnbuckles for tension adjustment, shackles for connections, and thimbles for eye protection. All hardware is galvanized for corrosion resistance.
Installation of RaxPower's guy wire should only be done by experienced professionals. It involves attaching wires to structures and ground anchors, proper tensioning, and using approved hardware. For safety, consult professionals or organizations like The National Association of Tower Erectors.

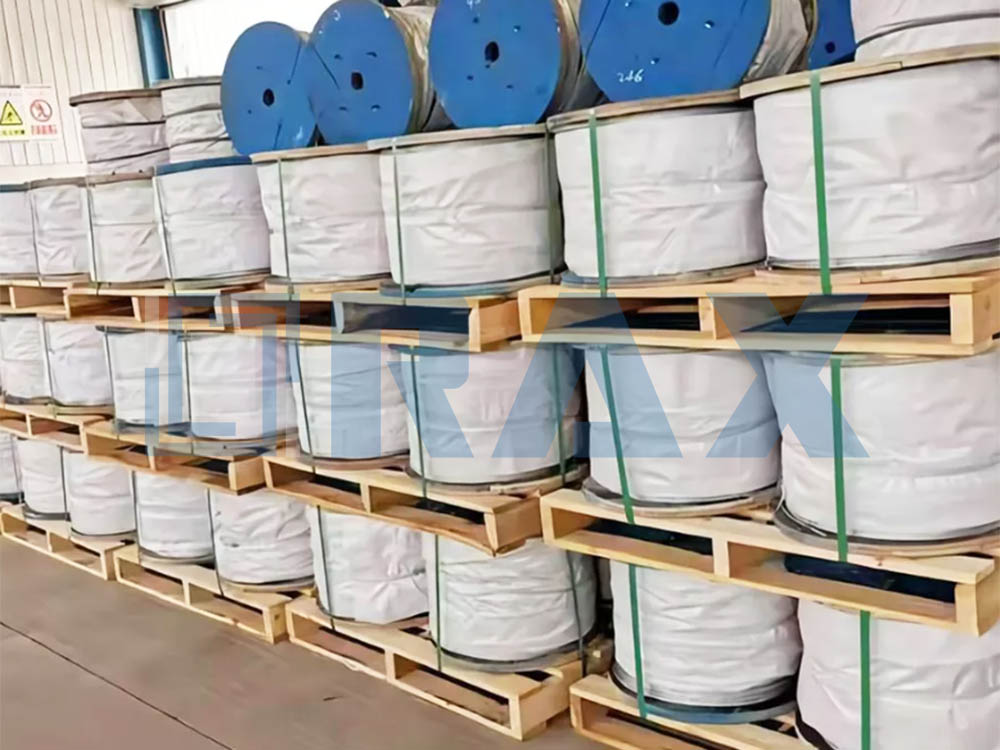

We provide guy wires in bulk quantities with competitive pricing and can meet custom requirements, supported by efficient supply chain processes to ensure on-time delivery and consistent quality for projects like utility expansions or renewable energy installations.
What is guy wire and its primary function?
What are the common applications for guy wire?
How does the galvanized coating protect guy wire and what standards does it meet?
What types of guy wire configurations are available?
What hardware components are compatible with guy wire?
Who should install guy wire and what are the safety guidelines?
Can you accommodate bulk orders and custom specifications for large-scale projects?
