The OPGW Pocketbook Fiber Grip is a specialized tool for pulling and tensioning optical ground wire (OPGW) in aerial installations. Used in telecommunications, electric utility, and line construction, it serves as a temporary gripping device during setup and adjustment of OPGW and similar conductors.
The tool features lightweight construction with high-strength 6061 aluminum body and steel components finished with trivalent zinc chromate for corrosion resistance and RoHS compliance. A patent-pending self-closing hinge enables one-handed operation—users snap the grip onto the cable and tighten without manual hinge adjustment, reducing fatigue during repetitive tasks. Precision machined grooves prevent crushing or damage to delicate fiber optic cables.
Available models accommodate diameter ranges from 0.360 to 1.250 inches, with maximum tension limits of 5,000 pounds (4-bolt versions) or 12,000 pounds (6-bolt versions), not exceeding 50% of conductor rated strength. Tools weigh approximately 7.5 pounds for smaller models, with lengths up to 29 inches and specified torque values of 40 or 60 ft-lb for proper installation.
This is a temporary tool only—not for use as deadend or permanent anchorage. Users must not exceed rated capacity, must match tool size to application, and must inspect the cable groove before each use. When used near energized lines, the grip requires grounding, insulation, or isolation before pulling.
Trusted Supplier: RaxPower’s OPGW Pocketbook Fiber Grip for Reliable Performance
RaxPower, a family-owned business located in Hebei Province, China, is a manufacturer of a wide range of products for the telecommunications, power utility and cable television industries, and the contractors who serve them. Specializing in high-quality, precision-machined and fabricated products, including the OPGW Pocketbook Fiber Grip, we are dedicated to customer satisfaction and continuous improvement.
With over 21 years of experience, our manufacturing capabilities include precision machining and fabrication, handling various production runs. Our commitment to enhancement is demonstrated through product innovations such as the use of trivalent zinc chromate for corrosion resistance and the development of lightweight, self-closing grips that simplify installation and reduce weight based on customer feedback. For example, our OPGW Pocketbook Fiber Grip is designed to be up to 40% lighter, allowing for one-handed operation and minimizing fatigue. Utilizing high-strength materials and rigorous quality control, we ensure reliable, industry-standard solutions. As a trusted partner, we encourage you to get in touch with us today to learn more about our products and services.

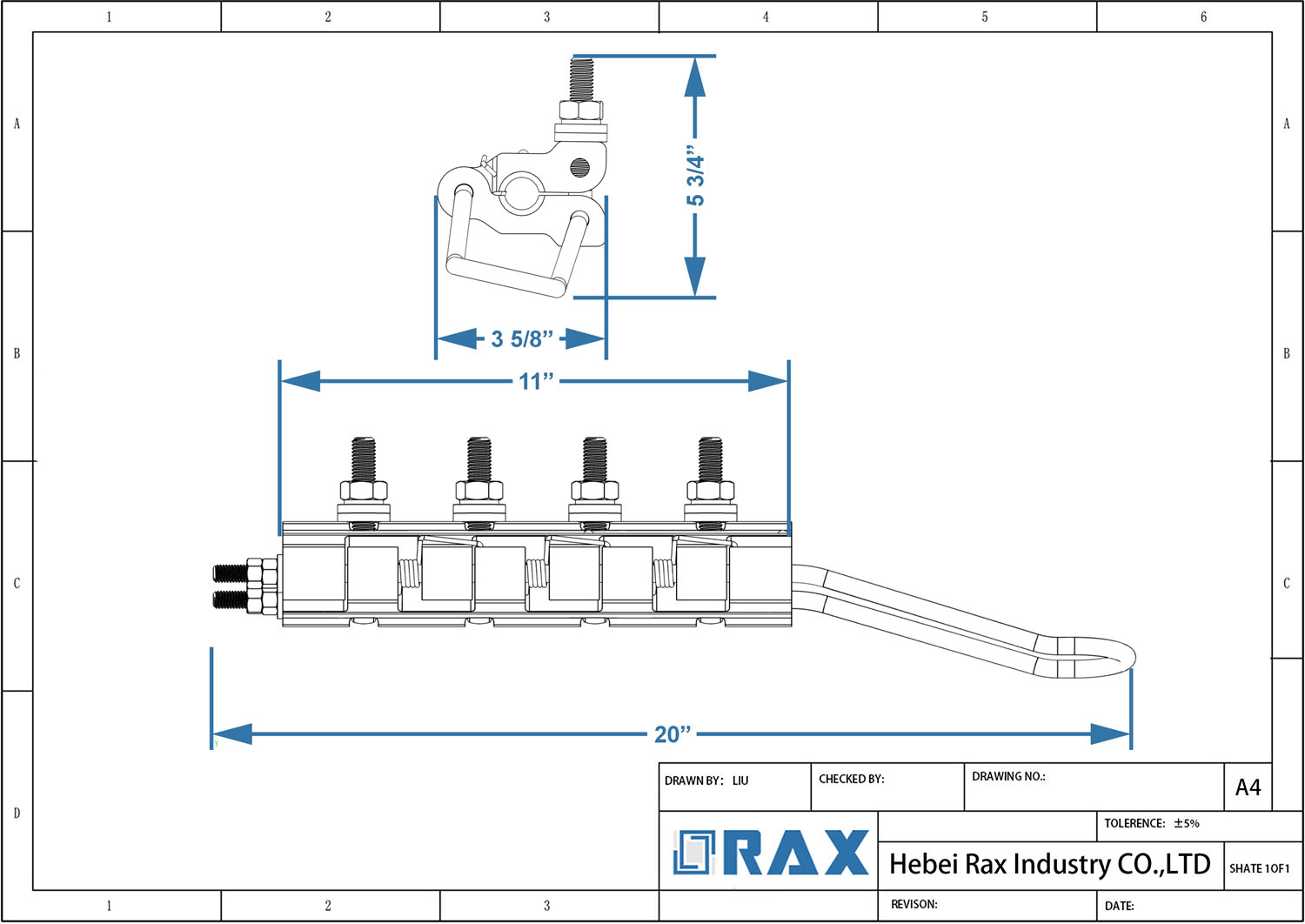

| Parameter | 4-Bolt Grip | 6-Bolt Grip |
|---|---|---|
| Diameter Range | 0.360 – 0.875 inches | 0.415 – 1.250 inches |
| Max Tension Limit | 5,000 lbs or 50% of rated strength of conductor, whichever is smaller | 12,000 lbs or 50% of rated strength of conductor, whichever is smaller |
| Weight | 7.5 lbs | 26 lbs |
| Torque | 40 ft-lb | 60 ft-lb |
| Body Material | 6061 Aluminum | 6061 Aluminum |
| Bolt Material and Size | 1/2 inch Steel with trivalent zinc chromate finish | 5/8 inch Steel with trivalent zinc chromate finish |
| Bail Material and Size | 3/8 inch Steel with trivalent zinc chromate finish | 5/8 inch Steel with trivalent zinc chromate finish |
| Overall Length | 20 inches | 29 inches |
| Overall Width | 3.5 inches | N/A |
| Overall Height | 5 inches | N/A |
Related Products
Frequently Asked Questions (FAQS)
What is the OPGW Pocketbook Fiber Grip used for?
The OPGW Pocketbook Fiber Grip from RaxPower is used for pulling optical ground wire during sag-tension operations. It is a temporary tool designed for tensioning OPGW and other aerial conductors in the telecom, electric utility, and line construction industries. It should not be used as a deadend or for permanent anchorage.
What are the key features and benefits of the grip?
The grip is a self-contained unit with no loose parts and features a self-closing hinge for effortless one-handed installation, reducing installer fatigue and speeding up the process. The lightweight aluminum body further reduces fatigue and helps lower labor costs. Its precision design prevents crushing or damaging fiber optic cables while maintaining high performance and reliability.
What is the size range and maximum tension limit?
The size range varies by model, typically from .360
What materials is the grip made from?
The body is made from extruded or high-strength 6061 aluminum. It features steel bolts and a steel bail, often with a trivalent zinc chromate finish for corrosion resistance.
How do I install the grip?
Installation is simple: snap the grip onto the cable and tighten it. The self-closing hinge allows for one-handed operation. Apply the specified torque, typically 40 to 60 ft-lb, depending on the model.
How do your grips maintain compliance with industry standards and ensure long-term reliability?
Grips are precision-machined with high-strength materials and marked with clear ratings and torque specifications. They undergo strict quality control, including load testing, to meet industry standards and ensure durability in demanding environments.
How can I order the grip and what customization options are available?
Orders for RaxPower's OPGW Pocketbook Fiber Grip can be placed direct or through an approved tool and equipment supplier. Tools can be fitted to a specific diameter range or custom-milled to a specific diameter and are manufactured to order, ensuring they meet your exact project requirements. All tools are marked accordingly for precise application. Orders typically ship in 1-4 days.
