The In-Span Storage System stores slack cable aerially for All-Dielectric Self-Supporting (ADSS) and lashed messenger fiber optic cables within the span. It organizes and secures cable loops during installation, enabling hands-free operation once clipped into place. The system provides vertical stacking for large storage capacity within a low-profile design, maximizing space efficiency without extensive hardware.
Storage brackets are available in plastic and aluminum materials. The plastic version is all-dielectric and UV-resistant, while the aluminum variant features a black powder coat finish for durability and environmental resistance. Brackets range from 10 to 30 inches in diameter, including 12, 16, and 18-inch sizes. Wide channel options capture multiple cables for additional runs or butt splices.
Hanger brackets attach with a simple one-bolt and lock-nut system, compatible with both lashed messenger cable and ADSS configurations. For ADSS applications, a press-in plastic cushion prevents cable abrasion at the hanger interface. Abrasion Protectors and the Uni-Group Cable Guide serve as pole pass solutions, safeguarding slack cable at poles or structures while routing through congested areas.
Installation involves clipping cable into tabs and positioning the storage bracket to finalize the loop. Kits can be customized with aerial mounting brackets and cable protection components to meet specific project requirements.
In-Span Storage System – Leading Manufacturer
The RaxPower In-Span Storage System provides in-span storage for ADSS cables up to 1 in (25 mm) in diameter. It is designed to maximize ease of installation, accept a wide range of cable sizes, and allow for cable only or butt splice applications. Backed by our 21 years of experience in manufacturing pole line hardware in Hebei Province, China, we leverage advanced processes like hot forging to ensure the system offers superior strength and precise sizing. With over 170 employees and state-of-the-art facilities spanning 17,000 square meters of production workshops, our strict quality control, including raw material selection and multi-stage testing, guarantees that every In-Span Storage System meets high standards for durability, efficiency, and adaptability.
- Centerlock hinge design for easy storage and tool-free installation
- Heavy-duty UV-resistant strap fasteners that cinch quickly and secure without metal fasteners
- Accepts a wide range of cable sizes for versatile applications
- Safe with all dielectric materials, ensuring compatibility and safety
- Dual purpose apertures and expansion tabs for flexible use
- Allows up to 20 in (508 mm) maximum loop diameter storage
- Includes abrasion protector for enhanced cable protection
For comprehensive information, refer to the product catalog, installation manual, and specification sheet available from RaxPower.

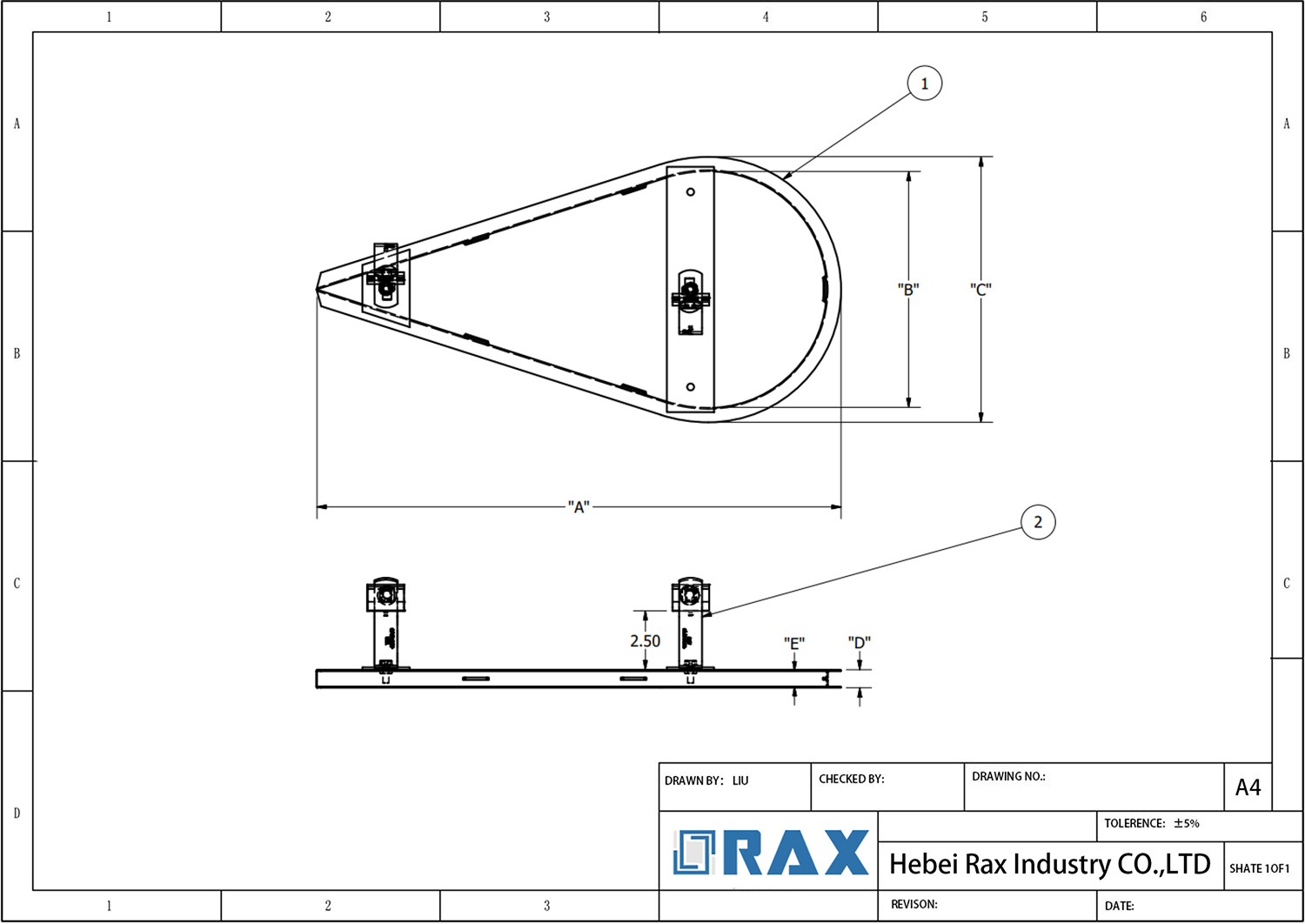

| Parameter | Value |
|---|---|
| Storage Bracket Sizes | 10″ to 30″ (common sizes: 12″, 16″, 18″) |
| Materials | Plastic: all-dielectric, UV-resistant; Aluminum: black powder coat finish |
| Hanger Bracket Types | Messenger, ADSS |
| Hanger Bracket Attachment | One bolt and lock nut |
| Cable Protection Options | Abrasion Protectors, Uni-Group Cable Guide |
| Vertical Stacking | Yes, for large storage capacity in a compact profile |
| Wide Channel Option | Yes, for multi-cable storage (e.g., additional runs or butt splices) |
| Low-Profile Design | Yes |
| Press-in Plastic Cushion | For ADSS hanger brackets to prevent cable abrasion |
| Cable Straps | Available in kits (e.g., pack of 25 plastic straps) |
Frequently Asked Questions (FAQS)
What diameter sizes are available for the In-Span Storage System?
The RaxPower In-Span Storage System is available in a complete range of sizes from 10 inches (25.4 cm) to 30 inches (76.2 cm), including specific diameters such as 12 inches (30.5 cm) and 16 inches (40.6 cm). This variety allows RaxPower to cater to diverse project scales, from minor upgrades to large-scale deployments.
What types of fiber optic cables is the system compatible with?
It is designed for use with ADSS (All-Dielectric Self-Supporting) and lashed messenger cable systems, with hanger brackets providing reliable compatibility for various aerial cable installations.
How are the storage brackets mounted aerially?
The system includes hanger brackets for aerial mounting on either lashed messenger cable or ADSS, featuring a simple one bolt and lock nut attachment for secure installation.
Can the system store multiple cables simultaneously?
Yes, vertical stacking of multiple cables provides large storage capacity in a small profile, and a wide channel option captures multiple cables for more cable runs or butt splice applications.
How is the installation process designed for ease of use?
During installation, the cable is clipped into the tabs, and the storage bracket is pulled into its final position at the back of the cable loop, keeping the installer's hands free to apply cable ties. This streamlines the process, reduces labor time, and enhances on-site safety.
What cable protection options are available for pole passing?
Options for protecting cable slack against the pole include Abrasion Protectors or the Uni-Group Cable Guide, minimizing the risk of damage in congested or high-wear areas and ensuring long-term durability in harsh environments.
Is the In-Span Storage System resistant to environmental factors like UV light?
The system is made from UV-resistant materials, such as all-dielectric plastic or aluminum with a standard black powder coat finish, ensuring durability.
