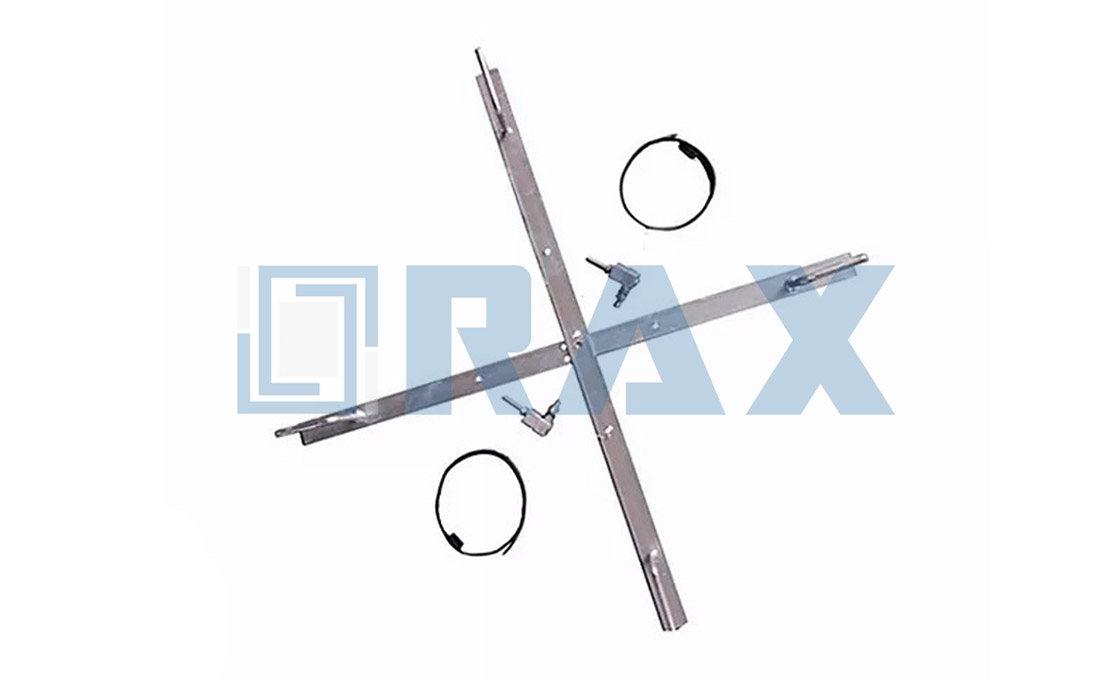

The Fiber Optic Loop Holder securely stores and manages slack fiber optic cable in telecommunications and networking installations. It coils excess cable length to prevent loose sections, maintain cable integrity, and facilitate future access or modifications in aerial, pole-mounted, wall-mounted, and vault applications.
Constructed from durable materials like aluminum, galvanized steel, or UV-resistant thermoplastic polypropylene, the holder resists moisture and corrosion for long-term reliability. Metal versions often feature powder-coated finishes for enhanced outdoor durability, while plastic variants provide non-conductive properties for electrical safety. The design protects cable bend radius to prevent signal loss, with integrated slotted keepers or tie-wrap slots enhancing storage capacity and stability without additional tools.

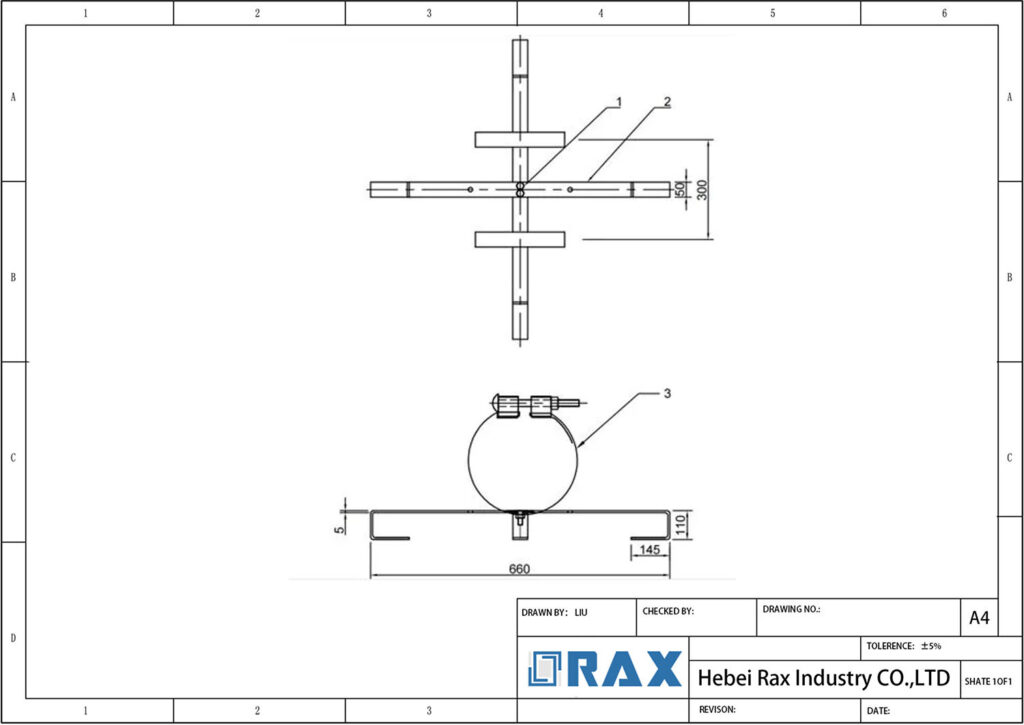

Technical specifications support up to 250 feet of 144-count outdoor fiber optic cable, with typical dimensions of 32 inches height by 30 inches width and weight around 18 pounds per frame. Materials include 12-gauge steel or aluminum alloy for structural integrity. Mounting options accommodate wood, metal, or concrete poles using stainless steel straps, lag bolts, or included hardware, with strand clamps fitting 1/4 to 7/16 inch diameter strands for versatile installation.
Fiber Optic Loop Holder: Expert Wholesaler with 21 Years of Experience
RaxPower, established in 2003 in Hebei Province, China, is a manufacturer of a wide range of products which include terminating helix for ADSS cable assembly, ADSS and OPGW cable laying accessories, OFC loop holder, protective helix for ADSS cable, and suspension helix for ADSS cable. With 21 years of experience and over 170 employees, including 30 professional technicians, RaxPower leverages its expertise in pole line hardware to produce the Fiber Optic Loop Holder for secure holding of optical fiber cables in outdoor environments.
Made of high-quality aluminum, the loop holder features a smooth finish and is galvanized using hot-dip technology per ISO 1461 standards, ensuring a mean coating thickness of over 85 microns for excellent corrosion resistance. Designed with state-of-the-art technology, it ensures exceptional strength and durability, preventing cable loosening and aiding in wire organization. The corrosion-proof design guarantees longevity, with each unit checked for design precision, strength, and diameter.
Applications include overhead laying on poles or walls in the telecom industry.
Our manufacturing process involves hot forging for greater strength and accurate sizing, along with automatic machines for uniform products.
Our rigorous quality control, including multi-stage testing, load tests, and gauge tests per IEC 120 standards, ensures that every loop holder meets high performance criteria and has passed SGS tests.
| Parameter | Value |
|---|---|
| Material | Aluminum, Galvanized Steel, or Plastic (Thermoplastic Polypropylene with UV inhibitors) |
| Height | 32 inches (approx.) |
| Width | 30 inches (approx.) |
| Depth | 4.5 inches |
| Weight | 18 lbs per frame (approx.) |
| Storage Capacity | Up to 250 feet of 144-count outdoor fiber optic cable |
| Mounting Options | Wood, metal, or concrete poles using stainless steel straps, lag bolts, or included hardware |
| Applications | Aerial, pole-mounted, and wall-mounted installations in telecommunications and high-density networking |
| Color/Finish | Black (powder-coated for durability) |
| Hardware Included | Bolts, nuts, washers, strand clamps, slotted keepers, or tie-wrap slots |
| Strand Clamp Size | 1/4 inch to 7/16 inch diameter |
| Frames Shipped | In pairs (to reduce storage and shipping costs) |
Frequently Asked Questions (FAQS)
What are the key features and materials of the Fiber Optic Loop Holder?
The holder features a smooth silver finish, corrosion-proof construction from aluminum or galvanized steel, and securely organizes fiber optic cable loops to prevent loosening. It's designed for outdoor environments with exceptional durability and strength.
What applications and cable systems is this loop holder designed for?
It's designed for telecom industry OFC works, specifically for overhead laying of optical fiber cables including ADSS and OPGW systems on poles or walls.
How is the Fiber Optic Loop Holder installed?
It can be fixed on poles using pole seats or small splints, and mounted on poles or walls for secure cable holding.
How does the loop holder protect cable integrity during installation and use?
It securely holds cable loops without excessive clamping pressure, distributing forces evenly to prevent damage and maintain cable integrity throughout its operational life.
How does the design ensure compliance with industry standards for critical infrastructure?
The holder adheres to OFC standards with rigorous construction quality, ensuring it meets requirements for grid hardware and maintains reliable performance under harsh outdoor conditions.
What is your production capacity and delivery timeline for project orders?
We handle bulk quantities with production capacity up to 1000 units per week, offering delivery in 3-5 days for standard orders through efficient supply chain management.
How does this product support cost-effective operations for resellers and integrators?
Design precision and corrosion-resistant materials reduce long-term maintenance costs, while consistent quality and efficient production enable competitive pricing and reliable performance for distributors and OEM clients.
