The E Drop Wire Clamp secures telephone drop cables to wood or masonry surfaces in aerial and building-mounted installations. Standard across major telephone companies for one pair drop cables, it maintains cable position and prevents movement in residential and commercial telecommunications projects, including CATV applications.
The clamp is constructed from American Iron and Steel Institute (AISI) 1018 steel, providing high tensile strength and resistance to deformation under mechanical loads and environmental exposure. Mechanical galvanizing per American Society for Testing and Materials (ASTM) Specifications A153 and B695 applies a corrosion-resistant coating that enhances durability against moisture, chemicals, and other corrosive elements, extending service life in harsh field conditions.

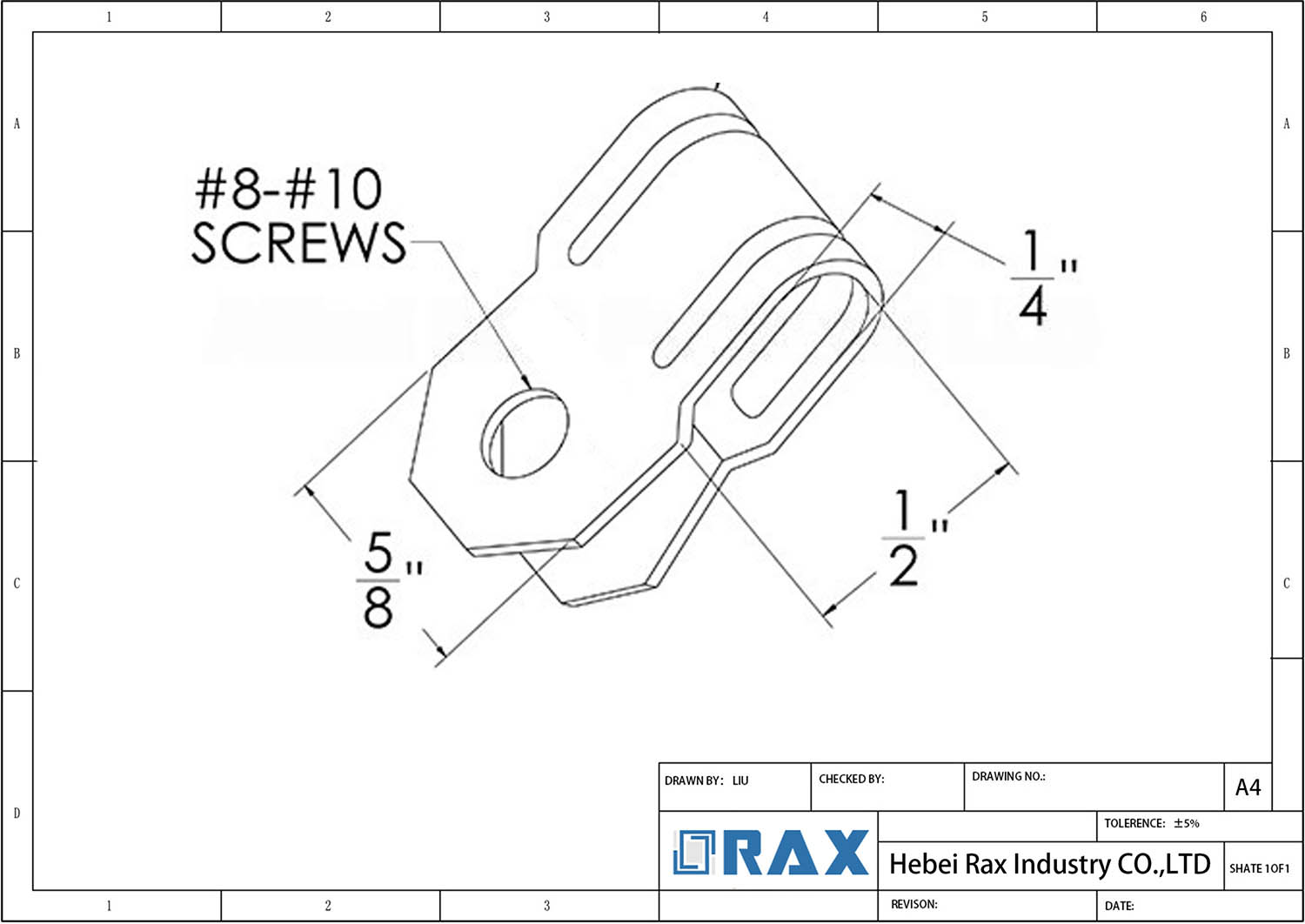

Physical specifications include a 0.209-inch hole diameter for #8 to #10 screws and tabs spaced 3/4 inches apart for drop wire insertion. Three transverse ribs in the clamp radius provide positive cable hold while minimizing frictional contact to prevent insulation wear and abrasion.
Installation involves passing a screw through the pierced tabs to secure the clamp to the mounting surface. For masonry, a plastic screw anchor achieves stable attachment. The clamp mounts on drive hooks, span clamps, or house hooks, facilitating versatile setup across different installation scenarios.
Expert E Drop Wire Clamp Provider from RaxPower Wholesaler
RaxPower is a professional aerial drop hardware supplier integrating R&D, production, sales and service. Established in 2003 and based in Hebei Province, China, we have over 21 years of manufacturing expertise, with our E Drop Wire Clamps representing our core competency in securing telephone and fiber drop installations. These clamps are crafted from high-quality steel and benefit from our advanced hot-dip galvanizing technology, ensuring decades of corrosion resistance and compliance with ASTM specifications.
Our integrated R&D focuses on features like transverse ribs for a positive grip, preventing wire wear, while our production leverages hot forging and automatic machinery for superior strength and precision. ISO-certified with strict quality control, including SGS tests and multi-stage inspections, we guarantee reliability.
With a 17,000-square-meter production facility and a skilled team of over 170 employees, we deliver competitive pricing and efficient service to a global clientele. We believe technology and service are our foundation, and quality builds our future. We welcome new and experienced buyers from all walks of life to contact us for business interactions and mutual success!
| Technical Parameter | Specification |
|---|---|
| Material | AISI 1018 Steel |
| Galvanizing | Mechanically galvanized per ASTM A153 and B695 |
| Hole Diameter | 0.209 inches |
| Tab Spacing | 3/4 inches |
| Ribs | Three transverse ribs |
| Screw Size | #8 to #10 |
| Width | 5/8 inches |
| Bend Radius | 1/4 inches |
| Application | Secure fiber and copper drop cables for standard one pair drop cables |
Related Products
Frequently Asked Questions (FAQS)
What is the E Drop Wire Clamp used for?
The E Drop Wire Clamp is used in telephone drop installations to secure drop wire cable runs to either wood or masonry surfaces.
Are RaxPower's E Drop Wire Clamps widely accepted in the industry?
Yes, the E Drop Wire Clamp is used as a standard by all major telephone companies for standard one pair drop cables, reflecting widespread industry acceptance and reliability.
What materials is the clamp constructed from?
It is made of high-quality steel, such as AISI 1018, and is mechanically galvanized to meet ASTM Specifications A153 and B695 for corrosion resistance, ensuring durability in harsh environments for decades.
What is the screw hole size and compatible screw types?
The hole diameter is 0.209 inches, which accommodates #8 to #10 diameter screws.
How is the E Drop Wire Clamp installed?
The tabs of the clamps are spread 3/4 inch apart to facilitate easy insertion of drop wire, and clamping is accomplished by passing a screw through the pierced tabs. For masonry surfaces, a diamond plastic screw anchor may be used to secure the clamp.
How does the clamp prevent cable damage and slippage?
Three transverse ribs in the radius of the clamp provide a positive hold on the drop wire to prevent wear from friction, ensuring secure cable runs without abrasion.
