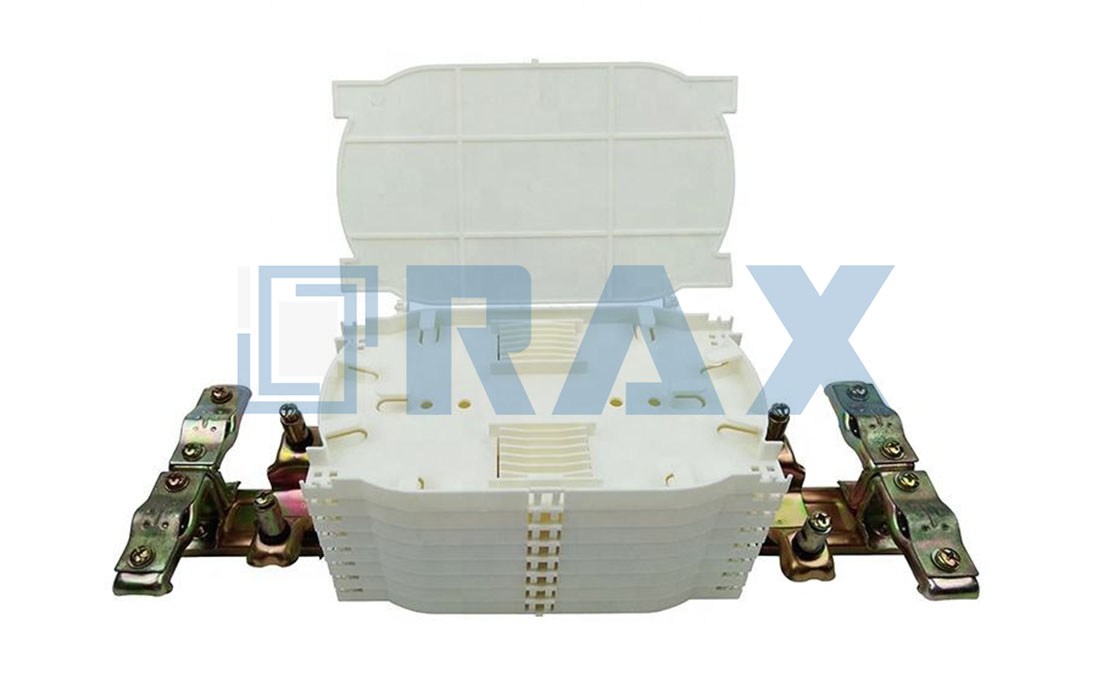

The Drop Termination Closure is a compact enclosure for low-count splice applications in fiber optic networks, supporting both in-line and butt splice configurations with flat and small drop cables. The snap-together design enables quick, tool-free installation, while flexible grommet sealing technology delivers IP68-rated protection against dust and water ingress across varied deployment environments.

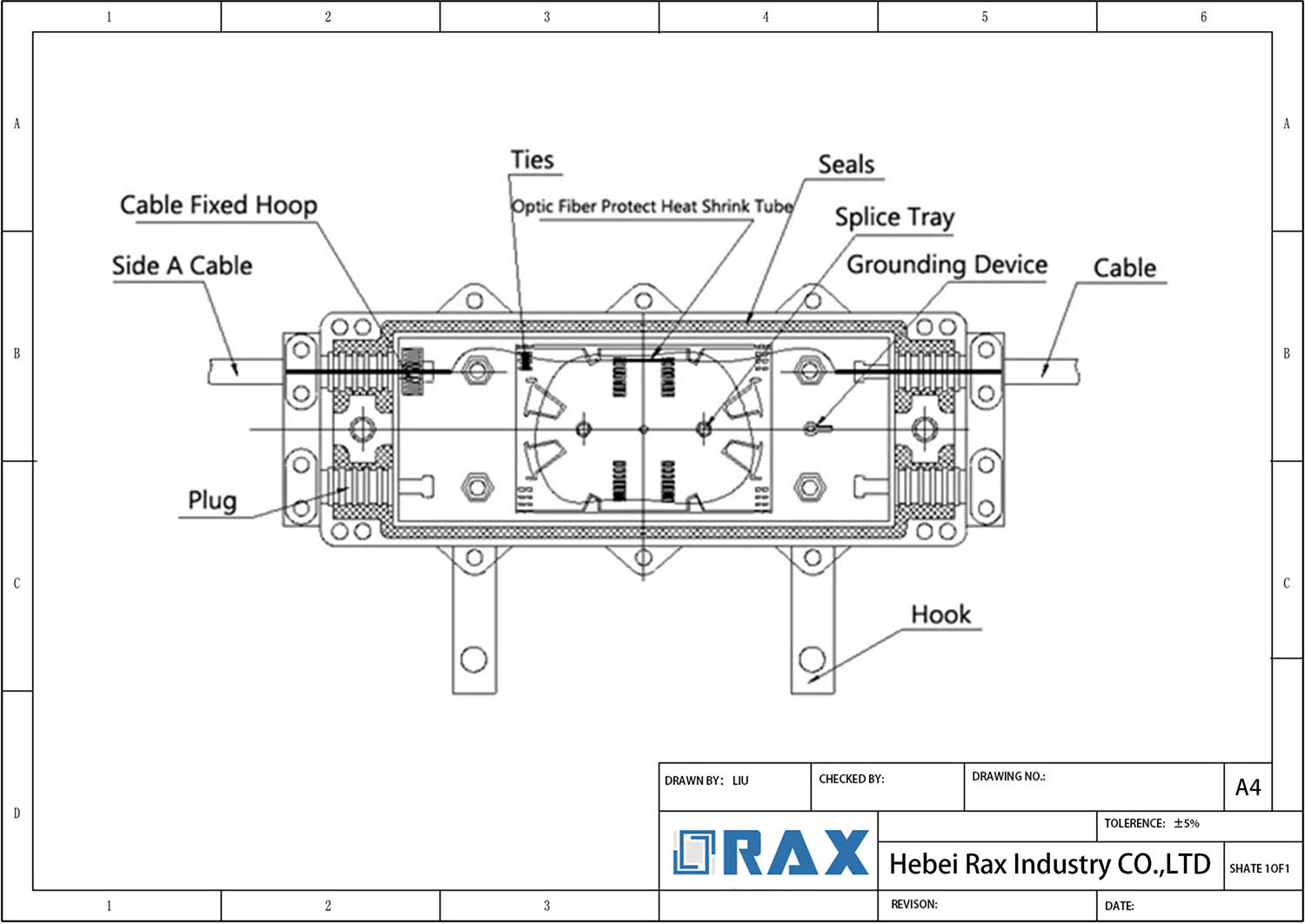

The closure accommodates cables from 0.170 to 0.370 inches in diameter through port sealing grommets, with dimensions of 9.1 inches length, 7.6 inches width, and 1.7 inches depth. Four corner entrance ports allow flexible cable routing, while the internal organizer manages buffer tube or ribbon cable for orderly fiber storage. A factory-installed permanent gasket enables re-entry and repeated use without compromising the seal.
The patented LITE-GRIP® Splice Block System supports up to 16 single fusion splices or 36 ribbon fusion splices, accommodating mass fusion splices, mechanical splices, and Planar Lightwave Circuit (PLC) splitters within one unit. This versatility adapts to evolving network requirements while maintaining compact form factor and environmental resilience.
Suitable for direct buried, below grade, pole mount, wall mount, and aerial installations, the closure’s rugged construction and reusability reduce labor and material costs for service restoration, making it an economical solution for diverse fiber network applications.
Drop Termination Closure Supplier for Flexible Fiber Solutions
RaxPower, based in Hebei Province, China, is a professional manufacturer with over 21 years of experience in the pole line hardware industry. Our Drop Termination Closure provides the ultimate level of application flexibility for fiber drop distribution applications. Leveraging our expertise in R&D and advanced manufacturing processes, this closure ensures reliability and durability in harsh environments, supported by our commitment to quality and rigorous testing.
The key features of our Drop Termination Closure include:
- Flexible grommet sealing system supports a wide range of flat or round cable profiles, enabled by our precision manufacturing and automated quality control.
- IP68 rating for waterproof and dustproof performance, assured through our multi-stage testing and adherence to international standards.
- Snap-together design allows for quick, tool-free assembly, reflecting our focus on efficiency and user-friendly solutions.
- Constructed with flame-retardant UV stabilized material, backed by our material selection and treatment expertise for long-term resilience.
- Versatile configurations for direct buried, pole mount, or aerial applications, utilizing our experience in durable product design for varied installations.
For any enquiries about quotation or cooperation, please contact us. Our sales team will respond within 24 hours.
| Parameter | Value |
|---|---|
| Configuration | In-Line or Butt Splice |
| Port Quantity | 4 (2 each end) |
| Max Splice Capacity | 16 single fusion, 36 ribbon fusion |
| Dimensions | 9.1″ L x 7.6″ W x 1.7″ D |
| Cable Diameter Range | Up to 0.370 inches |
| Sealing Technology | Flexible grommet |
| Design Features | Snap-together design, no special tools required |
| Applications | Direct buried, below grade, pole mount, wall mount, aerial |
| Internal Organizer | Manages buffer tube or ribbon cable |
| Reusability | Factory-installed permanent gasket allows re-entry and re-use |
| Splice System | Utilizes LITE-GRIP® Splice Block System for single fusion, mass fusion, mechanical, PLC splitters, or combinations |
| Testing Standard | Tested in accordance with TR-NWT-000251 |
Frequently Asked Questions (FAQS)
How do your drop termination closures ensure compliance with industry standards for reliability?
RaxPower's drop termination closures are tested in accordance with TR-NWT-000251 by an outside lab and designed to GR-771 generic requirements, with an IP68 rating for waterproof and dustproof performance, ensuring they meet stringent industry standards for durability and reliability in harsh environments.
What cost-saving benefits do your closures provide?
RaxPower's closures offer a cost-effective solution with a factory-installed permanent gasket allowing re-entry and re-use, reducing maintenance costs. The compact design minimizes material and storage expenses, while the snap-together assembly requires no special tools, significantly reducing installation time and labor costs.
What environments and installation configurations are supported?
The closure is suitable for direct buried, below grade, pole mount, wall mount, and aerial applications. It can be configured for either in-line or butt splice installations, with four corner entrance ports for quick configuration in various environments.
What types of cables can the closure accommodate?
The closure accommodates flat and small drop cables with a wide range of profiles using flexible grommet sealing technology, supporting cable diameters up to 0.370 inches (9.4 mm) for easy cable entry and secure sealing.
What is the splice capacity and what components are included?
The closure supports up to 16 single fusion splices or 36 ribbon fusion splices, with internal organizers for precise fiber management. The standard kit includes port sealing grommets for various cable diameters, single fusion splice blocks, a ribbon splice block, and cable restraint hardware.
