The ADSS Suspension Clamp supports and secures All-Dielectric Self-Supporting (ADSS) aerial fiber optic cables on poles or towers at intermediate routes in telecommunication and power networks. It enables tool-free installation, accommodates cable diameters from 5 mm to 20 mm, and handles breaking loads ranging from 3.8 KN to 50 KN depending on the model.
The clamp features a galvanized steel or aluminum alloy shell providing mechanical strength and corrosion resistance. Inserts use TPR rubber, neoprene, or EDPM bushings to prevent cable slippage while protecting against environmental stress. Some models incorporate UV-resistant nylon or thermoplastic components for enhanced outdoor durability.
Quality control includes maximum tensile strength testing, UV resistance testing, corrosion resistance testing, and temperature cycling tests to verify performance across environmental conditions. The clamp mounts flexibly using J-hooks, eye-bolts, stainless steel bands, or brackets for wood, metal, or concrete structures without specialized tools.
Applications include aerial Fiber to the X (FTTx) and Fiber to the Home (FTTH) network deployments, with span capabilities from under 100 meters to exceeding 300 meters. The clamp supports straight routes or elevation angles up to 25 degrees, providing stable cable suspension in diverse installation environments.
Reliable ADSS Suspension Clamp Solutions
RaxPower is a leading OEM ADSS Suspension Clamp manufacturer with a strong reputation for reliability and quality. Our ADSS Suspension Clamp provides cost-effective and high-quality solutions for securely supporting and protecting aerial fiber optic cables in FTTH and ADSS installations.
The clamp offers:
- High tensile strength with a 3.8 KN load capacity
- Easy installation requiring no tools
- A self-adjusting wedge that fits cables from 3-20mm diameter
It features a conical wedging system to protect cables from mechanical interference.
Constructed from TPR rubber and galvanized steel, providing excellent corrosion resistance and durability. The materials ensure long-term performance in harsh outdoor conditions.
Every clamp undergoes rigorous laboratory testing, including:
- Tensile strength tests
- UV resistance tests
- Corrosion resistance tests
- Temperature cycling from -40°C to 60°C
With strict quality control and 100% inspection, we ensure each product meets the highest standards.
Widely used in:
- Aerial FTTx and FTTH network deployments
- Intermediate pole installations for ADSS cables
- Short-span cable suspension in telecommunication and power networks
As a direct manufacturer with 21 years of experience and advanced processes like hot forging, RaxPower delivers tailored, high-strength solutions. Our philosophy that “quality is life” drives us to focus on customer demand for reliable performance.
Contact us today for more details or technical support regarding ADSS suspension clamps!
| Parameter | Value |
|---|---|
| Cable Diameter Range | 5 mm to 20 mm |
| Breaking Load | 3.8 kN to 50 kN |
| Material – Shell | Galvanized steel or aluminum alloy |
| Material – Insert | TPR rubber, neoprene, or EDPM bushings |

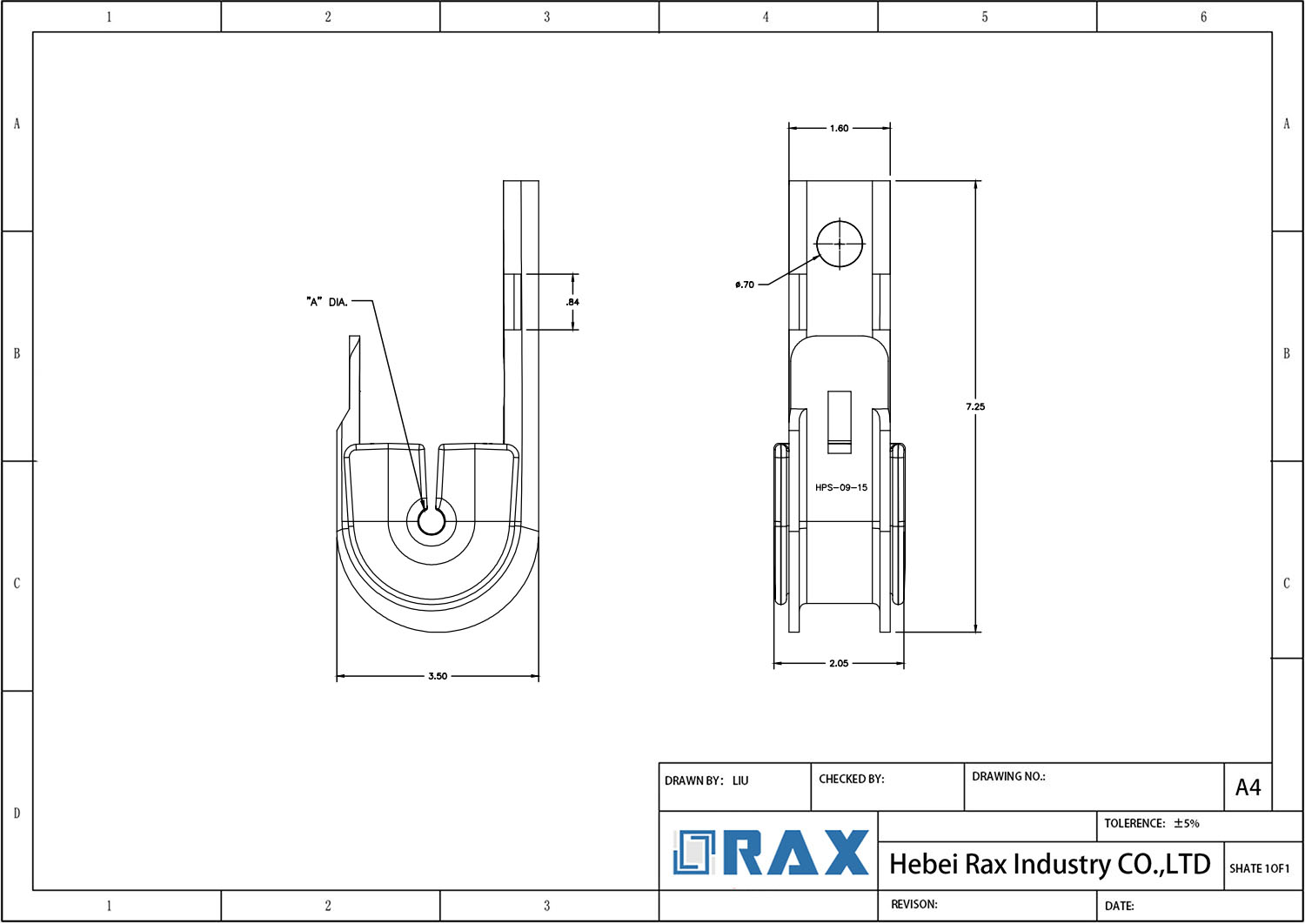

| Dimensions | Approximately 130-135 mm x 70-80 mm x 35 mm |
| Weight | 150 – 160 g (per clamp) |
| Max Span | Up to 600 ft (183 m) or more |
| Warranty | 8 years |
| Installation Method | Tool-free |
| Anti-Slip Design | Yes, with soft rubber inserts |
Related Products
Frequently Asked Questions (FAQS)
What is the primary application of the ADSS Suspension Clamp?
The ADSS Suspension Clamp is used for the installation and support of ADSS round optical fiber cables, specifically for suspending optical cables on transmission lines, in FTTx networks, telecom infrastructure, and aerial power distribution.
Is specialized equipment needed for installation?
No, the clamps feature no-tool installation, allowing for easy mounting using stainless steel bands, pigtail hooks, or brackets. This design saves time and effort in the field, making the process straightforward and efficient.
What range of cable diameters does the clamp accommodate?
The clamp is versatile and suitable for cable diameters from 5mm to 20mm, with multiple models available to ensure proper fit for various cable sizes and diverse project requirements.
What materials are used in the construction of the clamp?
The clamp is constructed with a TPR soft rubber insert and a durable galvanized steel shell, providing a tight grip, damage-free suspension, and excellent corrosion resistance.
What is the mechanical tensile strength of the clamp?
The clamp has exceptional mechanical tensile strength, with a breaking load of up to 3.8 KN or higher, ensuring it can withstand high levels of mechanical stress for reliable performance.
What quality and reliability tests does the clamp undergo?
The clamp undergoes rigorous testing, including tensile strength tests, temperature cycling from -40°C to +60°C, aging tests, UV resistance tests, and corrosion resistance tests, ensuring long-term reliability and consistent performance in various environmental conditions.
