The Guard Arm Brace provides light duty support and stability for crossarms in telecommunications and power construction by bracing the crossarm against the pole. Manufactured from high strength American Iron and Steel Institute (AISI) 1040 Steel, the brace receives hot-dip galvanization for corrosion resistance and durability in outdoor utility environments.

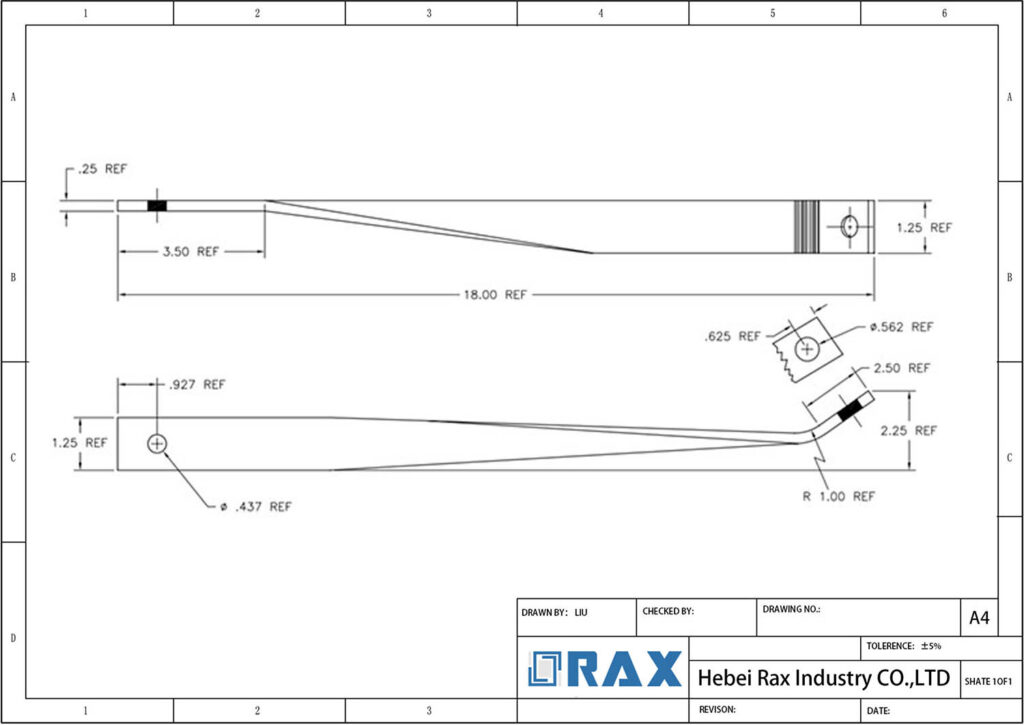

The brace measures 1/4 inch by 1-1/4 inch in cross-section with a standard length of 18 inches and weighs approximately 1.65 pounds. Pre-punched holes—7/16 inch diameter at the crossarm end and 9/16 inch diameter at the pole end—accommodate standard mounting hardware for straightforward installation.
Installation requires fastening the brace to the crossarm using a 3/8-inch diameter bolt through the smaller hole, while a 1/2-inch diameter lag screw through the larger hole secures it to the pole. This mounting configuration ensures proper alignment and structural support for suspended cables or drop wires.
The product complies with American Society for Testing and Materials (ASTM) F2329 for hot-dip galvanizing, which specifies coating thickness and quality requirements. Some versions may also meet ASTM A-153 standards for galvanized coatings, ensuring recognized specifications for corrosion protection and material performance in utility applications.
Enhance Stability with RaxPower Guard Arm Brace Supplier
The Guard Arm Brace provides essential light duty support and stability for crossarms in telecommunications construction, featuring hot-dip galvanized steel for corrosion resistance. At RaxPower, we not only supply these standard components but also deliver customized OEM/ODM solutions tailored to your specific needs.
Our comprehensive approach includes:
- Selection of high-quality materials suited for electrical environments
- Optimization of load-bearing structures for enhanced performance
- Advanced surface treatments like hot-dip galvanizing per ISO 1461
- Flexible manufacturing for both small samples and large orders
With over 21 years of experience based in Hebei Province, China, we reduce project risks and hidden costs, ensuring every product meets stringent quality controls and is delivered on time. Testimonials from global clients confirm our reliability: “The proofing out once through, no rework, too much trouble,” and “Each batch is very stable, never any problems.”
Let’s talk about your next project! Whether you have detailed drawings or just a concept, we’re ready to listen.
| Category | Parameter | Value |
|---|---|---|
| GENERAL | Material | AISI 1040 Steel |
| Finish | Hot-dip galvanized | |
| Standards | ASTM F2329, ASTM A-153 | |
| Stock Size | 1/4 inch x 1-1/4 inch | |
| Hole Size – Crossarm End | 7/16 inch | |
| Hole Size – Pole End | 9/16 inch | |
| DIMENSIONS | Length | 18 inches |
| Weight | 1.65 pounds | |
| INSTALLATION | Crossarm Mounting Bolt Size | 3/8-inch diameter |
| Pole Mounting Lag Screw Size | 1/2-inch diameter |
Frequently Asked Questions (FAQS)
What is the primary use of the Guard Arm Brace?
The Guard Arm Brace provides light duty support and stability for crossarms in telecommunications construction, and offers additional support at pole points where cable or drop wire is suspended.
What industry standards does the Guard Arm Brace comply with?
It complies with ASTM F2329 and ASTM A-153 for hot-dip galvanizing, ensuring quality, corrosion resistance, and durability for power and telecommunications applications.
What material is the Guard Arm Brace made from?
The Guard Arm Brace is manufactured from high strength AISI 1040 steel and is hot-dip galvanized for superior corrosion protection.
How is the Guard Arm Brace installed?
It mounts to the crossarm with a 7/16-inch diameter bolt and to the pole with a 9/16-inch diameter lag screw, providing secure installation.
What are the standard dimensions of the Guard Arm Brace?
The standard size is 1/4-inch x 1-1/4-inch, with a length of 18 inches and a weight of approximately 1.65 pounds.
Is customization available for guard arm braces?
Yes, RaxPower offers customization according to your design requirements, allowing for tailored solutions to meet specific project needs.
How are guard arm braces packaged for wholesale orders?
Guard arm braces are packaged in pallets of 750 units, with each unit weighing approximately 1.65 lb, facilitating efficient logistics and bulk handling.
