The Secondary Spacer maintains consistent spacing between conductors on long spans in electrical systems, preventing flashovers caused by wind, ice, or insulation deterioration. Fabricated from Ultraviolet (UV) stabilized, non-conducting materials such as Polyvinyl Chloride (PVC) or polypropylene, it provides electrical insulation and resists UV degradation. Some variants incorporate recycled plastic for enhanced environmental sustainability.

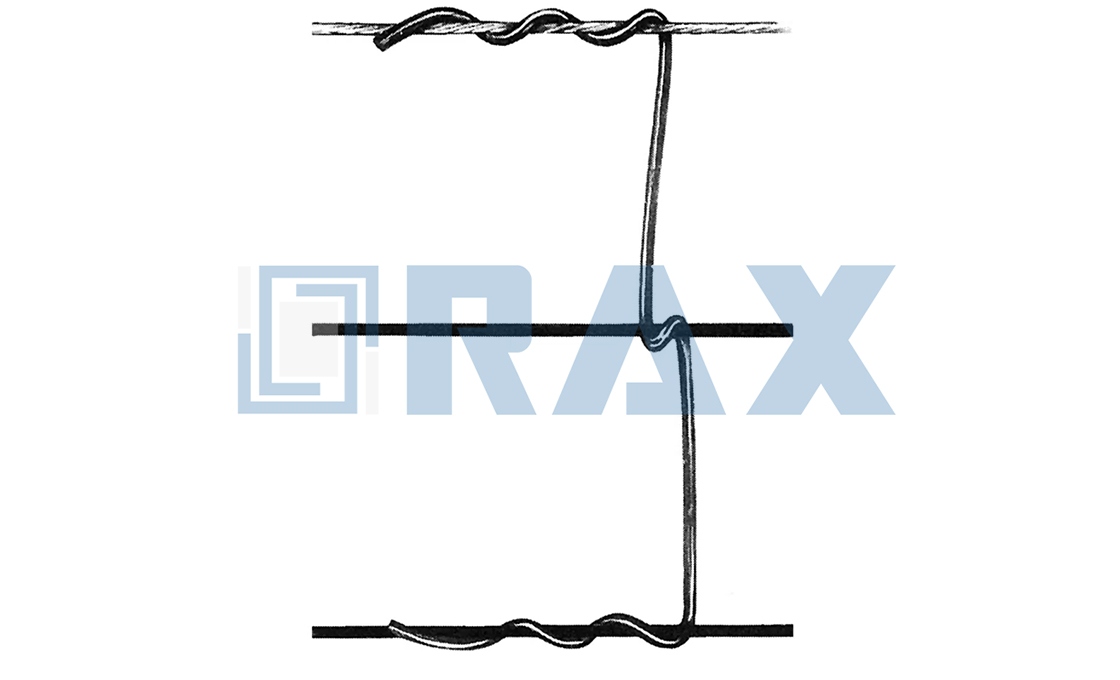

Installation requires no tools: snap the center loop over the middle conductor and wind the top and bottom sections around adjacent conductors. Alternative models feature a bracket secured with tie wires. This simple deployment method ensures conductors remain firmly positioned at specified spacing under various environmental stresses, effectively preventing contact and potential flashovers while accommodating a wide range of conductor sizes.

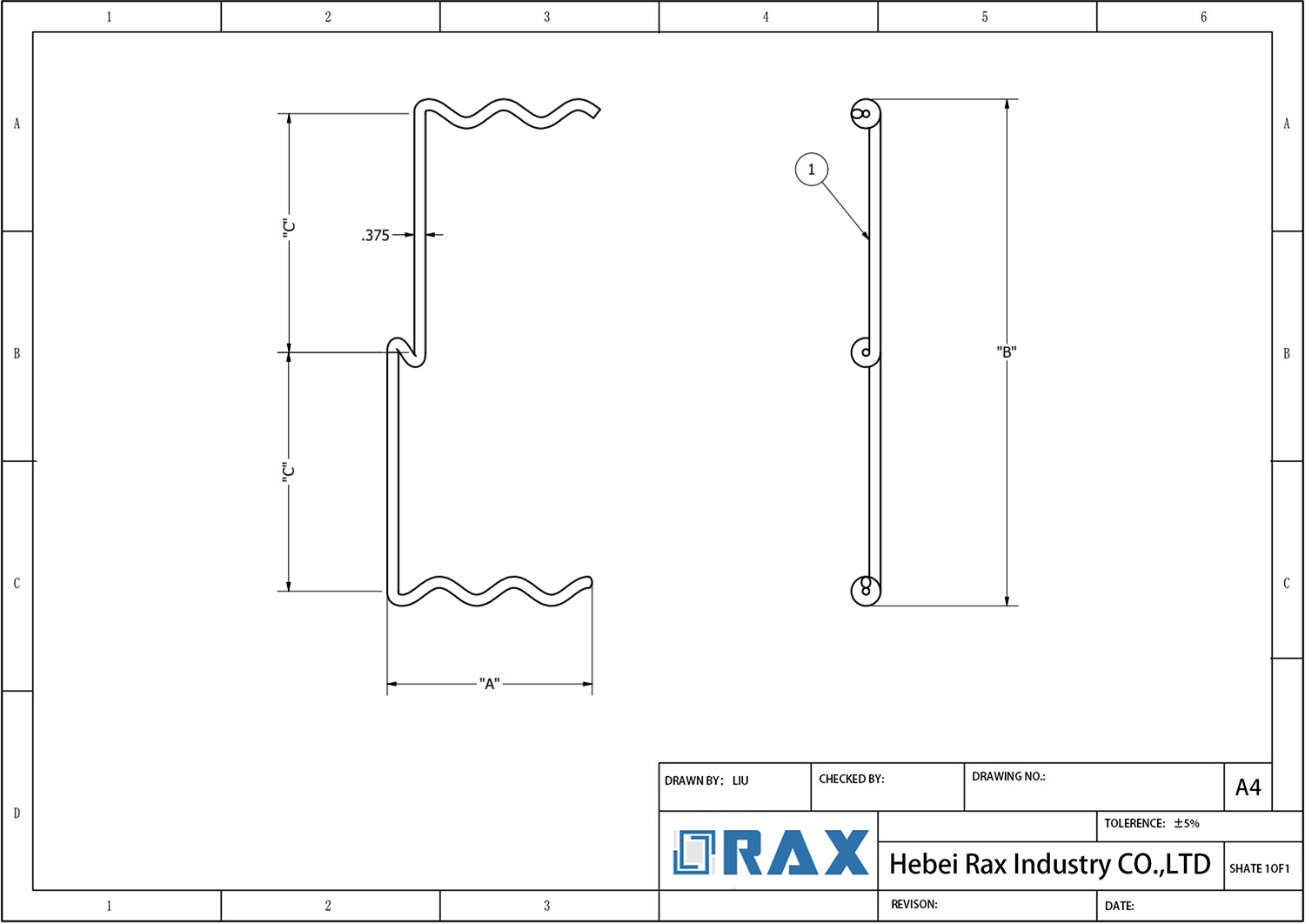

Standard specifications include conductor spacings of 6, 8, 10, 12, and 15 inches, with conductor channel diameters typically ranging from 0.25 to 0.5 inches. Material thickness options are 3/8 inch or 1/2 inch, and slot sizes vary between 3/4 inch and 7/8 inch to fit various conductor diameters. Custom sizes are available upon request to meet specific project requirements, including non-standard conductor spacings or unique environmental conditions.
Secondary Spacer Wholesaler with 21 Years of Expertise
If your application has tight tolerance and calls for a Secondary Spacer, RaxPower can enhance your supply chain flexibility and drastically reduce your inventory with our high quality Secondary Spacers.
We serve customers in various industries, ensuring they have the correct inventory needed to keep assembly lines running smoothly.
When un-forecasted shifts in thickness requirements occur, our manufacturing expertise and integrated processes allow us to react more quickly than competitors, reducing lead times significantly.
Established in 2003, RaxPower brings 21 years of experience, operating from Hebei Province, China, with 17,000 square meters of production workshops and advanced technologies like hot forging for greater strength and precise sizing.
Our strict quality control, including automatic machines, load testing, and galvanization, ensures 100% reliability and durability.
Trust your most precise applications to us, and our Secondary Spacers deliver repeatable precision, reduced lead times, enhanced supply chain flexibility, and a sophisticated color code system for easy identification.
Guided by ethics and integrity, we are committed to high-quality manufacturing as a reliable global partner.
Contact us for custom solutions tailored to your needs.
| Parameter | Value |
|---|---|
| Number of Conductors | 3, 4 |
| Conductor Spacing | 6, 8, 10, 12, 15 inches |
| Conductor Channel Diameter | 0.25 – 0.5 inches |
| Slot Size | 3/4, 7/8 inches |
| Material Thickness | 3/8, 1/2 inches |
| Material | PVC or Polypropylene (UV stabilized) |
Frequently Asked Questions (FAQS)
What is the primary application of the Secondary Spacer?
For maintaining spacing between conductors on long spans or for prevention of flashovers caused by wind, ice or aging conductor insulation.
What material is the Secondary Spacer constructed from, and how does it ensure long-term reliability?
Our secondary spacers are fabricated from UV stabilized, non-conducting PVC material, which is designed to prevent flashovers caused by wind, ice, or aging conductor insulation, ensuring consistent performance and durability over long spans in harsh environmental conditions.
How is the Secondary Spacer installed?
Simple installation: Centre loop is snapped over middle conductor. Top and bottom are wound around the other two conductors. No tools required.
What range of spacer configurations do you stock?
We offer a wide variety of configurations with different conductor spacings (6″, 8″, 10″, 12″, 15″) and conductor channel diameters (0.25″, 0.375″, 0.5″), ensuring compatibility with various conductor sizes and applications for different industries.
Are custom sizes available for the Secondary Spacer?
Yes, custom sizes are available upon request, allowing for tailored solutions that meet unique project needs while maintaining high quality through strict manufacturing controls and multi-stage testing.
What is the typical weight of the Secondary Spacer?
For example, the 8″ spacer weighs 0.235 lb, and the 12″ spacer weighs 0.274 lb.
Can you handle large-volume orders and ensure on-time delivery?
Yes, we supply spacers in standard carton quantities of 100 and pallet quantities of 600, facilitating efficient bulk shipping and reliable delivery for large-scale projects, with options for custom sizes to meet specific requirements.
